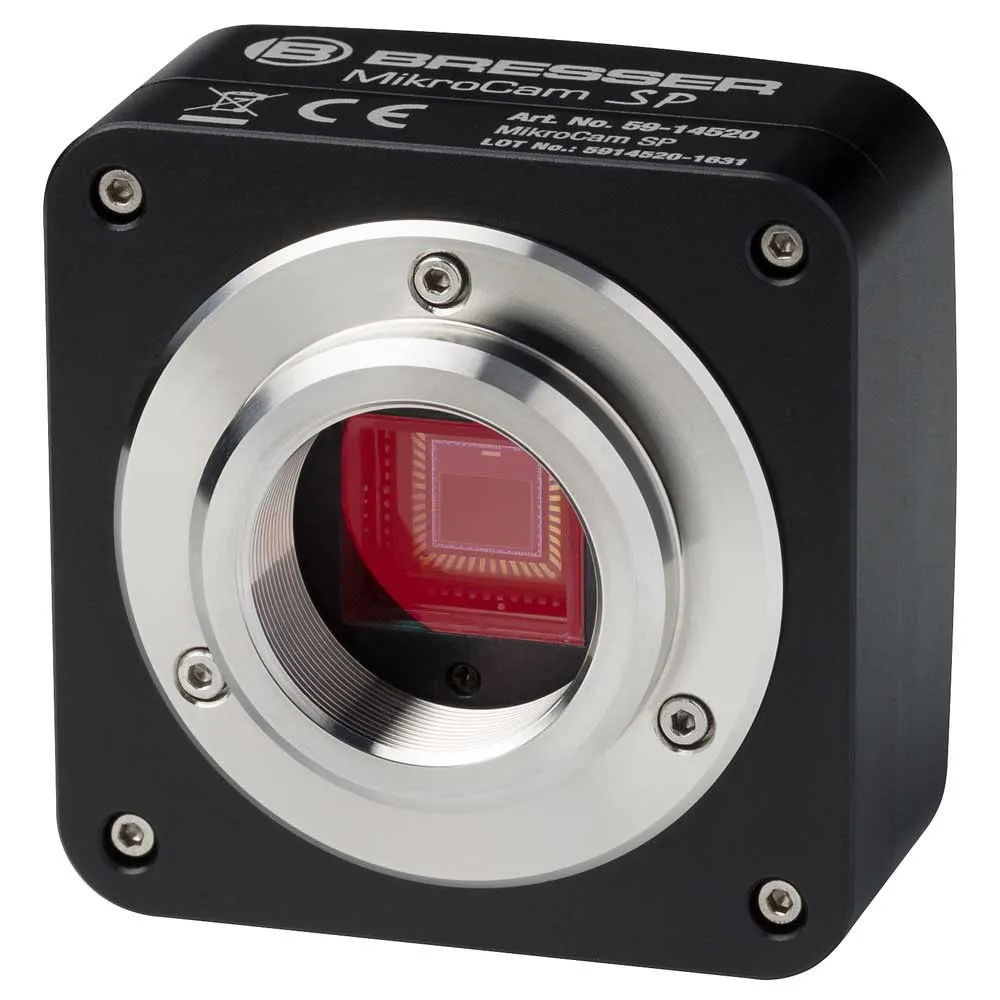

Bresser 5914520 Micro Eyepiece Camera

EU Plug.

The modern CMOS sensors give brilliant colors with very low noise and is the perfect choice for any application where true natural colors are important.

The included imaging software has multiple adjustments for the capture of still images and videos.

The integrated measuring.

- routine allows for a measurement in the camera live image.

The software can be operated in the following languages:German, English, French, Polish, Russian, Turkish, Chinese.

The camera housing includes the c-mount adapter thread.

For use with 23.2mm adaptations, we recommend the optional, variable 0.5x reducer (item no.

5914005).

For special applications the camera can also be mounted using the 1/4´´ camera tripod thread.

Specifications:

- 2592x1944 Pixel Sensor 5.70 mm x 4.28 mm (1/2.5´´).

- High quality metal housing.

- Numerous software functions, e.g.

measurement, focus-stacking (combines several images for more depth of focus), mosaic (for larger image fields).

- Image and video capture, incl.

time lapse function.

- Good compatibility with different microscopes System Requirements:- Windows 8.1, 10 or 11.

- Intel i3, i5, i7 or i9 CPU from the 6nd generation or.

- AMD Ryzen CPU.

- Optical Disk Drive or internet connection for software download.

- USB 2.0 Electronics, Hardware &.

Software:- Data transmission:USB 2.0.

- Resolution:2592x1944 Pixels (5.0 MP).

- Sensor type:CMOS Color.

- Pixel size (µm):2.2x2.2.

- Active area:5.7x4.3.

- Image File Formats:jpg Video Formats:- AVI.

- MP4 (Codec:H.264) General Technical Data:- Material:Aluminium Dimensions & Weights:- Total length:58 mm.

- Total width:58 mm.

- Total height:37 mm.
