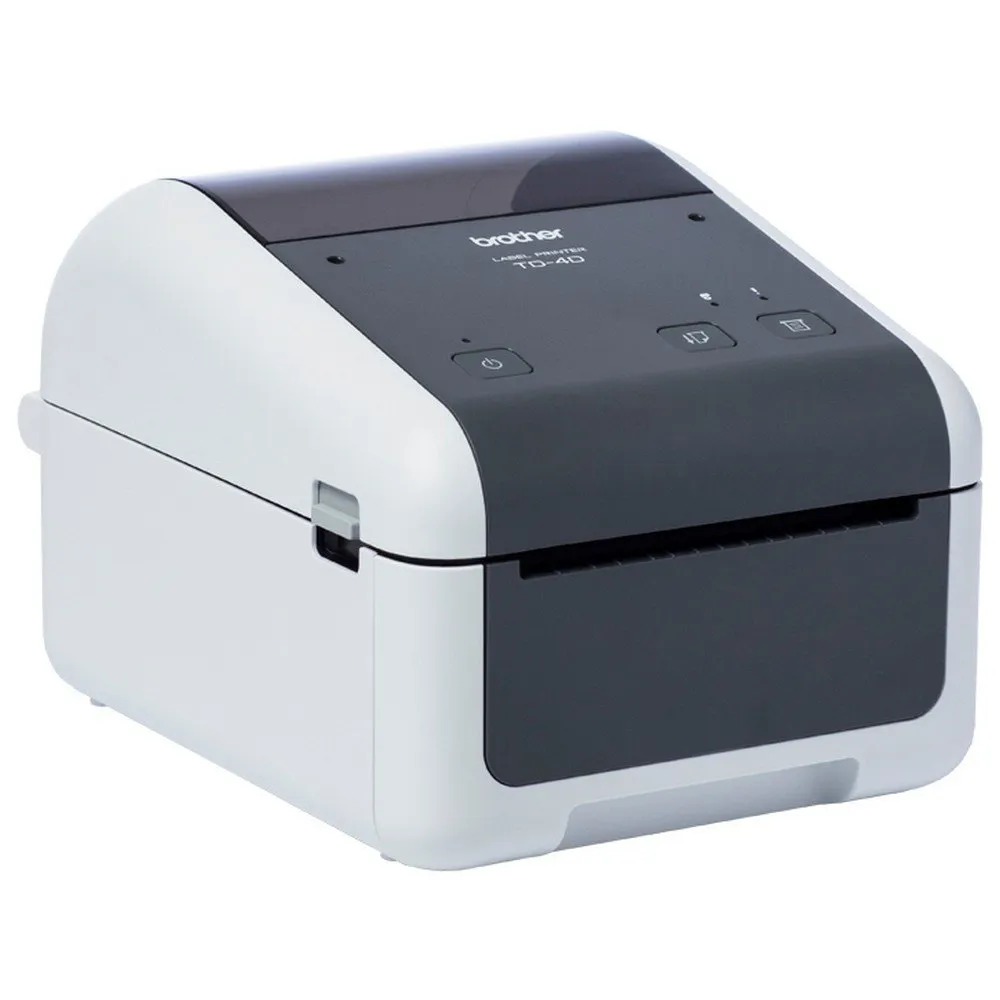

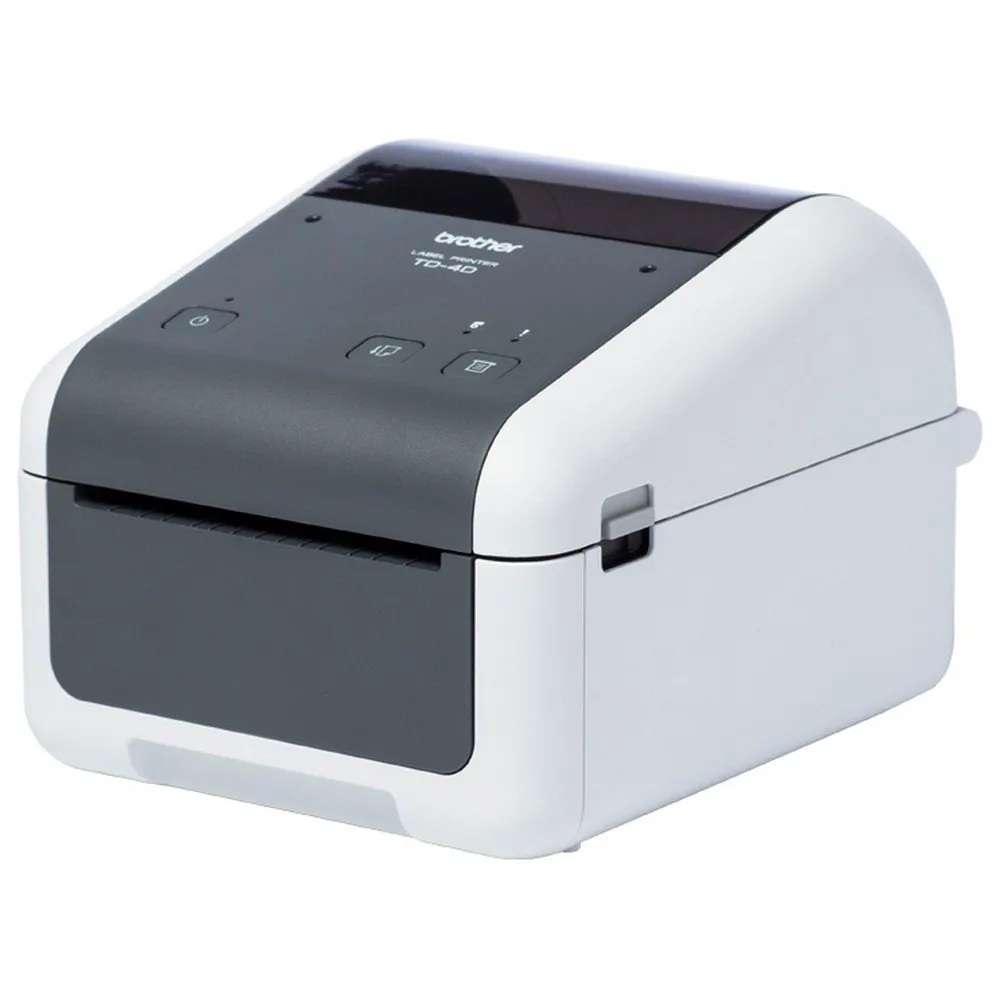

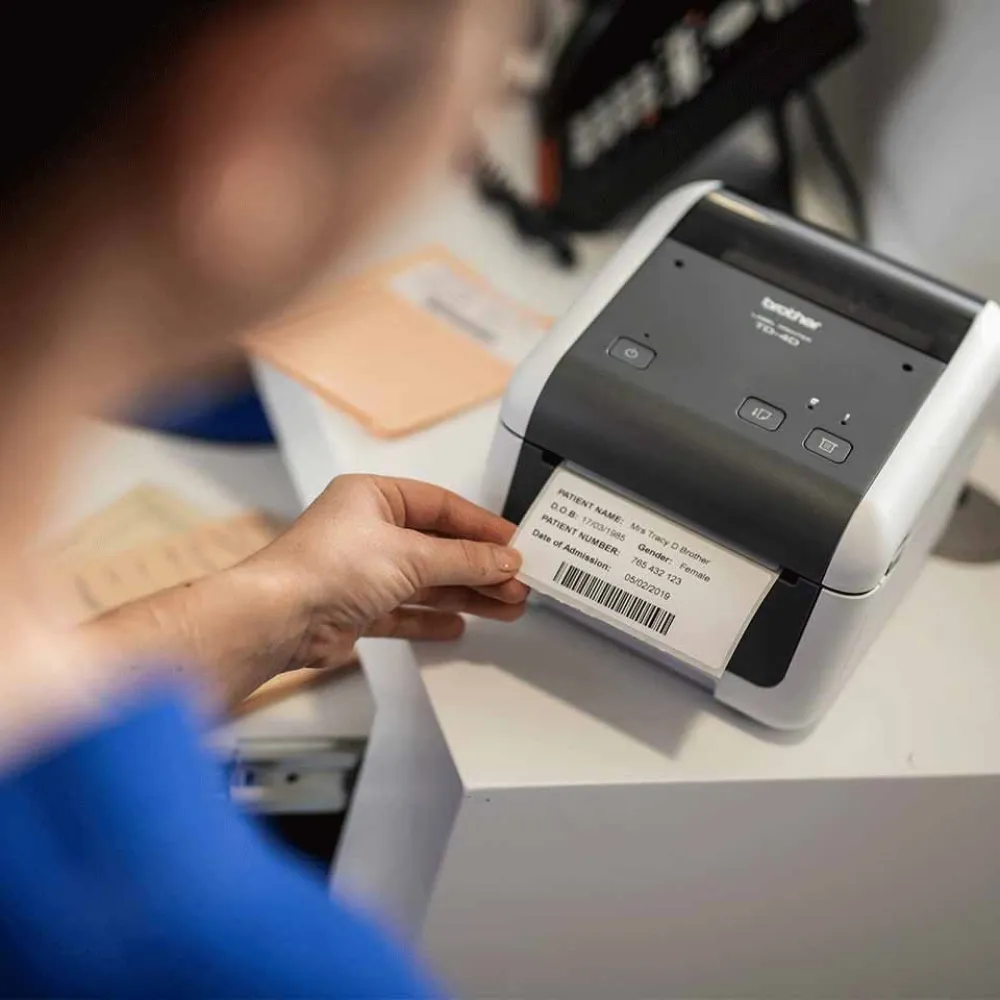

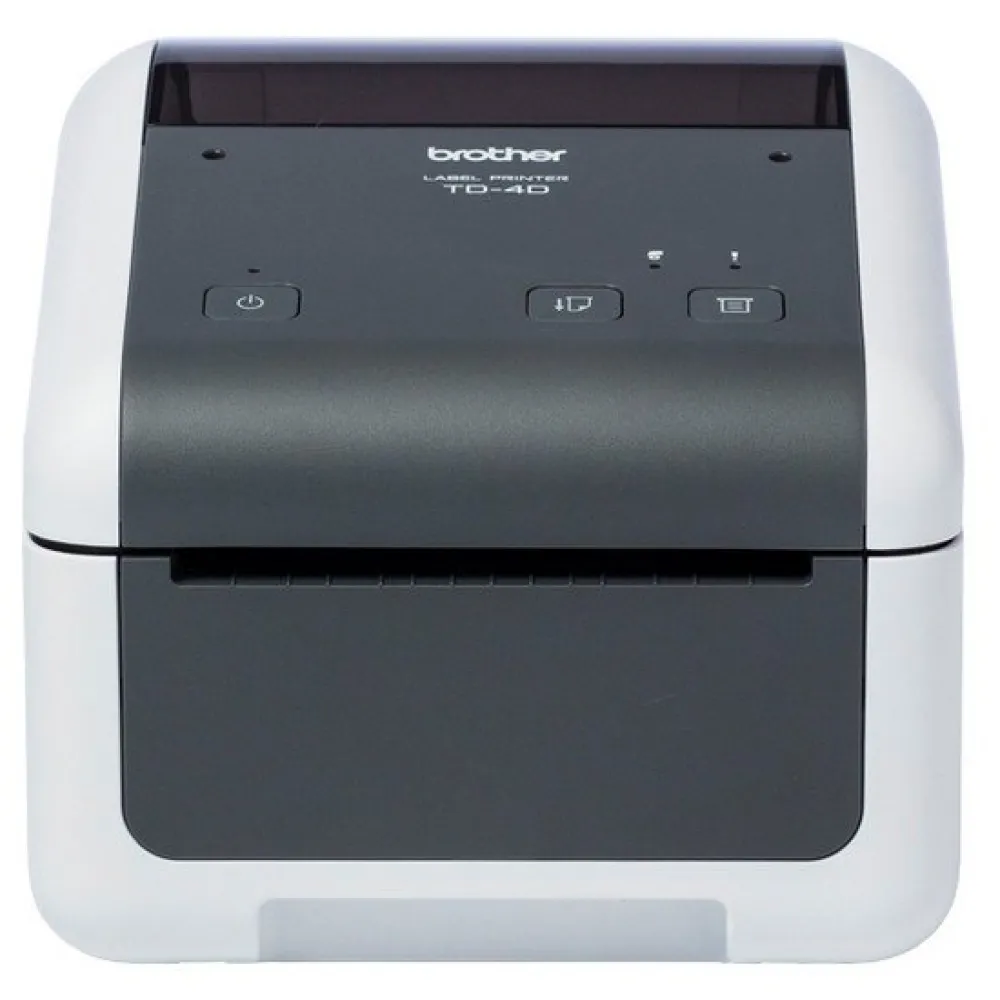

Brother TD-4520DN label printer

EU PLUG.

Print high quality, continuous labels using media up to 118mm/4.65 inch wide.

With built-in network for easy sharing.

- Using direct thermal print technology, accurate images with crisp definition is created.

Great for printing high-volume, temporary labels with barcodes.

- The length of media is automatically calculated with the media calibration function.

Removing the need of manually entering label dimensions.

- With network connectivity, data is quickly shared with different departments.

Make the TD-4520DN bespoke to your needs with a range of accessories including a peeler and cutter.

Features:

- Network connectivity.

- Professional quality up to 300dpi print resolution.

- Fast print speeds up to 6 inches per second.

- Print width up to 4.27 inches / 108mm.

- Easy set-up with automatic media configuration.

- Ready to integrate with iOS and Android apps Crop function:

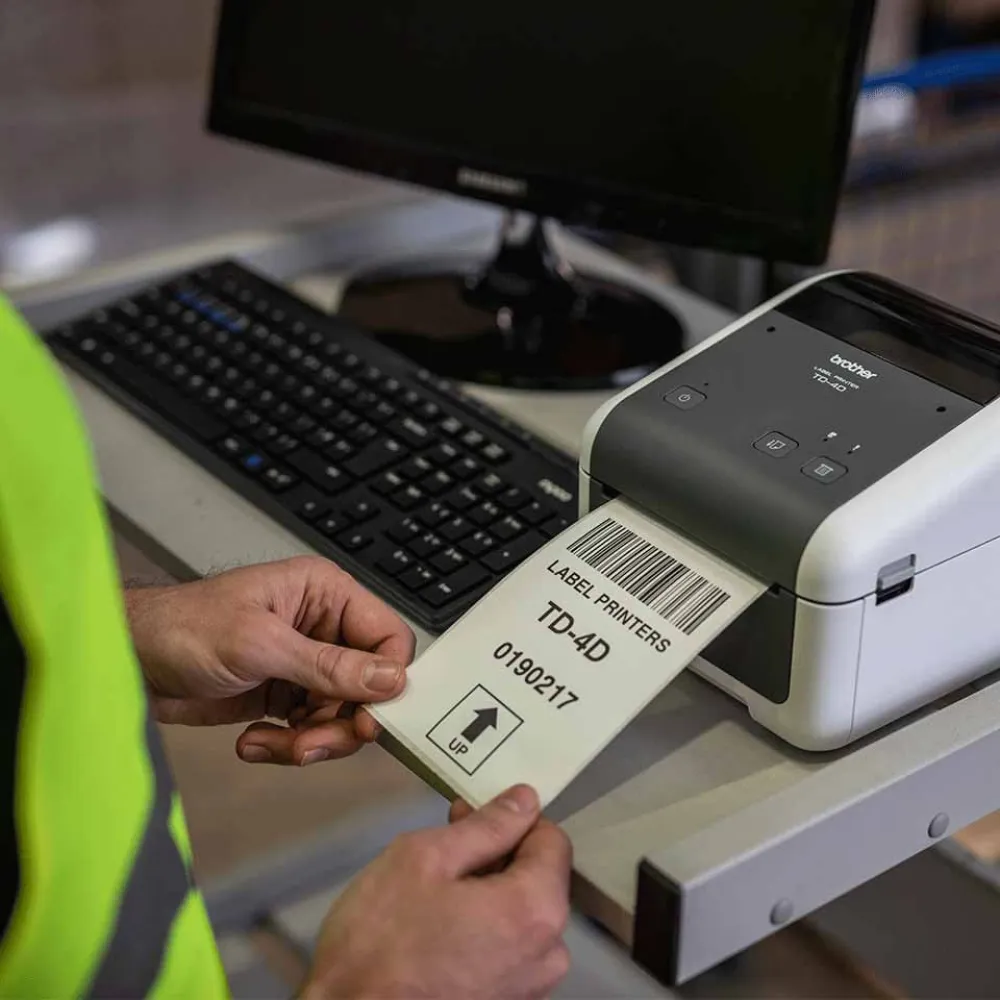

- Ideal for creating shipping labels.

Your A4 dispatch document is scanned and the barcode information is automatically processed.

Individual labels are then printed from your TD-4520DN desktop label printer.

Seamless integration:

- To support integration, many printer command languages are supported.

Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.

Print from your Windows PC:

- Create customer labels using Brother P-touch Editor.

Easily add your company logo or select from hundreds of built-in images, symbols, barcodes and frames.

Also, link to excel data to batch print labels.

Network connectivity:

- Sharing the TD-4520DN is simple with the integrated network port.

Increase your teams productivity with this network desktop label printer.

Many users can share the printer in a variety of locations.

Specifications:

General:

- Maximum label width (mm):

102.

- Office:

Industrial.

- Buttons:

Power, Feed.

- Database upload from PC:

Yes.

- Flash RAM:

40 MB.

- RAM:

256 MB.

- Technology:

Direct thermal Connectivity:

- Serial:

RS232C Original serial cable.

- USB interface:

USB Ver.

2.0 (Full Speed) (Type B).

- Wired network interface:

10/100BASE-TX Dimensions & weights:

- Dimensions:

180 mm (W) x 224 mm (D) x 155 mm (H).

- Weight:

2.08 kg In the box:

- AC adaptor:

Yes.

- Quick setup guide:

Yes Operating systems & software:

- Windows:

Windows 10, Windows 7, Windows 8, Windows Server 2003 & 2008 (32 & 64 bits), Windows Vista, Windows XP Printing:

- 1 dimensional barcode symbologies:

Linear:

CODE 39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR (NW-7), CODE 128, GS1-128(UCC/EAN 128), GS1 Databar (Standard (Omnidirectional)/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded), CODE93, POSTNET, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode.

- Maximum print length:

3000 mm.

- Maximum print width:

104.1 mm.

- Resolution (dpi):

300.

- Standard print speed:

203.2 mm per second.

- Supported commands:

Raster ESC/P P-touch Template ZPL emulation CPCL emulation(CPCL page print mode / CPCL line print mode) SBPL emulation (JP model only) Solutions:

- SDK (Software Development Kit):

Yes.
