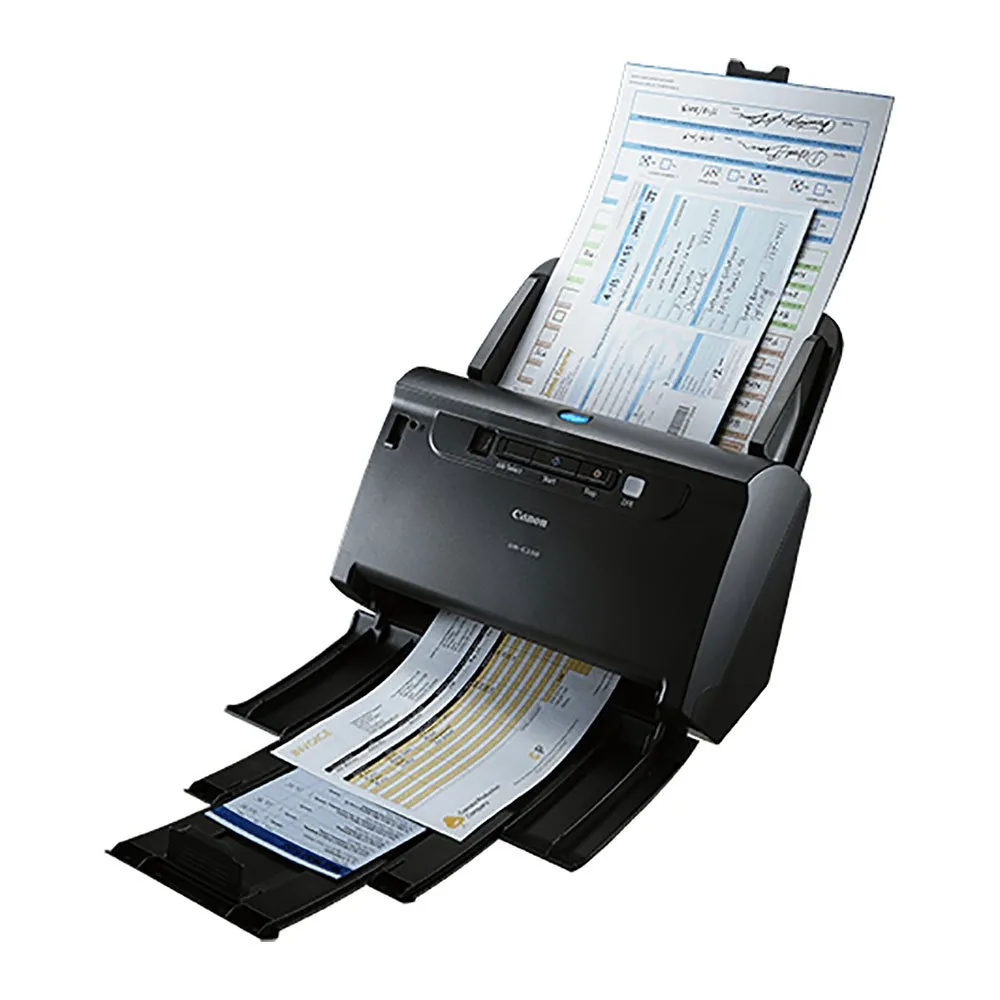

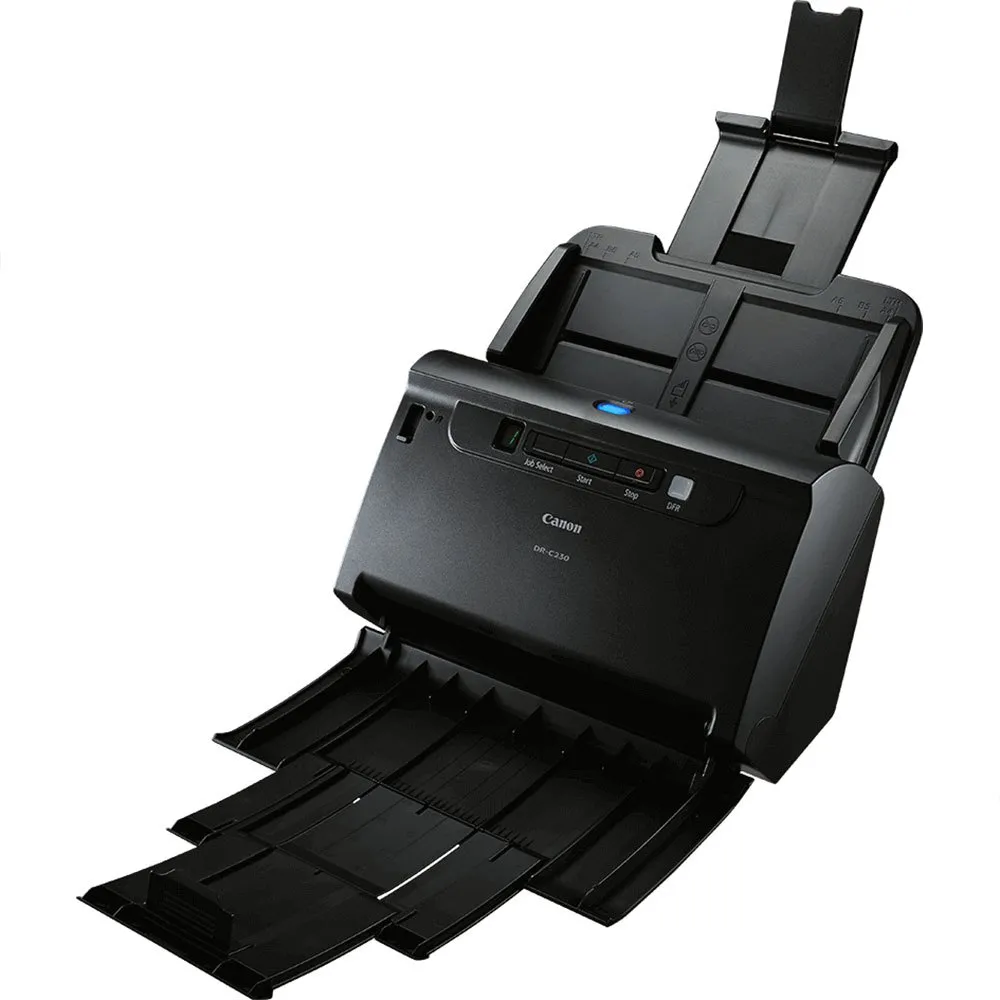

Canon DR-C230 Scanner

EU PLUG.

A compact document scanner with the speed, power and flexibility to thrive in the most-demanding and fast-paced environments.

Small stature, big performance - the imageFORMULA DR-C230 offers consummate reliability and supreme productivity, at an affordable price point.

This robust desktop scanner captures multiple document formats and sizes with ease.

Features:

- Scanning speed:

30 ppm / 60 ipm (B&W and colour).

- Optical resolution:

- Scanning side:

Front / Back / Duplex.

- Automatic Document Feeder.

- Interface.

- Interface:

High-speed USB 2.0.

- Efficient batch scanning.

- Easy, intuitive scanning Premium performance:

- With scan speeds of up to 30ppm and 60ipm, the imageFORMULA DR-C230 offers exceptional productivity at a pleasantly modest price point.

Class-leading reliability:

- The DR-C230 has been engineered to ensure maximum dependability.

Its 60-sheet ADF seamlessly feeds various media sizes, delivering up to 3,500 scans per day.

Simple, swift scanning:

- This convenient desktop model allows users to scan with a single button press, and offers useful Features such as automatic page size and text direction detection.

Broad software selection:

- Featuring an impressive range of applications, the DR-C230 has the tool for every job, with CapturePerfect and CaptureOnTouch V4 Pro included.

Cost-effective operation:

- Consuming just 19W in operation and 1.4W in standby, the DR-C230 is both environmentally and fiscally efficient, without compromising on performance.

Specifications:

General product information:

Type:

- Desktop Type Sheet Fed Scanner Scanning sensor unit:

- CMOS CIS 1 Line Sensor Optical resolution:

- 600dpi Light source:

- RGB LED Scanning side:

- Front / Back / Duplex Interface:

- High speed USB 2.0 Dimensions (W x D x H):

- Trays Closed:

291 x 253 x 231 mm.

- Trays Opened:

291 x 603 x 363 mm Weight:

- Approx.

2.8kg Power requirements:

- AC 100-240V (50/60Hz) Power Consumption:

- Scanning:

19W or less.

- Sleep mode:

1.4W or less.

- Power turned off:

0.1W or less Operating Environment:

- 10.

- 32.5 °C.

- Humidity:

20.

- 80% RH Environmental compliance:

- RoHS and ENERGY STAR Scanning specifications:

- 30ppm / 60ipm Colour:

- 30ppm / 60ipm Output resolution:

- 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi Output mode:

- Error Diffusion/ Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour Suggested Daily Duty Cycle:

- Approx.

3500 scans Document specifications:

- Width:

50.8.

- 216mm Length:

- 54.

- 356mm Thickness:

- 27.

- 209g/m (0.06.

- 0.25mm) Long document mode:

- 3000mm Max Business card scanning:

- Size:

50.8 x 85mm or larger.

- Thickness:

Less than 0.45 mm Plastic card scanning:

- Size:

53.9 x 85.5mm.

- Thickness:

0.76mm (Embossed Card up to 1.4mm thick is supported) Passport scanning:

- Up to 4mm thick (via carrier sheet) Paper separation:

- Retard Roller Method Feeder capacity:

- 60-sheets (80g/m) Special Features:

- Automatic Page Size Detection, Deskew, 3-Dimensional Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Auto Colour Detection, Shadow Cropping, MultiStream, Adjustable gamma settings, Skip Blank Page, Folio Mode, Scan Area Setting, Batch Separation with white blank sheet or patchcode, Moiré Reduction, Prevent Bleed Through/Remove Background, Contrast Arrangement, Background Smoothing, Shadow Cropping, Auto Resolution Setting, Double Feed Release, Double Feed Detection (Ultrasonic Sensor, Length) Bundled Software:

- Windows.

- ISIS /TWAIN Driver (Windows 7 SP1 / 8.1 / 10.

Windows Server 2008 R2 SP1 / Server 2012 R2 / Server 2016).

- CaptureOnTouch Pro.

- CapturePerfect Mac:

- TWAIN Driver Consumables:

- Exchange Roller Kit, Carrier sheet (Passport), Carrier Sheet (A4).
