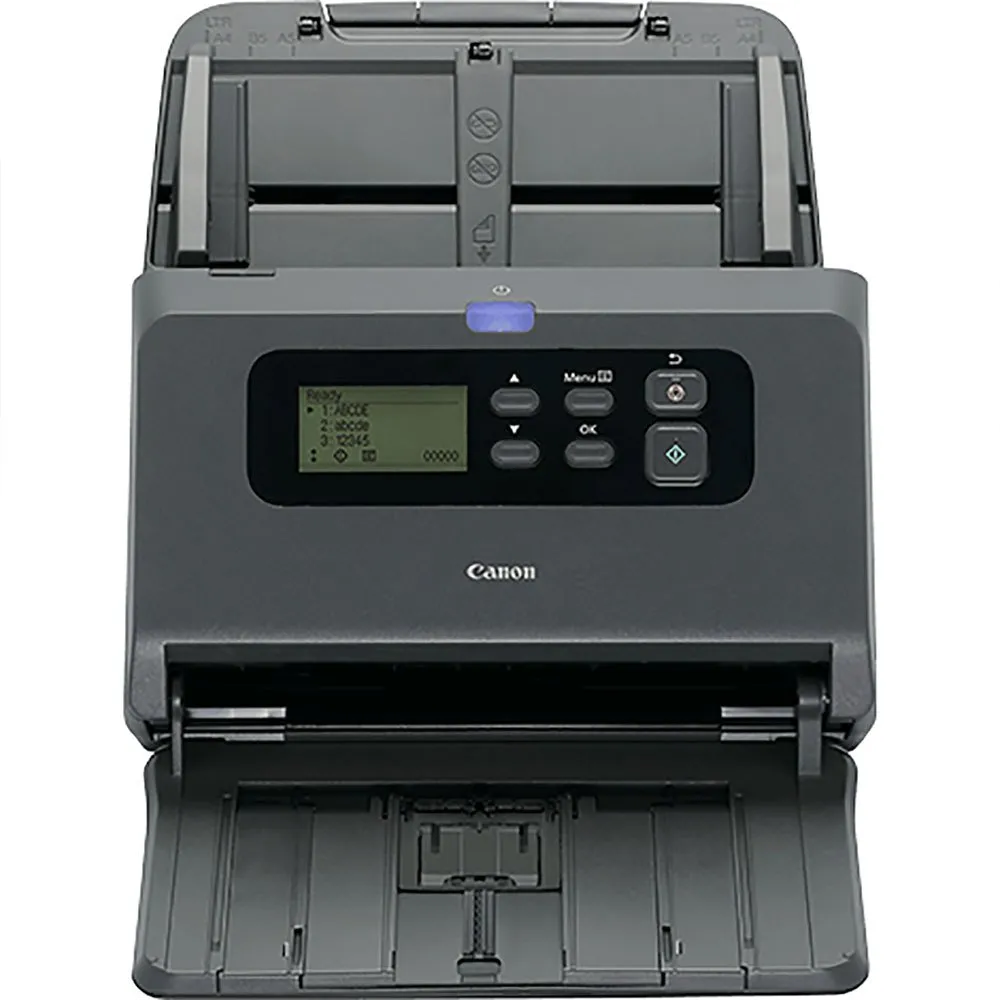

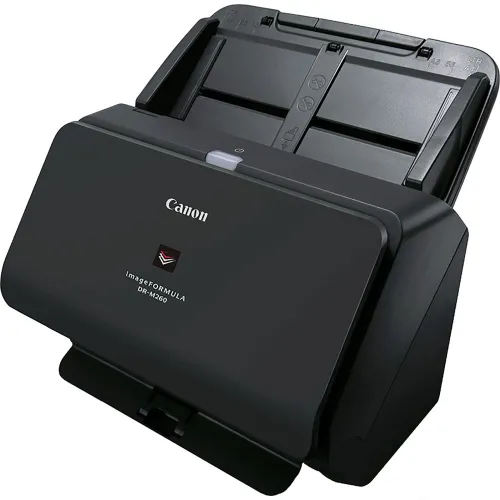

Canon DR-M260 Scanner

EU PLUG.

Robust, reliable, high-speed document scanner, offering impressive image quality and fast capture speeds.

Productivity-boosting, elegantly designed desktop scanner.

The compact imageFORMULA DR-M260 has a small frame, yet produces a big performance.

This dependable scanner is packed with innovative Features and delivers outstanding image quality, with capture speeds of up to 60 ppm/120 ipm.

Features:

- Scanning speed A4 (single sided):

60.

- Automatic document feeder:

80.

- Enhanced image quality using new on-board DR processor.

- Double-sided scanning with wide range of media.

- Efficient batch scanning.

- Large LCD panel with five-line display is mounted on the scanner for easy, intuitive scanning.

- PDF creation and editing.

- Up to 7500 sheets per day Slender, modern design:

- With its contemporary, compact body, the imageFORMULA DR-M260 integrates seamlessly into a wide variety of customer-facing environments.

Fast scanning speeds:

- The new on-board processing chip takes the strain away from PCs, unlocking scanning speeds of up to 60 ppm in black and white, and 60 ppm in full colour.

Virtuoso versatility:

- The DR-M260 tackles media from 27 g/m2 up to 413 g/m2, and furthers its flexible credentials by accepting credit cards, passports, and long-form documents.

Quality and reliability:

- Intelligent image-refining tools are partnered with reliability-boosting Features such as ultrasonic double feed detection and a double feed release button.

Simplified scanning:

- Support for multiple file formats is complemented by network and SharePoint integration.

Kofax VRS, and CaptureOnTouch tools are also included.

Specifications:

Type:

- Desktop Type Sheet Fed Scanner Scanning sensor unit:

- CMOS CIS 1 Line Sensor Optical resolution:

- 600dpi Light source:

- RGB LED Scanning side:

- Front / Back / Duplex Interface:

- USB3.1 Gen1 Dimensions (W x D x H):

- Trays Closed:

285 x 180 x 178 mm.

- Trays Opened:

285 x 254 x 231 mm Weight:

- Approx.3.6kg Power requirements:

- AC 100-240V (50/60Hz) Power Consumption:

- Scanning:

23W or less.

- Sleep mode:

1.4W or less.

- Power turned off:

0.1W or less Scanning specifications:

- 60ppm / 120ipm Colour:

- 60ppm / 120ipm Output resolution:

- 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi, 400 x 400dpi, 600 x 600dpi Output mode:

- Error Diffusion/ Advanced Text Enhancement, Advanced Text Enhancement II, 8-bit Greyscale (256-Level), 24-bit Colour Suggested Daily Duty Cycle:

- Approx.

7500 scans Document specifications:

- Width:

50.

- 216mm Length:

- 54.

- 356mm Thickness:

- 27.

- 413g/m (0.04.

- 0.49mm) Long document mode:

- 5588mm Max Business card scanning:

- Size:

50mm x 91mm.

- Thickness:

Less than 0.45mm Postcard scanning:

- Size:

89mm x 152mm.

- Thickness:

Less than 0.45mm Plastic card scanning:

- Size:

54 x 86mm.

- Thickness:

Less than 1.4mm Passport scanning:

- Up to 6mm thick (via carrier sheet) Paper separation:

- Retard Roller Method Feeder capacity:

- 80-sheets (80g/m) Special Features:

- New DR Processor giving High Speed/quality image processing, Five line LCD Operation panel, Automatic Page Size Detection, Full Auto Mode, Deskew, 3-Dimensional Colour Correction, Colour Dropout (RGB), Colour Enhancement (RGB), Character Emphasis, Text Orientation Recognition, Auto Colour Detection, Shadow Cropping, Adjustable gamma settings, Skip Blank Page, Folio Mode, MultiStream™ support, Batch Separation with blank page or patchcode, Moiré Reduction, Prevent Bleed Through/Remove Background, B&W Contrast, Background Smoothing, Shadow Cropping, Auto Resolution Setting, Ultrasonic Double Feed Detection, Double Feed Release, Separation Retry.

Bundled Software:

- Windows.

- ISIS /TWAIN Driver (Microsoft Windows 7/8.1/10/ Server 2008 R2 SP1/Server 2012 R2/ Server 2016).

- CaptureOnTouch Pro.

- CapturePerfect.

- Kofax VRS.

- eCopy PDF Pro Office Consumables:

- Exchange Roller Kit, Carrier sheet (Passport), Carrier Sheet (A4) Accessories:

- A4 Flatbed Scanner Unit 102.

- A3 Flatbed Scanner Unit 201.

- Barcode Module.

- 2D code Module.
