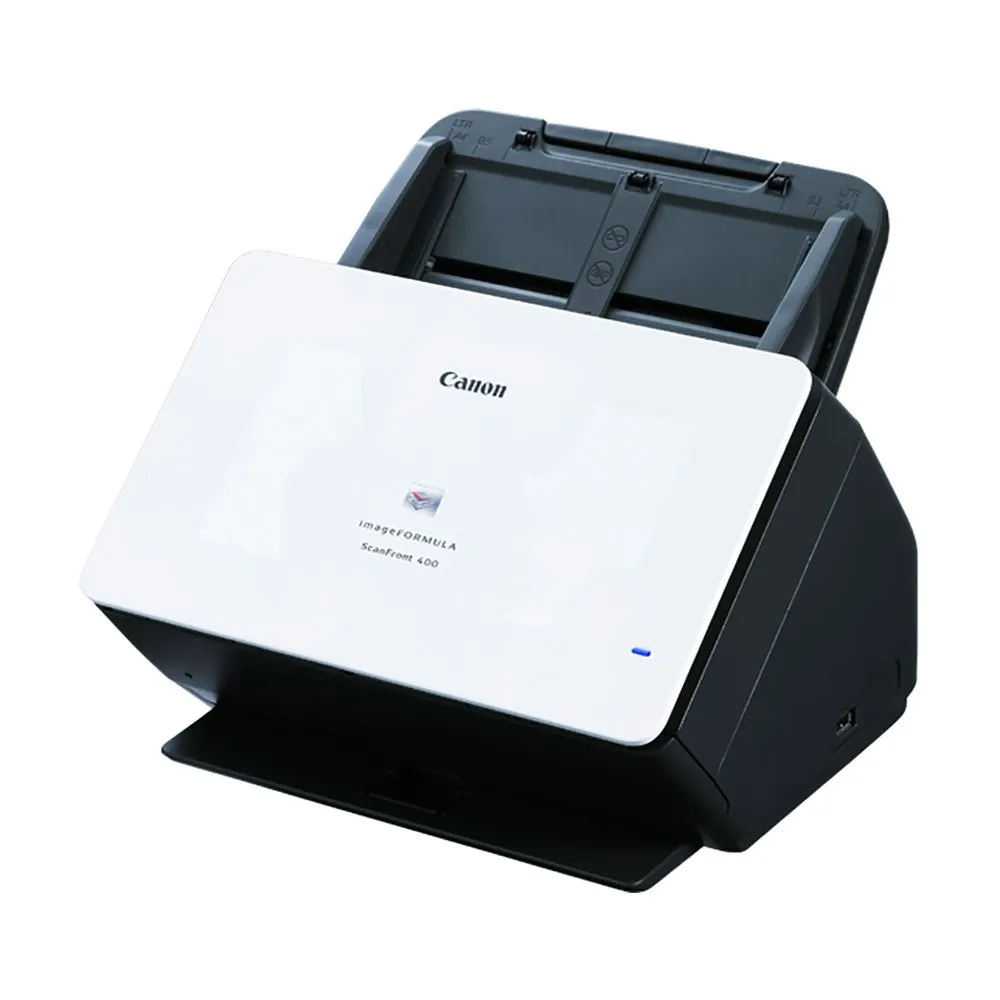

Canon Scanfront 400 Scanner

EU PLUG.

This high-performance standalone network scanner that delivers.

- no PC is required.

- Designed to take the central role in decentralized scanning, ScanFront 400 offers high speed coupled with reliable feeding mechanism to boost efficiency.

- PC-less Network Document scanner.

- Supports Passport scanning.

- Speed:

up to 45 ppm, 2-sided Features:

Compact Standalone Network Scanner:

- ScanFront 400 is able to work independently.

No PC is required for scanning.

Tailored to satisfy the high demands of financial institutions, government, healthcare, legal, etc.

Administrator tool:

- The Administration Tool provides easy management with single operation for all ScanFront devices on the network - up to 1,000 scanners can be managed simultaneously.

Large Screen Touch Panel:

- Equipped with a 10.1 inch touch panel display, ScanFront 400 provides easy readability and navigation.

- Users can preset settings for routine scanning using JOB Button.

Specifications:

General:

- Bundled Software ScanFront Administration Tool Dimensions (W x D x H):

.

- Feed tray and eject tray closed:

- 305 × 281.9 × 230.1 mm.

- Feed tray and eject tray open:

- 305 × 628.5 × 366.1 mm Ejection pockets.

- Interface:

Hi-Speed USB 2.0 (Type A x 3), LAN 10Base-T/100Base-TX/1000Base-T connector.

- MICR.

- On-Board Jogger Operating Environment:

- Temperature:

10.

- 32.5°C.

- Humidity:

20.

- 80% RH Supported Operating System:

Linux Options/ Consumables:

.

- Exchange Roller Kit, Flatbed Scanner Unit 102.

- Carrier Sheet (Passport), Carrier Sheet (A4).

- Power:

AC 100-240 V.

- Power Consumption:

.

- Scanning:

36 W, Sleep mode:

2.0 W,.

- Power Turned OFF:

0.2 W.

- Weight:

Approx.

4.5 kg Scanning Document:

- Feeding Method:

Automatic.

- Document thickness.

- Plain Paper.

- Page Separation mode:

- Weight:

27 to 209 g/m2.

- Thickness:

0.04 - 0.25 mm.

- Non Separation mode:

- Weight:

27 to 255 g/m2.

- Thickness:

0.04 - 0.30 mm.

- Document thickness.

- Postcard.

- Document thickness.

- Business Card:

380 g/m2 or less.

- Document thickness.

- Card (ISO/IEC compliant):

1.4 mm or less.

- Document thickness.

- Passport:

6 mm or less (including carrier sheet) Feeding Capacity:

- 60 sheets (for A4/LTR).

- 40 sheets for document more than A4/LTR.

- Document size.

- Plain Paper (A4/LTR) Width:

50 - 216 mm,.

- Length:

54 - 356 mm.

- Document size.

- Long Document Mode:

Up to 3,048 mm in 200 dpi.

- Document size.

- Postcard.

- Document size.

- Business card:

50 × 85 mm.

- Document size.

- Card (ISO/IEC compliant):

54 × 86 mm Document size.

- Passport:

- 88 x 125 mm (ISO standard).

- When scanning, be sure to open the passport and insert it in the provided carrier sheet (for passports) beforehand.

- Document size.

- Plastic card.

- Document size.

- Magnetic card Scan:

- Maximum Resolution:

600 dpi.

- Scan Resolution:

100 x 100dpi / 150 x 150dpi / 200 x 200dpi / 240 x 240dpi / 300 x 300dpi / 400 x 400dpi / 600 x 600dpi.

- Scanner Element:

CIS.

- Scanner Type:

Pass-through desktop scanner with network compatibility.

- Scanning Modes:

Black and white, Error diffusion, Advanced Text Enhancement II, 256-level grayscale, 24-bit color, Auto Color Detection.

- Scanning Side:

Simplex / Duplex Scanning Speed:

- A4 / LTR, Portrait, 200dpi:

- Black and White:

45ppm (simplex) / 90ipm (duplex).

- Grayscale:

45ppm (simplex) / 90ipm (duplex).

- Colour:

45ppm (simplex) / 90ipm (duplex).

- Suggested Daily Volume (Scans):

6,000.
