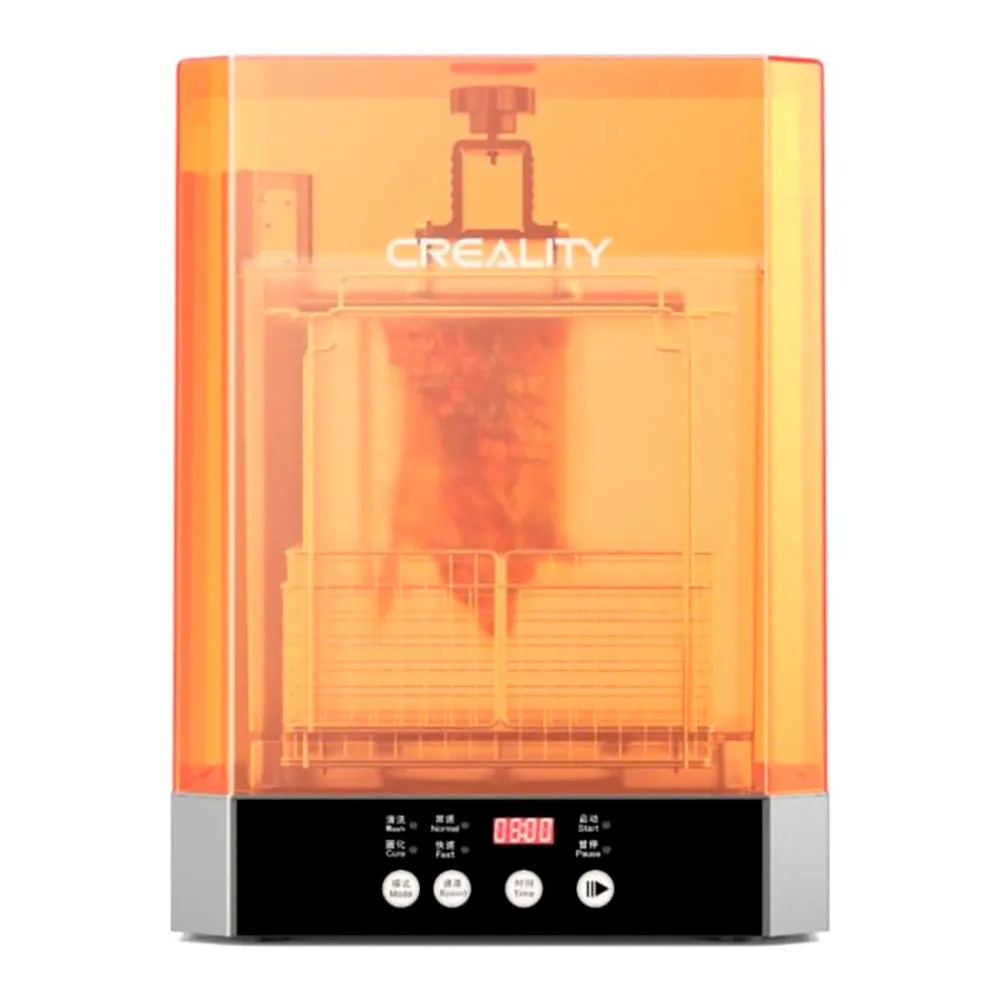

Creality UW-03 Resin 3D Printer

EU Plug.

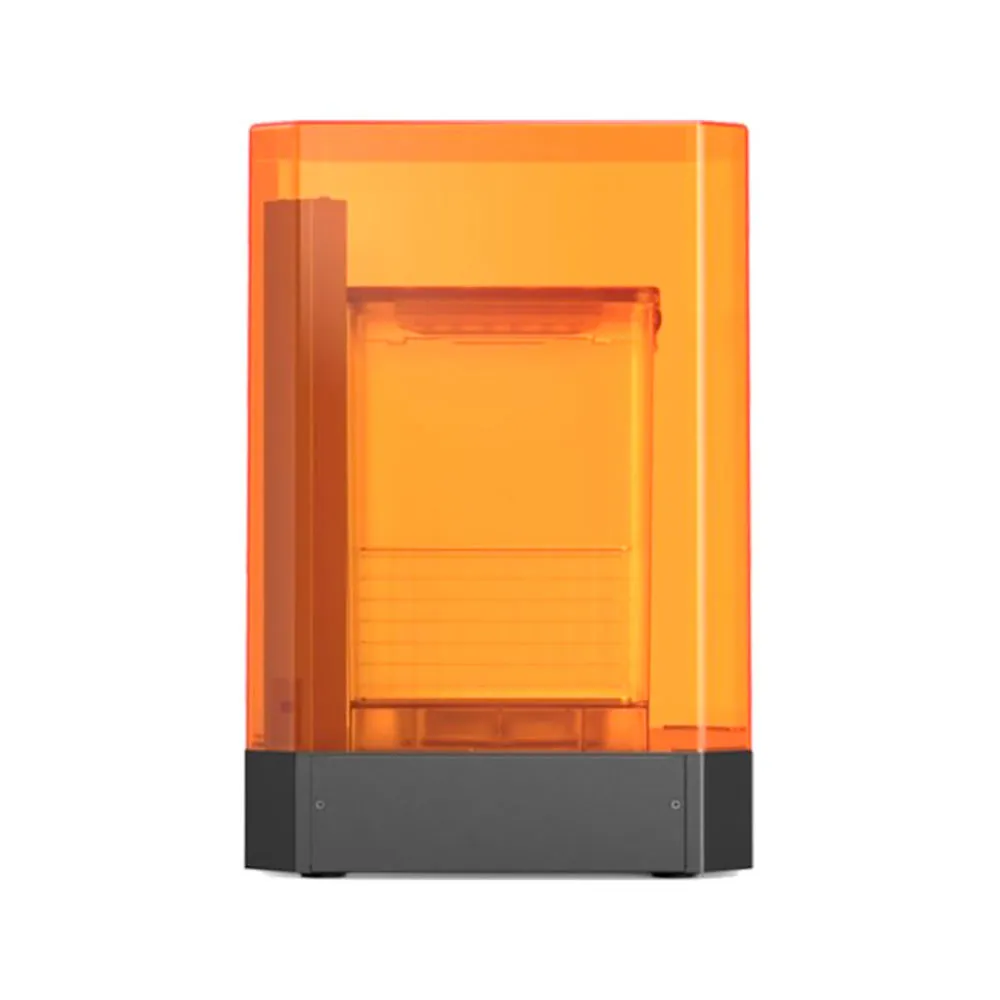

The Creality UW-03 is a third-generation wash and cure station, designed to improve the post-processing of resin 3D prints.

It offers a wash volume of 6.72 L and a cure volume of 10.64 L.

Its sturdy PP container and stainless steel basket ensure durability.

Additionally, it features adjustable speed modes, a 500 rpm magnetic thruster, and 18 405nm UV LEDs for efficient washing and curing.

Features:

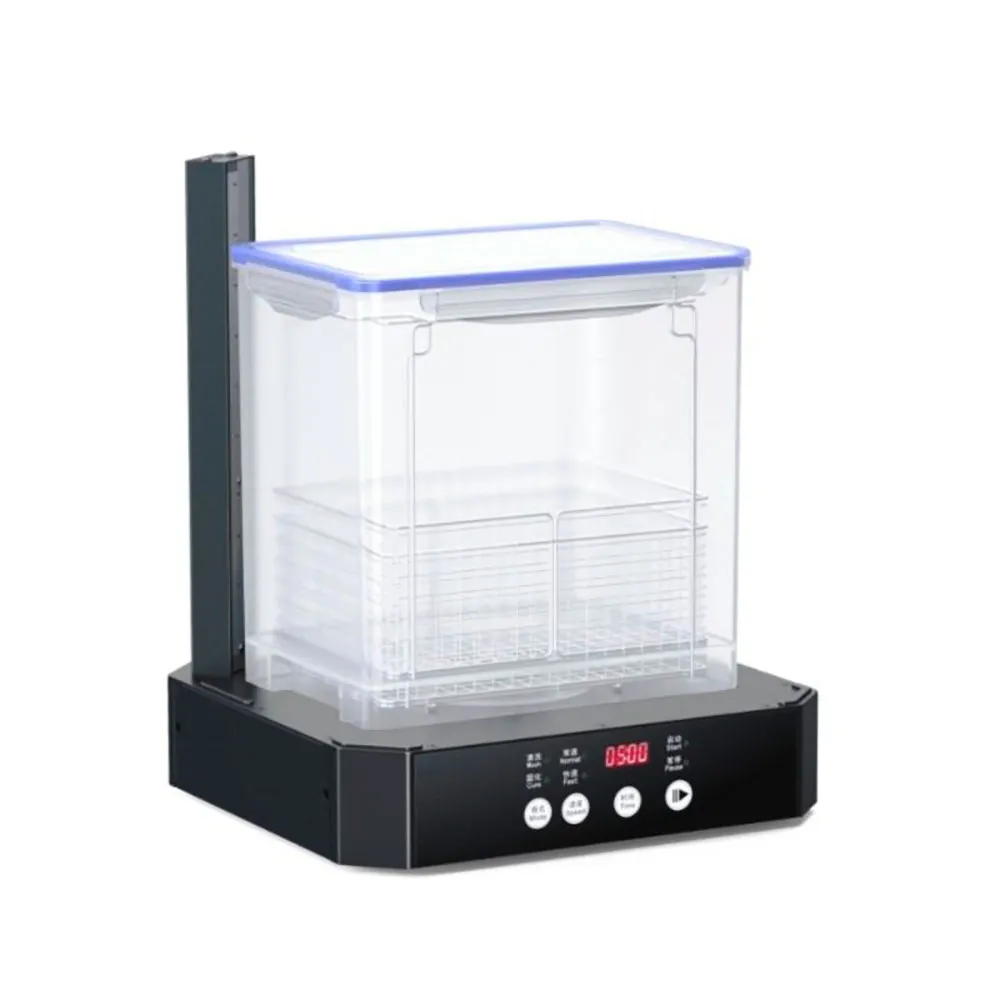

Washing with magnetic propeller:- This washing station features a magnetic propeller that reaches 500 rpm, ensuring efficient and uniform cleaning of submerged objects.

Its container has a capacity of 6.72 liters.

18 UV curing LEDs:- The UW-03 station is equipped with 18 405nm UV LEDs and an adjustable timer from 5 to 30 minutes, allowing the curing time to be customized according to the user´s needs.

In addition, the curing volume is 10.64 liters.

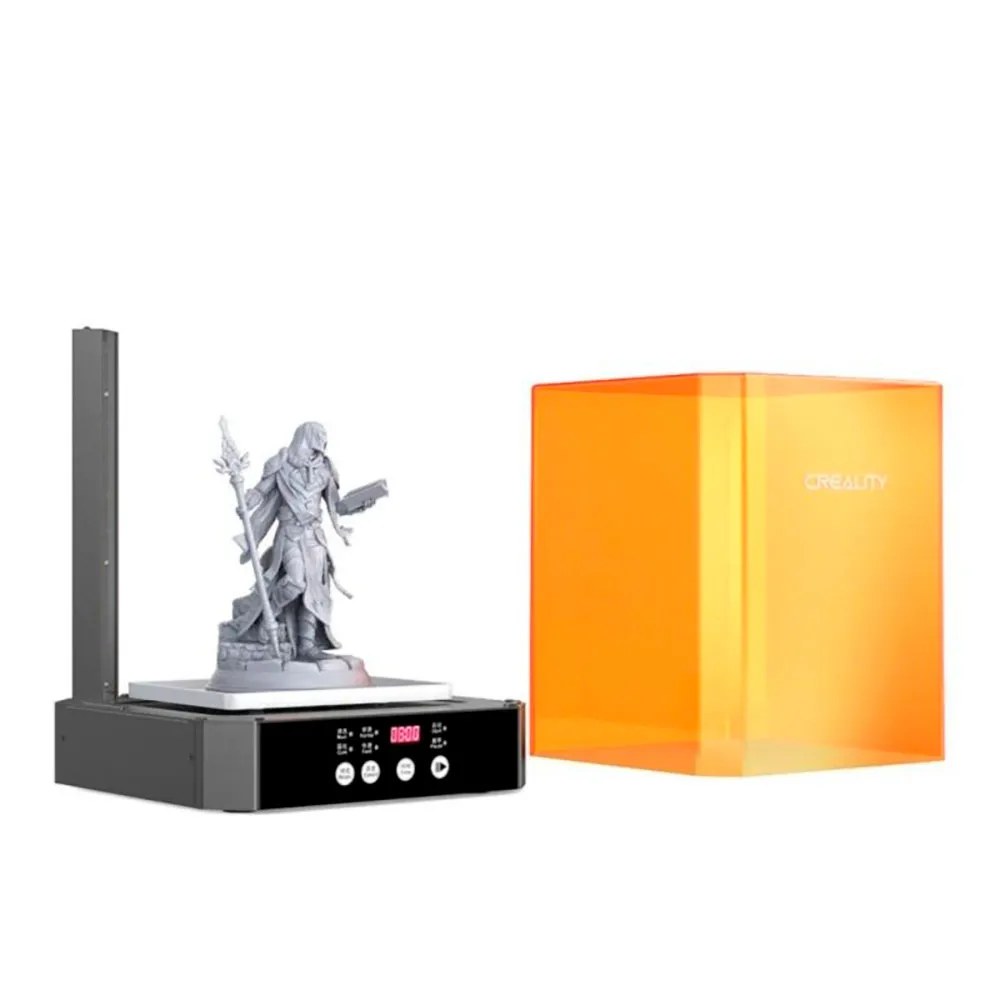

Square turntable:- The Creality UW-03´s square turntable is equipped with a perimeter curb that offers additional stability during the curing process.

The ball-bearing caster system ensures that the platform remains stable.

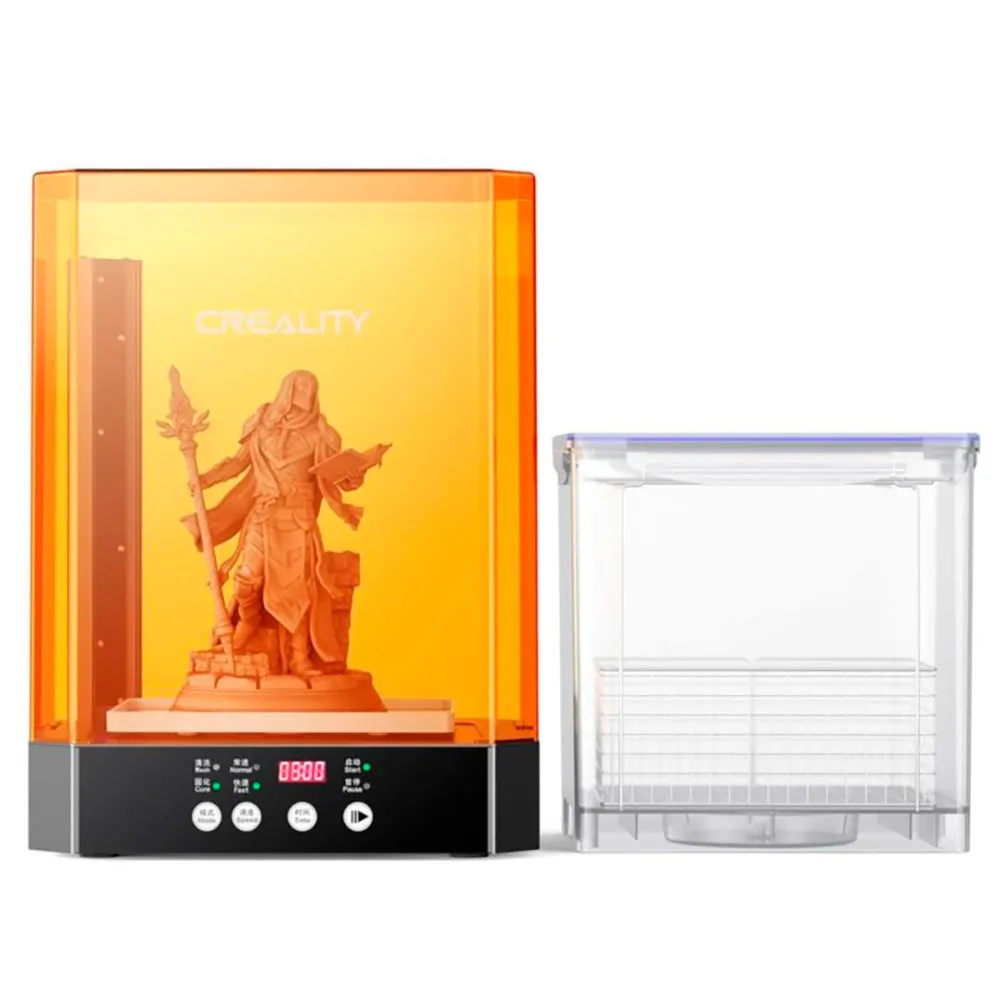

Additionally, the station offers two washing options in a basket or hanging, and two curing options on the turntable or in the basket.

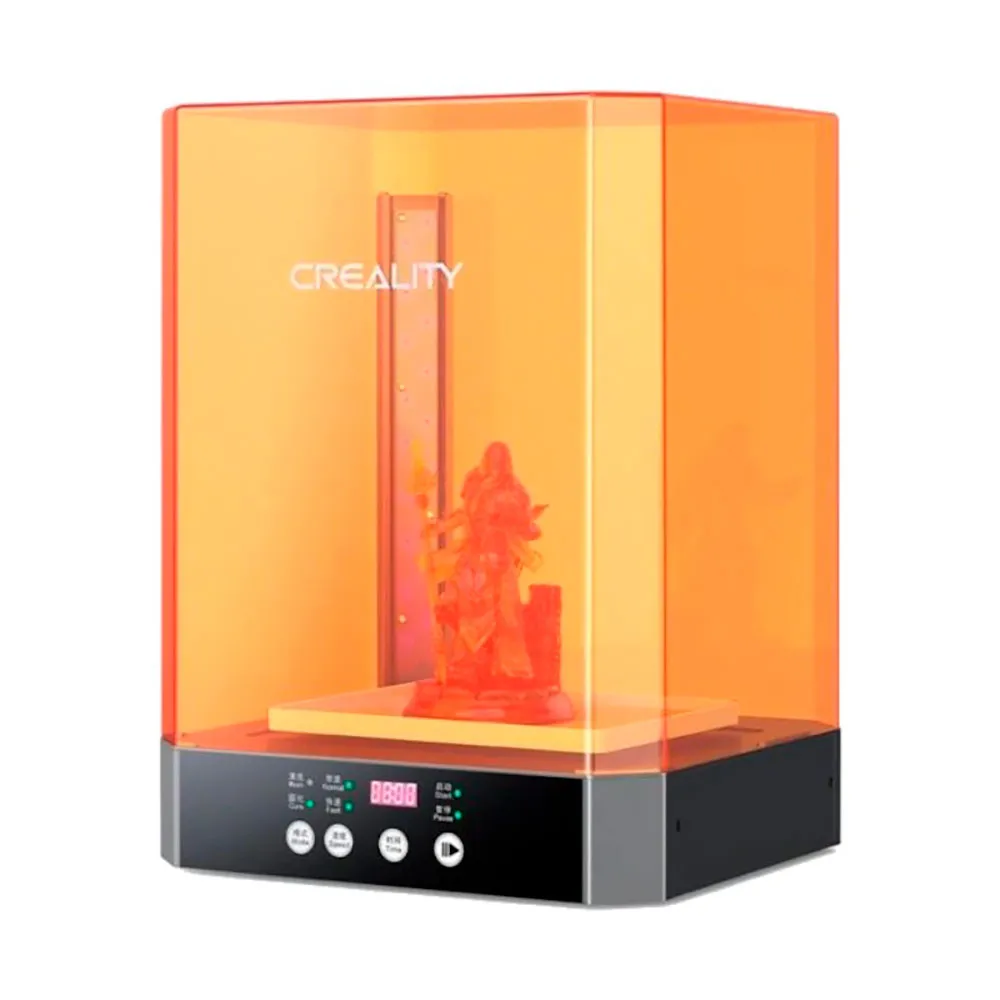

99.9% UV light blocking:- The tinted lid of the Creality UW-03 station blocks 99.9% of UV light, ensuring user safety.

In addition, the curing process automatically stops if the lid is not properly attached.

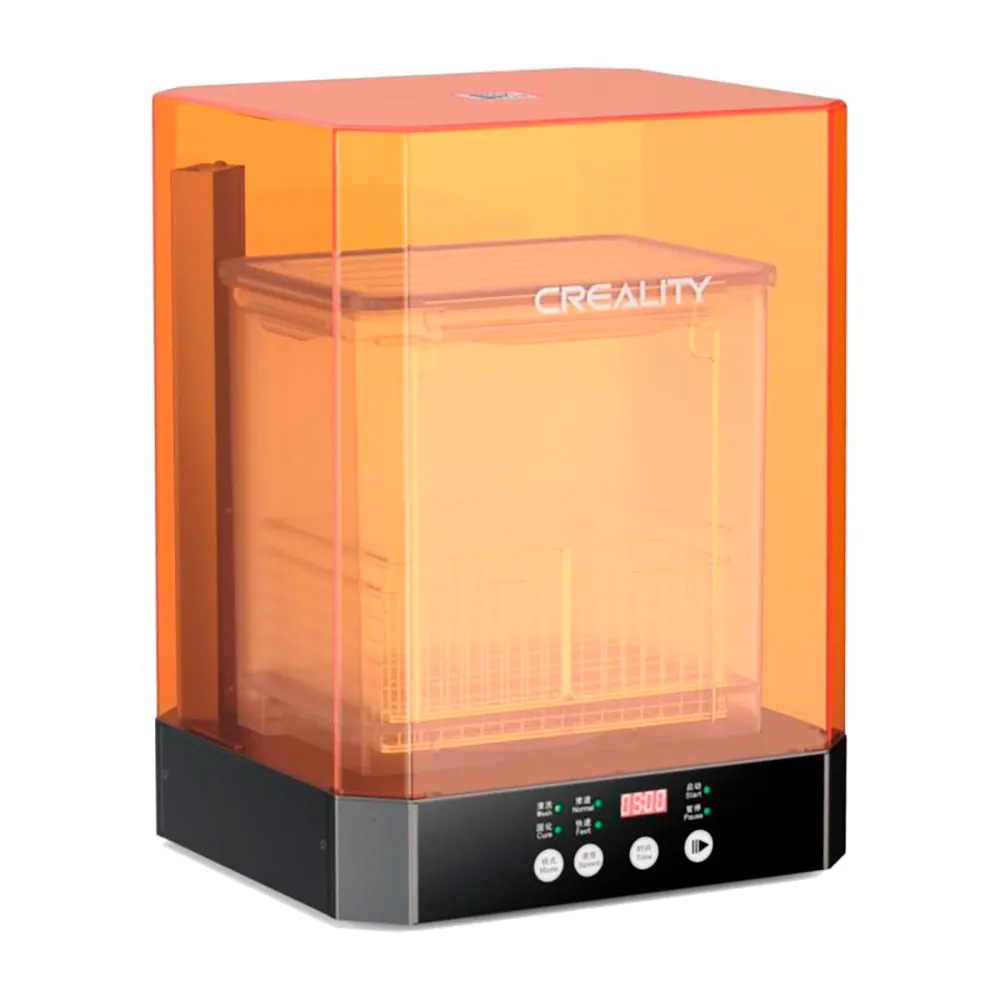

On the other hand, the fully sealed washing container prevents spills and accidents.

Specifications:

Performance:- Wash volume:6.72 L (210 x 160 x 200 mm).

- Curing volume:10.64 L (215 x 165 x 300 mm).

- UV technology:UV LED.

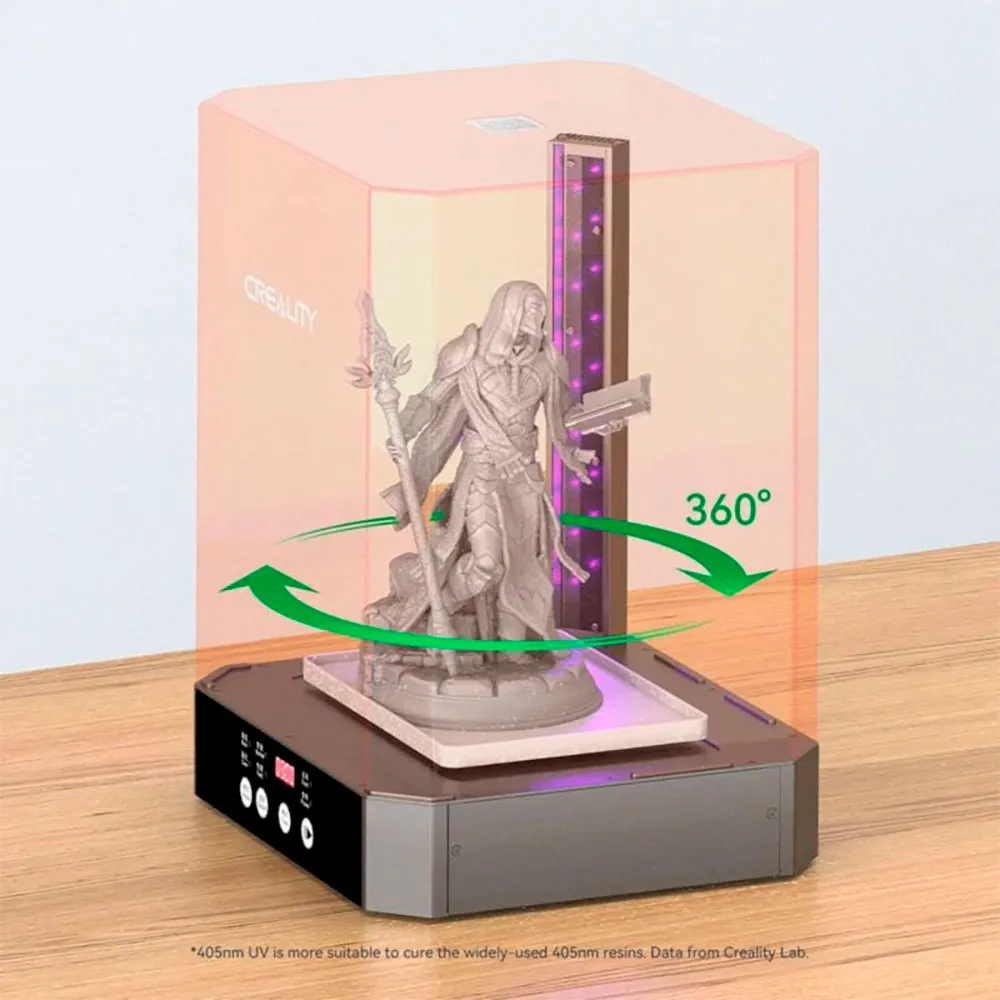

- Type of exhibition:360° uniform while rotating the platform.

- UV wavelength:405 nm.

- Number of UV LEDs:18.

- Type of light:Central.

- Light intensity:>20000 μW/cm².

- Setting the timer:5-30 minutes.

- Speed modes:Fast/Normal.

- Container material:PP.

- Basket material:Stainless steel Safety and protection:- Tinted eyelid:Yes, 99.9% UV blocking to protect your eyes.

- UV cap:Yes, the curing process stops if the UV cap is not in place.

- Sealed container:Prevents leaks, spills and volatilization of liquid during washing Control and functionality:- Speed and time adjustment:Setup in seconds to customize wash/cure based on resin, model size and complexity.

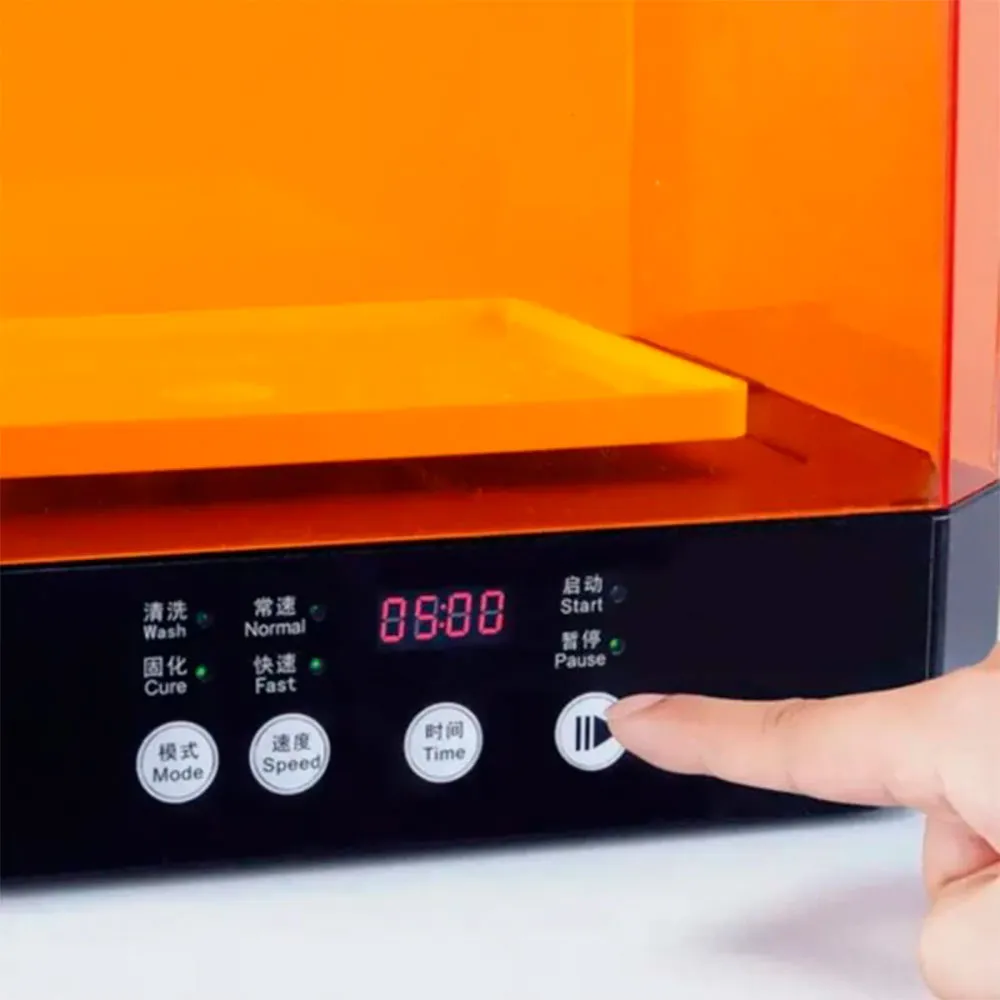

- Physical buttons:Yes.

- Anti-tilt turntable:Uniform curing of perimeter curbs Energy control:- Input voltage:100V-240V.

- Output voltage:DC 24V.

- Nominal.

Power:60W.

- Pressing force:80N.

- Magnetic thruster:500 rpm Dimensions and weight:- Dimensions:325 x 303 x 436 mm.

- Weight:5.4 kg.
