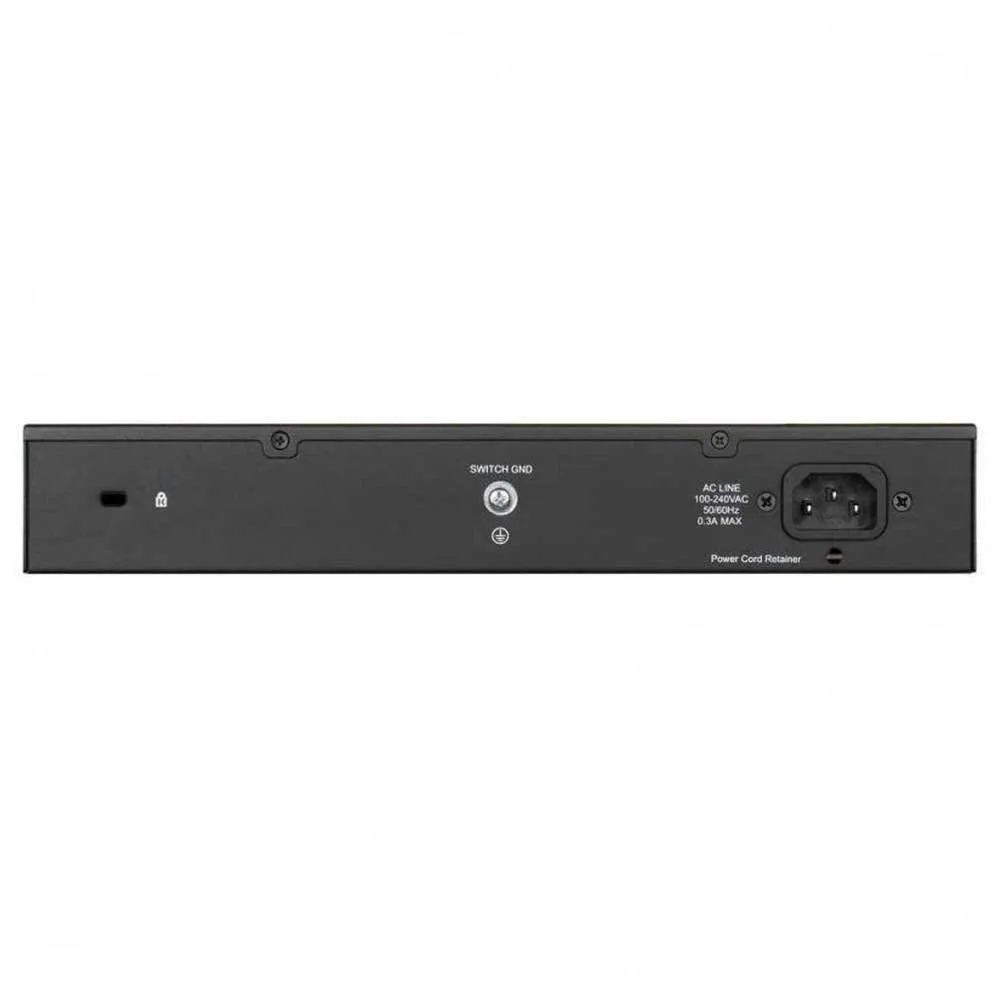

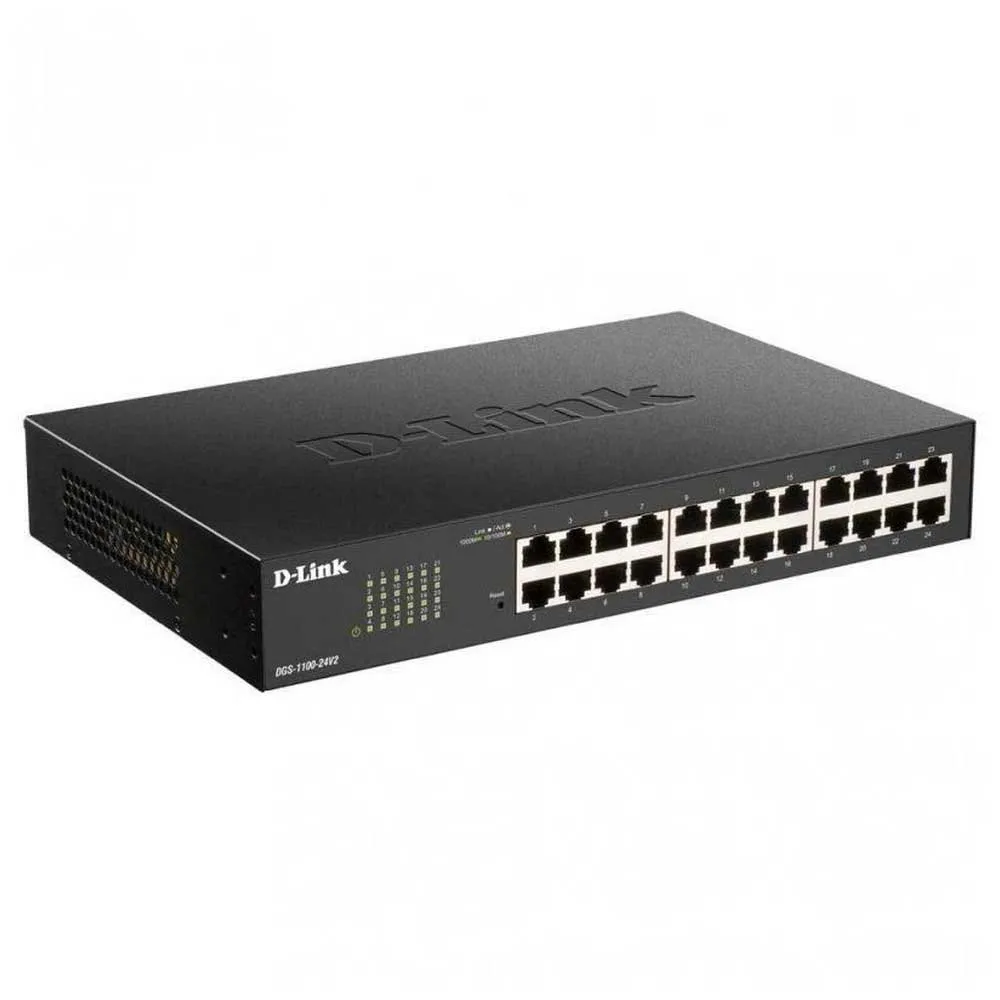

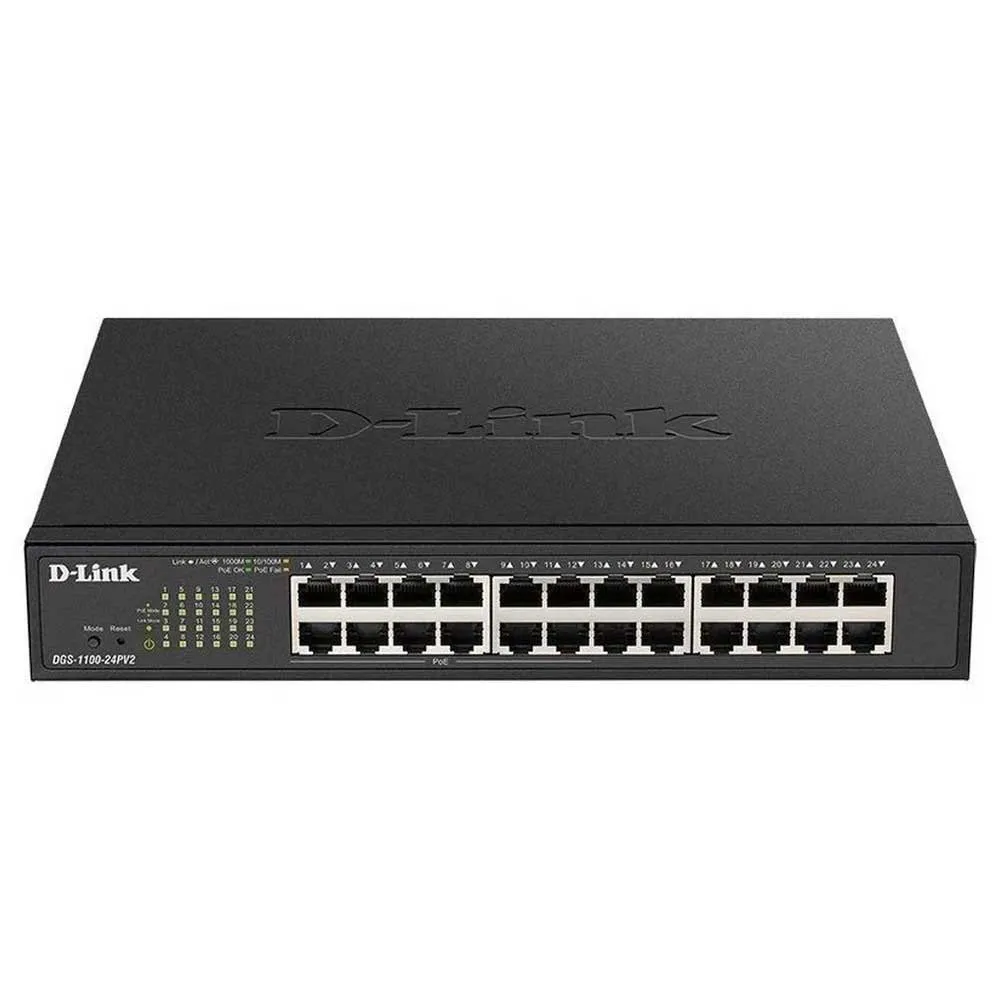

D-link DGS-1100-24PV2/E switch

EU Plug.

Features:

Add management to your company network.

More performance.

More security for your data:- The DGS‑1100 family of Smart Switches offers an affordable solution for environments that require simple network management.

Smart web interface:- The web interface is an easy way to manage Layer 2 features such as VLAN creation, Spanning Tree Protocol (STP), and link aggregation (static).

With powerful security features such as IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require solutions that are easy to deploy and configure without added complexities.

Easy to deploy and manage:- D-Link´s free Network Assistant (DNA) shows all connected devices and speeds up first time setup.

The D-View 7 network management system comes with a free license for 25 nodes and 2 probes and full access to advanced management tools.

Optional upgrade licenses let you extend management to more networks.

MaxPoE with powers up to 370 W:- The DGS-1100 family of Smart Switches includes multiple options with PoE and PoE+ Power Over Ethernet ports that supply power over the data network cable to compatible devices such as IP Voice Phones, cameras, WiFi access points, etc.

In this way, its deployment is facilitated and additional electrical installation costs are saved.

Error detection:- The DGS-1100 range offers Loopback Detection and Cable Diagnostics to help network administrators find and resolve network problems quickly and easily.

- Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port.

The Cable Diagnostics feature is designed to enable network administrators to quickly examine the quality of copper cables, recognize their type, and detect transmission errors.

D-Link Green:- D-Link Green technology enables the Smart DGS-1100 range to save energy without sacrificing.

Most of the family uses a fanless design, for quiet and energy-efficient operation.

All are IEEE 802.3az compliant and feature time-based PoE and link state detection (except DGS-1100-05PD and DGS-1100-08P models).

Specifications:

Management.

Features:

- Switch Type:Managed.

- Quality of Service (QoS) support:Yes.

- Web-based management:Yes.

- System event log:Yes Ports and Interfaces:- Number of basic RJ-45 Ethernet switching ports:24.

- Basic type RJ-45 Ethernet switching ports:Gigabit Ethernet (10/100/1000) Connection:- Network Standards:IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE2 IEEE 802.3u,, IEEE 802.3x, IEEE 802.3z.

- Copper ethernet cabling.

Technology:10BASE-T,10BASE-TX,1000BASE-T.

- Port mirroring:Yes.

- Full bidirectional (Full duplex):Yes.

- Flow control support:Yes.

- Adding links:Yes.

- Storm transmission control:Yes.

- Limit rate:Yes.

- Auto MDI / MDI-X:Yes.

- Spanning Tree Protocol:Yes.

- Head of Line (HOL) Blocking:Yes.

- Auto-negotiation:Yes.

- VLAN support:Yes.

- Virtual LAN.

Features:

Port-based VLAN,Voice VLAN.

- Number of VLANs:128 Data transmission:- Switching capacity:48 Gbit/s.

- Forwarding rate:35.71 Mpps.

- MAC address table:8000 entries.

- Save and forward:Yes.

- Number of tails:4.

- Jumbo Frames, support:Yes.

- Jumbo Frames:9216.

- Packet buffer:4.1 MB.

Security:- DHCP.

Features:

DHCP client.

- IGMP:Yes.

- Supported security algorithms:SNMP, SSL/TLS.

- Queuing scheduling algorithms:SPQ, Weighted Round Robin (WRR) Multicast.

Features:

- Multicast support:Yes Design:- LED indicators:Yes.

Certification:EMI FCC A, CE A, VCCI A, C-Tick, BSMI, CCC cUL, CE LVD, CB, BSMI, CCC.

Performance:- Embedded.

Processor:Yes.

- Processor frequency:125 MHz.

- Memory type:DRAM.

- Flash.

Memory:16MB.

- Without fan:Yes.

- Mean time between failures:255003 hours Energy control:- AC input voltage:100.

- 240 V.

- Power consumption (max):19.5 W.

- Power over Ethernet (PoE).

- Power over Ethernet (PoE):Yes.

- Number of Power over Ethernet (PoE) ports:12.

- Power per Power over Ethernet (PoE) port:30 W.

- Power over Ethernet (PoE) Budget:100W Environmental conditions:- Operating temperature range:-5.

- 50 °C.

- Storage temperature range:-40.

- 70 °C.

- Operating relative humidity range:0.

- 95%.

- Relative humidity range during.

Storage:0.

- 95%.

- Operating altitude:0.

- 2000 m.

- Heat dissipation:107.5 BTU/hr Weight and measurements:- Width:280mm.

- Depth:230mm.

- Height:44mm.

- Weight:2.2kg.
