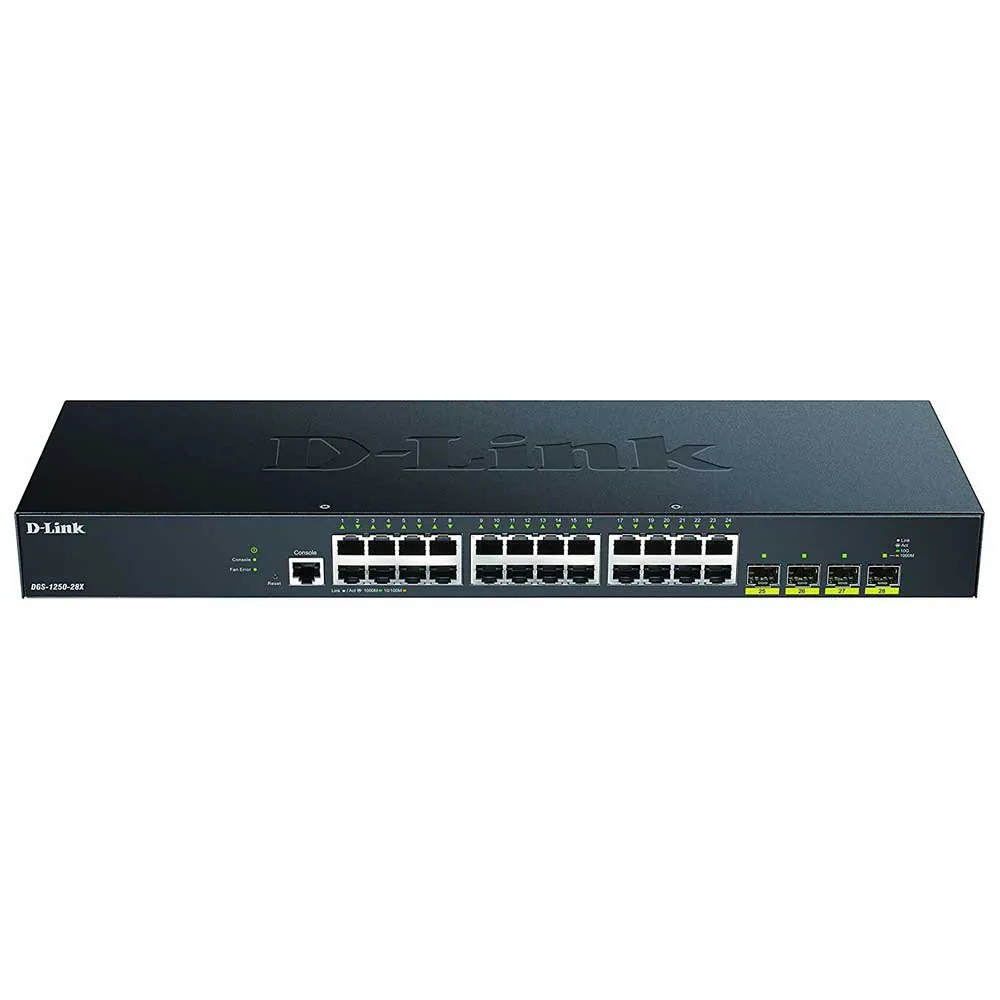

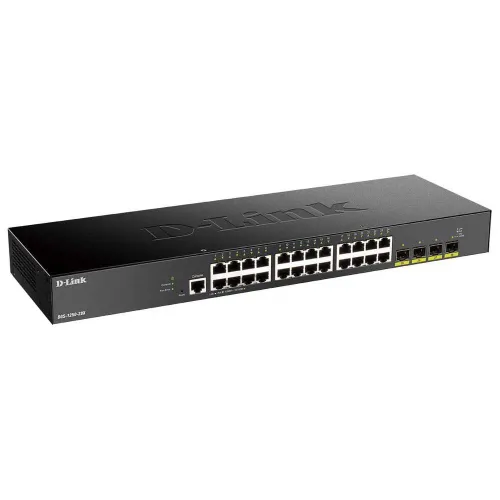

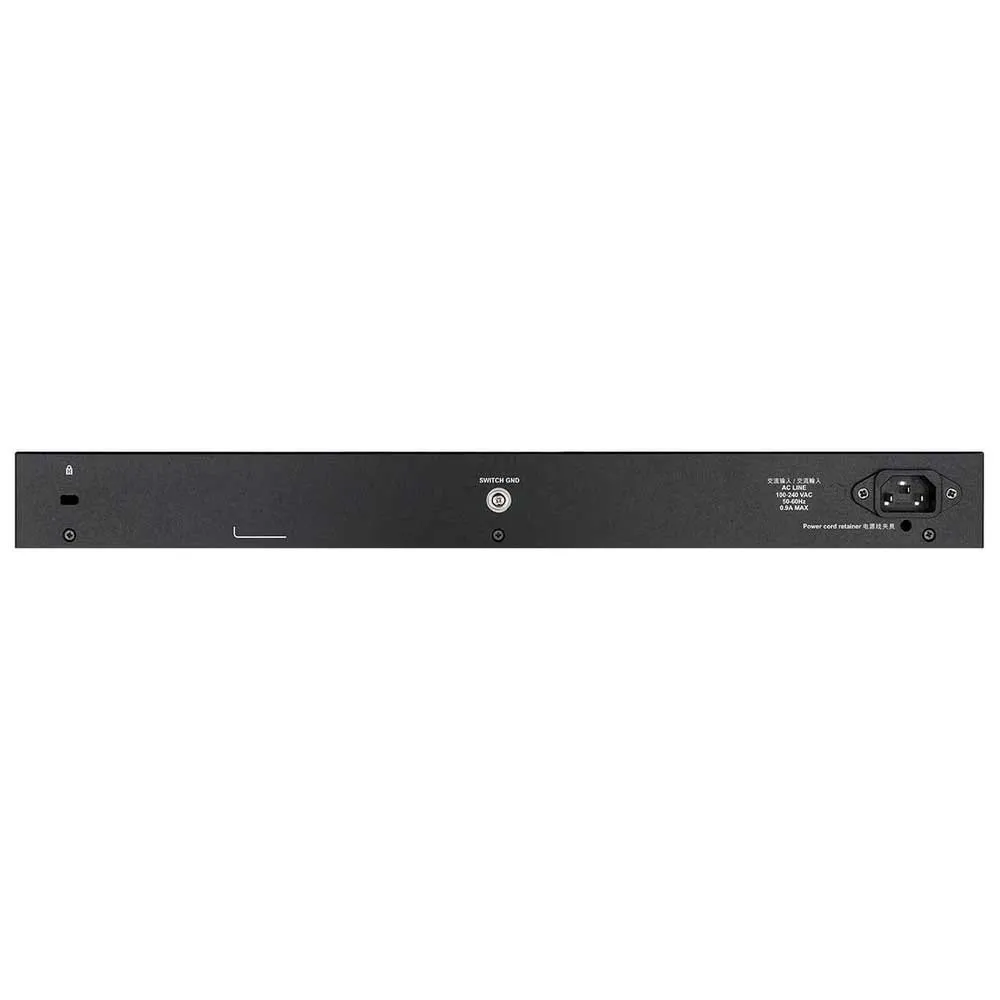

D-link DGS-1250-28X/E switch

EU Plug.

Specifications:

Hardware.

Features:

- Hardware Version:A1 Interfaces:- 24 X 10/100/1000base-T.

- 4 X 10g Sfp+ Ports.

- Rj-45 Console Port For Cli Management Port Standards:- Ieee 802.3 10base-T Ethernet (Paired Copper).

- Ieee 802.3u 100base-Tx Fast Ethernet (Twisted-Pair Copper) Ieee.

- 802.3u 100base-Fx 100 Mbps Over Optical Fiber.

- Ieee 802.3ab 1000base-T Gigabit Ethernet (Twisted-Pair Copper).

- Ieee 802.3z 1000base-X 1 Gbps Over Fiber Optic.

- Ieee 802.3az Low Energy Ethernet (Eee).

- Ieee 802.3x Flow Control.

- Ieee 802.3ae 10 Gigabit Ethernet.

- Ieee 802.3af/At (Poe Models Only) Network Cables:- Utp Cat.

5, Cat.

5e (100 M Max.).

- Duplex Mode:- Full/Half-Duplex For 10/100 Mbps.

- Full-Duplex For 1000 Mbps.

- Media Interface Exchange:Auto Mdi/Mdix Setting On All Twisted Pair Ports Performance:- Switching Capacity:128 Gbps.

- Transmission Method:Store And Forward.

- Maximum Forwarding Speed:95.24 Mpps.

- Mac Address Table Size:16k.

- Static Macc Addresses:256 Entries.

- Packet Buffer:12 Mbits.

- Cpu.

Memory:2g Ddr3.

- Flash.

Memory:64mb.

Power:- Power Input:100 To 240 V Ac.

- Consumption:29.6 W.

- Consumption In Standby:9.3 W Physical:- Mtbf:743,482.45 Hours.

- Acoustic:- Max.

47.6 Db(A).

- Min:33.2 Db(A).

- Heat Dissipation:100,936 Btu/H.

- Weight:1.75kg.

- Dimensions:440 X 140 X 44 Mm Software.

Features:

Features L2:- Mac Address Table.

- 16k Entries.

- 32k Entries (Dgs-1250-52x/52xmp Only).

- Igmp Snooping.

- Igmp V1/V2/V3 Snooping.

- Supports 256 Igmp Groups.

- Supports At Least 64 Static.

- Igmp Multicast Addresses Per Vlan.

- Supports Query Igmp Snooping Querier.

- Loopback Detection.

- 802.3ad Link Aggregation:- Supports A Maximum Of 8 Groups Per Device And 8 Ports Per Group.

- Lldp.

- Lldp-Med.

- Jumbo Frame.

- Up To 12,000 Bytes.

- Spanning Tree Protocol.

- 802.1d Stp.

- 802.1w Rstp.

- 802.1s Mstp.

- Flow Control.

- 802.3x Flow Control Blocking.

- Prevention Hol.

- Port Copy.

- One To One.

- Many To One.

- Copy Support For Tx/Rx/Both.

- Multicast Filtering.

- Forward All Registered Groups.

- Filter All Unregistered Groups.

- Mdi/Mdix Configurable.

- Mld Snooping V1/V2 Awareness (256 Groups) Vlan:- 802.1q.

- Vlan Group.

- Max.

4094 Static Vlan Groups.

- Vid Configurable From 1.

- 4094.

- Asymmetric Vlan.

- Auto Voice Vlan.

- Max.

10 User-Defined Ouis.

- Max.

8 Default Oui Quality Of Service (Qos):- 802.1p Quality Of Service.

- 8 Queues Per Port.

- Strict.

- Weighted Round Robin (Wrr) Queuing.

- Bandwidth Control.

- Port-Based (Input/Output, Minimum Granularity 10/100/1000 At 16 Kbps) Port-Based Qos:- 802.1p Priority Queues.

- Dscp.

- Mac Address.

- Ethertype.

- Ip Address Protocol.

- Type.

- Tos.

- Ip Preference.

- Ipv6 Type Traffic.

- Tcp/Udp Port Features L3:- Ip Interface.

- Supports 4 Interfaces.

- Ipv6 Neighbor Discovery (Nd).

- Static Routing.

- 124 Ipv4 Route Entries Static.

- 50 Static Ipv6 Route Entries Access Control List (Acl):- Max.

50 Access Lists.

- Max.

768 Rules Shared By Ipv4, Mac And Ipv6.

- Each Rule Can Be Associated To A Single Port.

- Acl Based On.

- Mac Address:802.1p Priority.

- Mask.

- Vid.

- Mask.

- Source/Destination Mac Address.

- Mask.

- Ethertype Mask Ip Address:- 802.1p Priority Mask Source/Destination Ip Address.

- Dscp.

- Mask.

- Protocol Type.

- Mask.

- Tcp/Udp Port Number Mask Ipv6 Address:- Source/Destination Ip Address.

- Mask.

- Dscp Mask Protocol Type:- Mask.

- Tcp/Udp Port Number.

- Mask.

- Ipv6 Traffic Class Mask Security.

Features:

- Broadcast/Multicast/Unicast Storm Control.

- D-Link Safeguard Engine.

- Traffic Segmentation.

- Ssh V2.

- Tls V.

1.2.

- Dos Attack Prevention.

- 802.1x Port-Based Access Control.

- Port Protection:- Supports Up To 64 Mac Addresses Per Port.

- Arp Spoofing To Prevent Spoofing.

- Max.

127 Entries.

- Dhcp Server Discovery.

- Ip-Mac Port Binding (Smart Binding).

- Arp Inspection.

- Max.

64 Entries.

- Ipv4 Inspection.

- Max.

127 Entries.

- Ipv6 Inspection.

- Max.

63.

- Dhcp Snooping Entries.

- Max:512 Aaa Entries.

- 802.1x Authentication.

- Support Local/Radius Database.

- Support Port-Based Access Control.

- Support Eap, Otp, Tls, Ttls, Peap.

- Max.

128 Entries When Using A Local Database.

- Ipv6 Radius Server.

- Supports Md5 Oam (Authentication):- Cable Diagnostics.

- Factory Reset Network Management:- Web-Style Gui.

- D-Link Network Wizard.

- Console Port.

- Full Command Line Interface (Cli)1.

- Telnet Server.

- Tftp Client.

- Configurable Mdi/Mdix.

- Snmp.

- Support V1/V2c/V3.

- Snmp Trap.

- Backup/Firmware Upgrade.

- Smart Wizard.

- Configuration File Upload/Download.

- Bootp/Dhcp Client.

- System Log.

- Max.

500 Log Entries.

- Sntp.

- Icmp V6.

- Ipv4/V6 Dual Stack.

- Dhcp Auto Configuration:Sntp.

- Time Adjustment.

- Rmonv1.

- Trusted Host.

- Dual Image.

- Dual Configuration.
