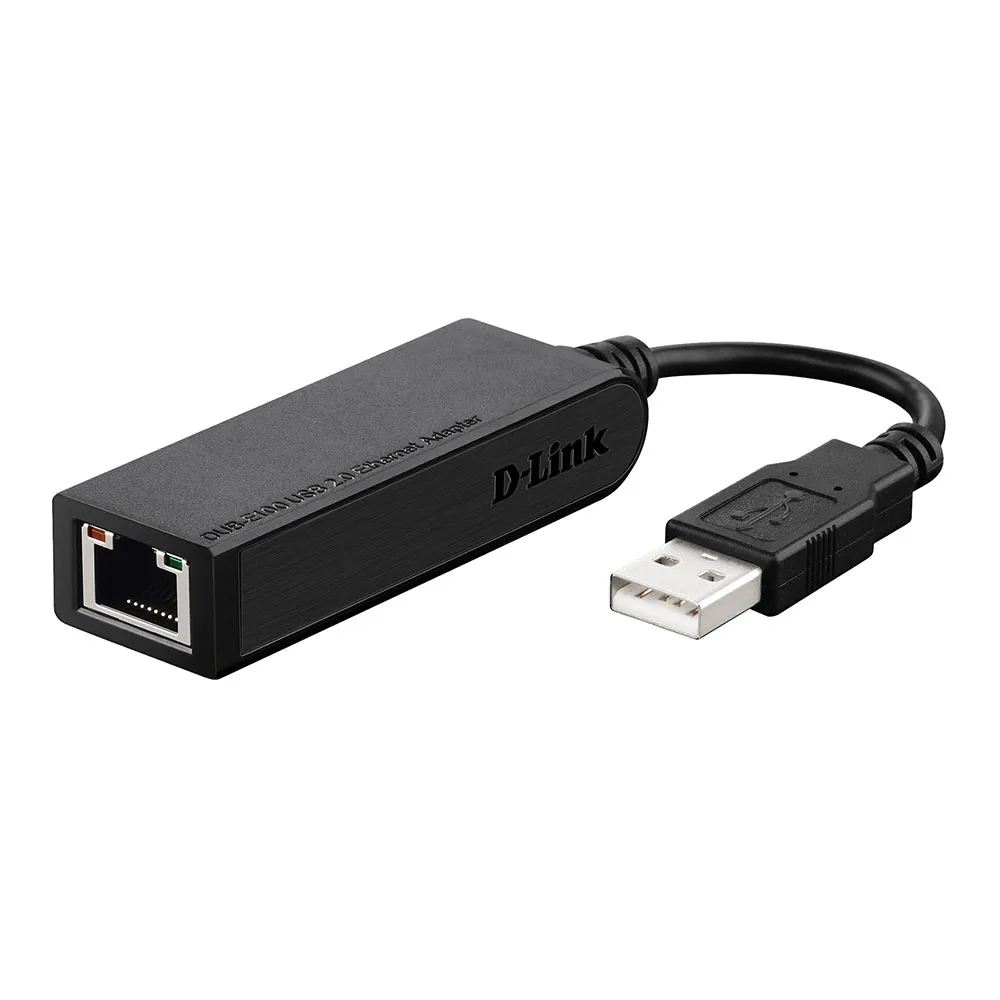

D-link USB 2.0 Fast Ethernet Adapter

The D-Link DUB-E100 is a Hi-Speed USB 2.0 10/100Mbps Fast Ethernet Adapter specifically designed to plug into an available Universal Serial Bus (USB) port on a desktop or laptop PC running Microsoft Windows XP, Me, 2000 or 98SE.

Based on USB 2.0, the DUB-E100 extends the transfer speed of earlier USB Fast Ethernet adapters to true 10/100Mbps connectivity.

As a USB device, the D-Link DUB-E100 eliminates the need to use an ISA, PCI, or PC Card slot to add LAN connectivity to a PC desktop or laptop computer.

Installation and use are further simplified by living up to USB´s out-of-the-box installation approach to connecting computer peripherals.

You will not need to open the case of your computer, nor will you be required to set IRQ´s.

The D-Link DUB-E100 represents the simplest way to connect your computer to an Ethernet based network.

The D-Link DUB-E100 provides a standard RJ-45 connector for a quick and simple method of connecting to an Ethernet 10Mbps or Fast Ethernet 100Mbps based LAN via a network hub or switch.

The built-in USB 2.0 cable connects directly to your computer or laptop.

Power for the DUB-E100 is provided directly by the USB bus, eliminating the need for an external power adapter.

It also supports USB´s energy saving suspend and resume functions to minimize power consumption, which is especially useful for laptop/notebook users.

Specifications:

Ports & interfaces:

- Connectivity.

Technology:

Wired.

- Host interface:

USB.

- Interface:

Ethernet.

- Ethernet LAN (RJ-45) ports:

1 Network:

- Maximum data transfer rate:

100 Mbit/s.

- Networking standards:

IEEE 802.3,IEEE 802.3u.

- Cabling.

Technology:

10/100BaseT(X).

- Full duplex:

Yes Design:

- Internal:

No.

- LED indicators:

Link, Power.

-.

Certification:

FCC Class B, CE Class B Power:

- Input current:

0.5 A.

- Power consumption (typical):

2.5 W.

- Power consumption:

150 mA Operational conditions:

- Operating temperature (T-T):

0.

- 55 °C.

- Storage temperature (T-T):

20.

- 70 °C.

- Operating relative humidity (H-H):

0.

- 95%.

- Storage relative humidity (H-H):

5.

- 95% System requirements:

- Windows operating systems supported:

Windows 2000,Windows 2000 Professional,Windows 98,Windows ME,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 Weight & dimensions:

- Width:

21.3 mm.

- Depth:

73 mm.

- Height:

20 mm Weight & dimensions:

- Weight:

22 g Packaging data:

- Package width:

138 mm.

- Package depth:

138 mm.

- Package height:

30 mm.

- Package weight:

116 g Logistics data:

- Shipping (inner) case net weight:

1.88 kg.

- Shipping (inner) case length:

36 cm.

- Shipping (inner) case height:

34.5 cm.

- Shipping (inner) case width:

32 cm.

- Quantity per shipping (inner) case:

40 pc(s).

- Shipping (inner) case gross weight:

8.4 kg.

- Pallet gross weight (air):

378 kg.

- Number of cartons per pallet (air):

45.

- Quantity per pallet (air):

1800 pc(s).

- Pallet height (air):

186 cm.

- Pallet gross weight (sea):

378 kg.

- Number of cartons per pallet (sea):

45.

- Quantity per pallet (sea):

1800 pc(s).

- Pallet height (sea):

186 cm.

- Pallet width:

110 cm.

- Pallet length:

120 cm Other.

Features:

- Compliance industry standards:

OHCI, EHCI.

- Supported data transfer rates:

10/100.

- Ports quantity:

1.
