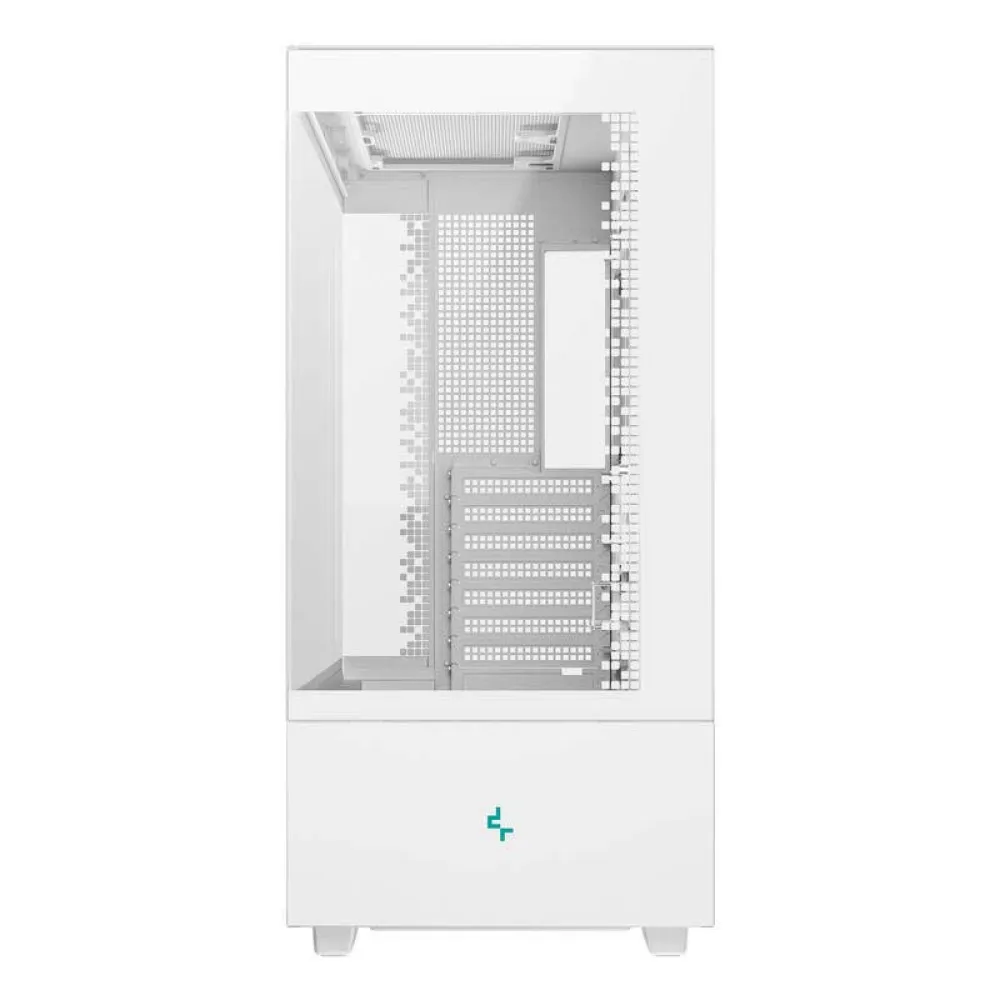

Deepcool CH690 DIGITAL PC tower case

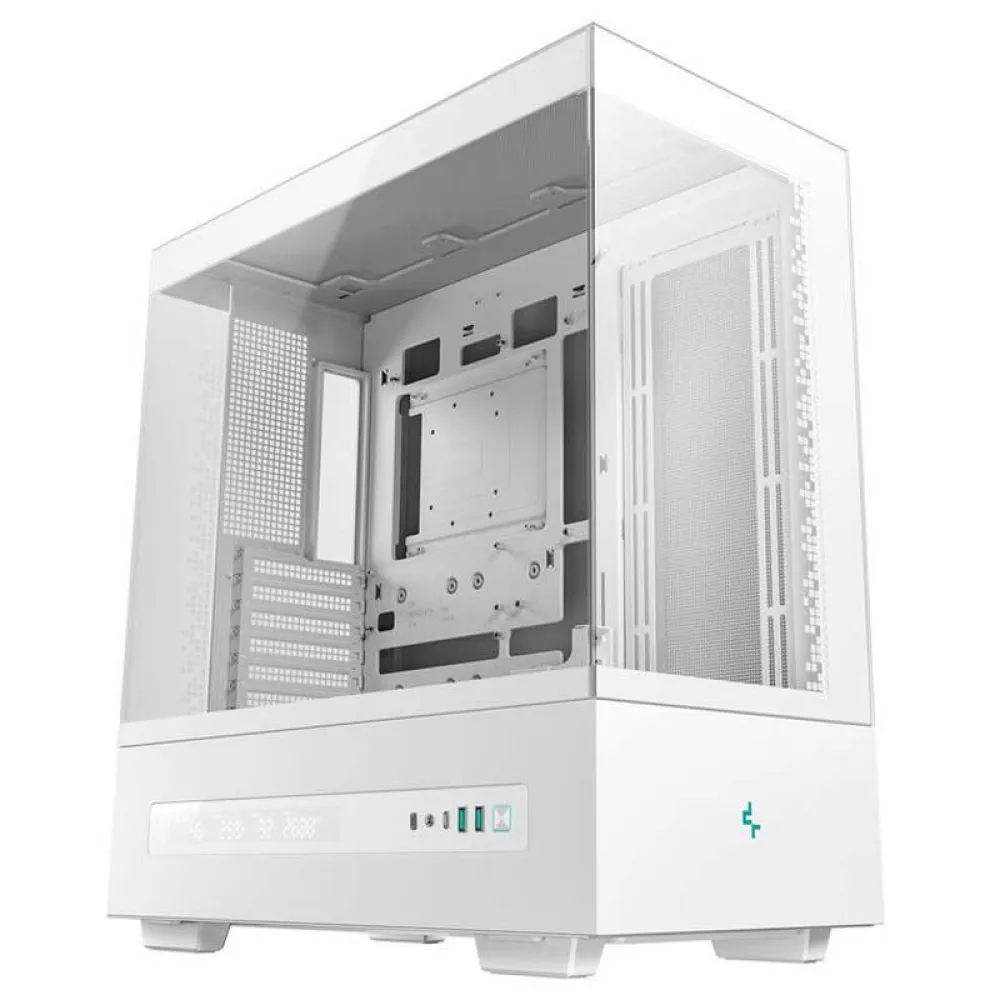

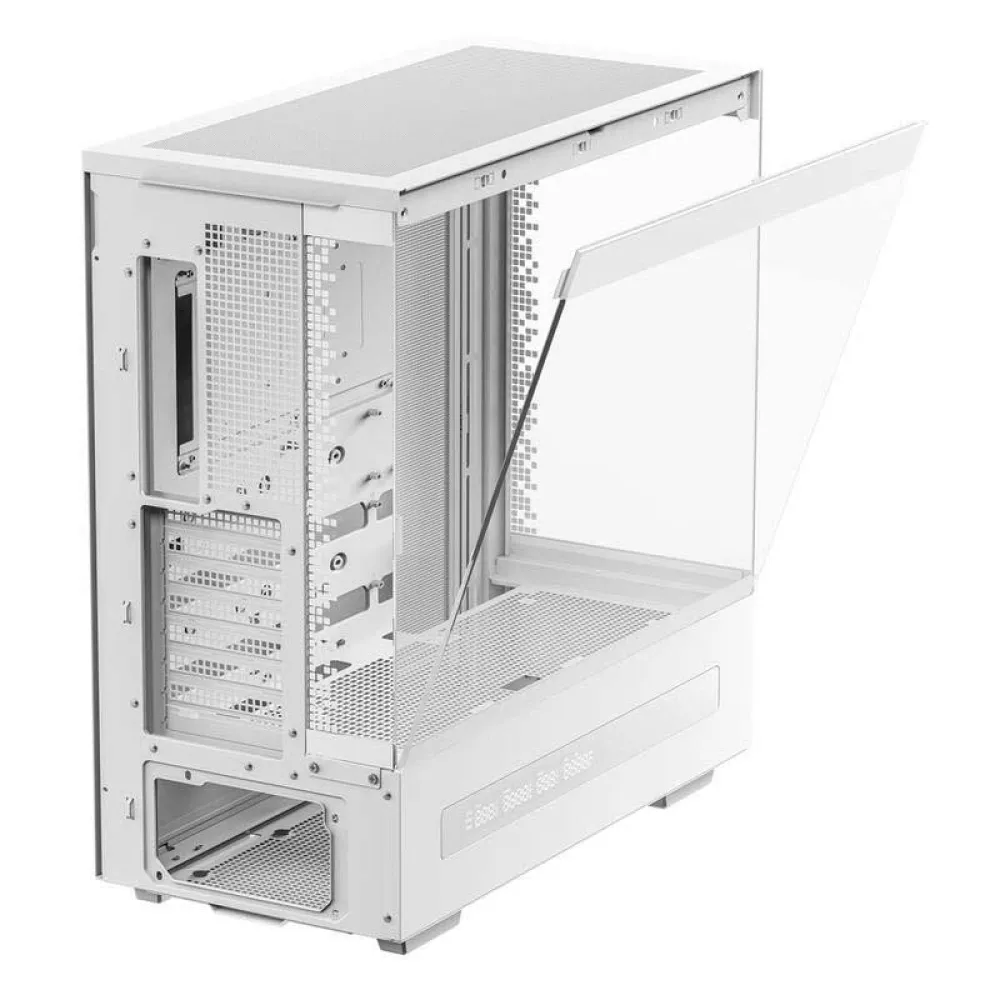

The CH690 DIGITAL WH is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components.

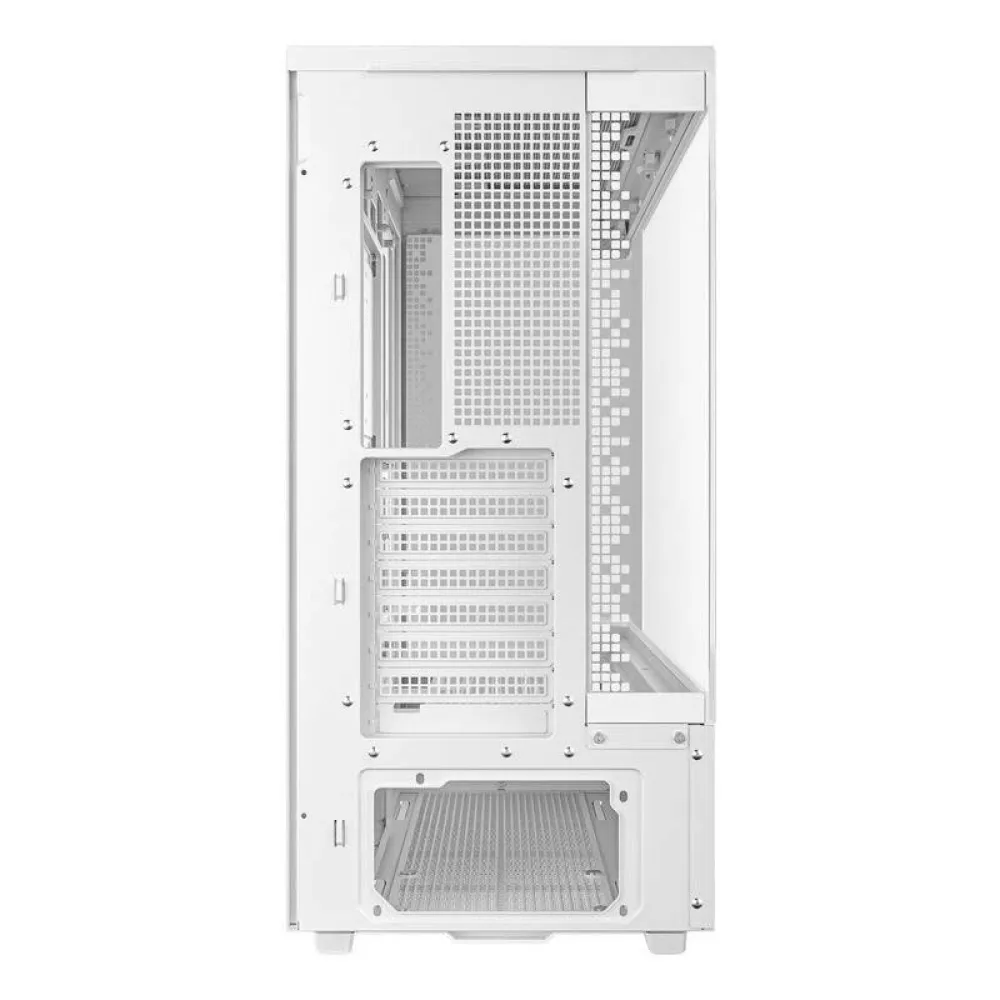

For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow.

Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.

YES IT FITS The CH690 DIGITAL WH is engineered for exceptional versatility, accommodating a 180mm PSU and a 450mm GPU with ease.

It features up to 8 individual removable expansion slots, providing flexibility for various configurations.

Storage options include 1 x 3.5 drive bay and 2 x 2.5 drive bays, ensuring ample space for data needs.

This case is designed to support a wide range of components, making it an ideal choice for either gaming and professional setups.

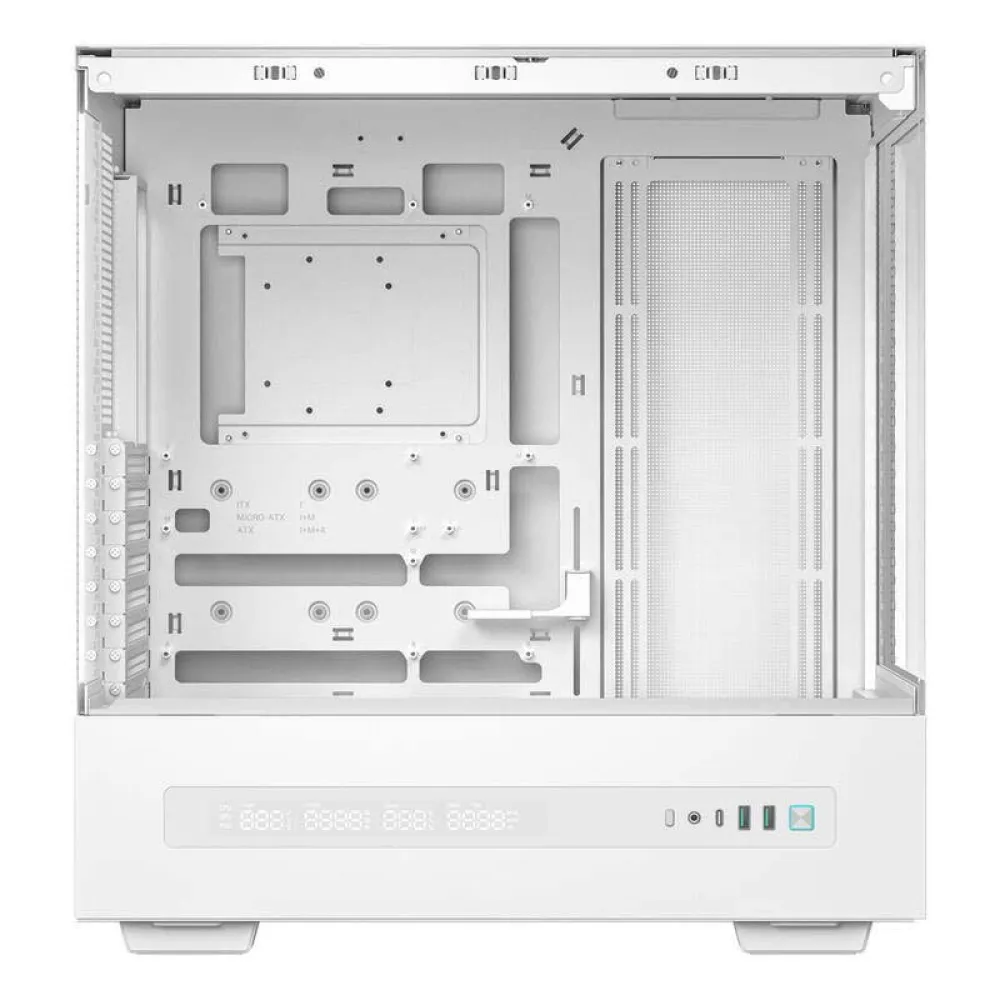

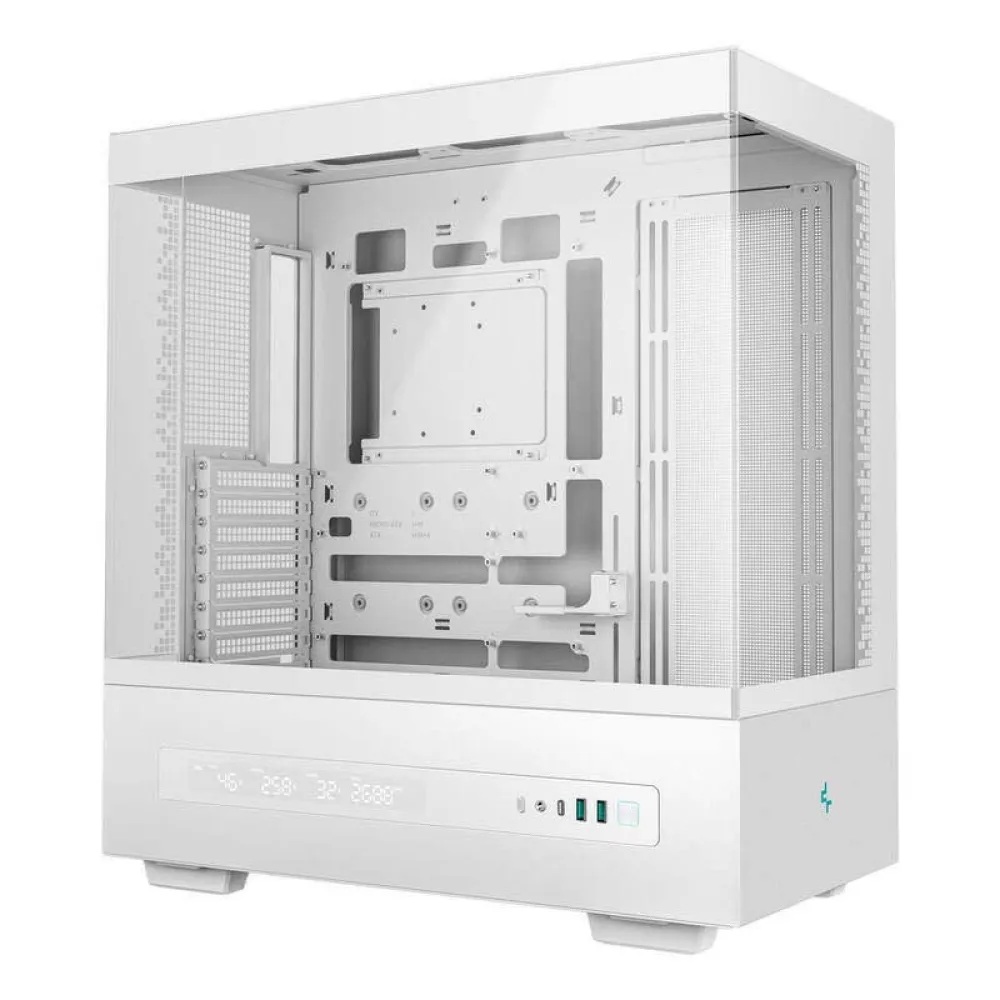

DYNAMIC PERFORMANCE AT A GLANCE The CH690 DIGITAL WH case features a cutting-edge digital display that offers real-time monitoring of system´s vital statistics.

With switchable modes for CPU, GPU, and PSU, effortlessly track temperature in Fahrenheit or Celsius, power consumption, usage, and frequency.

The CPU mode also includes fan speed monitoring, while the PSU mode provides additional insights into fan performance.

This sophisticated display transforms the system into a high-tech command center, allowing optimal performance and efficiency at a glance.

COOLING VERSATILITY The CH690 DIGITAL WH is designed to adapt to versatile configurations, ensuring efficient heat dissipation through its innovative mesh-designed PSU shroud that creates a vertical airflow channel.

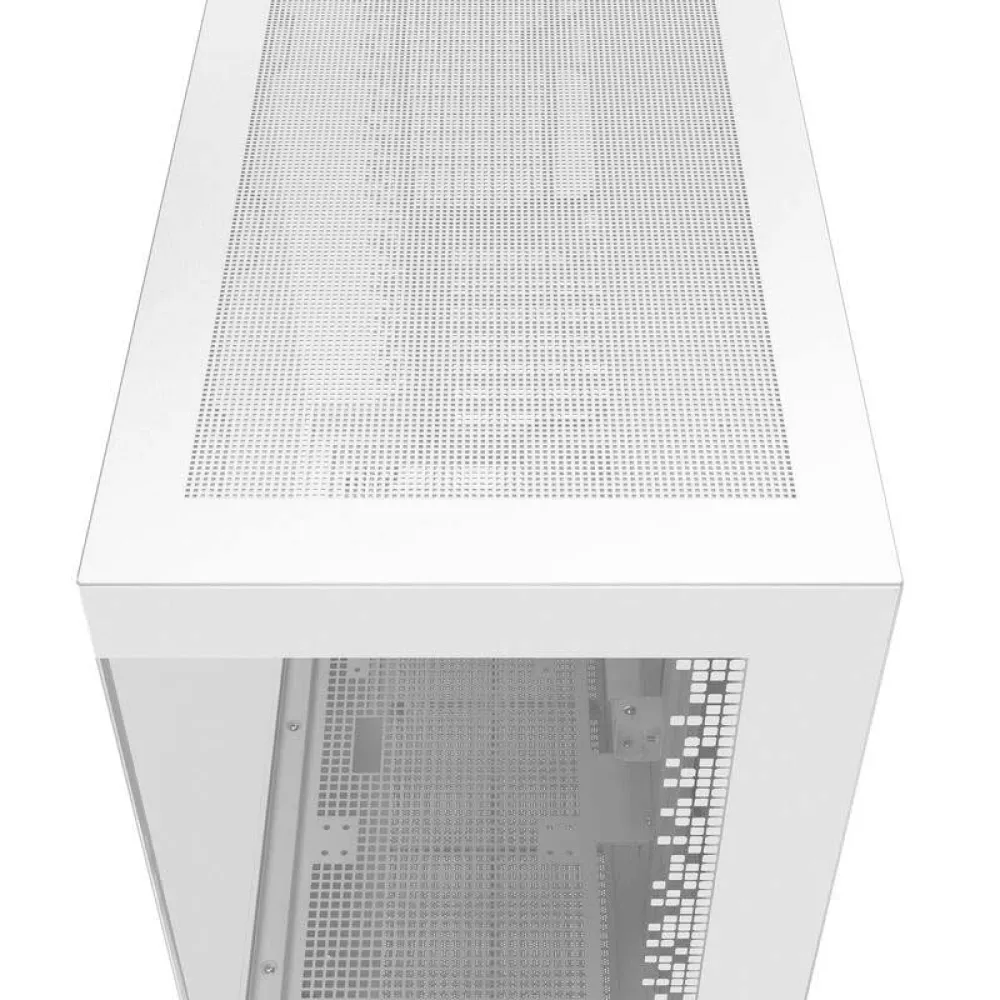

It accommodates a wide range of radiator sizes, including up to 420mm on the top, 280mm on the side, and 360mm within the PSU shroud.

Additionally, it supports various fan configurations, allowing for up to 3×140mm fans on the top, side, and PSU shroud, along with a 140mm fan at the rear.

With the capability to support CPU coolers up to 182mm in height, the CH690 DIGITAL WH is engineered to maintain optimal temperatures for high-performance systems.DeepCool CH690.

Form factor:Tower,.

Type:PC,.

Product colour:White.

Power supply location:Bottom,.

Supported power supply form factors:ATX, PS2.

Display type:LCD.

Side fans diameters supported:120,140 mm,.

Rear fans diameters supported:120 mm,.

Top fans diameters supported:120,140 mm.

Supported HDD sizes:2.5,3.5, SSD form factor:2.5
