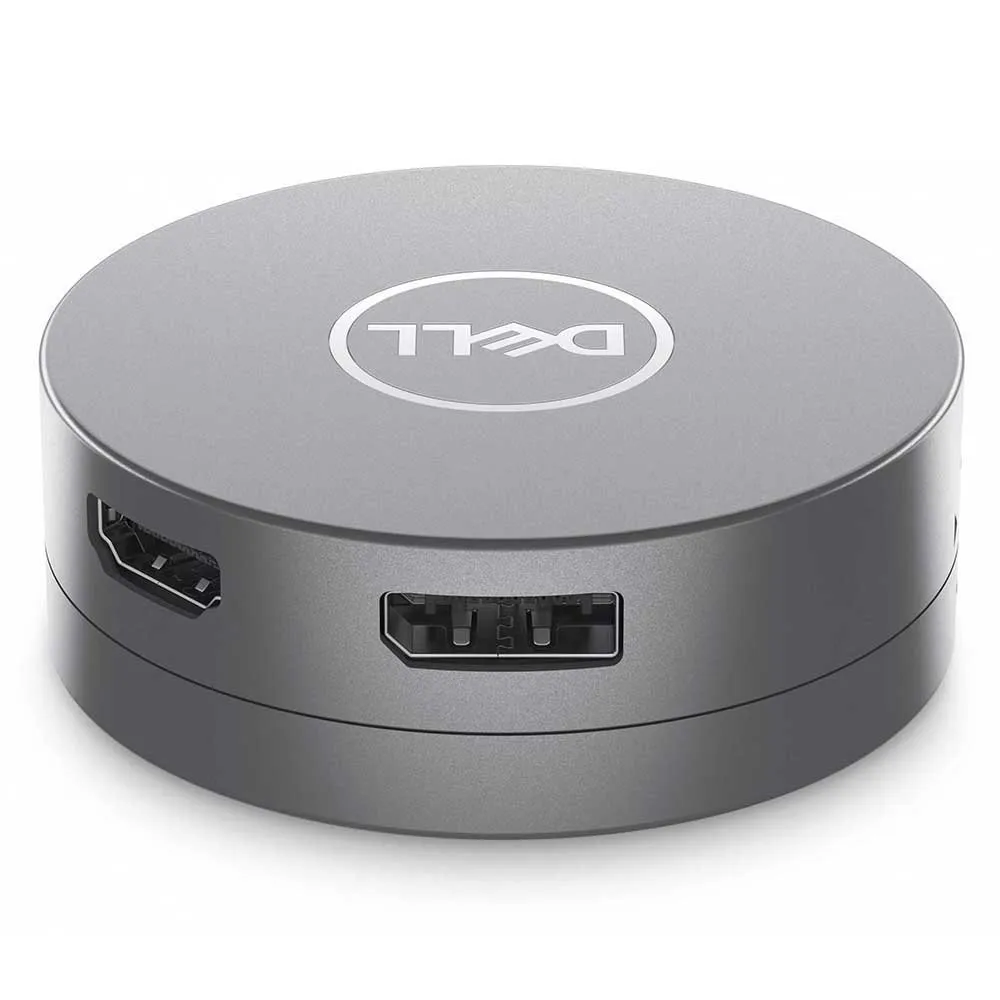

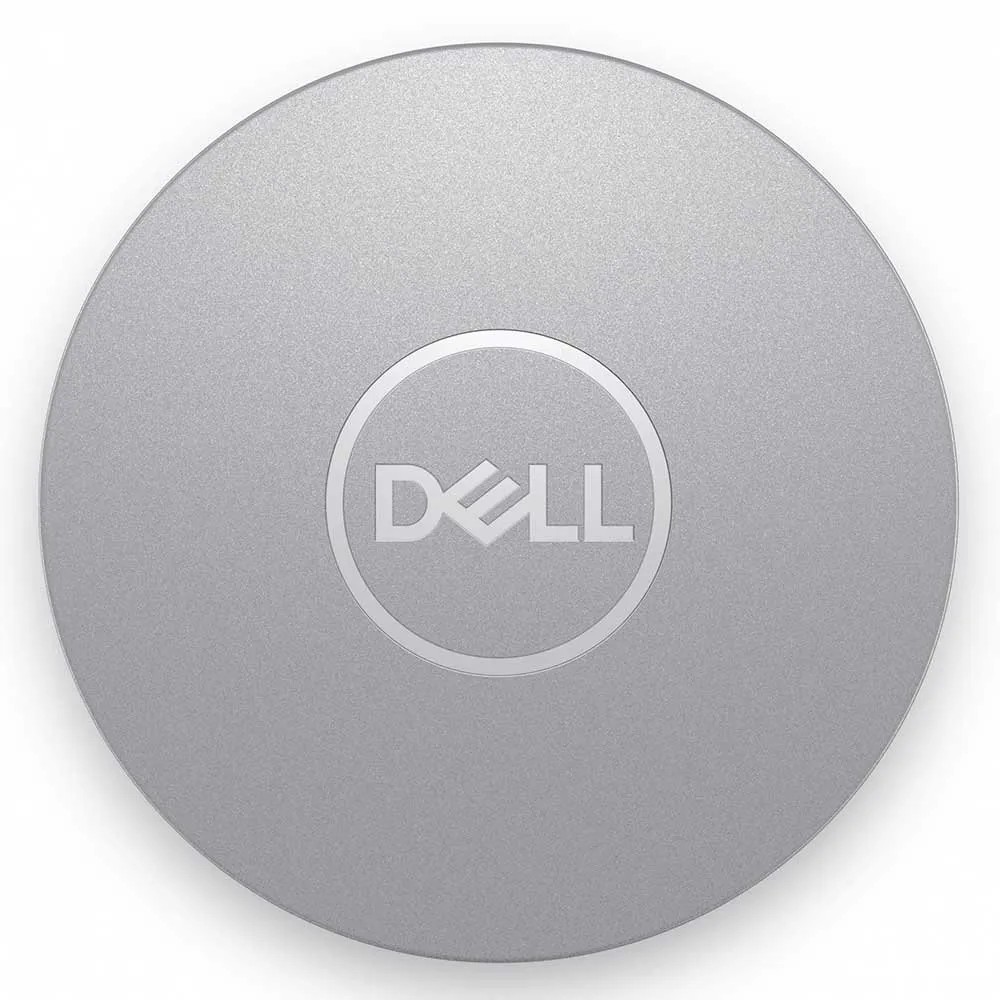

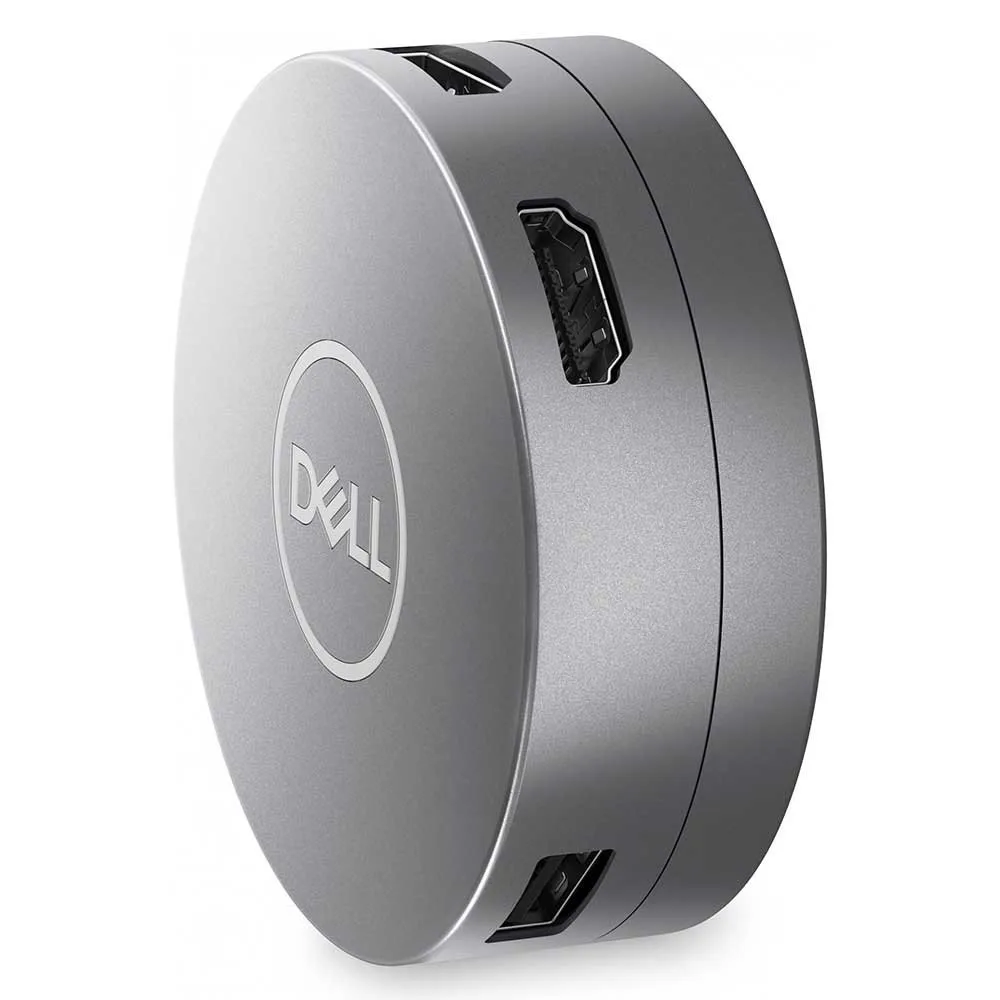

Dell DA305 docking station 130W

A compact multiport 6-in-1 adapter that offers video, network, data connectivity and up to 90W power pass-through for your laptop.


Features:

Comprehensive 6-in-1 adapter with power pass-through Wide variety of ports:

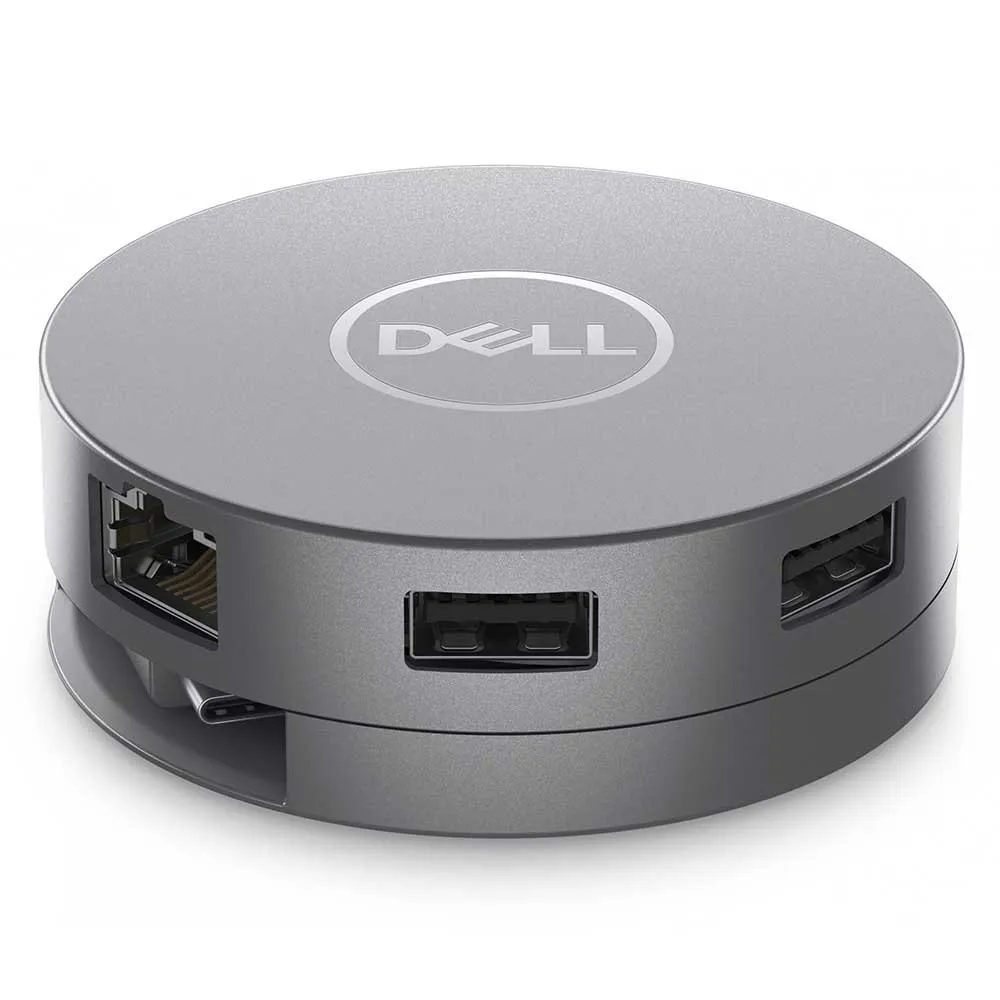

- Featuring a wide range of ports including 2 USB-A ports,1 USB-C, 1 HDMI, 1 DisplayPort and 1 RJ-45 port. The mobile adapter offers seamless connectivity to various devices like monitors, projectors, headsets, keyboard, mouse, flash drives and other accessories.

Multi-functional USB-C port:
- With a USB-C downstream port that supports power pass through, video and data, you can connect to a monitor at up to 4K resolution at 30Hz, get quick data transfer and up to 90W power pass through to your laptop.

Crisp 4K resolution at 60Hz:
- Connect to high-resolution displays without compromising on performance. Simply connect your monitor or projector to your PC via DisplayPort or HDMI 2.0 port on your adapter.

Speedy data transfers:
- Two USB-A and one USB-C downstream ports let you connect to other supported peripherals and enjoy fast file transfers.

Innovative patented design:

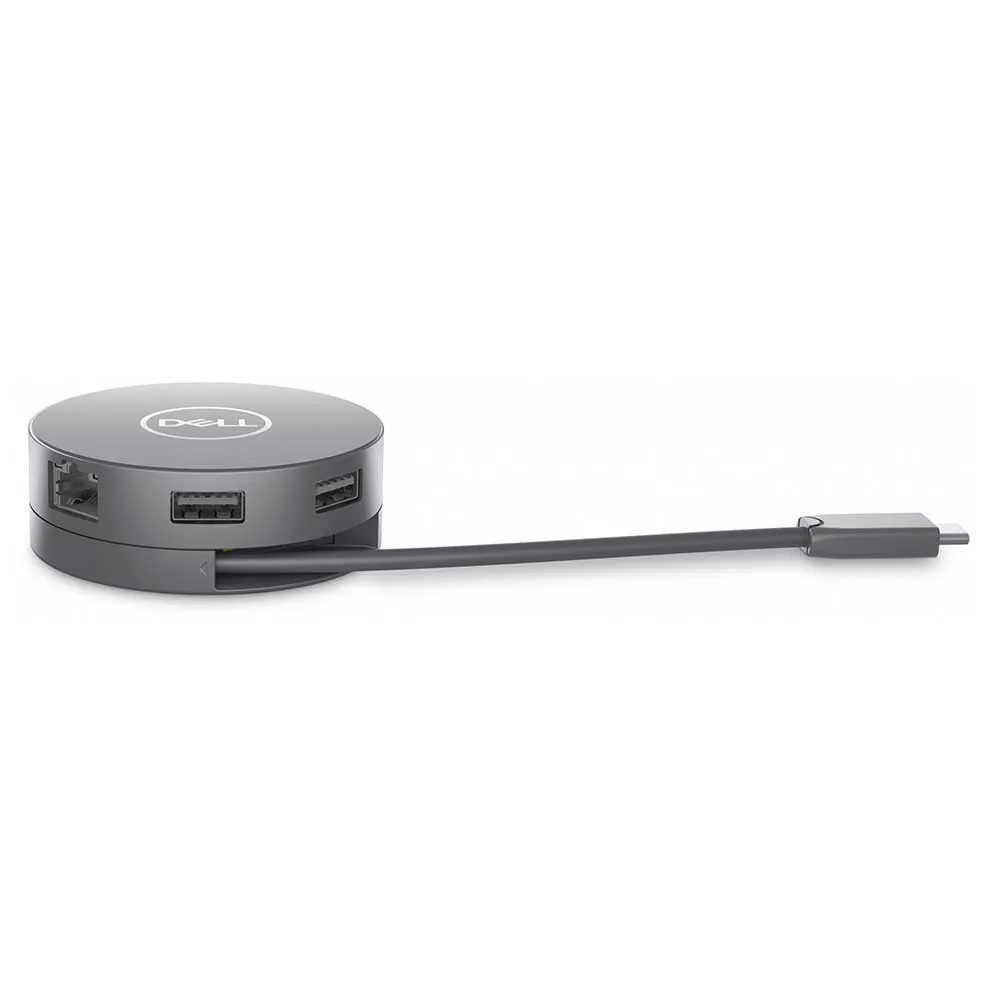

- Flexible cable management: Experience unique cable management with its patented design that keeps the cable concealed and protected when not in use. Easily extend or retract the USB-C cable by rotating the top and bottom cover of the adapter.

Connect from anywhere:
- Lightweight and portable: The smallest and lightest 6-in-1 adapter is just about the size of your palm, does not take up much space and easily fits in your pocket or bag.
- Stable connection: The round coaxial cable offers enhanced signal quality for stable connectivity wherever your busy day takes you.

Highly reliable:
- Stay productive: Fast Role Swap feature supported by the multiport adapter ensures that video and internet connection is uninterrupted even if the USB-C power source is removed from the adapter.
- Widely compatible: Compatible with a wide range of major operating systems including Windows10 64 Bit, MAC, Ubuntu, Chrome, RHEL, the adapter offers seamless connectivity with just about any PC.
- Reduce downtime: Dell´s world class 3-year Advanced Exchange Service


Specifications:

General:
- Product Type: Multiport adapter
- Width: 2.7 in
- Depth: 2.7 in
- Height: 1 in
- Weight: 2.96 oz


Video:

Max Resolution Details:
- 3840 x 2160 - 30 Hz
- 3840 x 2160 - 60 Hz (DisplayPort only)
- 3840 x 2160 - 60 Hz (HDMI only)

Networking:
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet


Expansion / Connectivity:

Interfaces:
- 2 x USB-A 3.2 Gen 2 - 4 pin USB Type A
- 1 x USB-C 3.1 Gen 2/DisplayPort - 24 pin USB-C
- 1 x display / video - HDMI
- 1 x display / video - DisplayPort
- 1 x network - Ethernet 1000 - RJ-45

Miscellaneous:
- Cables Included: 1 x USB-C cable - integrated - 4.7 in
- Features: Fast Role Swap, 90W power delivery, HDR support, pass-through charging
- Compliant Standards: Plug and Play

System Requirements:
- OS Required: Apple MacOS, Red Hat Enterprise Linux, Ubuntu, Google Chrome OS, Windows 10 64-bit Edition, Windows 11

Compatibility Information:
- Designed For
- Alienware x14 R1
- Dell G15 5511
- Dell Inspiron 13 5310, 13 5320, 14 5410, 14 5420, 14 5425, 14 7420 2-in-1, 5402, 5406 2-in-1, 5502, 7415 2-in-1, 7506 2-in-1
- Dell Latitude 3310, 3310 2-in-1, 3320, 3420, 3520, 5421, 7210 2-in-1, 7320, 7320 Detachable, 7410 2-in-1, 7420, 7520, 9420 2-in-1, 9510, 9520 2-in-1
- Dell Precision 3551, 7560, 7750, 7760
- Dell Vostro 13 5310, 14 5410, 5301, 5402, 5502, 5620, 7620
- Dell XPS 13 9305, 13 9310 2-in-1, 13 9315, 15 9500, 15 9510, 15 9520, 17 9700
