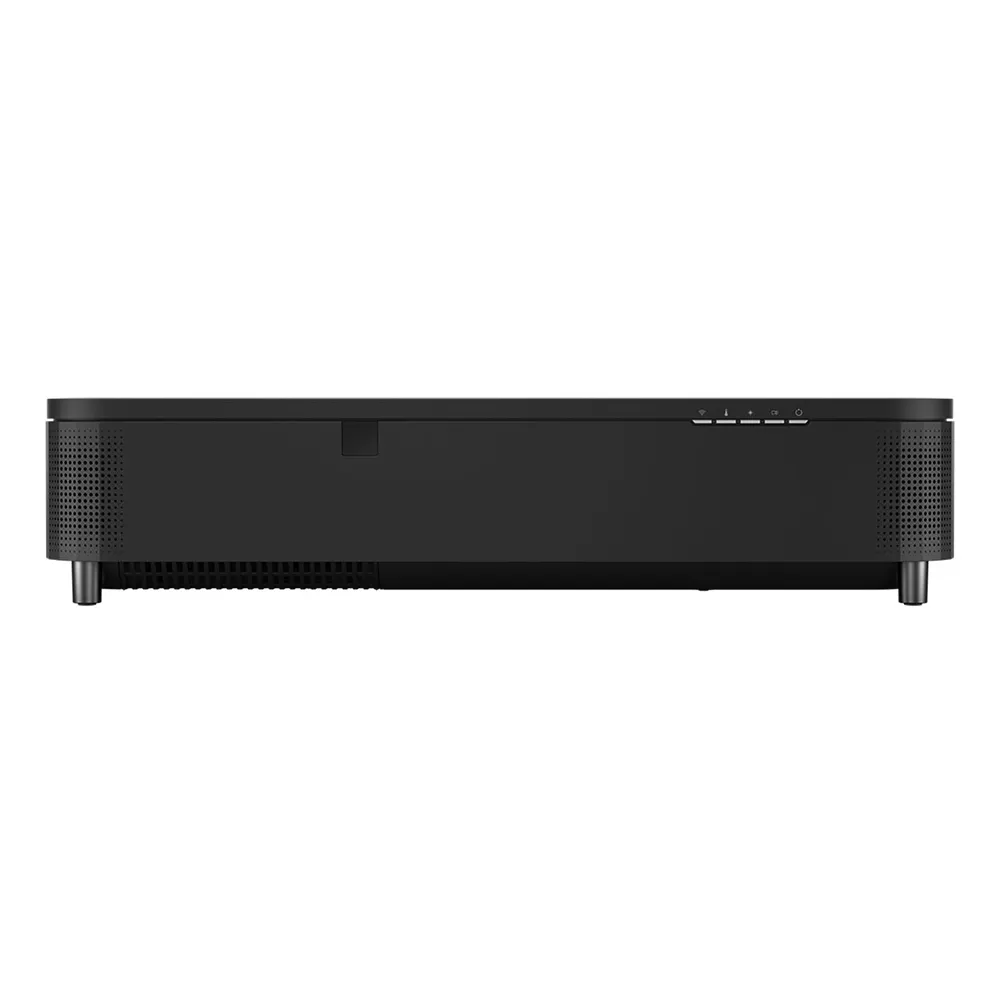

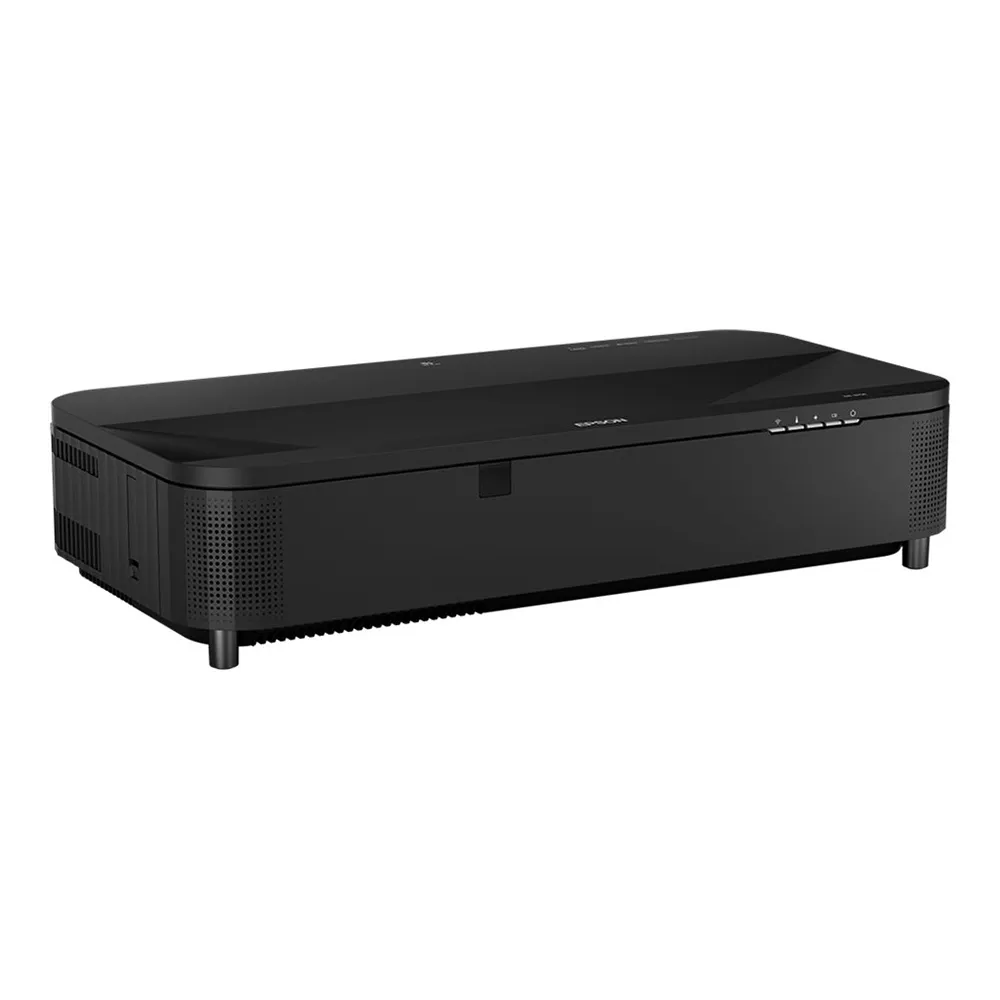

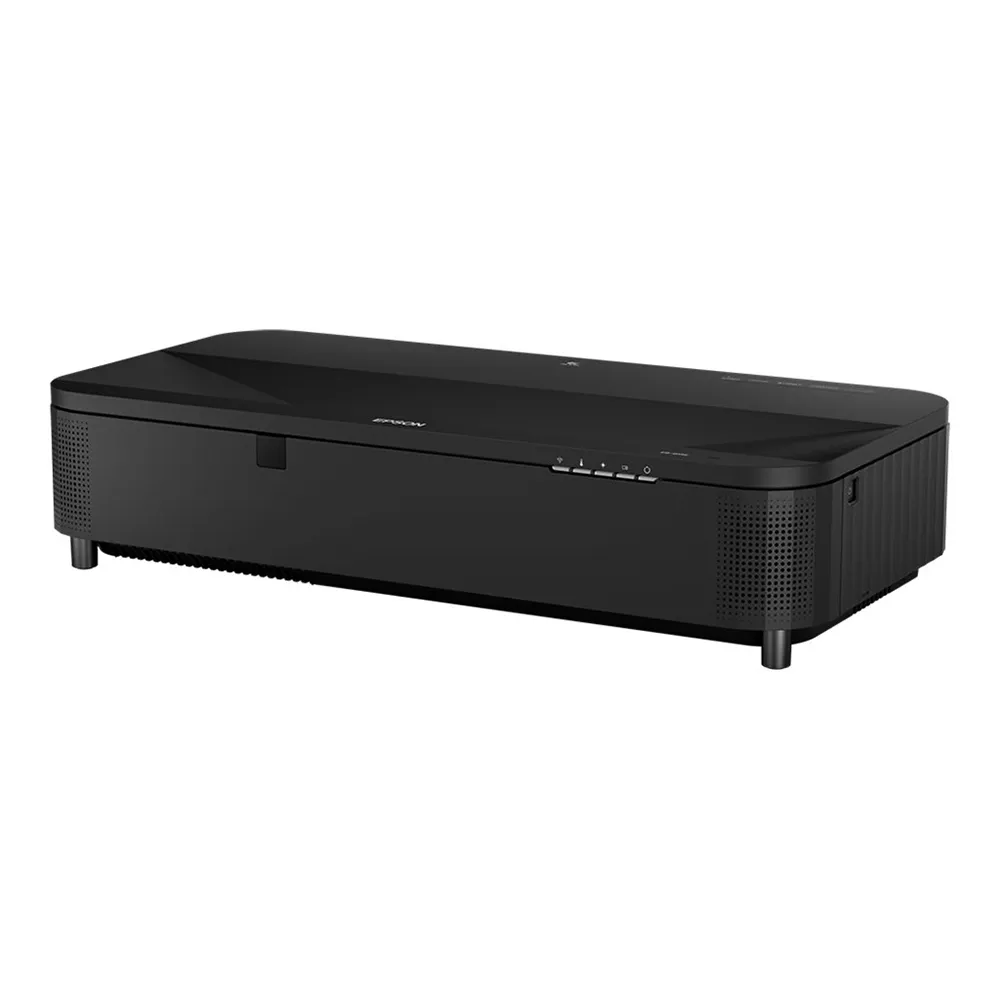

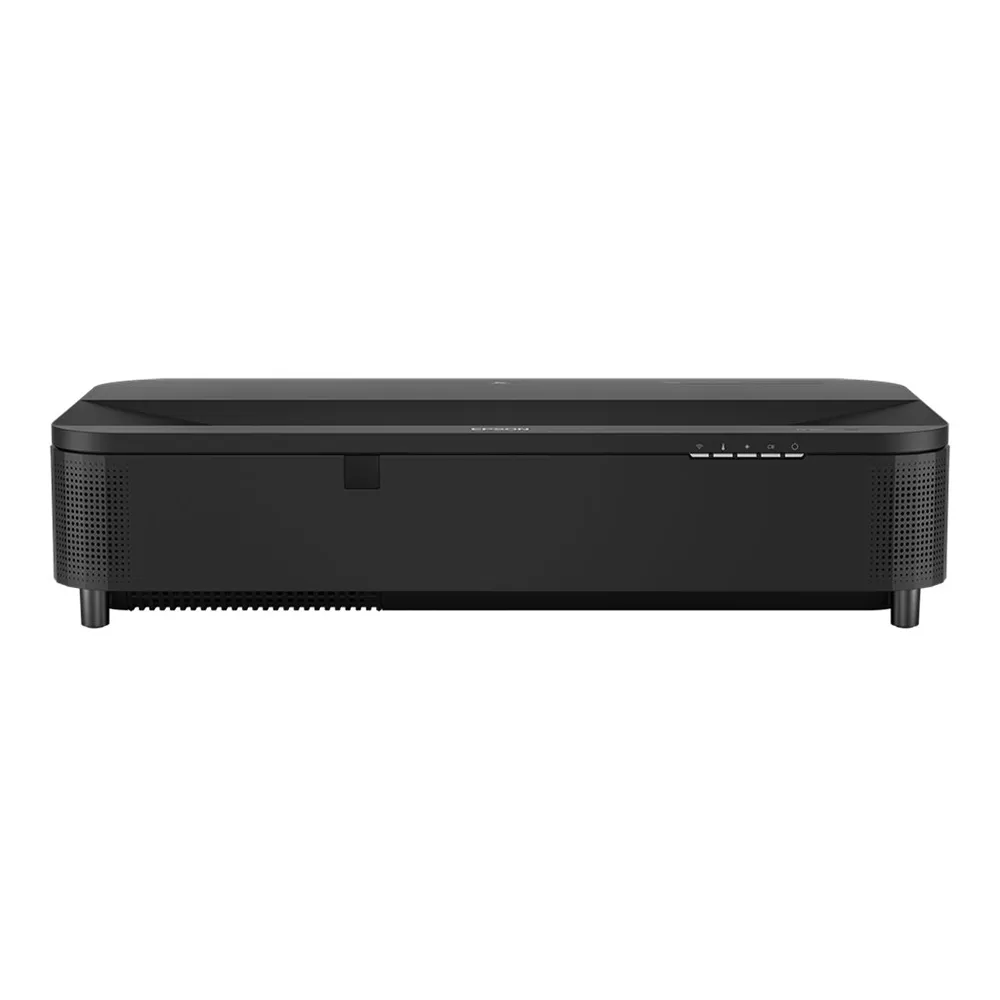

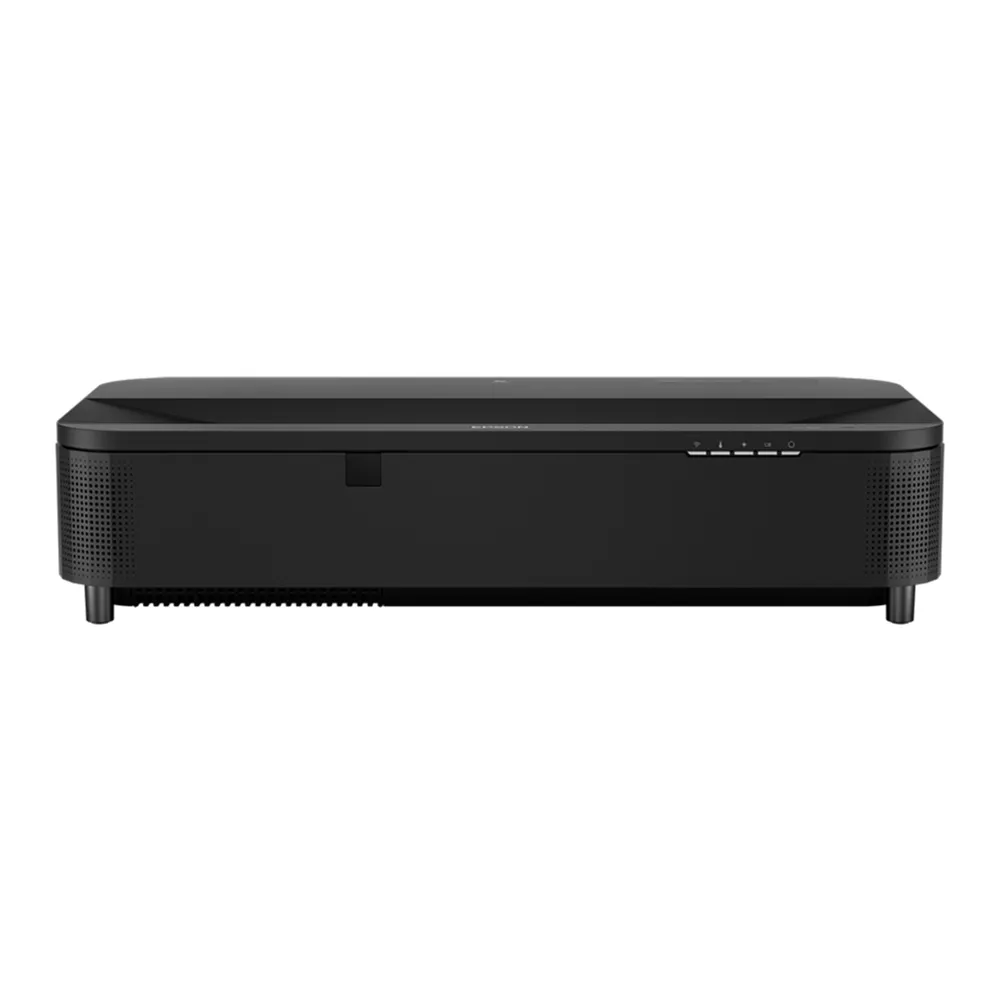

Epson EB-815E laser Projector

The EB-815E´s super ultra-short throw allows for secure, discreet positioning close to the wall, so presenters are free to present without shadows.

Thanks to 3LCD technology and a CLO brightness of 5,000 lumens, the display is bright and clear up to 160´´ and allows you to view content from all angles and from far away. The experience is immersive and the display is extremely simple to use.

Versatile wired and wireless connectivity options, including Screen Mirroring via Miracast™, let you easily share content from multiple devices.

Weighing just 12.3kg, it is easy to carry and the Epson Setting Assistant app makes setup much quicker. The ideal display solution for different sized rooms, combined with flexible installation options.

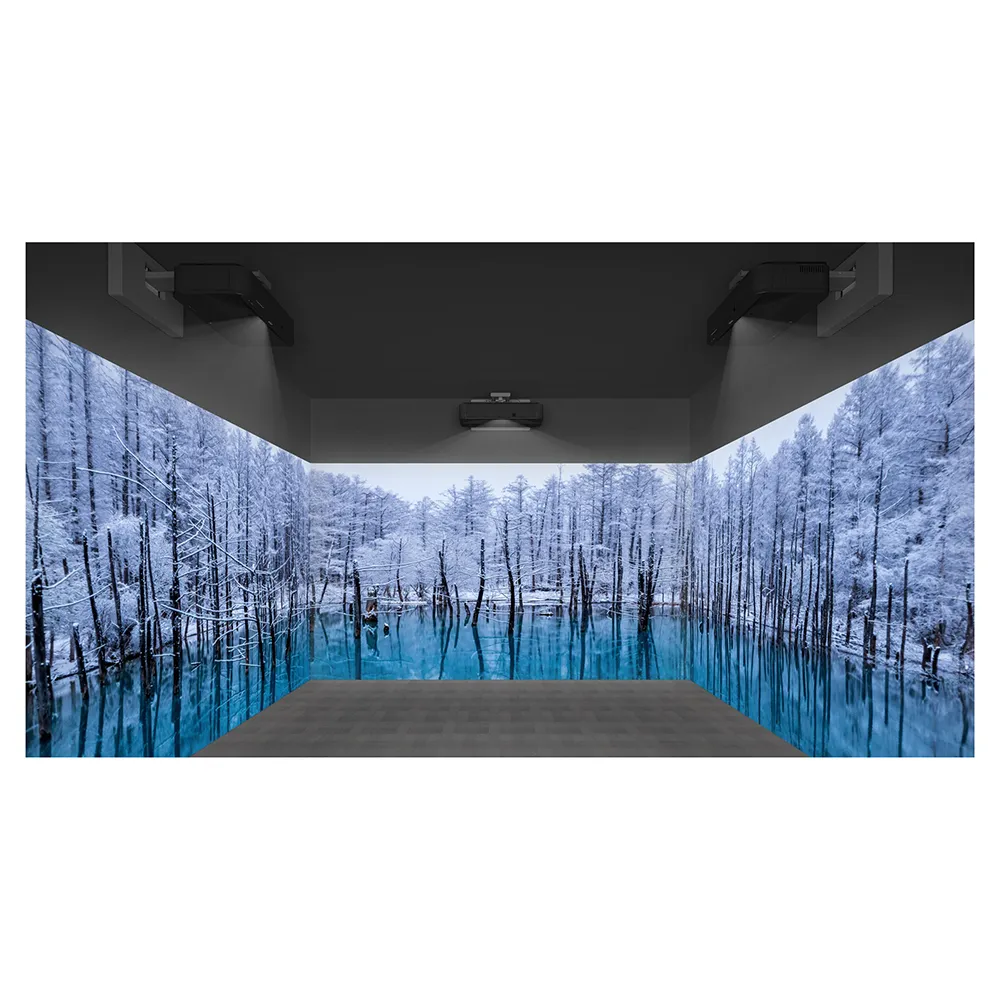

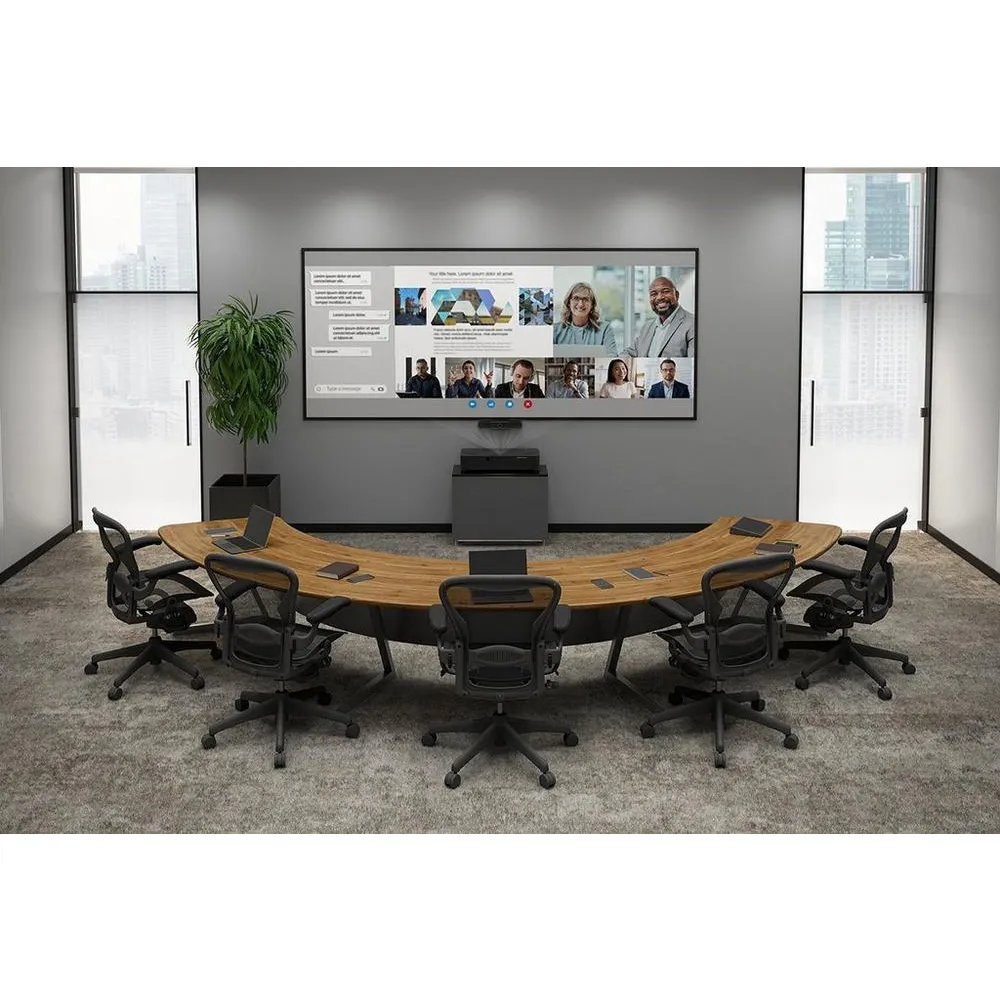

The EB-815E supports multiple aspect ratios and multi-projector edge blending for a cost-effective, seamless and energy-efficient ultra-wide display, perfect for video conferencing.

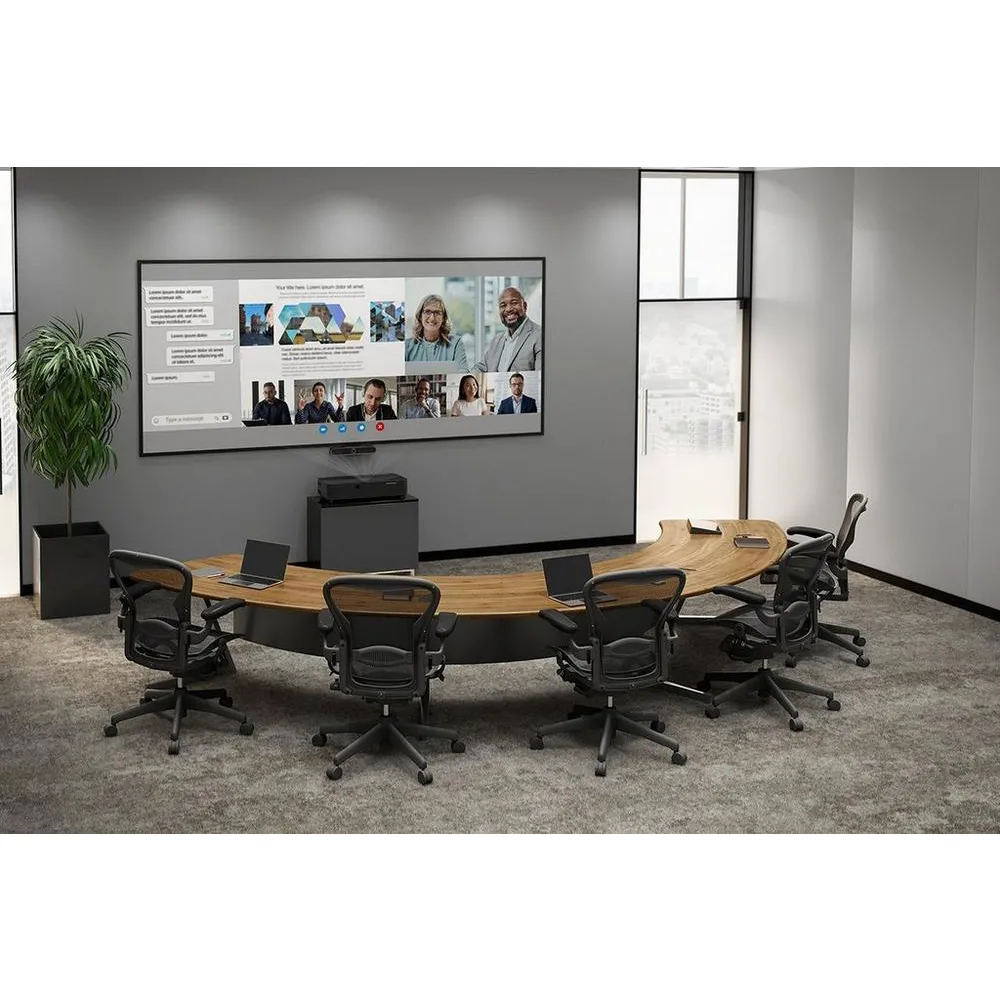

Paired with Epson´s Ambient Light Rejection screen, the EB-815E´s image quality could be mistaken for a video wall or LED display, but it´s surprisingly cost-effective and uses much less power.

Features:

- Scalable 4KE display for any space80-160´´ ultra-short-throw display for unrestricted viewing (no shadows or reflections)
- Bright and energy efficient laser5,000 lumen CLO with 3LCD technology for brighter colors
- Simple connectivity options Auto-on display, wired/wireless with 2A USB output for smart stick
- Simple to use and built to last12,000 hour warranty, 5 years maintenance-free operation
- Alternative to video wall/LED Surprisingly affordable, with low energy consumption

Specifications:

Technology:
- Projection system: 3LCD Technology, RGB LCD Panel
- LCD Panel: 0.62 inch with C2 Fine

Image:
- Emission of colored light: 5,000 lumens - 3,500 lumens (in Economy mode) in compliance with IDMS15.4 standard
- White light emission: 5,000 lumens - 3,500 lumens (in Power Saving mode) In accordance with ISO 21118:2020
- Resolution: 1080p
- Resolution improvement: 4K enhancement
- Proportions: 16:9
- On-Screen Pixel Count: 2,073,600 dots (1,920 x 1,080) x 3
- Contrast ratio: Over 5,000,000 : 1
- Light source: Laser
- Light source: 20,000 Hours Durability High, 30,000 Hours Durability Eco
- Video processing: 10 Bit
- 2D vertical refresh rate: 192Hz - 240Hz
- HDR support: HDR10, HLG

Optics:
- Projection ratio: 0.16 - 0.40:1
- Zoom: Digital, Factor: 1 - 1.35
- Lenses: Optical
- Image dimensions: 80 inches - 160 inches
- Focal ratio (F): 1.8
- Focal distance: 2.3mm
- Focus: Manual
- Compensation: 7 : 1

Connectivity:

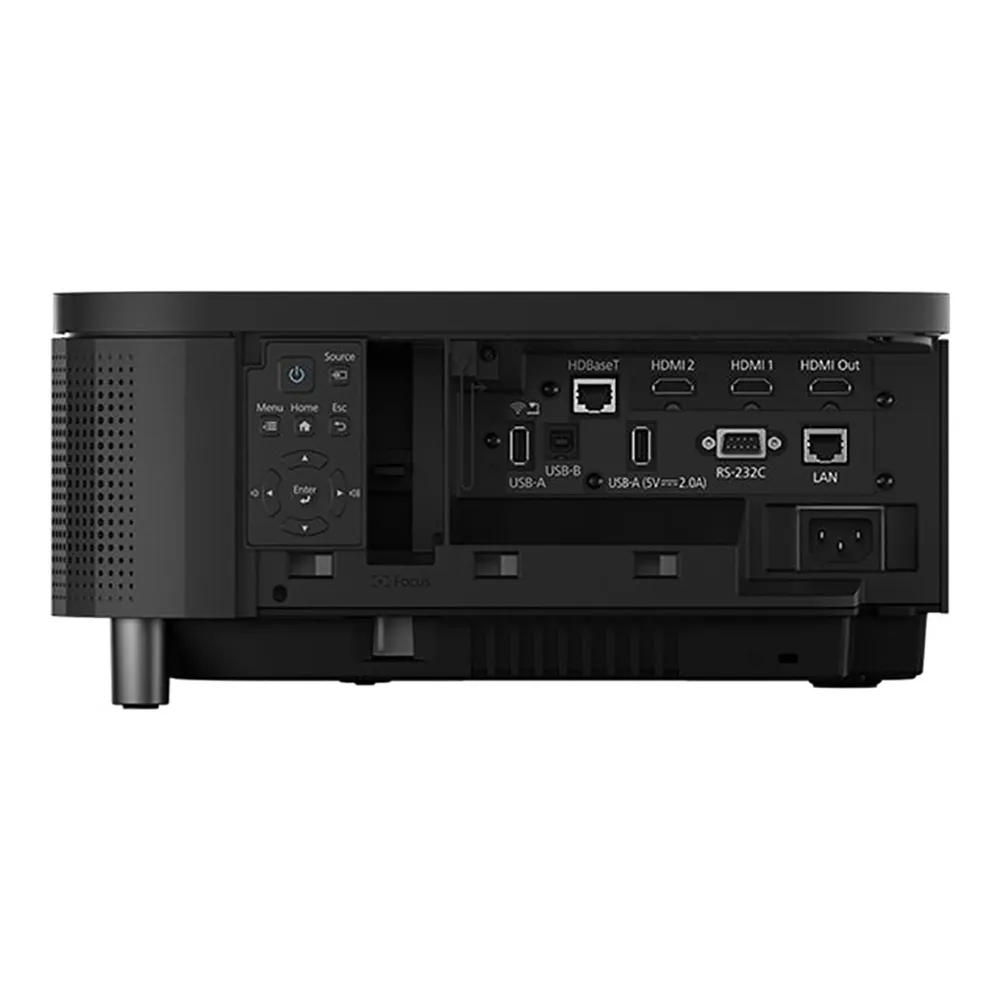

- Interfaces: USB 2.0-A (2x), USB 2.0 Type B (service only), RS-232C, Ethernet interface (100Base-TX / 10Base-T), IEEE 802.11a/b/g/n/ac wireless LAN, HDMI input ( 2x), HDMI output, HDBaseT, Miracast
- Smartphone connection: Infrastructure/Ad hoc
- Network Protocol: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink

Advanced Features:
- Safety: Kensington Lock, Control Panel Lock, Password Protection, Padlock, Wireless LAN Unit Lock, Wireless LAN Security, Password Protection
- 2D Color Mode: Dynamic, Natural, Cinema, Presentations, Whiteboard, DICOM SIM
- Features: 21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto Power On, Auto Source Search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain multi-projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Screen fit, Home screen, Horizontal and vertical keystone correction, Image shift, JPEG Viewer, Long light source life, PC Free, Point correction, Power on button, Quick Corner, Schedule function, Screen Mirroring, Source function, Split Screen function, Ultra-wide display (16:6), Web control, Web remote function, Wireless LAN compatible, iProjection App
- Color mode: Blackboard, Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection
- Projector control: via: AMX, Extron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, SDDP (Simple Device Discovery Protocol) Control4

General Features:
- Energy consumption: 290 Watt (Normal On-Mode), 192 Watt (Eco On-Mode), 380 Watt (Normal Peak-mode), 286 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby)
- Heat Dissipation: 1,292 BTU/hour (max)
- Voltage: AC 100V - 240V, 50Hz - 60Hz
- Dimensions: 695 x 341 x 156 mm (WxDxH)
- Weight: 12.5 kg
- Noise level: Normal mode: 35 dB (A) - Economy mode: 26 dB (A)
- Temperature: Storage -10° C - 60° C
- Humidity: Operation 20% - 80%, Storage 10% - 90%

If the projector is ceiling or wall mounted and installed in an environment with heavy oil smoke or where oils or chemicals are volatilized, where smoke or bubbles are used for events and performances, or where aroma oils are frequently burned, it is possible that certain components of our products may experience material degradation which, over time, could break and cause the projector to fall from the ceiling.

If you believe that the environment in which you have installed your Epson projector(s) is such as this, or if you have any questions, please contact support who will be able to provide further assistance.

- Software included: Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management, Epson Setting Assistant
- Options: Air filter, Ceiling mount, Control box, MB22 ceiling mounting bracket, Safety wire set, Visualiser camera, WP System - ELPWP10, WP System - ELPWP20, Wall hanging bracket, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
- Room Type/Application: 4K Streaming, Boardroom, Huddle room / Portable Use, Large Meeting Room / Auditorium, Boardroom / Classroom, Signage / Retail, Attraction Venues
- Positioning: Ceiling Mount, Desktop, TV Cabinet, Wall Mount
- TCO Certification: For further information relating to TCO Certified.

In the box:
- Power cord
- Quick Guide
- Remote control incl. batteries
