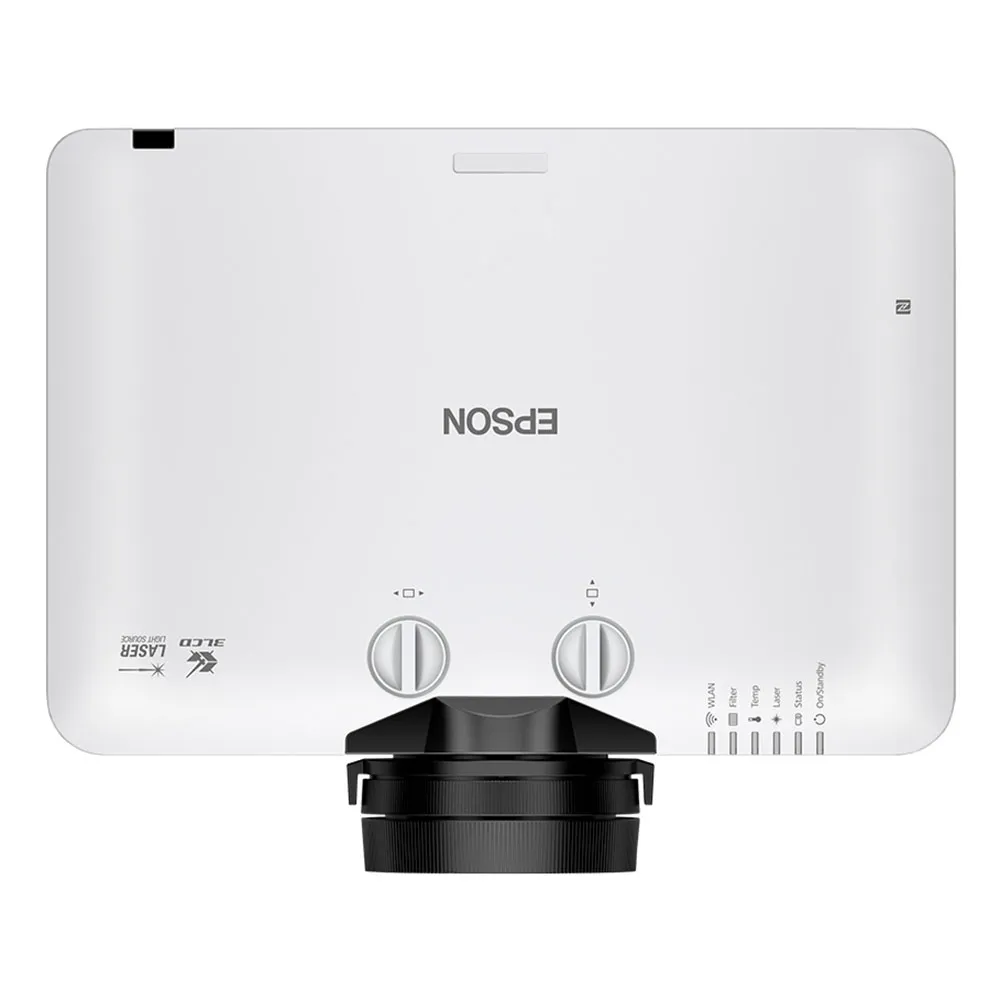

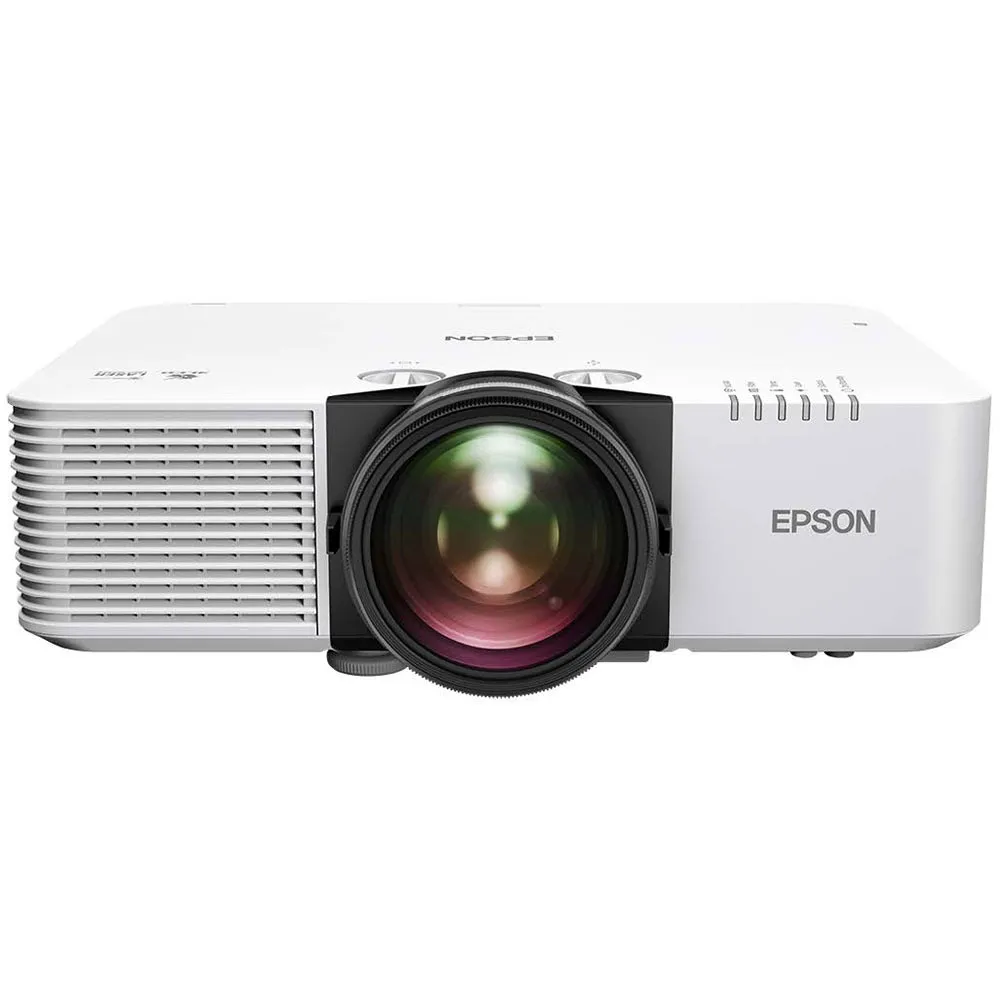

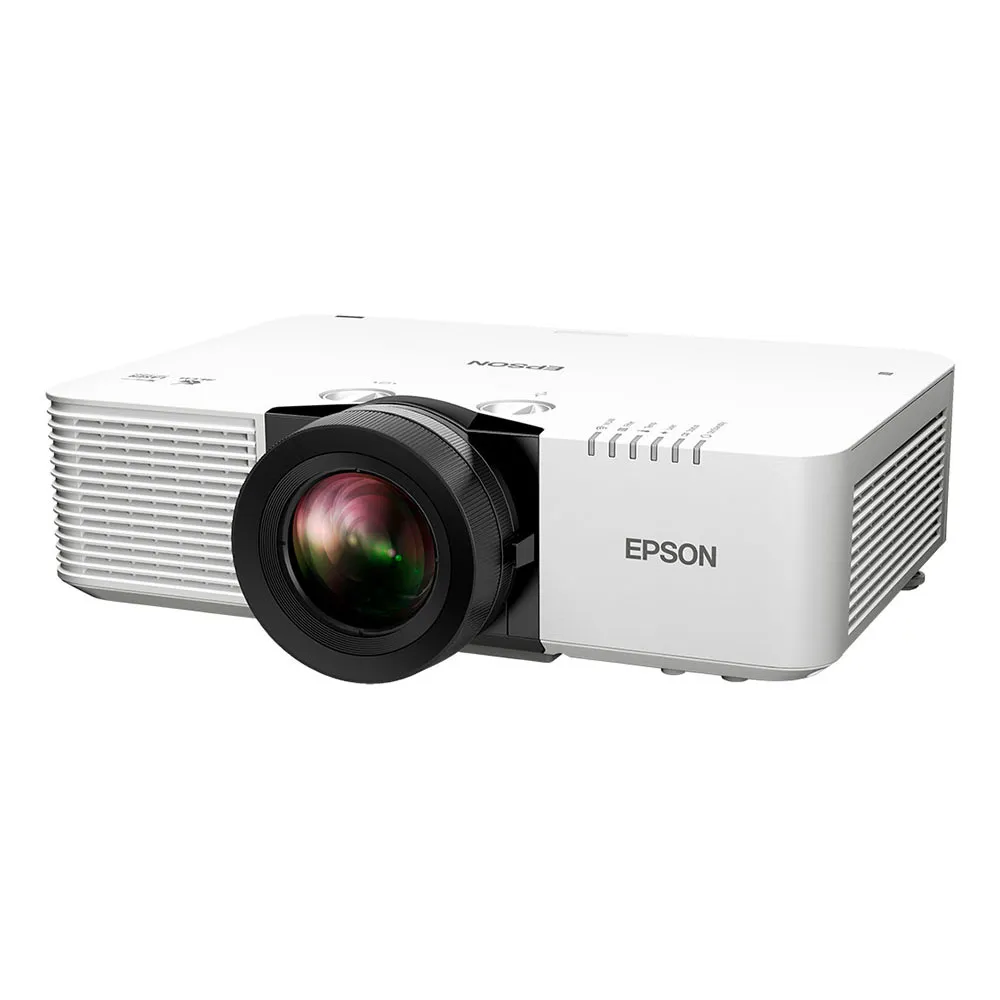

Epson EB-L690SU Projector

EU Plug.Epson EB-L690SU - WUXGA short-throw projector with 6,200 lumens.

This projector opens up new possibilities for presentations and visual installations in compact spaces.

With high brightness and precise image reproduction, it is suitable for professional settings where clear and detailed content is essential.

Flexible for different environments.

The short-throw projection creates large images even at a short distance.

With adjustable zoom and manual lens shift, the device adapts to various room layouts without causing shadows or glare.

Convenient operation and quiet performance.

A low noise level supports a focused atmosphere, while wired and wireless connections make integration into existing systems straightforward.

Content can be shared directly from mobile devices.

Durability and efficiency.

The laser light source ensures a long operating life without maintenance.

Even during intensive use, image quality remains consistent, making this projector suitable for continuous operation in educational institutions or businesses.

Advanced features for professional requirements.

Alongside high resolution, numerous image modes and control options are available.

Presentations, simulations or projections can be customised and displayed in high quality.

Features:High brightness of 6,200 lumens for clear images even in bright rooms.

WUXGA resolution for sharp and detailed visuals.

Short-throw ratio of 0.79-1.36:1 for large screens at short distances.

Manual lens shift and 1.7x zoom for flexible installation.

Laser light source with up to 30,000 hours in Eco mode for long service life.

Low noise level of 25 dB in Eco mode for a quiet environment.

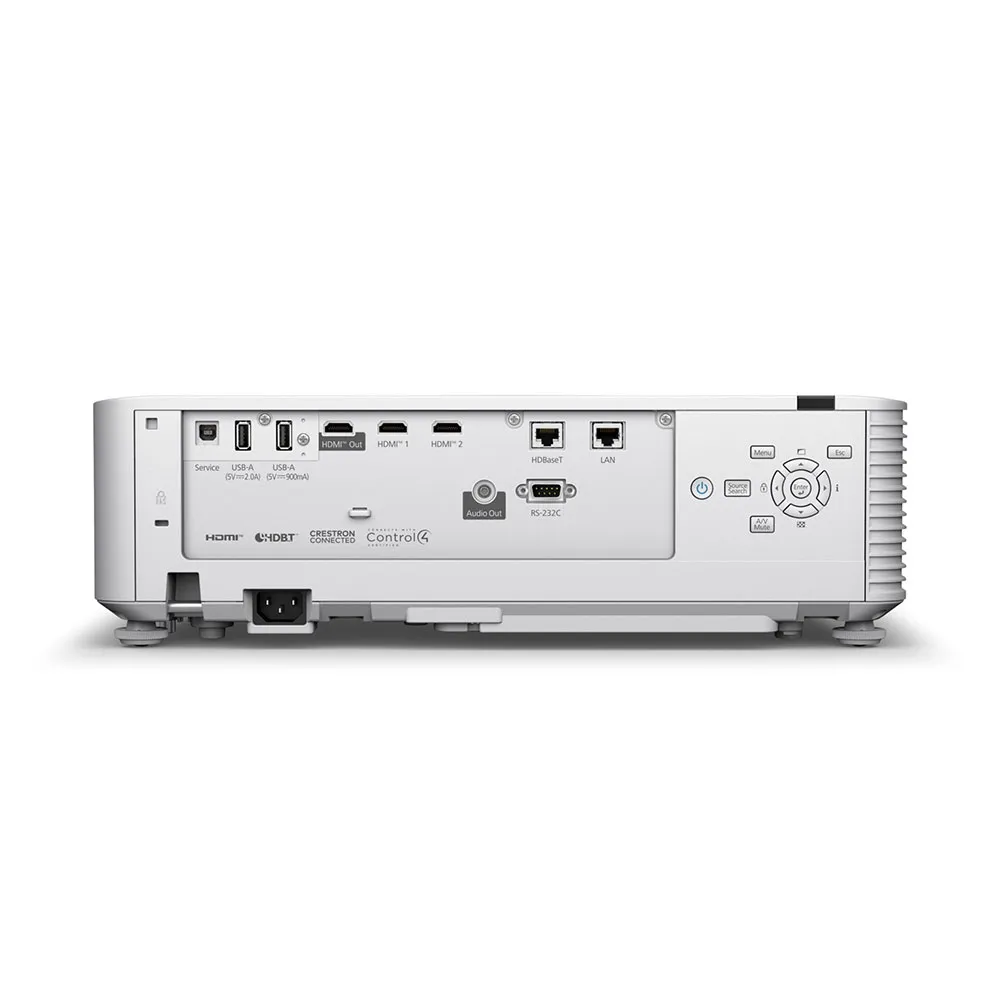

Connectivity via HDMI, HDBaseT, LAN, WiFi as well as Apple AirPlay 2 and Miracast.

Supports split-screen and edge-blending for complex presentation setups.

Built-in 10 W speaker for additional audio output.

Various security features such as control panel lock and password protection.

Projection size from 60 to 400 inches for different room sizes.

-Bluetooth:No.

-WiFi:Yes.

-Miracast (WiFi certified):Yes.

-NFC:Yes.

-Apple AirPlay 2:Yes.

-Audio-In:1x.

-Audio-Out:1x.

-HDMI (Type A):3x.

-USB-A:2x 2.0.

-USB-B:1x USB-B 2.0.

-HDBaseT:Yes.

-Network (RJ 45):Yes.

-Serial Port (RS 232):1x.

-High Dynamic Range (HDR):Yes.

-Integrated Media Player:No.

-Loudspeaker Integrated:Yes.

-Nominal Power Loudspeaker (Watt):1.

-Remote Control:Yes.

-3D Projection:No.

-Energy Supply:Mains.

-Max.

Power Consumption (Watts):435.

-Min.

Power Consumption (Watts):233.

-Max.

Bulb Life Span (h):30.000.

-Min.

Bulb Life Span (h):20000.

-Max.

Noise Emission (dB(A)):34.

-Min.

Noise Emission (dB(A)):25.

-Focus:Manually.

-Zoom:Optical.

-Zoom (x):1.2.

-Luminous Intensity:1,7 - 2,1.

-Digital Focal Length (mm):11,6 - 19,9.

-Lens Shift:Yes.

-Keystone Correction:Yes.

-Short Distance:Yes.

-Projection Technique:3LCD.

-Light Source:Laser.

-Native Resolution (Pixel):WUXGA (1920 x 1200).

-Natives Aspect Ratio:16:10.

-Image Brightness (ISO Lumen):4340.

-Max.

Image Brightness (ISO Lumen):4340.

-Brightness (ANSI Lumen):6200.

-Max.

Brightness (ANSI Lumen):6200.

-Contrast Ratio (x:1):500000.

-Throw Ratio (x:1):0,79 - 1,36.

-Max.

Diagonal Screen Size (Meter):10,16.

-Min.

Diagonal Screen Size (Meter):1,52.

-Max.

Projection Distance Coverage (Metre):11,9.

-Min.

Projection Distance (Meter):1,02.

-Adaptive Synchronisation:No.

-Colour:White.

-Width (mm):440.

-Height (mm):151.

-Depth (mm):362.

-Weight (kg):8,9.

-Tripod Socket:No.

-Possible of Ceiling Mount:Yes.
