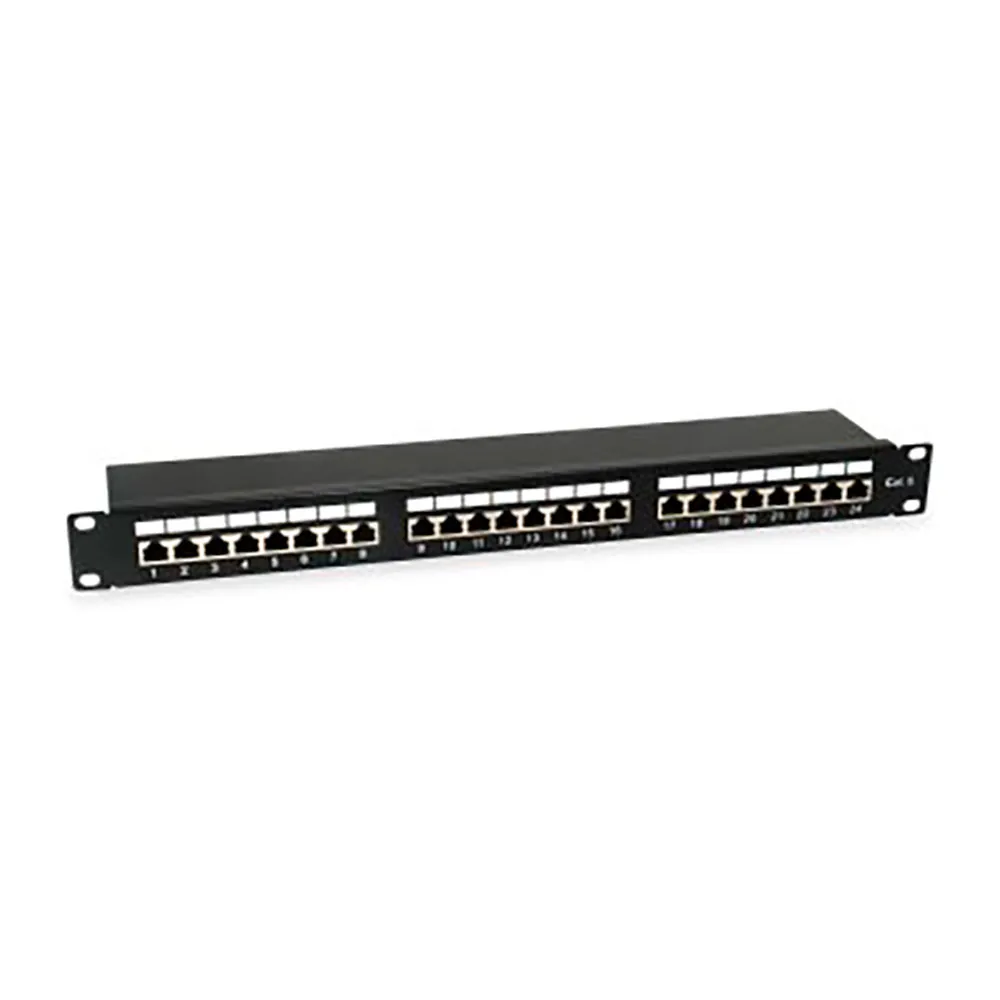

EQUIP 326425 Cat.6 Shielded Patch Panel, 24-Port 1U 19"

Elevate the core of your network infrastructure with the EQUIP 326425 Patch Panel, a professional-grade distribution unit designed for demanding server environments and data centers. Engineered for reliability and high-speed performance, this panel serves as the central nervous system for your network, ensuring seamless connectivity and superior organization within any standard 19-inch server rack. It is the definitive solution for managing complex cabling with efficiency and professional polish.

The equip® Patch Panel is a 19-inch 1U network distribution unit that fundamentally transforms your cable management strategy. It integrates a sophisticated cable management system designed for optimal routing and exceptional strain relief. This crucial feature protects your cable terminations from physical stress, preventing data loss and accidental disconnects, thereby ensuring long-term network stability. Its versatile design makes it suitable for both LSA and 110 termination standards, offering flexibility for installers.

Featuring 24 fully shielded RJ45 ports, this patch panel is engineered to deliver exceptional performance and protect your data integrity. The shielding provides a robust defense against electromagnetic interference (EMI) and alien crosstalk (AXT), which are common in dense server rack environments filled with power supplies and other electronic equipment. For truly outstanding and certified performance, it is highly recommended to connect this unit with equip® shielded patch cords and complementary cabling accessories. This creates an end-to-end shielded channel that maximizes signal quality. Moreover, for ease of installation, management, and troubleshooting, each of the 24 ports is clearly marked with a port number for immediate recognition and flawless patching. These types of organized panels are essential for scalable and maintainable network architectures.

Main Features and Key Benefits:

* High-Speed Network Performance: With 24 Cat.6 RJ45 ports, this panel is built to handle modern network demands. It supports Class E channel performance up to 250MHz, making it perfectly suited for 10/100Base-T and high-throughput 1GBase-T (Gigabit Ethernet) applications without bottlenecks.
* Superior Signal Protection: The fully shielded construction of the ports and chassis provides maximum protection from external noise and interference, guaranteeing a stable and reliable signal path for critical data transmissions.
* Simplified Installation & Versatility: Compliant with the universal ANSI/TIA/EIA 568 standard and featuring clear IDC T568A/T568B color coding, installation is intuitive and error-free. The Dual IDC termination block is compatible with both LSA and 110 punch-down tools, providing valuable flexibility for network technicians.
* Robust & Organized Cabling: The integrated cable management bar ensures that cables are neatly routed and secured, providing essential strain relief and maintaining a clean, professional appearance in your server cabinet.

Technical Specifications:

Performance:

* Ports: 24 x Cat.6 RJ45, Shielded
* Performance Class: Class E, up to 250MHz
* Network Compatibility: 10/100Base-T, 1GBase-T
* Standards Compliance: ANSI/TIA/EIA 568
* Termination Block: Dual IDC (LSA and 110) compatible
* Wiring Scheme: IDC T568A/T568B Color Coded

Physical Specifications:

* Material: Sturdy Steel
* Dimensions (W x D x H): 482.6x110.5x44.45 mm
* Product weight (kg): 1.5
