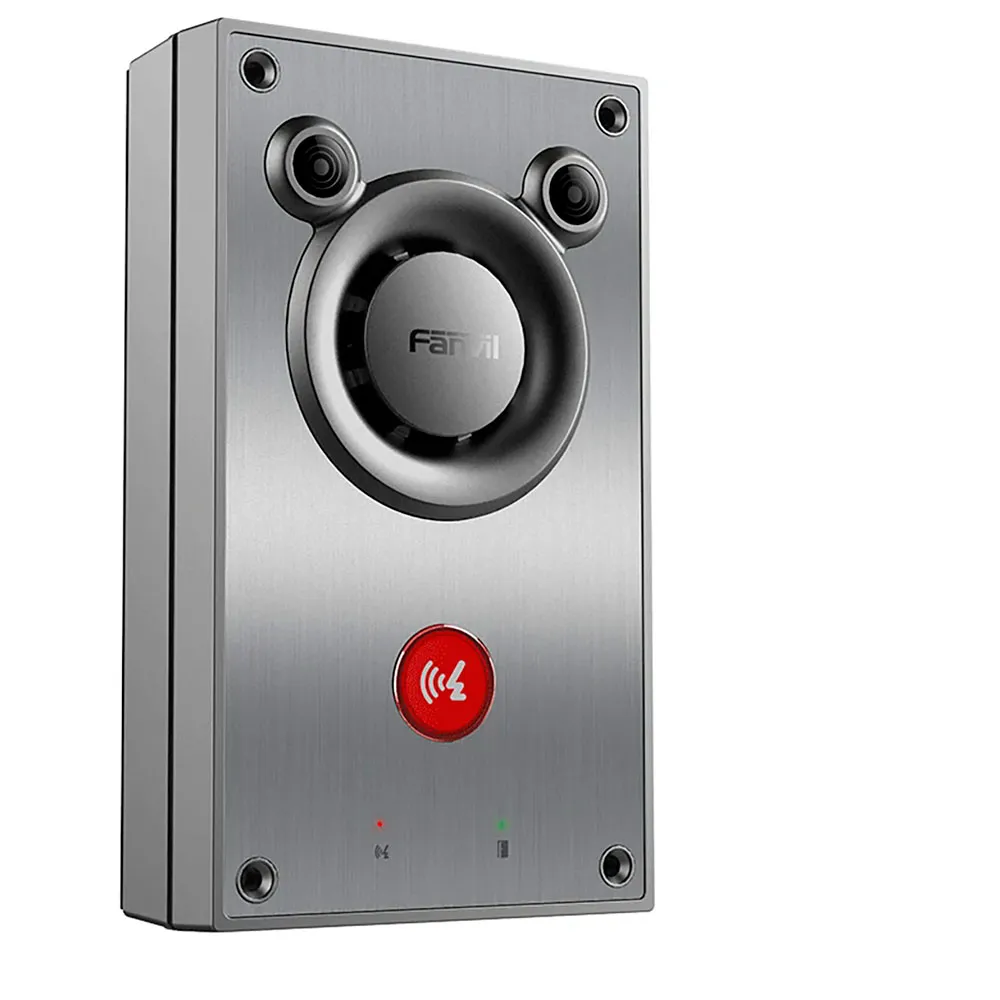

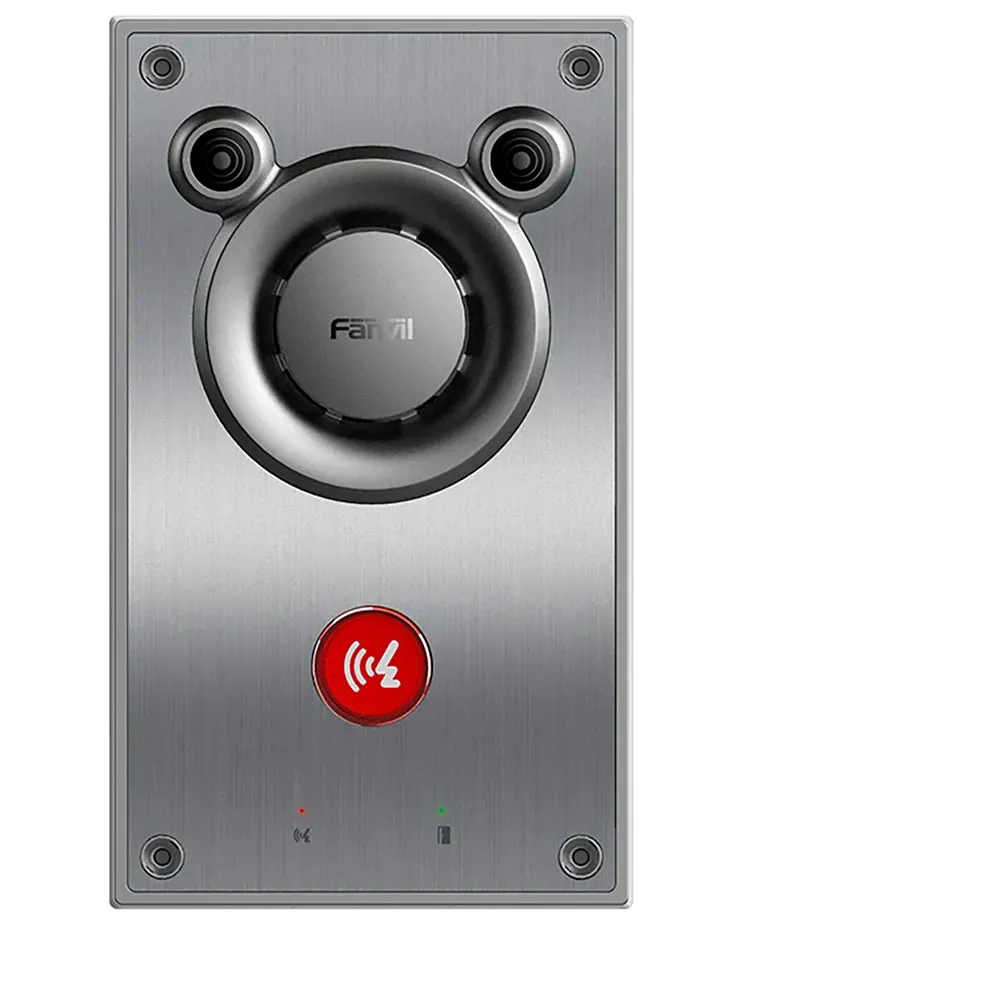

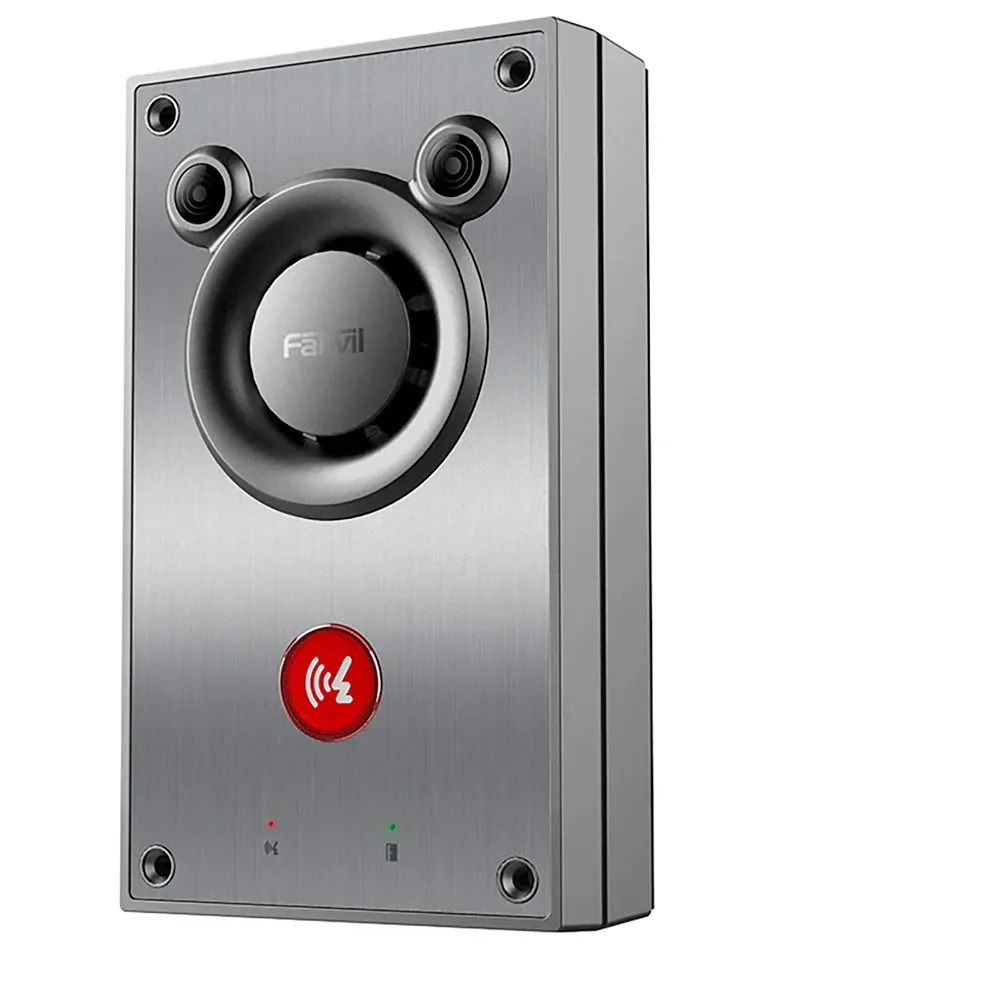

Fanvil A12 security camera

Fanvil A12 SIP Paging Gateway & Security Hub

Category: Electricity and Smarthome
Subcategory: Security and Surveillance

Transform your security and communication infrastructure with the Fanvil A12, a powerful and versatile SIP Paging Gateway. The A12 serves as the intelligent core of your security and public address (PA) system, seamlessly bridging analog and digital devices into a unified, IP-based network. Ideal for schools, hospitals, commercial buildings, and transportation hubs, this device elevates your ability to monitor, communicate, and respond with unparalleled clarity and control. By integrating audio, video, and alarm systems, the Fanvil A12 provides a comprehensive solution for modern security and surveillance needs.

Elevate Your Security and Communication

The Fanvil A12 is engineered to be more than just a component; it´s a complete system enhancer. Experience the benefit of centralized management, allowing you to broadcast high-definition audio announcements, trigger alarms, and monitor video feeds from a single, cohesive platform. Its robust design supports two-way intercom functionality, enabling clear, real-time conversations. Leverage your existing IP network to create a sophisticated and cost-effective public address and security system, reducing complex wiring and simplifying installation. With support for both pre-recorded messages and live broadcasting, you can ensure critical information is delivered effectively and instantly, every time.

Core Features
* Compatible with standard SIP (RFC3261) protocol and major IP PBX/IMS platforms
* All-in-one design with integrated codec, amplifier, and speaker
* Powerful 10W/20W/30W mono channel amplification
* Built-in 2.4G & 5G Wi-Fi for flexible network access (A12W model)
* Support for local music playback from a Micro SD card (up to 256GB)
* HD Audio codecs including G.722 and Opus for crystal-clear sound
* Web-based interface for remote management and configuration
* Power over Ethernet (PoE) for simplified, single-cable installation
* Two short-circuit input and one short-circuit output interfaces for alarm integration
* Audio-out port for connecting an external active speaker

Seamless Integration with Cameras

The Fanvil A12 is expertly designed to integrate with your surveillance network. It features a dedicated video input port that allows for the connection of third-party IP Cameras. This functionality transforms the A12 into a comprehensive audio-visual security hub. By linking a camera, you can synchronize video surveillance with audio announcements and two-way communication. This enables security personnel to not only see an event in real-time but also to verbally intervene, broadcast warnings, or provide instructions, creating a more proactive and effective security response.

Technical Specifications
* SIP Lines: 2
* Power Supply: DC12V/2A or PoE (802.3af)
* Amplifier: 10W/20W/30W
* Wi-Fi: 2.4GHz & 5GHz (A12W model)
* Narrowband Codecs: G.711a/u, G.723.1, G.726, G.729A/B, iLBC
* Wideband Codecs: G.722, Opus
* Features: Full-duplex Acoustic Echo Canceller (AEC), Noise Reduction (NR), Packet Loss Concealment (PLC)
* Video Codec: H.264
* Video Resolution: Main stream up to 1080p@30fps
* Video Input: 1 Port, supports up to 1080P resolution
* Network: 1 x RJ45 Ethernet Port
* Alarm I/O: 2 x Short Circuit Input, 1 x Short Circuit Output (Relay)
* Audio Ports: 1 x Audio In, 1 x Audio Out
* Speaker Interface: 1 x Mono Speaker Output
* Storage: 1 x Micro SD Card Slot (up to 256GB)
* Installation: Desktop or Wall-mounted
