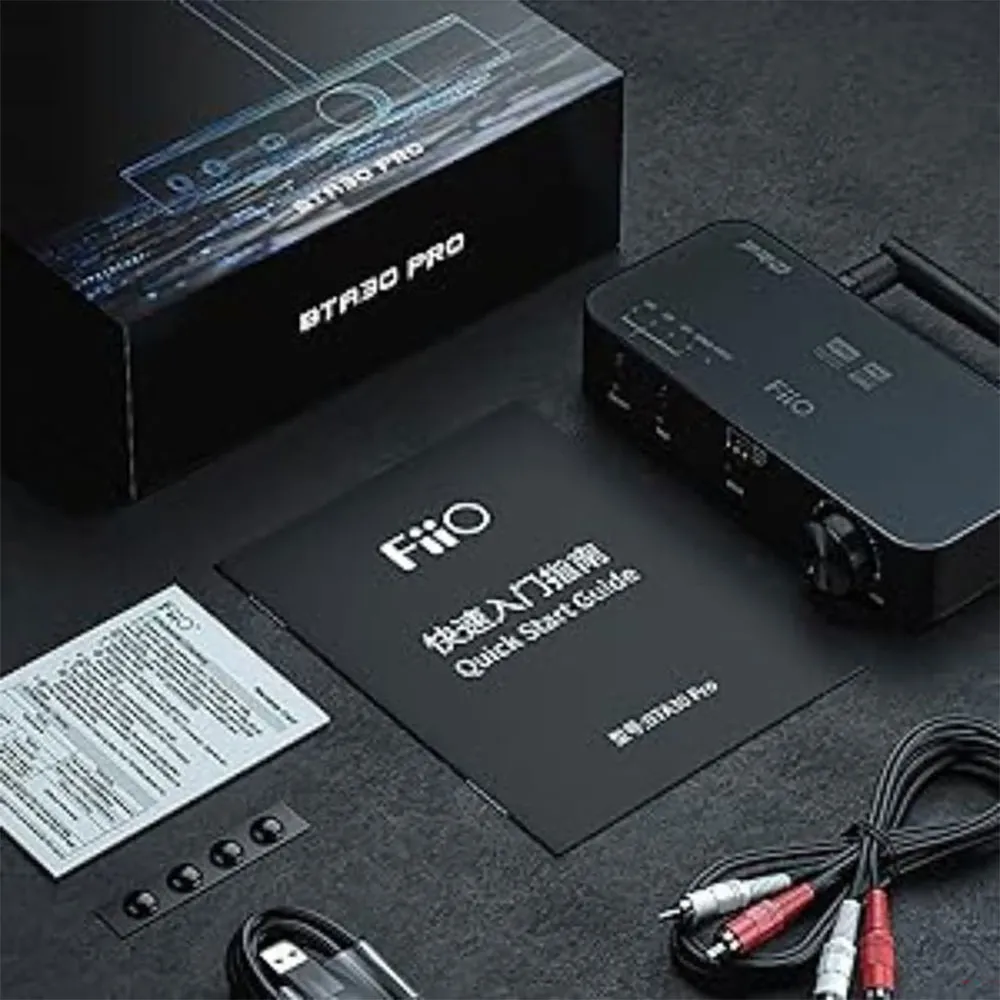

Fiio BTA30 Pro bluetooth Receiver

About the FiiO BTA30 Pro.

It is a high-fidelity Bluetooth Transmitter/Receiver with a range of up to 30m to improve the Bluetooth connectivity of high-fidelity audio equipment.

It features the DSP Chip: CT7302 which reduces noise, and the Bluetooth Chip: CSR8675 which provides a stable connection.

It also converts audio using its analog-to-digital converter (ADC).

It is a Bluetooth transmitter and receiver.

It amplifies the signal for a range of up to 30m via Bluetooth 5.0 with LDAC, aptX, and multiple external antennas.

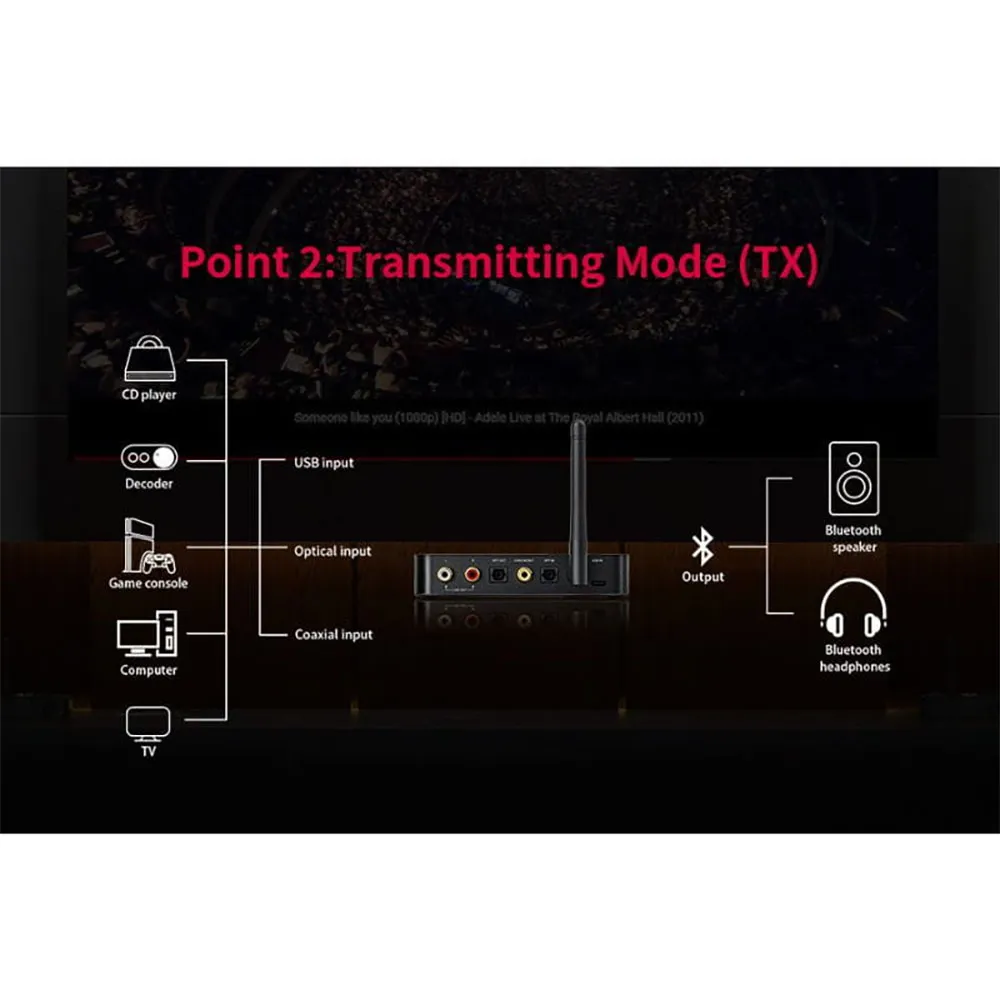

Transmitter (TX): Allows sending audio from sources such as televisions, CD players, or PCs to Bluetooth headphones or speakers.

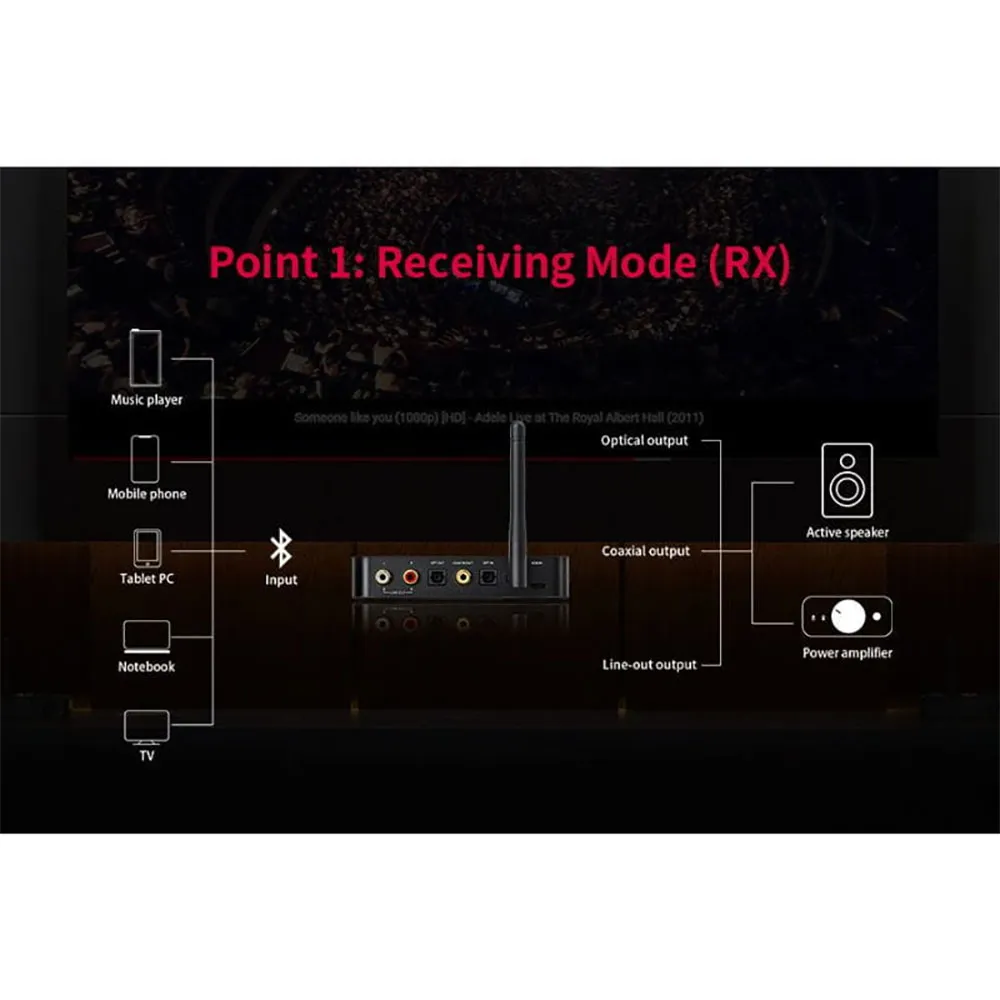

Receiver (RX): Receives audio from Bluetooth devices, such as smartphones or tablets, and transmits it to traditional sound systems.

USB DAC: Functions as a digital-to-analog converter, improving audio quality when connecting digital devices to analog audio systems.

D/A Converter.

It features the CT7302 converter chip to improve sound.

LDAC compatible.

The USB / SPDIF input also supports LDAC transmission, allowing for high-resolution lossless transmission.

Bluetooth reception mode.

With LDAC, aptX, aptX HD, and AAC support, the BTA30 Pro in its Bluetooth reception mode.

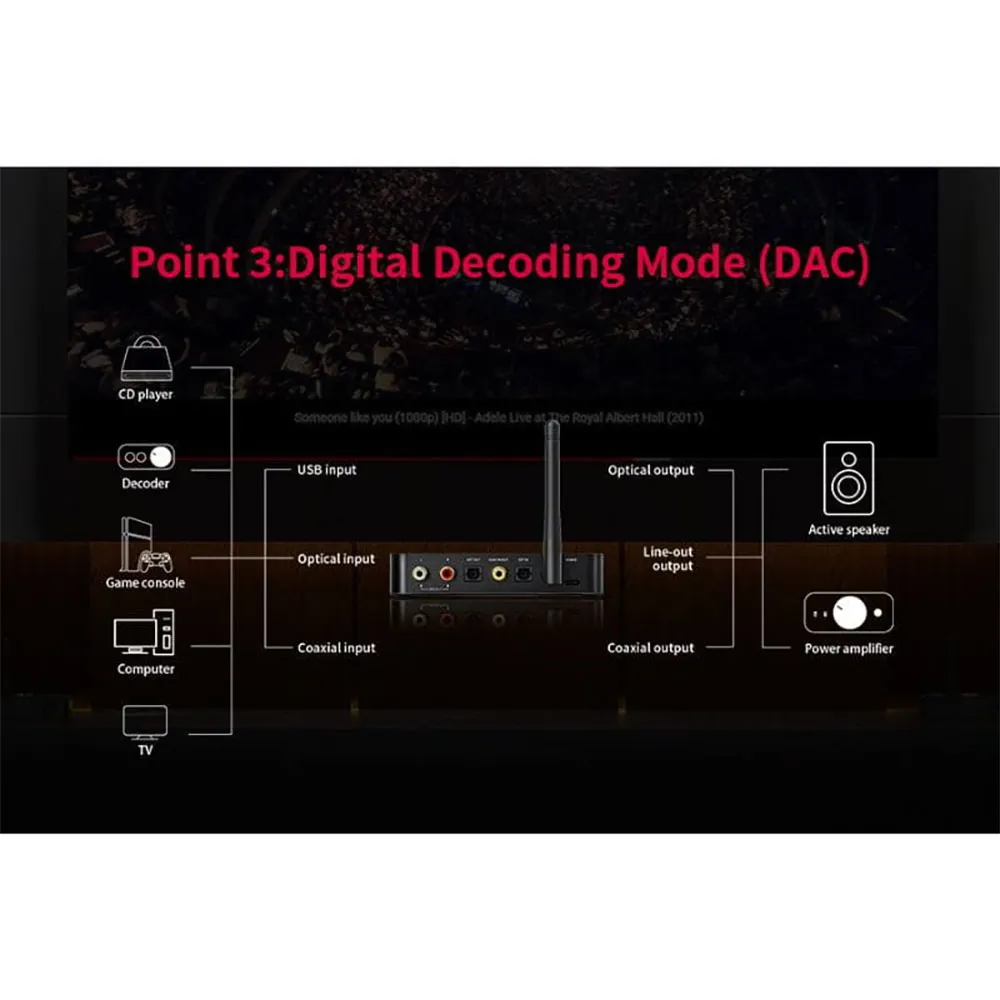

DAC Mode.

In this mode, it converts digital audio to analog without losing sound quality.

You can also use the optical input to connect your mobile phone and have its sound decoded.

Dual connection.

The FiiO BTA30 Pro remembers up to 2 devices simultaneously and connects to them automatically.

FiiO BTA30 Pro Technical Specifications.

Features.

Brand FiiO.

Model BTA30 Pro.

Color Black.

Weight 145g.

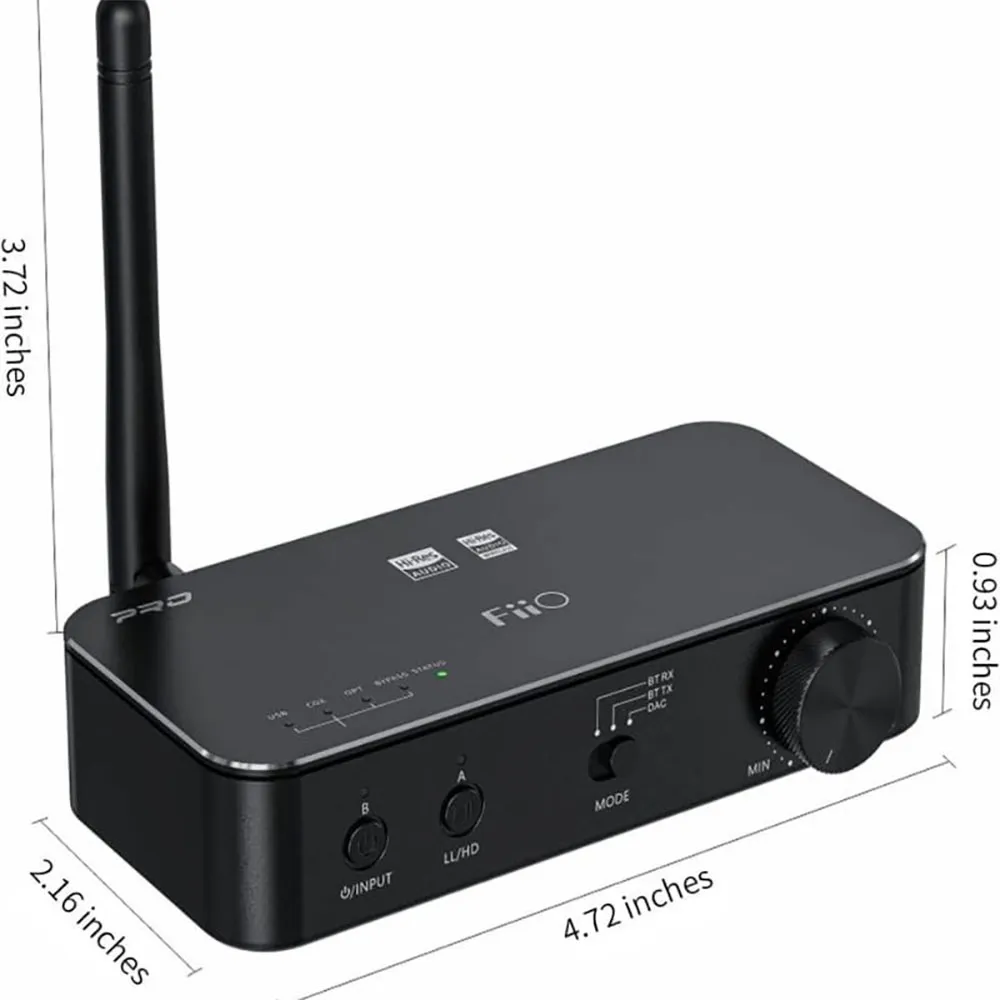

Dimensions 120x55x25.8mm.

Bluetooth Chip CSR8675 Bluetooth version 5.0.

DSP Chip CT7302.

DAC ES9038Q2M.

Audio operational amplifier OPA1662.

Optical decoding support 96k / 24bit.

Supported Bluetooth reception formats SBC / AAC / aptX / aptX HD / LDAC.

Supported Bluetooth transmission formats SBC / aptX / aptX LL / aptX HD / LDAC.

Supports coaxial decoding 192k / 24bit.

USB AUDIO output DSD64 (DoP) compatible with 384 kHz / 32 bits
