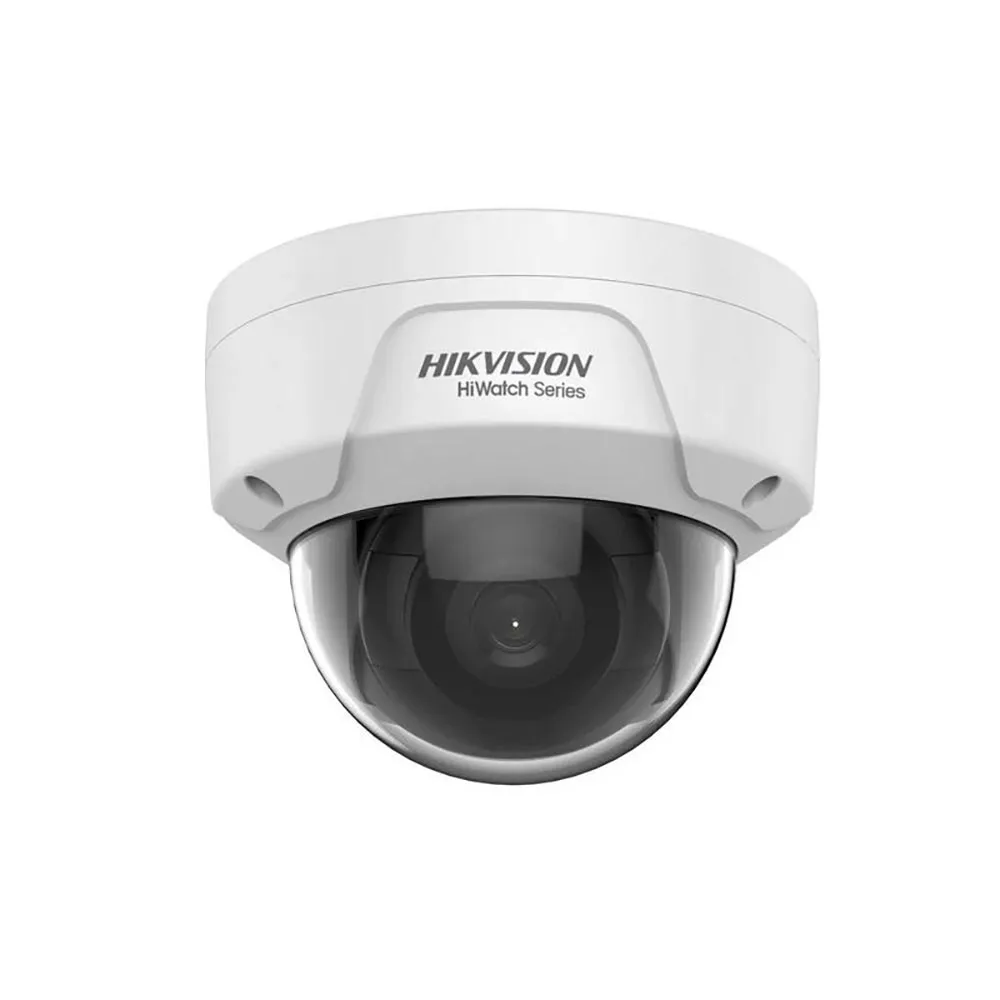

Hikvision HWI-D120HA security camera

HIKVISION HWI-D120HA 2MP Turret Camera with Audio | Full HD Surveillance

Elevate your security infrastructure with the HIKVISION HWI-D120HA, a state-of-the-art 2MP turret security camera designed for exceptional performance and reliability in any smarthome or business environment. This camera delivers crystal-clear, Full HD 1080p resolution, ensuring that every crucial detail is captured with precision, day or night. Its advanced features provide comprehensive coverage and peace of mind, making it a cornerstone of any modern security and surveillance system. The HWI-D120HA is engineered for versatility, offering seamless integration and superior imaging in a variety of lighting conditions.

A standout benefit is the integration of a high-fidelity microphone, enabling Audio over Coaxial (AoC) technology. This powerful feature allows the camera to capture and transmit high-quality audio alongside the video stream using a single coaxial cable, simplifying installation and providing a more complete security picture. Furthermore, its unparalleled compatibility is guaranteed with a 4-in-1 switchable video output, supporting TVI, AHD, CVI, and CVBS formats. This allows the camera to be effortlessly integrated into new or existing DVR systems, protecting your investment and offering maximum flexibility.

Key Benefits

Experience superior surveillance with crystal-clear 2 Megapixel Full HD video, capturing sharp and identifiable images. Benefit from the added security layer of high-quality audio recording, synchronized with your video feed. Enjoy outstanding night-time performance with advanced Smart IR technology, which intelligently adjusts infrared lighting to prevent overexposure and provide clear footage in complete darkness up to 20 meters. The camer´s wide-angle lens covers an expansive area, reducing the number of cameras needed to secure your property. Its robust design ensures reliable operation, providing a dependable security solution you can trust.

Main Features
* High-quality imaging with 2 MP, 1920 × 1080 resolution
* 2.8 mm fixed focal lens for a wide viewing angle
* Smart IR technology for clear night vision up to 20 meters
* Integrated microphone for high-quality audio (Audio over Coaxial)
* 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
* Digital Wide Dynamic Range (DWDR) for balanced imaging
* 3D Digital Noise Reduction (3D DNR) for clean and sharp images

Attribute: Cameras

The HIKVISION HWI-D120HA is a fixed turret camera, part of the acclaimed HiWatch series known for its excellent price-to-performance ratio. The turret design, also known as an eyeball camera, offers significant installation advantages, including a 3-axis adjustment mechanism for precise aiming and a reduced risk of IR reflection. It is an ideal choice for monitoring entrances, hallways, retail spaces, and outdoor sheltered areas where both high-definition video and clear audio are required for comprehensive surveillance.

Technical Specifications

Camera
* Image Sensor: 2 MP CMOS
* Max. Resolution: 1920 (H) × 1080 (V)
* Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
* Shutter Time: PAL: 1/25 s to 1/50.000 s; NTSC: 1/30 s to 1/50.000 s
* Field of View (2.8 mm): horizontal FOV: 106.4°, vertical FOV: 57.9°, diagonal FOV: 124.6°
* Lens Mount: M12
* Day & Night: ICR (Infrared Cut Filter)
* Angle Adjustment: Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°

* Image Settings: Brightness, Sharpness, DNR, Mirror, Smart IR
* TVI: 1080p@25fps/30fps
* CVI: 1080p@25fps/30fps
* AHD: 1080p@25fps/30fps
* CVBS: PAL/NTSC
* Day/Night Mode: Auto/Color/BW (Black and White)
* Image Enhancement: DWDR, BLC (Backlight Compensation)
* White Balance: Auto/Manual

Interface
* Video Output: 1 HD analog output (Switchable TVI/AHD/CVI/CVBS)
* Audio In: Built-in microphone

General
* Material: Plastic
* Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensing)
* Power Supply: 12 VDC ±25%
* Power Consumption: Max. 3.7 W
* IR Range: Up to 20 m
* Dimensions: Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
* Weight: Approx. 140.5 g (0.31 lb.)
