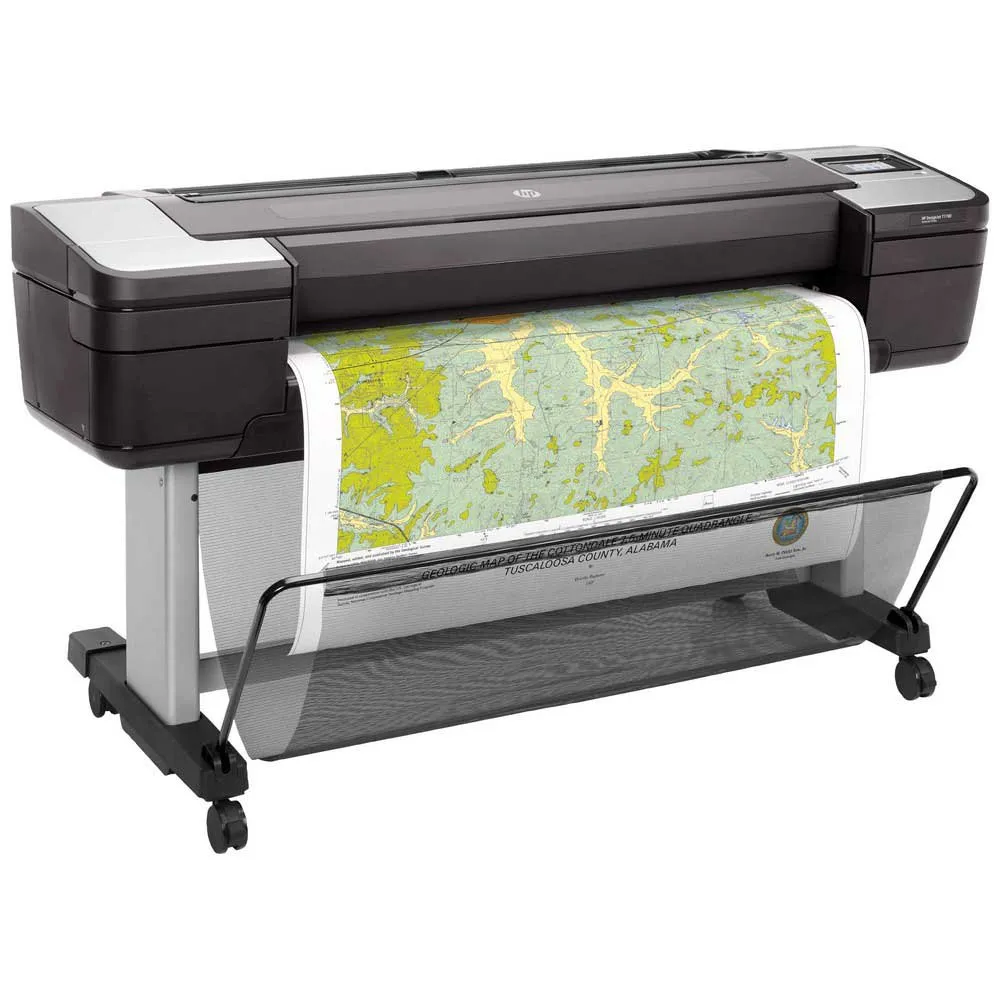

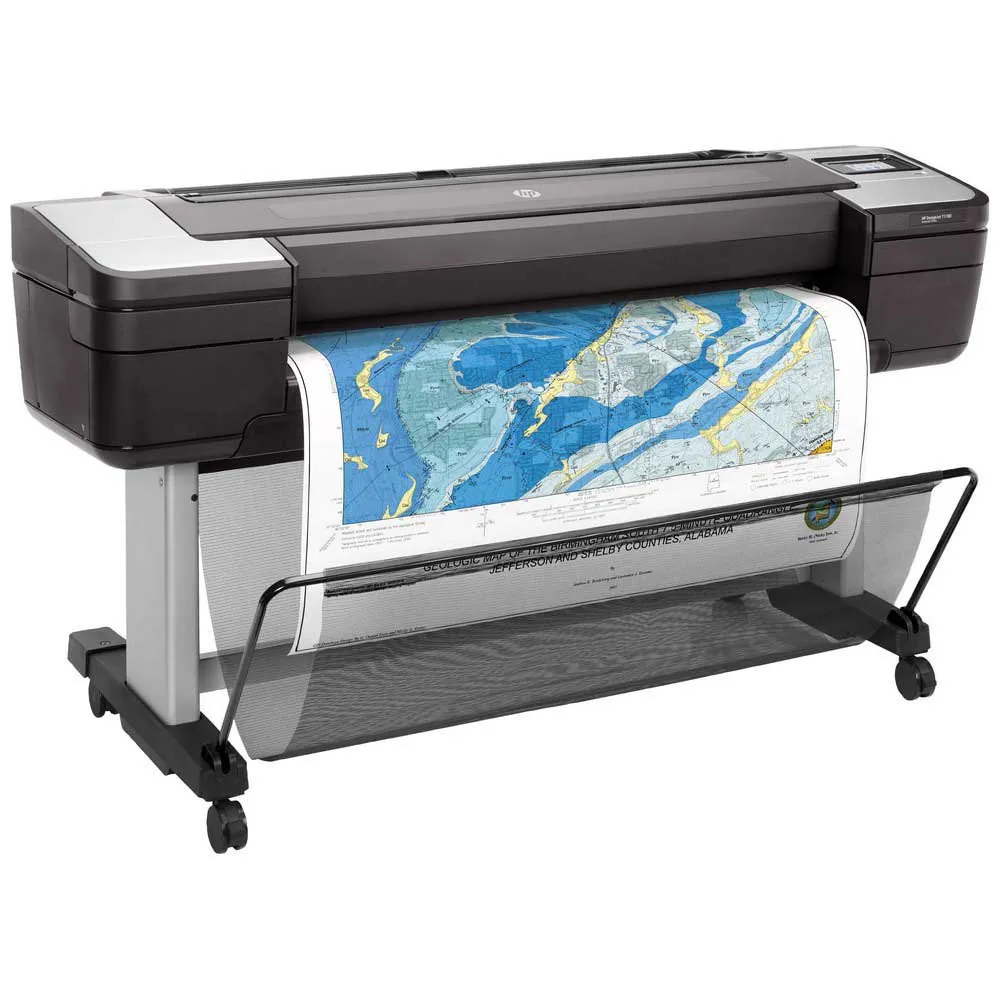

HP DesignJet T1700 multifunction printer

EU PLUG.

Protect your printer and your data from external or unintended access with advanced security Features.

Simplify device and fleet management, including security management.

Control and optimize printing costs with accounting solutions.

Protect printers/data from unauthorized access with HP Secure Boot, whitelisting, encrypted hard disk, more.

- Stay productive- with the Adobe PDF driver[2], you can handle even the most complex CAD/GIS files without freezing up your PC.

Easily print project sets and PDF documents with HP Click printing software.

Adobe PDF drivers[2] free up your computer immediately after sending to print- even for the most complex files.

- For complex CAD/GIS files, precise colors enable better decisions.

Six HP Bright Office Inks provide bright color, bold image quality, color/gray/photo black for soft colors, dark tones.

Reproduce layers of data with the Adobe PDF Print Engine.[2] Get bright color and bold image quality- even on plain papers- with HP Bright Office Inks.

- Dynamic security enabled printer.

Only intended to be used with cartridges using an HP original chip.

Cartridges using a non-HP chip may not work, and those that work today may not work in the future.

Features:

- A1 Black and White HP DesignJet Large Format Printer, Perfect for Enterprise.

- Print only.

- Print speed up to 116 A1 prints per hour.

- Ethernet, USB Type-A host port What´s in the box:

- HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindle, setup poster, introductory information, warranty, power cords, label kits Specifications:

Print specifications:

- Print technology:

HP Thermal Inkjet.

- Print languages:

HP-GL/2, TIFF, JPEG, URF, CALS G4.

- Optional print languages:

Adobe PostScript 3.

Adobe PDF 1.7 ext 3.

- Model size:

1118 mm.

- Guaranteed minimum line width:

0.06 mm (ISO/IEC 13660:2001(E))[3].

- Guaranteed minimum line width footnote:

Measured on HP Matte Film.

- Theoretical minimum line width:

0.02 mm (PDF addressable 1200 dpi).

- Line accuracy:

±0.1%[2].

- Line accuracy note:

±0.1% of the specified vector length or ±0.2 mm (whichever greater) at 23ºC (73ºF), 50-60% relative humidity, on A0/E HP Matte Film in Best or Normal mode with Original HP inks.

- Print speed line drawing (economode, A1 plain paper):

116 pages per hour[1].

- Print time black and white line drawing (draft, metric A1 plain paper):

33 sec/page.

- Print time line drawing (economode, A1 plain paper):

26 sec/page[1].

- Maximum optical density (black):

2.15 maximum black optical density (6 Lmin).

- Print quality color (best):

Up to 2400 x 1200 optimized dpi.

- Maximum optical density footnote (black):

With HP Premium Instant Dry Photo Gloss media with Original HP inks.

- Non-printable area (cut-sheet):

3 x 17 x 3 x 3 mm.

- Non-printable area (roll media):

3 x 3 x 3 x 3 mm.

- Printer drivers included:

Raster drivers for Windows and macOS.

PostScript and PDF Windows drivers and macOS PostScript driver with optional PostScript/PDF Upgrade Kit.

- Internal Storage:

500 GB self-encrypting.

- Memory:

128 GB (virtual)[4].

- Memory Note:

Based on 4 GB DDR3 RAM Connectivity and communications:

- Connectivity, standard:

Ethernet, Fast Ethernet, Gigabit Ethernet, 10/100/1000Base-T Ethernet (802.3, 802.3u, 802.3ab).

USB Type-A host port.

- Connectivity, optional:

HP USB 3.0 to Gigabit LAN Adapter.

- Network ready:

Standard.

- HP ePrint capability:

Yes.

- Mobile printing capability:

Direct print from mobile apps on iOS, Android and Chrome OS.

email printing with HP ePrint and HP Smart app for iOS and Android POWER:

- Power Consumption:

< 100 W (printing).

< 24 W (ready).

< 0.3 W (< 6.5 W with embedded Digital Front End) (sleep).

0.1 W (off).

- Power:

Input voltage (auto ranging) 100-240 V (±10%), 50/60 Hz (±3 Hz), 2 A max Cartridges and printheads:

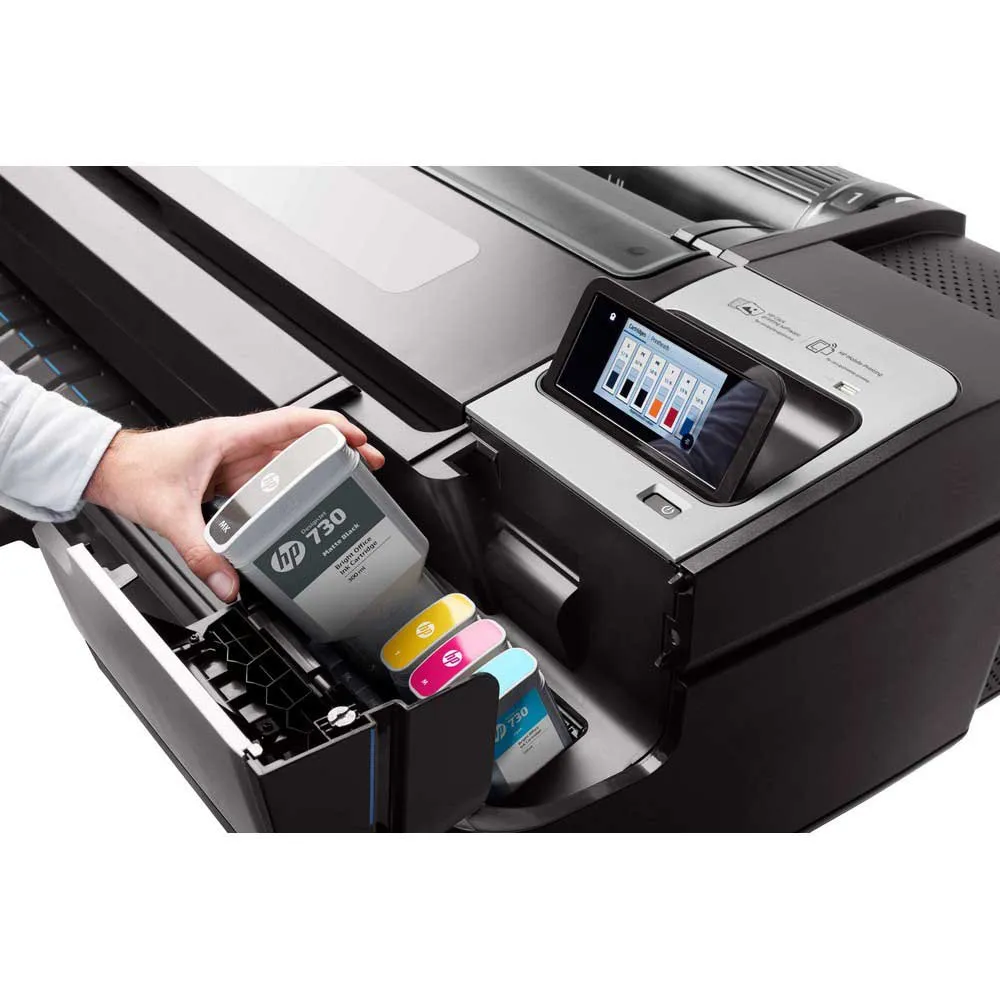

- Number of print cartridges:

6 (cyan, magenta, yellow, photo black, matte black, gray).

- Print cartridge volume delivered:

Cyan, magenta, yellow, photo black, matte black, gray (300 ml).

Cyan, magenta, yellow, photo black, matte black, gray (130 ml).

- Print heads:

3 universal printheads, 2 colors each.

- Print head nozzles:

2112 each color.

- Ink drop:

6 pl.

- Ink types:

Dye-based (C, M, Y, PK, G).

pigment-based (MK) Supported printing media:

- Finished output handling:

Sheet feed, roll feed, automatic horizontal cutter.

- Media types:

Bond and coated paper (bond, coated, heavyweight coated, super heavyweight plus matte), technical paper (natural tracing, translucent bond), film (clear, matte), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit, self-adhesive (polypropylene, vinyl).

- Media sizes supported:

A4.

A3.

A2.

A1.

A0.

- Media sizes, custom:

210 x 279 to 1118 x 1676 mm.

- Media sizes standard (metric rolls):

to 1118-mm.

- Media width, maximum:

1118 mm.

- Media weight, recommended:

60 to 328 g/m.

- Media thickness:

Up to 31.5 mil.

- Roll external diameter:

135 mm.

- Roll maximum input:

1.

- Roll maximum weight:

11.9 kg.

- Recommended media:

C6810A HP Bright White Inkjet Paper (FSC® certified) 914 mm x 91.4 m (36 in x 300 ft).C6569C HP Heavyweight Coated Paper 1067 mm x 30.5 m (42 in x 100 ft).Q6581A HP Universal Instant-dry Satin Photo Paper (FSC® certified) 1067 mm x 30.5 m (42 in x 100 ft).Q1406B HP Universal Coated Paper (FSC® certified) 1067 mm x 45.7 m (42 in x 150 ft).

- Supported Primary Applications:

Line drawings.

Maps.

Orthophotos.

Presentations.

Renderings Environmental:

- Operating temperature range:

5 to 40ºC.

- Storage temperature range:

-25 to 55ºC.

- Operating humidity range:

20 to 80% RH.

- Non-Operating Humidity Range:

0 to 90% RH.

- Acoustic power emissions:

6.1 B(A).

- Acoustic power emissions (standby):

5.0 B(A).

- Acoustic power emissions (sleep):

< 3.1 B(A).

- Acoustic pressure emissions:

45 dB(A).

- Acoustic pressure emissions (standby):

32 dB(A).

- Acoustic pressure emissions (sleep):

< 15 dB(A) Dimensions and weight:

- Dimensions without stand (W x D x H):

1802 x 695 x 998 mm.

- Package dimensions (W x D x H):

1955 x 770 x 710 mm.

- Weight:

72 kg.

- Package weight:

126 kg Box contents:

- What´s in the box:

HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindle, setup poster, introductory information, warranty, power cords, label kits.

- Software included:

HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS Certification and compliance:

- ENERGY STAR® certified:

Yes.

- Electromagnetic Emission Standard:

Compliant with Class B requirements, including:

USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS).

- Environmental Certifications:

ENERGY STAR.

WEEE.

RoHS (EU, China, Korea, India).

REACH.

EPEAT Silver.

- Safety Approvals and Requirements:

USA and Canada (CSA certified).

EU (LVD and EN 60950-1 compliant).

Russia, Belarus, Khazakstan (EAC).

Singapore (PSB).

China (CCC).

Argentina (IRAM).

India (BIS) OTHER:

- Accessories:

HP DesignJet 44-in Spindle Q6709A.

HP HD Pro 42-in Scanner G6H51B.

HP SD Pro 44-in Scanner G6H50B.

HP DesignJet 3-in Core Adapter CN538A.

HP USB 3.0 to Gigabit LAN Adapter N7P47AA.

HP DesignJet PostScript/PDF Upgrade Kit C0C66B.

- Services (Care Pack):

U9QQ6E HP 3 year Next Business Day plus Defective Media Retention Support.U9QR5E HP 3 year 4-hour response, 9x5 plus Defective Media Retention Support.U9QS2PE HP 1 year Post Warranty, Next Business Day plus Defective Media Retention Support.U9QS6PE HP 1 year Post Warranty, 4-hour response, 9x5 plus Defective Media Retention Support.H4518E HP Network Installation DesignJet High-end and Midrange Service.U1XV4E HP Preventive Maintenance Service.
