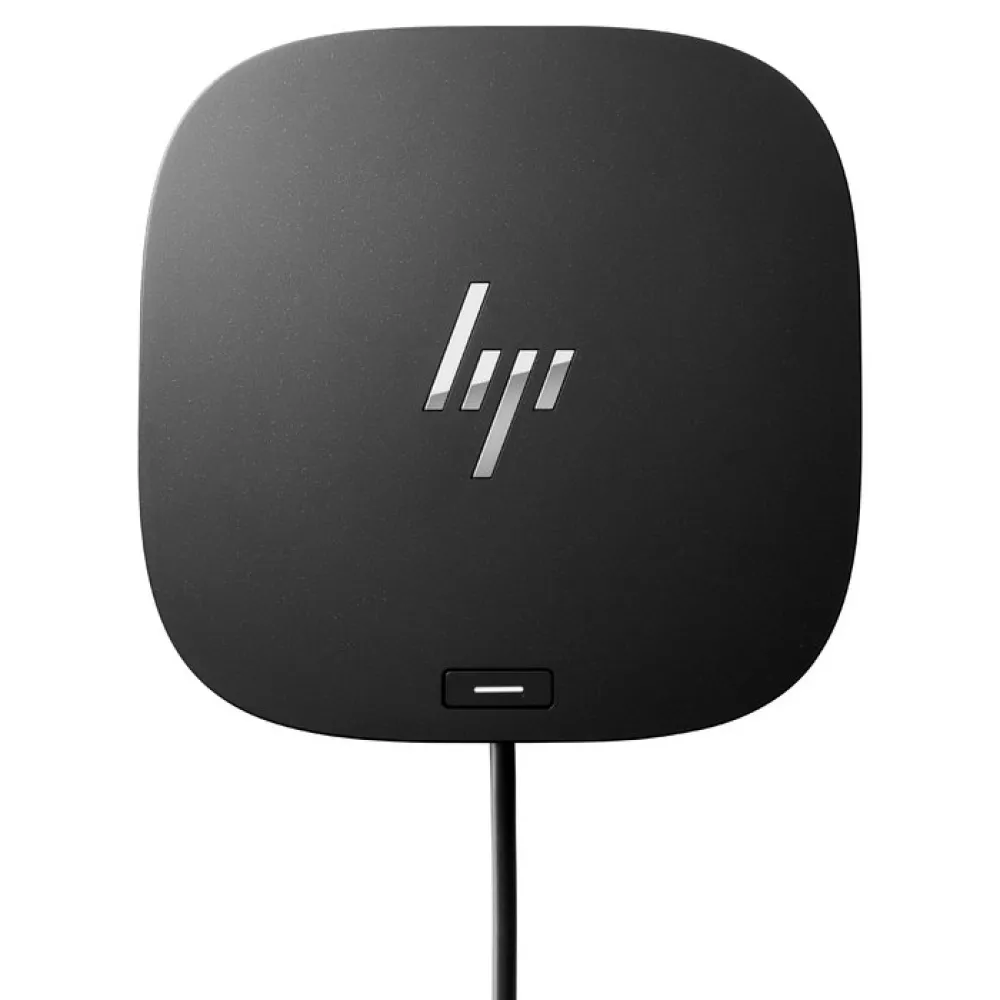

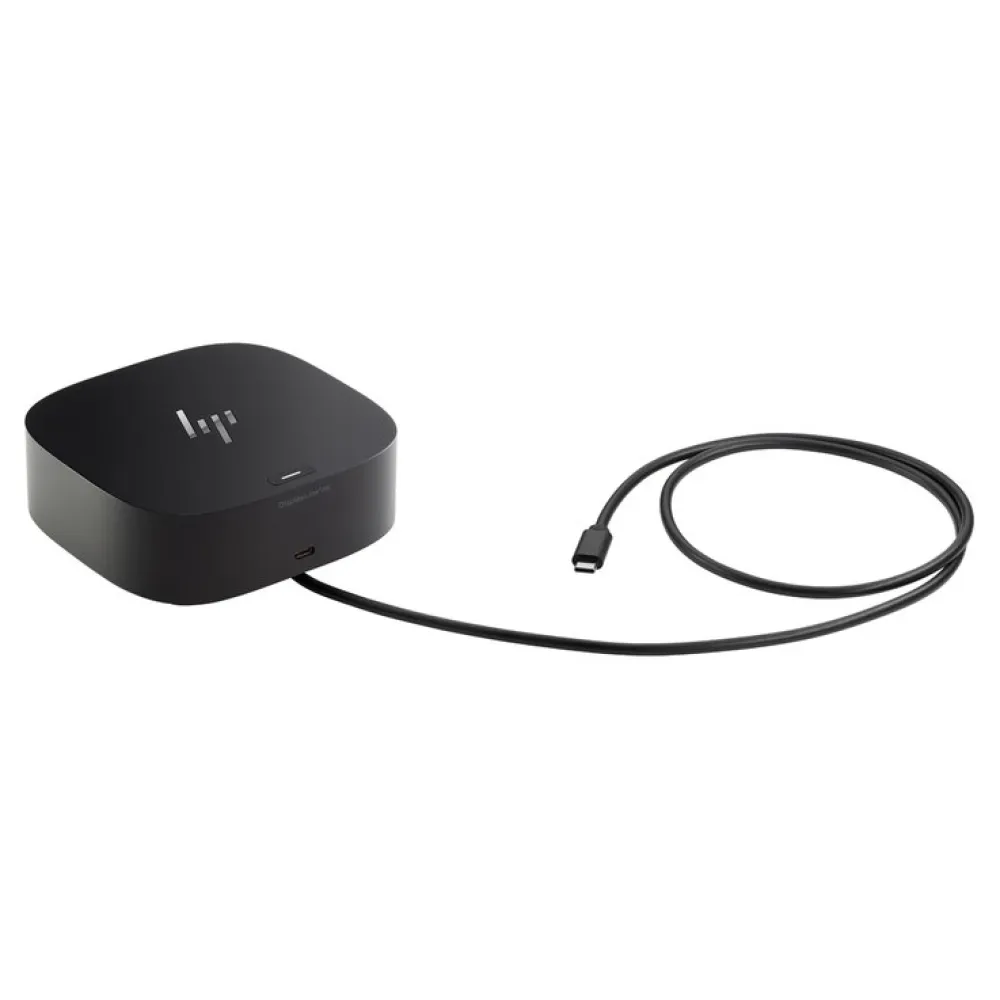

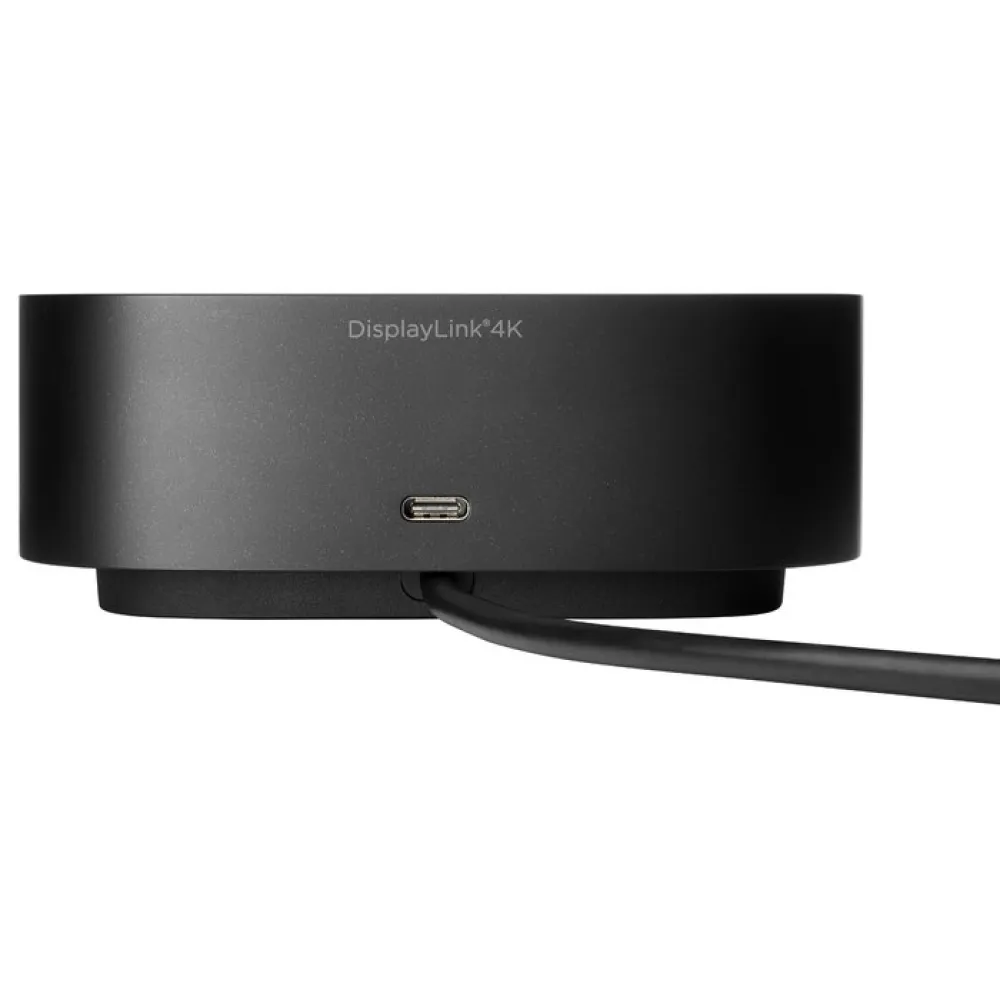

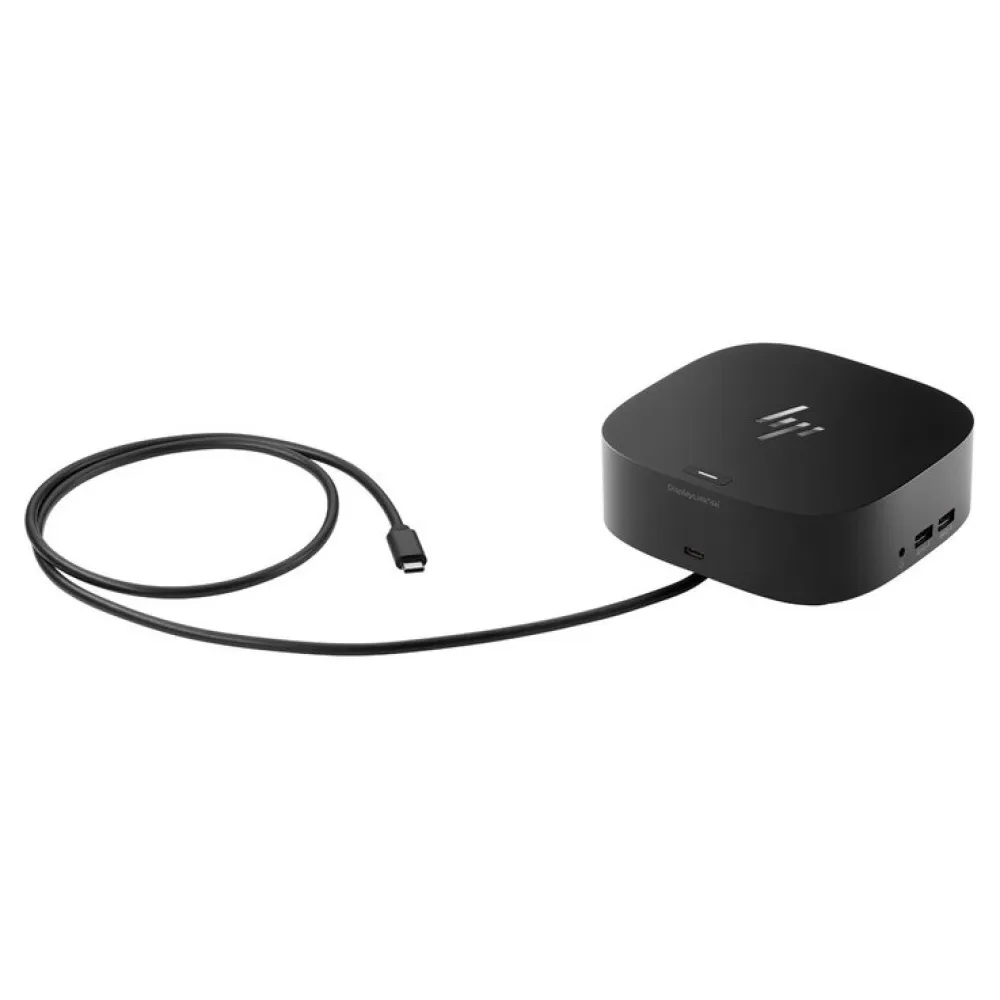

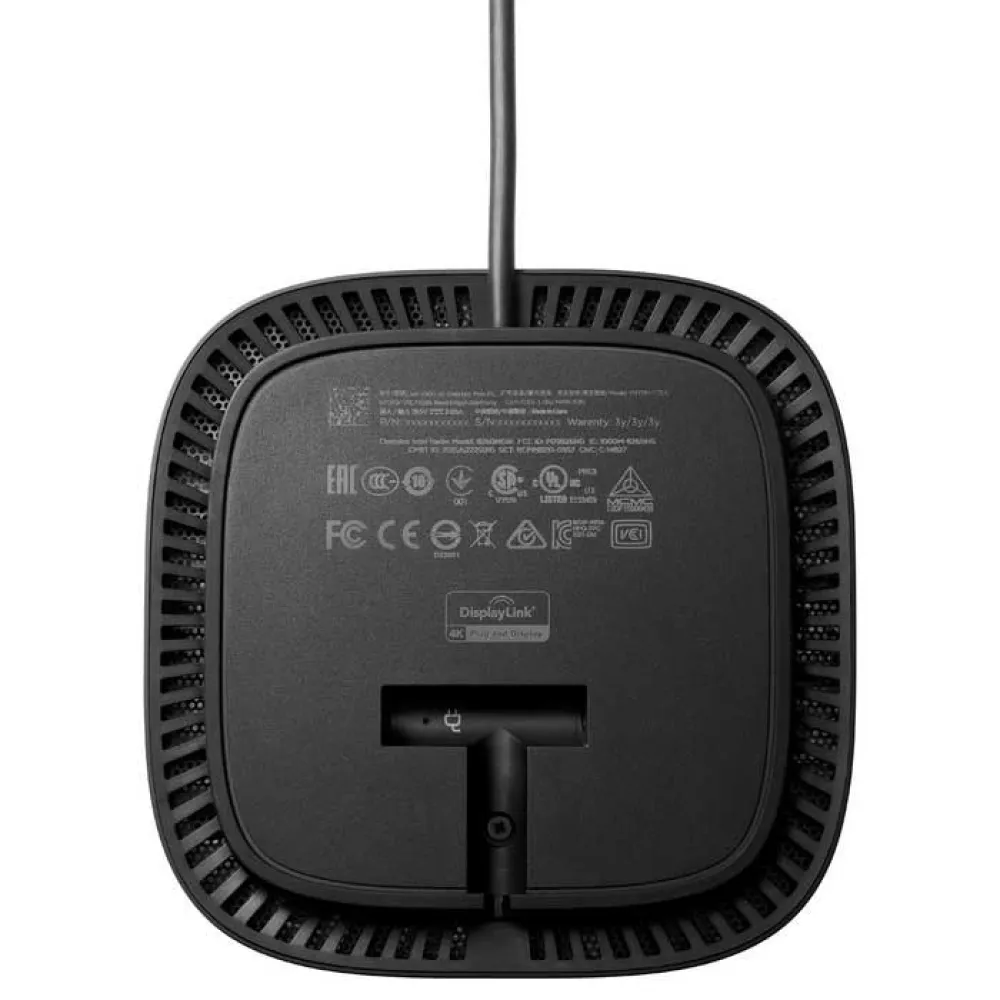

HP USB-C/A Universal G2 docking station

Get to work fast with one cable from your USB-A- and USB-C™-enabled notebooks[1] to your displays, devices, and wired network with the flexible, compact HP USB-C/A Universal Dock G2. The dock is driven by DisplayLink and compatible with notebooks from HP, Apple®, Dell, Lenovo, and more.[2]


Features:

- For USB-C™ functionality, host PC must support the DisplayPort™ Alt mode protocol through its USB-C™ port. Thunderbolt™-enabled notebooks will function at USB-C™ speeds. Charging and port replication is supported on notebooks that have implemented USB-C™ industry specifications. Power button to turn on or wake the system, Wake-on LAN from warm and cold dock, Wake-on LAN from S4/S5, and MAC Address Pass-Through S0, S3, S4, S5 warm and cold dock features only function on HP or HP-supported notebooks. HP does not provide Ethernet and audio drivers on Mac PCs.
- Based on HP internal testing on select non-HP notebook models compatible with USB-C™ industry standards. Certain Alt mode features are not supported, such as power button, MAC Address Pass-Through, Wake-on LAN, and OOB Wake on LAN. Visit the HP Support page to determine your HP notebook´s wattage and port specifications. Visit the support page of your non-HP notebook to determine its wattage and port specifications.
- Three 4K displays supported only on Thunderbolt™- or USB-C™-with-video-enabled notebooks. Supports three displays including the notebook screen.
- Support for two displays includes one notebook screen and one external display or two external displays.

Future-proof your fleet:
- Designed with universal compatibility in mind, this dock works with both HP and non-HP USB-A-, USB-C™-, and Thunderbolt™-enabled notebooks.[1]

Single-cable solution:
- Add your accessories and up to three 4K displays[3] to the dock. Then simply connect it to your notebook[1] through a single USB-C™ cable to access your devices and charge your PC.

Backward compatibility:
- Use the included USB-A Adapter to connect your USB notebook to the dock and access your accessories and up to two 4K displays.[4] Use the optional HP 4.5 mm and USB-C Dock Adapter G2[5] for legacy device barrel charging.

Easily manage your commercial HP fleet:
- Help IT secure and remotely manage your deployed commercial HP notebooks[1] and the dock with advanced network manageability features that include PXE Boot, LAN/WLAN switching, and WoL and MAC Address Pass-Through in all power states.


Specifications:

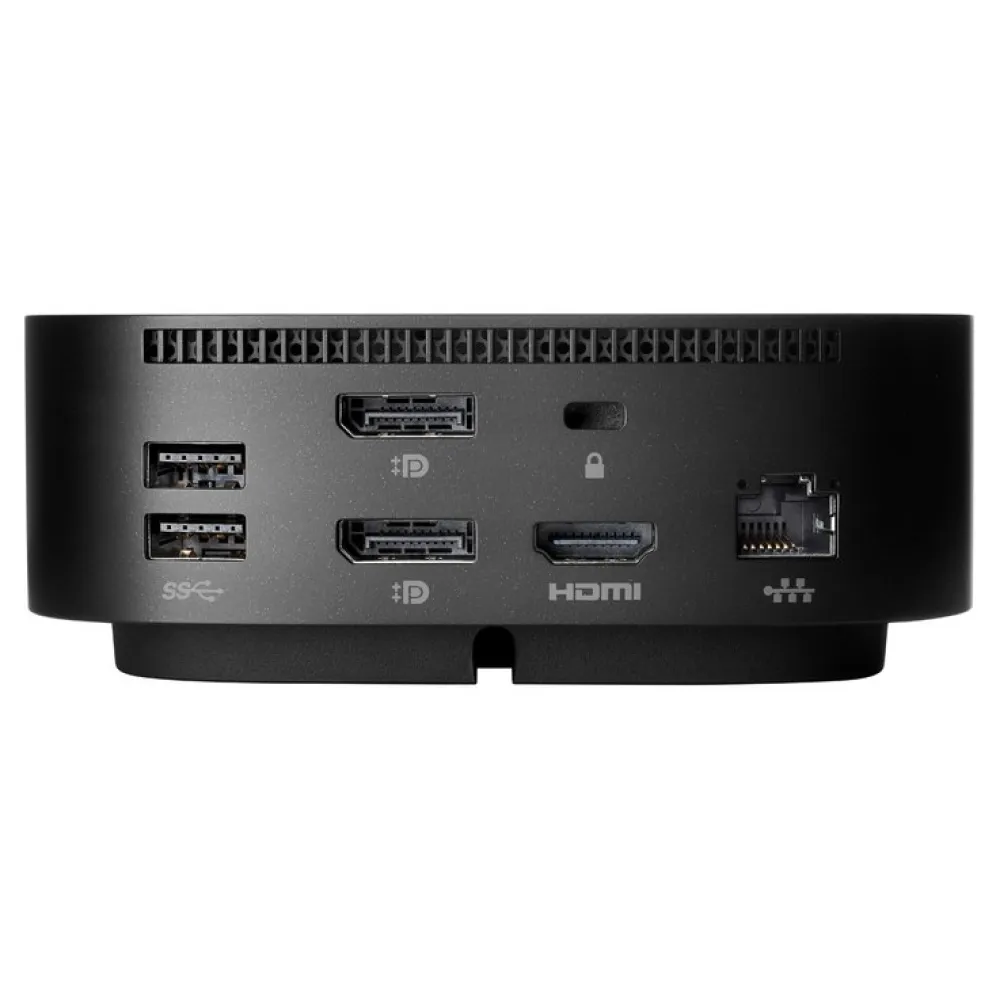

Ports & interfaces:
- Connectivity technology: Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
- HDMI ports quantity: 1
- HDMI version: 2.0
- DisplayPorts quantity: 2
- Microphone in: No
- Combo headphone/mic port: Yes

Network:
- Ethernet LAN: Yes
- Ethernet LAN (RJ-45) ports: 1

Performance:
- Card reader integrated: No
- Cable lock slot: Yes

Software
- Windows operating systems supported: Windows 10,Windows 7
- Mac operating systems supported: Yes
- Other operating systems supported: Chrome

Weight & dimensions:
- Width: 122 mm
- Depth: 122 mm
- Height: 45 mm
- Weight: 695 g
