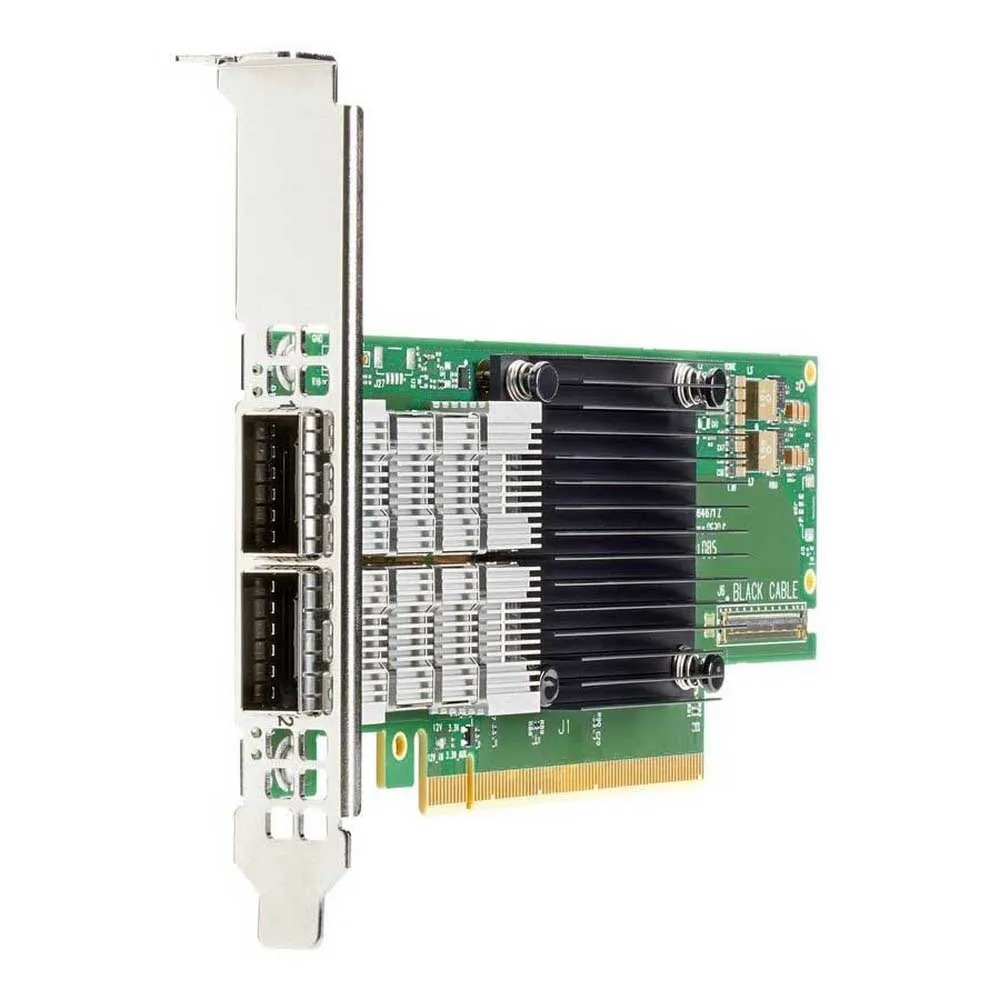

Hpe P31324-B21 PCI-e wireless adapter

Are you looking for extremely high bandwidth and very low latency communications for your HPE Apollo system and HPE ProLiant DL rack mount server families? HPE HDR InfiniBand and Ethernet adapters are designed for customers deploying HPC systems with HPE ProLiant XL, HPE ProLiant DL Gen10, and Gen10 Plus servers in the data center. HPE InfiniBand HDR/HDR100 and Ethernet adapters are available as mezzanine cards or in OCP 3.0 form factor, equipped with 1 or 2 ports. Combined with HDR InfiniBand switches, they offer low latency and up to 200 Gbps bandwidth, ideal for performance-oriented servers and storage cluster applications in HPC and enterprise data centers.

New Features Support Argument:
- HDR InfiniBand and Ethernet adapters are now available in OCP 3.0 form factor with support for the HPE iLO shared network port in Ethernet mode.

HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on Mellanox ConnectX-6 standard technology.

High Bandwidth, Low Latency InfiniBand Connectivity:
- HPE HDR InfiniBand adapters offer up to 200 Gbps bandwidth and latency as low as a fraction of a microsecond for demanding HPC workloads.
- HPE InfiniBand HDR100 adapters, combined with HDR switches and HDR cables, aim to simplify infrastructure by reducing the number of switches required for a given 100 Gbps InfiniBand fabric.
- HPE HDR InfiniBand adapters are compatible with HPE Apollo XL and HPE ProLiant DL Gen10 and Gen10 Plus servers.

Offload Mechanism:
- HPE InfiniBand HDR adapters include various offload engines that accelerate communication and offer low CPU overhead to increase performance.
- HPE InfiniBand HDR adapters support MPI tag matching and rendezvous transfers, as well as adaptive routing on reliable transfers.

Specifications:

Product Key Features:
- Wired
- PCI Express 4.0 Fiber
- 200000 Mbit/s
- Internal Component for: Server

Ports and Interfaces:
- Connectivity Technology: Wired
- Host Interface: PCI Express
- Interface: Fiber
- Fiber Channel Ports: 2
- Fiber Optic Connector: QSFP56
- PCI Version: 4.0

Connection:
- Maximum data transfer rate: 200000 Mbit/s
- Network Standards: IEEE 1588v2, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ba, IEEE 802.3bj, IEEE 802.3bm

Design:
- Component for: Server
- Compatible Products: ProLiant DL Rack Mount Gen10 Plus

Weight and Dimensions:
- Width: 246.9 mm
- Depth: 214.9 mm
- Height: 62 mm
- Weight: 440 g
