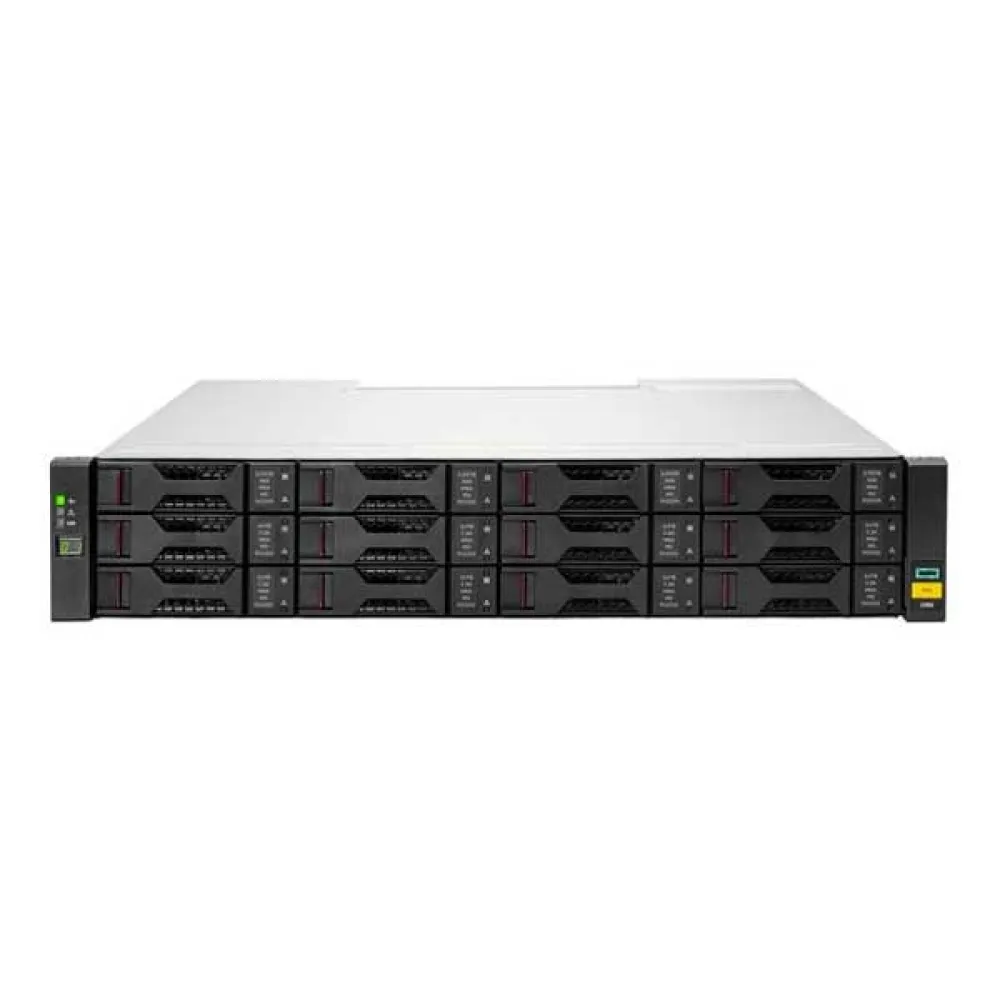

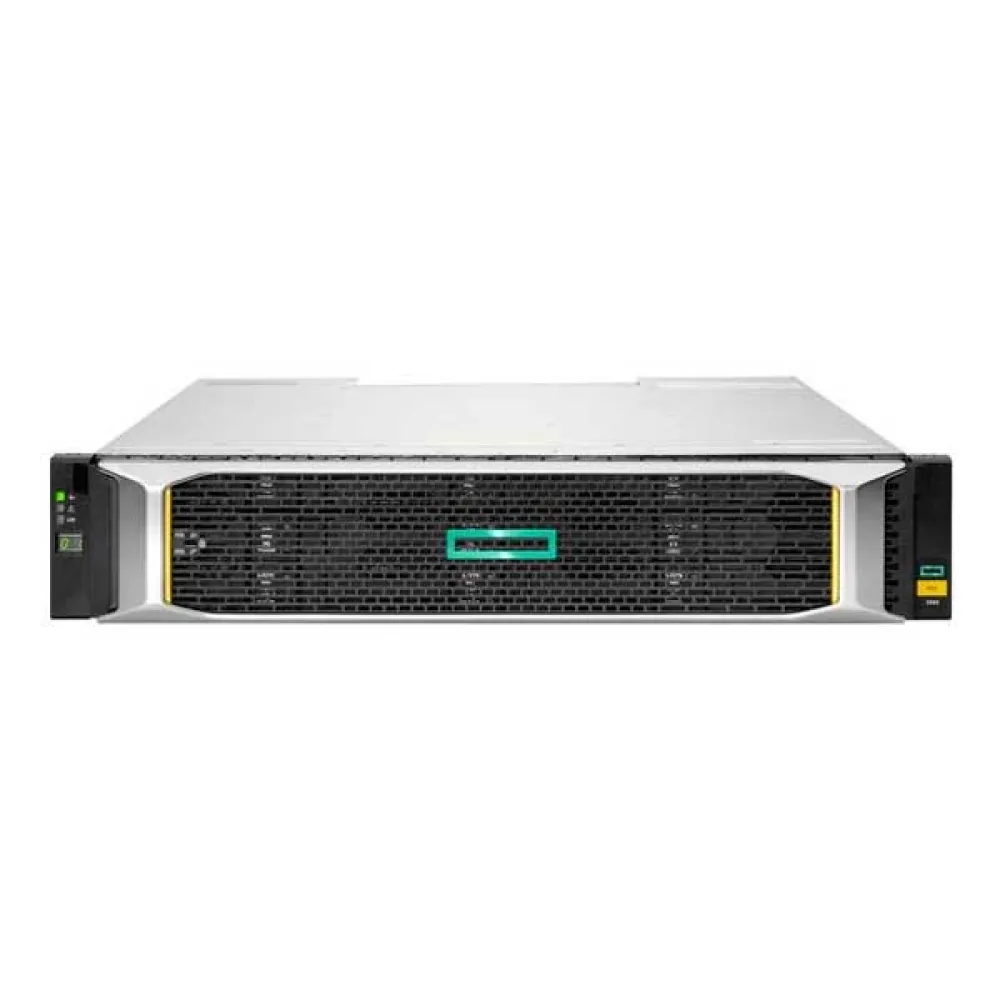

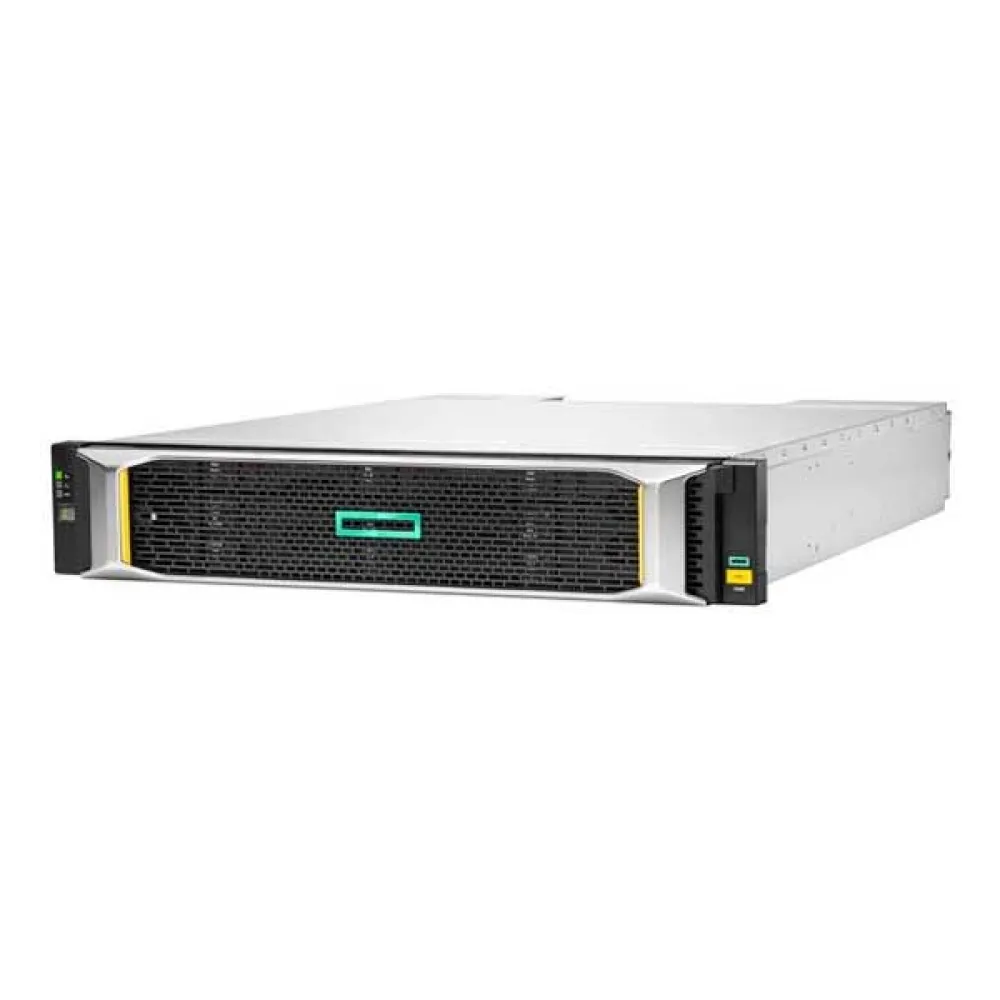

Hpe P89059-B25 Rack Support

The HPE MSA 2060 is a flash-ready hybrid storage system designed to deliver hands-free, affordable application acceleration for small and remote office deployments. Don´t let the low-cost fool you. It gives you the combination of simplicity, flexibility, and advanced features you may not expect in an entry-priced array. Start small and scale as needed with any combination of solidstate drives (SSDs), high-performance Enterprise SAS HDDs, or lower-cost Midline SAS HDDs. With the ability to deliver up to 395,000 IOPS, the new MSA 2060 is up to 80% faster than its prior generation with ample horsepower for even the most demanding workloads.

Specifications:

I/O Expansions:
- Number of Total Expansion Bays: 12
- ´´Number of 3.5´´´´ Bays´´: 12

Interfaces/Ports:
- Host Interface: Fibre Channel
- Fibre Channel: Yes
- Drive Interface: 12Gb/s SAS

Power Description:
- Number of Power Supplies Installed: 2
- Redundant Power Supply: Yes
- Maximum Power Supply Wattage: 580 W

Storage:
- Number of Hard Drives Supported: 12
- Number of Solid State Drive Supported: 12
- Clustering Supported: Yes

Controllers:
- RAID Levels: 0, 1, 5, 6, 10
- Controller Type: 16Gb/s Fibre Channel
- Number of Controllers: 2
- RAID Supported: Yes

Physical:
- Form Factor: Rack-mountable
- Rack Height: 2U
- Height: 88.9 mm
- Width: 482.6 mm
- Depth: 670.6 mm

Protocols:
- FCP
- FTP
- HTTP
- HTTPS
- SFTP
- SMTP
- SNMP
- SSH
- Telnet

In the box:
- MSA 2060 SAN Storage System
- MSA 2U Rail Kit
- Energy Star: Yes
- Environmental Compliance: China Restriction of Hazardous Substances
