Iggual Tp8002 thermal printer

EU Plug.

With a printing speed of 260 mm/s, a resolution of 203 x 203 dpi and 3 connection interfaces (standard rs-232 serial port, usb and ethernet port), the thermal printer of tp8002 tickets is the most versatile solution for your business.

Its excellent benefits make the tp8002 a really reliable and tremendously functional printer.

Its japanese cutting blade, treated with chrome coating will make millions of cuts and its airtight roll detection sensor, designed 100% dust -proof will allow the head to print kilometers of paper.

Print tickets up to 80 mm wide.

Add logos and bars codes 1d and 2d and avoid possible digitalization errors.

The integrated rj11 port will allow you to automatically control the opening of a carrier drawer.

Includes feed adapter, roll clamping roller, thermal paper roll and usb cable.

The tp8002 is the worthy successor of the tp8001.

If the tp8001 surprised you in its day, the tp8002, more modern, evolved, more versatile and more reliable if possible, will do it again without a doubt.

Brand:igpoal.

Model:tp8002.

(.

Igg316641.

).

Guy.

Ticket thermal printer.

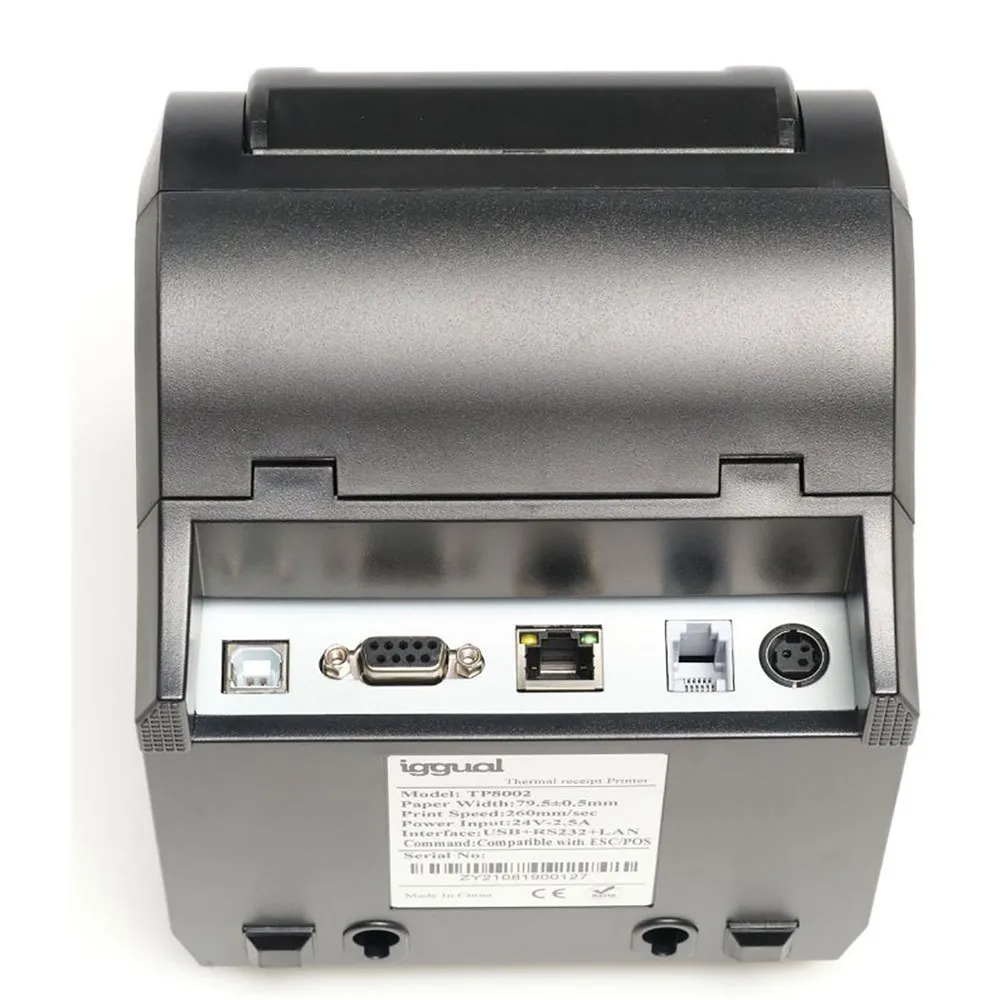

Connectivity.

-usb.

-rs-232 (series).

-ethernet (rj45).

-rj11 (control box characteristics.

-print speed:260 mm/s.

-paper size.

80 mm width.

Maximum diameter:83 mm.

Thickness:0.

06.

-0.

08 mm.

-print points:640 points per line.

-resolution:203 x 203 dpi.

-automatic paper cut, total or partial.

-bar code formats:1d:ean-13, ean-8, upc-a, upc-e, jan13 (ean13), jan8 (ean8), itf, codabar, code39, code93, code128.

2d:qr.

Storage.

Entrance buffer (input buffer):256 kbytes.

Nv flash:256 kbytes.

Feeding.

-input:ac 110v.

-220v 50/60hz.

-departure:dc 24v / 2.

5a.

-drawer control:dc 12.

-24v / 1a.

General.

-dimensions:146 x 191 x 129 mm.

-weight:2.

1 kg.

-color:black.

Os & software.

-emulation:esc / pos and common printer.

-supports:windows 10/8/7/vista/xp/2000/ce/opos/jpos.

-sdk:android, ios.

-compatible with the main tpv programs:orca, no problem, sage tpv.

Others.

-sources:a (12x24) / b (9x17) / chinese / japanese / defined by user.

-sensors:end of paper, open lid, paper jam, blade block.

-logo printing (bmp).

-it can be installed on the wall.

Includes.

-quick installation guide.

-power adapter.

-1 roll of thermal paper.

-1 guide roller for the paper roll.

-cd (drivers and program).

-usb cable.

Data sheet.

-download:tp8002.

Review date.

21-12-2021 per msb.
