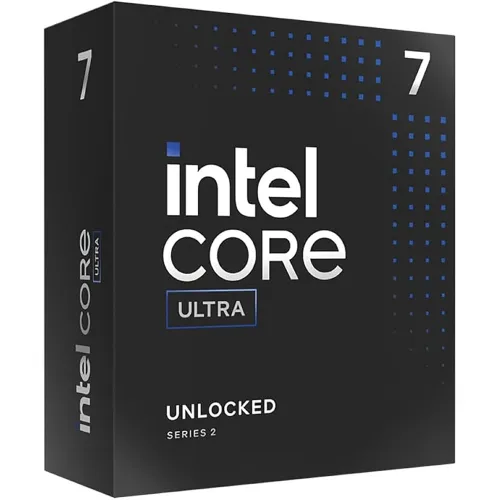

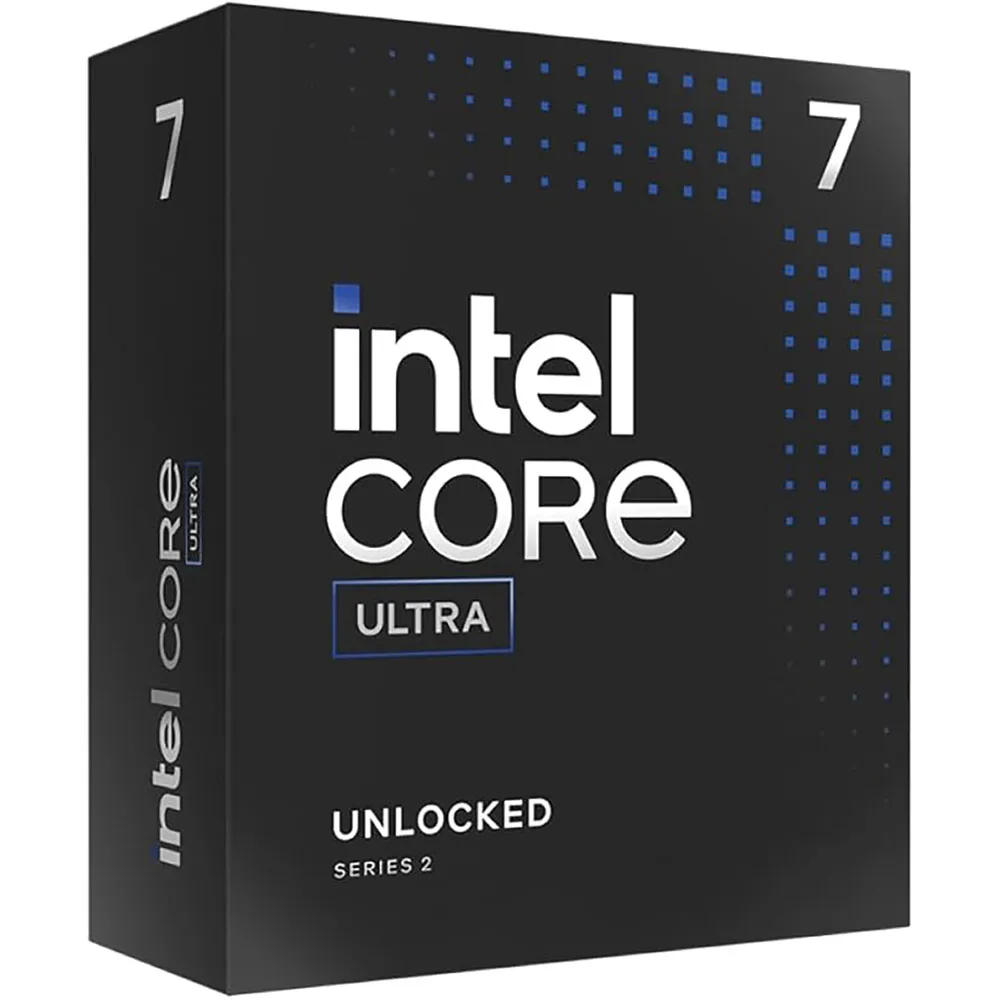

Intel Core Ultra 7 265K Box CPU

Specifications:

CPU specifications:
- Number of cores: 20
- Number of Performance-cores: 8
- Number of Efficient-cores: 12
- Total threads: 20
- Maximum turbo frequency: 5.5 GHz
- Intel® Turbo Boost Max Technology: 3.0 Frequency ‡ 5.5 GHz
- Performance-core maximum turbo frequency: 5.4 GHz
- Efficient-core maximum turbo frequency: 4.6 GHz
- Performance-core base frequency: 3.9 GHz
- Efficient-core base frequency: 3.3 GHz
- Cache: 30 MB Intel® Smart Cache
- Total L2 cache: 36 MB
- Processor base power: 125 W
- Maximum turbo power: 250 W
- Intel® Deep Learning Boost (Intel® DL Boost): Yes
- AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
- TSMC N3B CPU Lithography
- Terms of use: PC/Client/Tablet, Workstation

Memory specifications:
- Maximum memory size (depends on memory type): 192 GB
- Memory Types: Up to DDR5 6400 MT/s
- Maximum memory speed: 6400 MHz
- Maximum number of memory channels: 2
- ECC memory support: Yes

GPU Specifications:
- GPU Name: Intel® Graphics
- Graphics base frequency: 300 MHz
- Maximum dynamic graphics frequency: 2 GHz
- GPU Max TOPS (Int8): 8
- Graphics output DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b Xe-cores: 4
- Maximum resolution (HDMI): 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
- Maximum resolution (DP): 8K @ 60Hz
- Maximum resolution (eDP - integrated flat panel): 4K @ 60Hz
- DirectX* 12 Support
- OpenGL* 4.5 support
- OpenCL* 3 support
- Intel® Quick Sync Video: Yes
- Number of displays supported: 4
- Device ID: 0x7D67
- Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes

NPU Specifications:
- NPU Name: Intel® AI Boost
- NPU Max TOPS (Int8): 13
- Sparsity Support: Yes
- Windows Studio Effects Support: Yes
- AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion options:
- Direct Media Interface (DMI) Review: 4
- Maximum number of DMI: 8 lanes
- Intel® Thunderbolt 4: Yes
- Scalability: 1S Only
- PCI Express: 5.0 and 4.0 Review
- PCI Express Configurations: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
- Maximum number of PCI Express lanes: 24

Package specifications:
- FCLGA1851 compatible sockets
- PCG 2020A Thermal Solution Specification
- Maximum operating temperature: 105 °C

Advanced Technologies:
- Intel® Volume Management Device (VMD): Yes
- Intel® Gaussian and Neural Accelerator: 3.5
- Intel® Thread Director: Yes
- Intel® Speed ​​Shift Technology: Yes
- Intel® Turbo Boost Max Technology 3.0: Yes
- Intel® Turbo Boost Technology: 2.0
- Intel® 64: Yes
- 64-bit instruction set
- Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 instruction set extensions
- Idle States: Yes
- Enhanced Intel SpeedStep® Technology: Yes
- Thermal Monitoring Technologies: Yes

Safety and reliability:
- Intel vPro® Eligibility: Intel vPro® Enterprise, Intel vPro® Platform
- Intel® Threat Detection Technology (TDT): Yes
- Intel® Active Management Technology (AMT): Yes
- Intel® Standard Management: Yes
- Intel® Remote Platform Erase (RPE): Yes
- Intel® One-Click Recovery: Yes
- Intel® Hardware Shield Eligibility: Yes
- Intel® Control-Flow Enforcement Technology: Yes
- Intel® Total Memory Encryption, Multikey: Yes
- Intel® AES New Instructions: Yes
- Secure Key: Yes
- Intel® Trusted Execution Technology: Yes
- Execute Disable Bit: Yes
- Intel® OS Guard: Yes
- Intel® Boot Guard: Yes
- Mode-Based Execution Control (MBEC): Yes
- Intel® Stable Image Platform Program (SIPP): Yes
- Intel® Virtualization Technology with Redirect Protection (VT-rp): Yes
- Intel® Virtualization Technology (VT-x): Yes
- Intel® Virtualization Technology for Directed I/O (VT-d): Yes
- Intel® VT-x with Extended Page Tables (EPT): Yes
