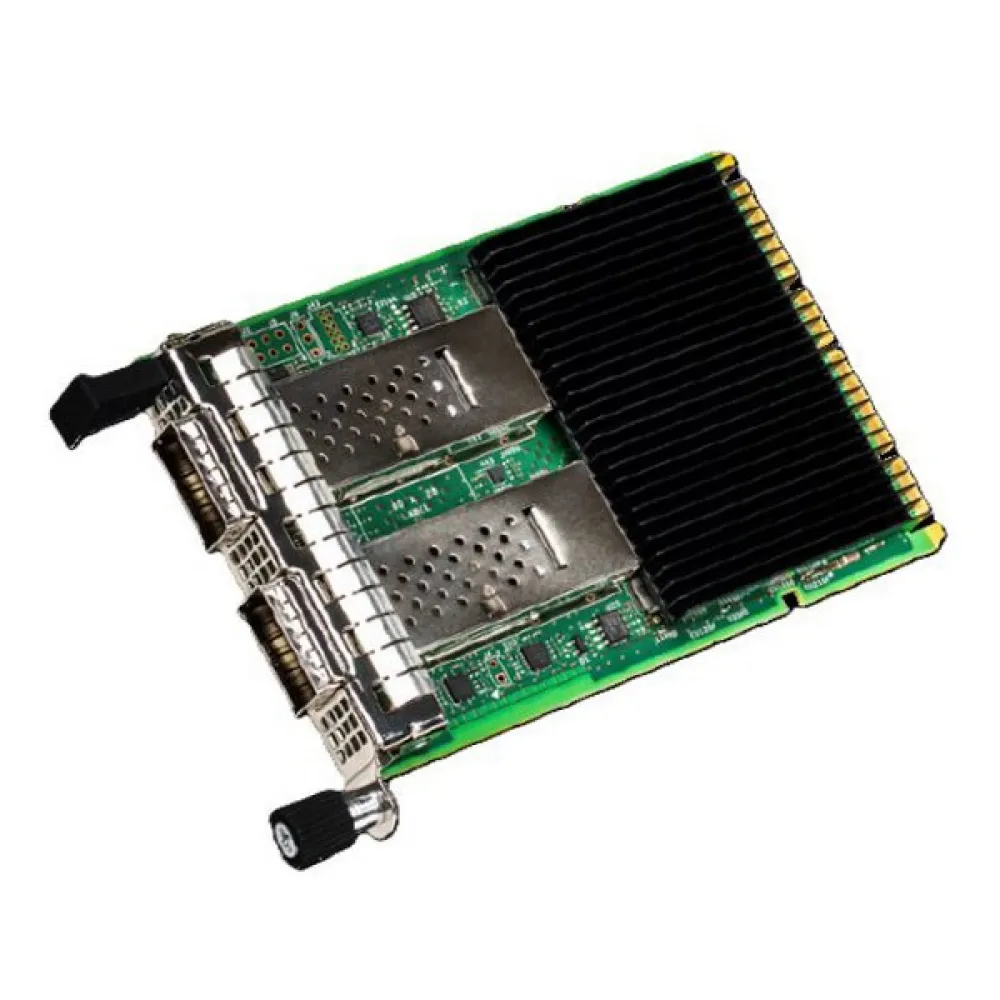

Intel E810 PCI-E Expansion Card

Intel E810 PCI-E Network Expansion Card for Servers

Elevate your data center infrastructure with the cutting-edge performance of the Intel E810 PCI-E Network Expansion Card. Purpose-built for the most demanding cloud, enterprise, and communication workloads, this adapter is engineered to eliminate network bottlenecks and unleash the full potential of your servers. By delivering exceptional throughput and ultra-low latency, the E810 ensures that your critical applications and services operate with maximum efficiency, responsiveness, and predictability, making it the premier choice for modernizing server connectivity in high-performance computing (HPC), storage-centric environments, and large-scale virtualized platforms.

Achieve Superior Application Performance and Predictability
Experience a transformative improvement in application response times. The Intel E810 card leverages innovative Application Device Queues (ADQ) technology, which intelligently dedicates traffic queues to specific, high-priority applications. This sophisticated traffic steering mechanism drastically reduces latency and minimizes jitter for sensitive workloads, providing the consistent, predictable performance required for in-memory databases, financial analytics, and real-time communication platforms.

Adaptable Acceleration for Dynamic Workloads
Future-proof your network with a card that adapts to your unique traffic needs. Featuring Dynamic Device Personalization (DDP), the E810 allows for the reconfiguration of the packet processing pipeline to efficiently manage specific protocols and emerging workloads. This programmability offloads complex packet processing from the server´s CPU, boosting overall throughput and enhancing performance for a diverse range of applications, including network function virtualization (NFV) and custom cloud service architectures.

High-Speed, Low-Latency Fabric for Storage and HPC
Construct a powerful, efficient fabric for your most data-intensive tasks. The Intel E810 provides comprehensive support for both iWARP and RoCEv2, two leading Remote Direct Memory Access (RDMA) standards. By enabling direct server-to-server memory transfers that bypass the CPU and OS kernel, RDMA delivers the ultra-low latency and high bandwidth essential for NVMe-oF (NVMe over Fabrics) storage solutions and tightly coupled HPC clusters, accelerating data access and computation.

Main Features
* Application Device Queues (ADQ) for application-specific traffic optimization
* Dynamic Device Personalization (DDP) for programmable packet processing
* Dual-protocol RDMA support with iWARP and RoCEv2
* Accelerated performance with enhanced Data Plane Development Kit (DPDK)
* Exceptional small packet processing performance
* On-chip Quality of Service (QoS) for traffic prioritization
* Native support for NVMe over Fabrics (NVMe-oF)
* IEEE 1588 PTP v2 for high-precision time synchronization

Attributes: Expansion cards, Network

Technical Specifications
* Product Controller: Intel® Ethernet Controller E810
* Bus Interface: PCI Express (PCIe) 4.0 x16
* Data Rate Per Port: 10/25/50/100GbE
* Connector Type: QSFP28
* Virtualization Support: Intel® Virtualization Technology (VT-c) including SR-IOV (up to 256 VF) and VMDq
* Storage Protocols: iSCSI, FCoE, NVMe-oF (over RDMA or TCP)
* Management Features: SNMP and RMON, PXE Boot, iSCSI Boot, Wake-on-LAN
* Supported Operating Systems: Broad support for Windows Server, major Linux Distributions (RHEL, SLES, Ubuntu), FreeBSD, and VMware ESXi
