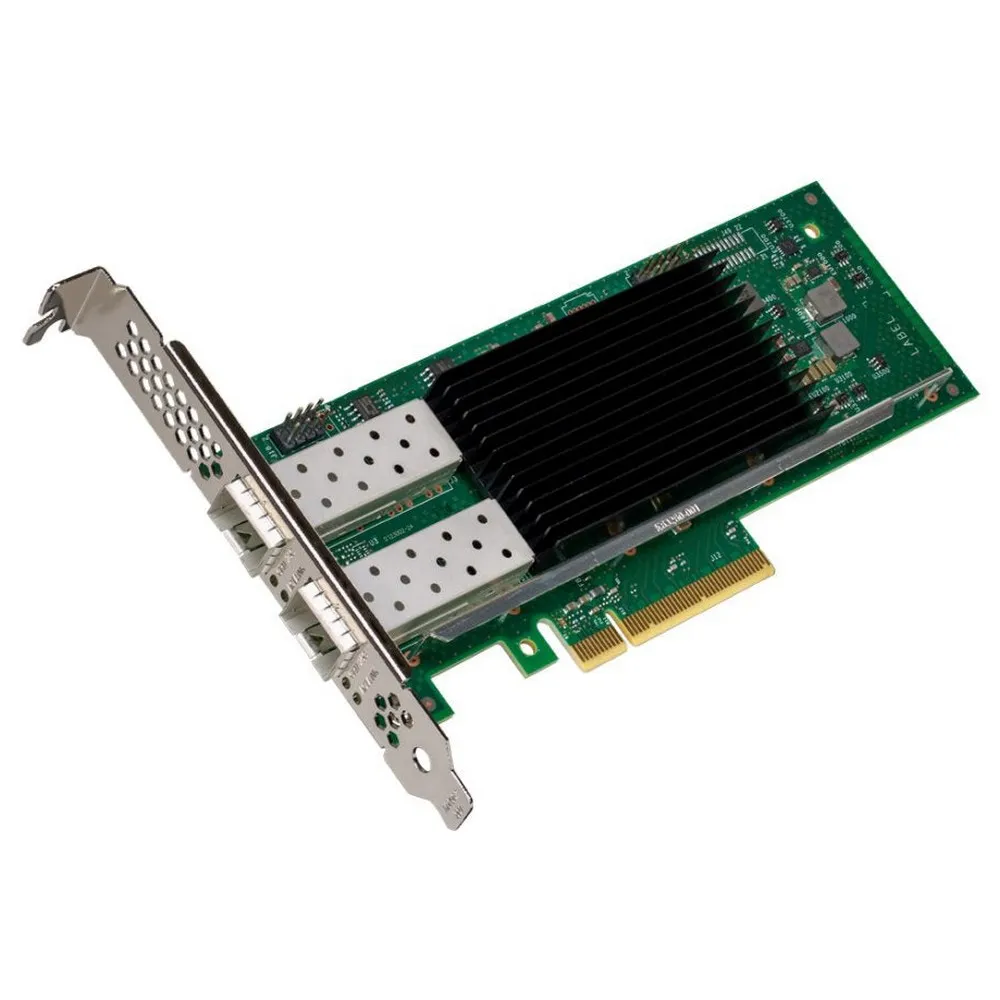

Intel E810XXVDA2 PCI-E Expansion Card

Intel E810-XXVDA2 PCI-E Expansion Card | Dual-Port 25GbE SFP28 Server Network Adapter

Elevate your server infrastructure with the Intel E810-XXVDA2 PCI-E Expansion Card, a cornerstone of the Intel Ethernet 800 Series. Purpose-built for the evolving demands of modern data centers, this high-performance network adapter is engineered to accelerate cloud, enterprise, and communications workloads. By delivering exceptional dual-port 25GbE connectivity through an SFP28 interface, the E810-XXVDA2 addresses and eliminates critical I/O bottlenecks, unleashing the full potential of your high-core-count server CPUs. It provides the speed, intelligence, and scalability required to handle mission-critical applications, high-performance computing (HPC), and sophisticated storage solutions, ensuring your network is prepared for next-generation performance requirements.

This adapter moves beyond simple packet delivery by incorporating advanced traffic-shaping capabilities directly on the controller. This intelligent offloading frees up valuable CPU cycles, allowing your servers to focus on their primary application tasks. For environments demanding predictable, low-latency performance, this card offers a transformative solution that boosts throughput and enhances overall system efficiency.

Key Benefits
* Accelerated Application Performance: Dramatically increases application response times and throughput with intelligent offloads and support for Remote Direct Memory Access (RDMA) technologies like iWARP and RoCEv2, making it ideal for latency-sensitive workloads.
* Workload-Specific Optimization: Utilizes Application Device Queues (ADQ) to dedicate specific queues to critical applications, guaranteeing predictable, high-priority network performance and reducing application latency.
* Dynamic and Flexible Packet Processing: Leverages Dynamic Device Personalization (DDP) to program the adapter´s packet processing pipeline, enabling customized support for new protocols and proprietary workloads without requiring a hardware update.
* Superior Virtualization Throughput: Enhances performance in virtualized environments with advanced features like Single Root I/O Virtualization (SR-IOV) and on-chip Quality of Service (QoS), ensuring efficient bandwidth allocation across numerous virtual machines.
* High-Speed Storage Connectivity: Provides an optimized solution for storage networks, including support for NVMe over Fabrics (NVMe-oF), which significantly reduces latency and improves the performance of network-attached storage.

Main Features
* Application Device Queues (ADQ)
* Dynamic Device Personalization (DDP)
* iWARP and RoCEv2 Remote Direct Memory Access (RDMA)
* Intel® Ethernet Flow Director
* Single Root I/O Virtualization (SR-IOV)
* On-chip Quality of Service (QoS) and Traffic Management
* Support for NVMe over TCP
* IEEE 1588 Precision Time Protocol
* GPUDirect Support

Attributes
Expansion cards, Network

Technical Specifications
* Product Code: E810XXVDA2
* Port Configuration: Dual Port
* Data Rate Per Port: 25/10 GbE
* Host Interface: PCI Express (PCIe) 4.0 x8
* Connector Type: SFP28
* System Interface Type: PCIe x8
* Bracket Height: Low-Profile and Full-Height
* Ethernet Storage: iSCSI, NFS
