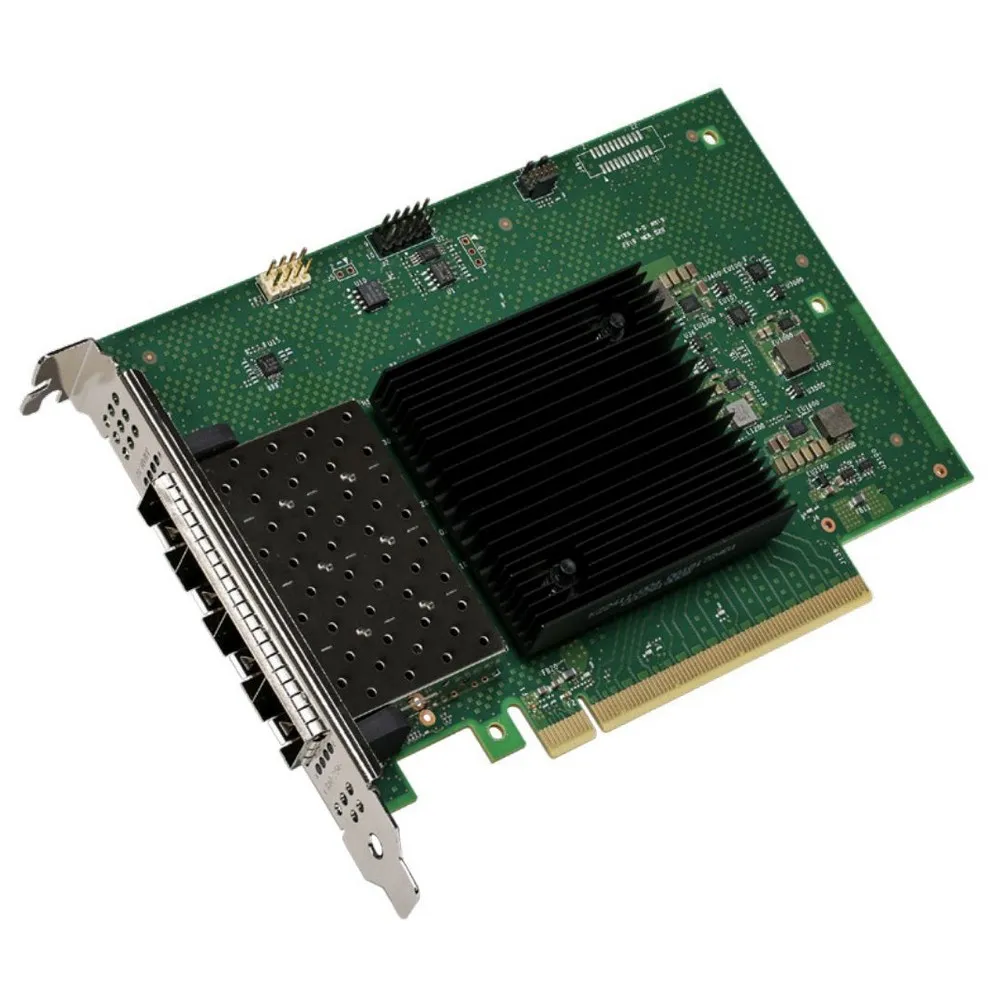

Intel E810XXVDA4 PCI-E Expansion Card

Elevate your data center and server capabilities with the Intel E810-XXVDA4 PCI-E Expansion Card, a powerhouse of networking performance designed for the most demanding cloud, communications, and enterprise workloads. This adapter is engineered to accelerate packet processing and unlock the full potential of your high-core-count CPUs, delivering the throughput and low latency necessary for modern applications. As a leading solution among high-speed Network Expansion cards, the E810-XXVDA4 provides a versatile and powerful foundation for your evolving IT infrastructure, ensuring you can efficiently manage data-intensive tasks, from high-performance computing (HPC) to sophisticated storage solutions.

Experience a significant boost in application response times and network predictability. The adapter’s intelligent offloads free up valuable CPU cycles, allowing your servers to focus on their primary tasks. With support for both iWARP and RoCEv2, it provides flexible, low-latency Remote Direct Memory Access (RDMA) for high-performance storage and cluster fabrics. Its quad-port design offers exceptional port density, enabling you to maximize server connectivity while minimizing slot usage, power consumption, and overall cost. This makes the INTEL E810XXVDA4 PCI-E Expansion Card an ideal choice for building scalable, efficient, and future-ready server environments.

Main Features:

* Application Device Queues (ADQ) for application-specific traffic steering
* Dynamic Device Personalization (DDP) for advanced and customizable packet filtering
* Supports both iWARP and RoCEv2 for versatile RDMA deployments
* Enhanced server virtualization with SR-IOV and VMDq
* On-chip Quality of Service (QoS) for traffic management
* Supports Ethernet Port Configuration Tool (EPCT)
* IEEE 1588 Precision Time Protocol (PTP) v2 support for precise time synchronization
* Data Plane Development Kit (DPDK) optimized for efficient packet processing

Technical Specifications:

* Product Code: E810XXVDA4
* Port Configuration: Quad Port
* Connector Type: SFP28
* Data Rate Per Port: 25GbE / 10GbE / 1GbE
* System Interface: PCI Express (PCIe) 4.0 x16
* Bracket Height: Low Profile and Full Height
* Ethernet Storage: iSCSI, NFS
