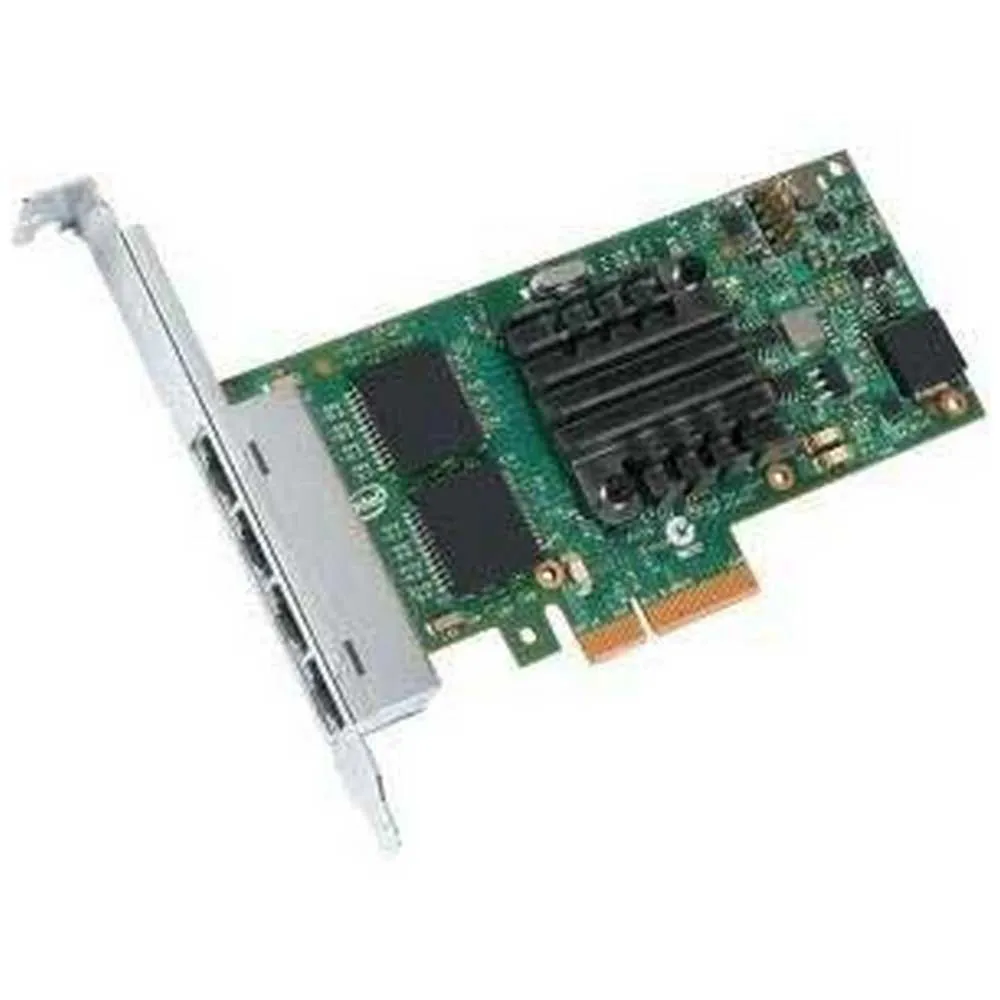

Intel I350T4V2BLK Network Card

Based on the new Intel® Ethernet Controller I350 series, the Intel® Ethernet Server Adapter I350 represents the next step in the GbE networking evolution for the enterprise and data center.

It introduces new levels of performance through industry-leading enhancements for both virtualized and Internet small computer system interface (iSCSI) unified networking environments.

This new family of adapters also includes new power management technologies such as Energy-Efficient Ethernet (EEE) and direct memory access coalescing (DMAC).

Specifications:

Ports & interfaces:

- Connectivity.

Technology:

Wired.

- Host interface:

PCI Express.

- Interface:

Ethernet.

- Ethernet LAN (RJ-45) ports:

4.

- PCI version:

2.1 Network:

- Maximum data transfer rate:

1000 Mbit/s.

- Networking standards:

IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z.

- Ethernet LAN:

Yes.

- Ethernet LAN data rates:

10,100,1000 Mbit/s.

- Cabling.

Technology:

10/100/1000BaseT(X).

- Full duplex:

Yes.

- Supported network protocols:

TCP, UDP, IP.

- Maximum operating distance:

100 m.

- LAN controller:

Intel® I350 Design:

- Component for:

Server.

- Internal:

Yes.

- Chipset:

Intel® I350.

- PCI Card form factor:

Full-height (low-profile) Power:

- Power consumption (typical):

5 W Operational conditions:

- Operating temperature (T-T):

0.

- 55 °C.

- Storage temperature (T-T):

-40.

- 70 °C.

- Storage relative humidity (H-H):

35.

- 90% Weight & dimensions:

- Width:

68.9 mm.

- Depth:

135.4 mm Other.

Features:

- Cable type:

Cat 5 up to 100m.

- Intel Virtual Machine Device Queues (VMDq):

Yes.

- PCI-SIG SR-IOV Capable:

Yes Other.

Features:

- On-chip QoS and Traffic Management:

Yes.

- Intel Flexible Port Partitioning:

Yes.

- Storage-over-ethernet:

Yes.

- Speed & slot width:

5.0 GT/s, x4 Lane.

- Intelligent Offloads:

Yes.

- Intel Ethernet Power Management:

Yes.

- Intel Virtualization Technology for Connectivity (VT-c):

Yes.

- Interface type:

PCIe v2.1 (5.0 GT/s).

- Storage Over Etherneti:

SCSI, NFS.

- Launch date:

Q3´14.

- Market segment:

Server.

- Network interface card cable medium:

Copper.

- Network interface card type:

Server.

- Product type:

Network Interface Card.

- Status:

Launched.

- Thermal Design Power (TDP):

5 W.

- Last change:

63903513.

- Processor family:

Gigabit Ethernet Adapters (up to 2.5GbE)-Gigabit Ethernet Adapters (up to 2.5GbE).

- Ethernet adapter ARK ID:

84805.

- Export Control Classification Number (ECCN):

5A991.

- Controller type:

Intel I350.

- Cabling type:

Cat 5 up to 100m.

- Bracket height:

Low-Profile (LP) / Full-Height (FH).

- Product family:

Intel Gigabit server adapter.

- Product series:

Intel® I350.

- Product codename:

Powerville.
