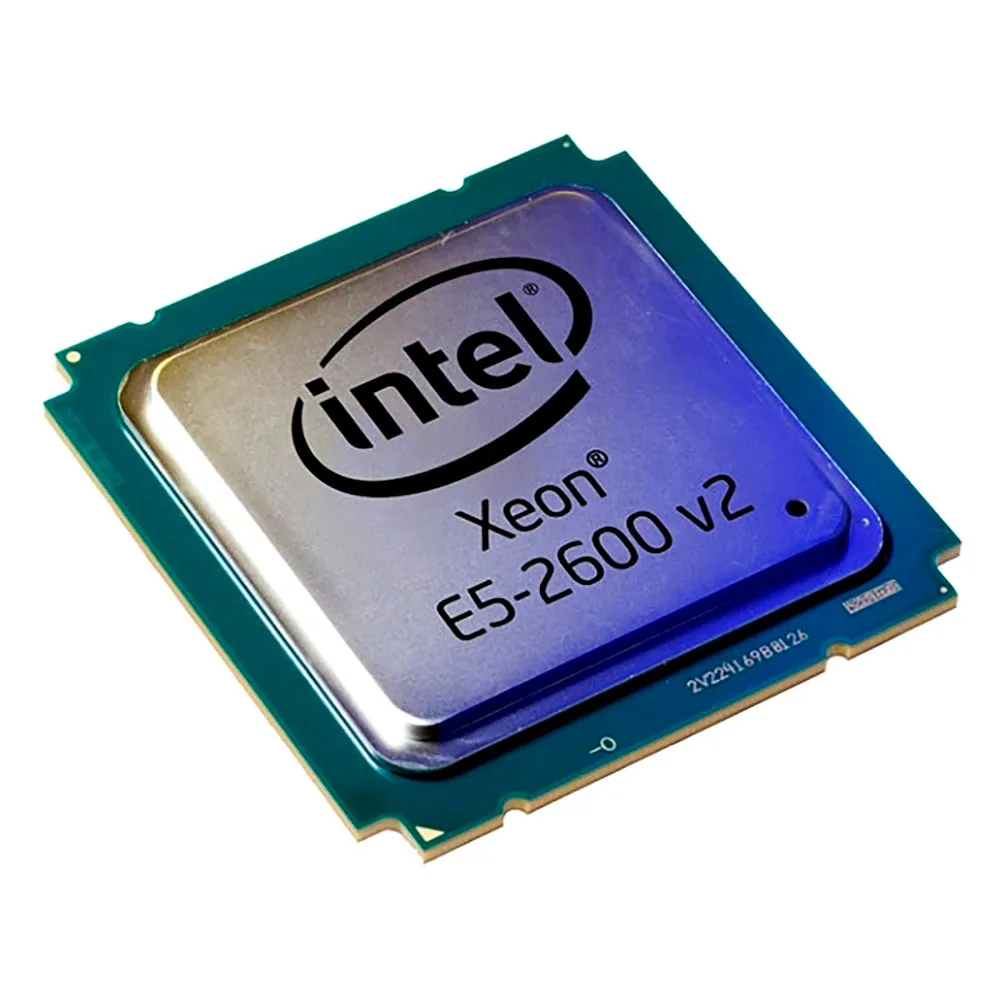

Intel Xeon E5-2620V2 For ThinkStation C30/D30 CPU

ThinkStation Intel E5-26xx v2 serial processor is Intel Xeon processor, with “Sandy Bridge” micro architecture and 22nm newest process technology.Continued advancements in security and virtualization performance Higher frequency and core count: up to 10cores/24 threads Increased virtualization performance: APIC Virtualization. Supports Intel Data Protection Technology with Secure Key. Supports APICv (Advanced Programmable Interrupt Controller Virtualization)


Specifications:

Processor:
- Processor base frequency: 2.1 GHz
- Processor family: Intel® Xeon® E5 V2 Family
- Processor cores: 6
- Processor socket: LGA 2011 (Socket R)
- Component for: Server/workstation
- Processor lithography: 22 nm
- Processor model: E5-2620V2
- Processor threads: 12
- System bus rate: 7.2 GT/s
- Processor operating modes: 64-bit
- Processor cache: 15 MB
- Processor cache type: L3
- Processor front side bus: 1600 MHz
- Thermal Design Power (TDP): 80 W
- Box: Yes
- Processor boost frequency: 2.6 GHz
- VID Voltage Range: 0.65 - 1.30 V
- Bus type: QPI
- Number of QPI links: 2
- Memory bandwidth supported by processor (max): 51.2 GB/s

Memory:
- Maximum internal memory supported by processor: 768 GB
- Memory types supported by processor: DDR3-SDRAM
- Memory clock speeds supported by processor: 800,1066,1333,1600 MHz
- Memory channels: Quad-channel
- ECC: Yes

Features:
- Execute Disable Bit: Yes
- Idle States: Yes

Features:
- Thermal Monitoring Technologies: Yes
- PCI Express slots version: 3.0
- Supported instruction sets: AVX
- Scalability: 2S
- CPU configuration (max): 2
- Embedded options available: No

Processor special features:
- Intel® Hyper Threading Technology (Intel® HT Technology): Yes
- Intel® Identity Protection Technology (Intel® IPT): No
- Intel® Turbo Boost Technology: 2.0
- Intel Flex Memory Access: No
- Intel® AES New Instructions (Intel® AES-NI): Yes
- Enhanced Intel SpeedStep Technology: Yes
- Intel Trusted Execution Technology: Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
- Intel® Secure Key: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel® vPro™ Platform Eligibility: Yes

Operational conditions:
- Tcase: 71 °C

Other features:
- Intel® Virtualization Technology (Intel® VT): VT-d,VT-x
