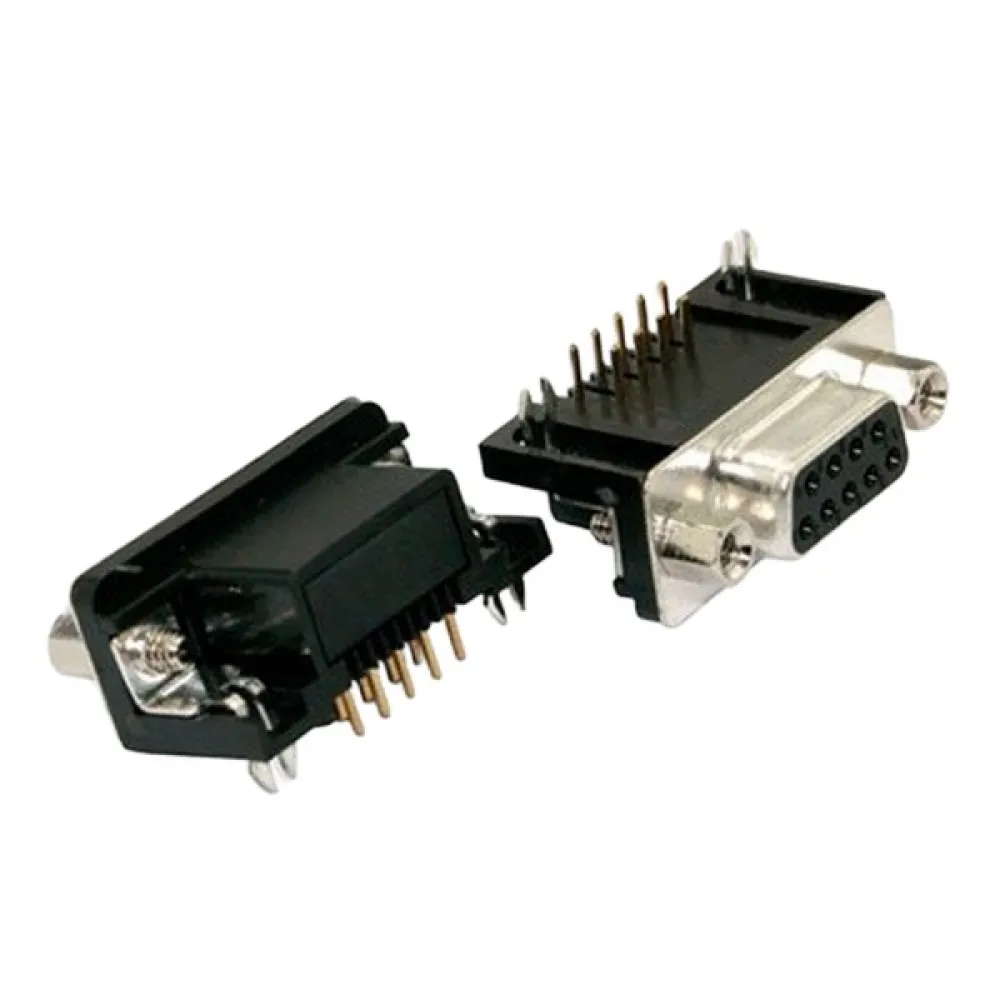

Intronics Oem SCW09F D.SUB 9pin Adapter

INTRONICS OEM SCW09F D.SUB 9-Pin Female Adapter | Professional PCB Connectivity

Category: Devices
Subcategory: Connectivities

Ensure unparalleled reliability and performance in your electronic assemblies with the INTRONICS OEM SCW09F D-Sub 9-Pin Female Adapter. As a premier component in the Adapters category, this connector is engineered for professionals who demand robust and stable connections for critical applications. The Intronics OEM 34701.1 9 pole D-sub Female PCB Connector is designed to provide a secure, board-level interface for data and power transmission, making it the cornerstone of any high-performance system. Its industry-standard design ensures seamless integration into new designs and existing systems requiring a dependable serial communication port.

Key Benefits:

Experience the advantage of a component built for endurance and precision. The SCW09F is crafted to operate flawlessly in demanding environments, offering a significant benefit for industrial, commercial, and specialized electronic projects.
* Exceptional Durability and Shielding: The robust tinned steel housing provides outstanding mechanical stability and excellent protection against electromagnetic interference (EMI) and radio-frequency interference (RFI), safeguarding signal integrity in noisy environments.
* Superior Signal Integrity: Featuring gold-plated contacts, this connector guarantees a low-resistance, corrosion-free connection. This results in minimal signal loss and consistent performance over its entire lifespan, even with repeated mating cycles.
* Extreme Environmental Resilience: With an impressive operational temperature range from -55 °C to 105 °C, this adapter is perfectly suited for applications exposed to extreme cold or high heat, from aerospace systems to industrial process controls.
* High-Power Capability: A substantial 5 A current rating per contact allows this connector to be used not only for data signals but also for power lines, offering versatile implementation in compact designs.
* Streamlined Manufacturing: Designed for direct PCB termination, this connector simplifies the assembly process by enabling a secure and permanent solder connection directly to the circuit board, reducing assembly time and potential points of failure.

Main Features:

The INTRONICS OEM SCW09F integrates essential features that define it as a top-tier connectivity solution.
* Industry-Standard 9-Pin D-Subminiature Female Interface
* Engineered for Direct Printed Circuit Board (PCB) Mounting
* High-Conductivity Gold-Plated Contacts
* Durable, Shielding Tinned Steel Housing
* Wide Operational Temperature Tolerance
* Versatile 5 Amp Current Handling Capacity

This D-sub adapter is the definitive choice for creating reliable connections in telecommunications equipment, computer peripherals, medical devices, and custom electronic control units. By choosing the Intronics SCW09F, you are investing in a component that delivers long-term stability and unwavering performance for your most critical projects.

Technical Specifications:

* Product ID: Intronics OEM 34701.1
* Connector type: D-sub
* Gender: Female
* Contacts: 9
* Contact material: Nickeled
* Contact plating: Gold plated
* Termination type: PCB
* Housing material: Tinned steel
* Rated current: 5 A
* Min. working temperature: -55 °C
* Max. working temperature: 105 °C
* Contact resistance: 10 mOhm
