Ip-com G1120P-16-150W switch

EU PLUG.

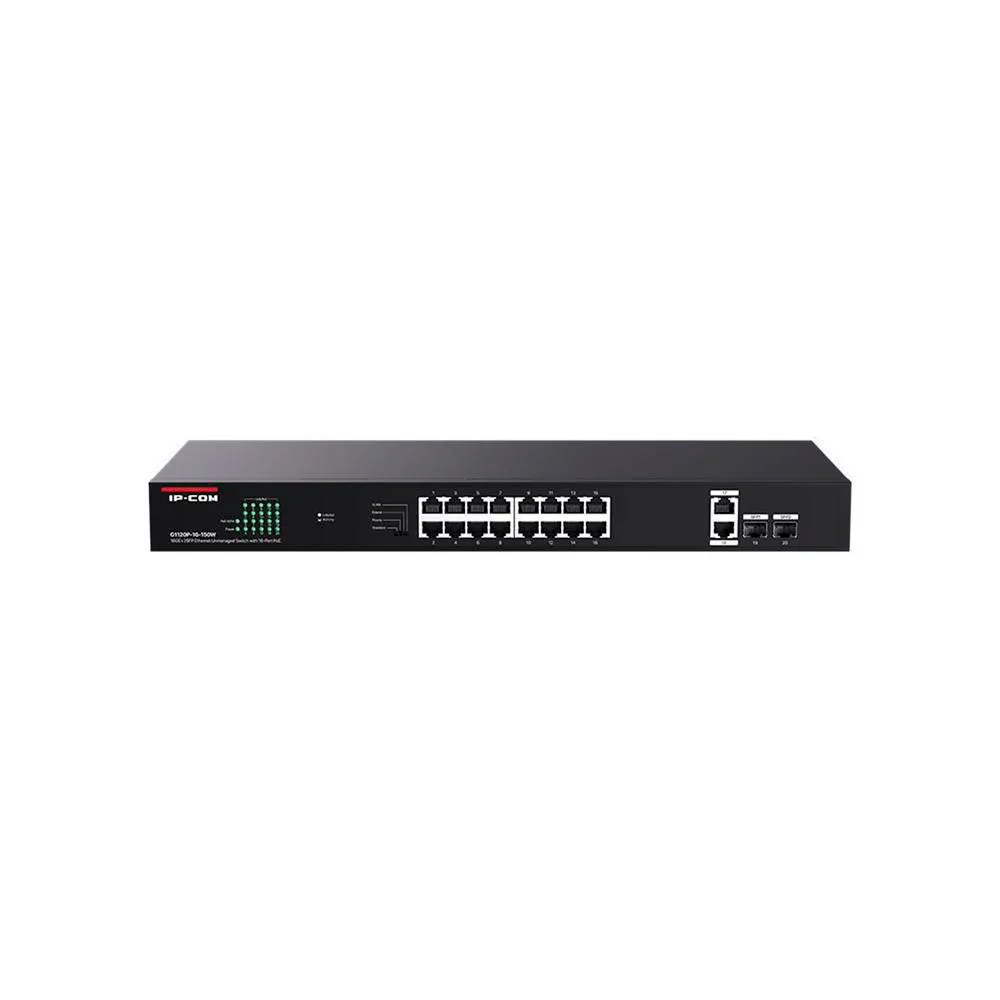

IP-COM G1120P-16-150W:

High-Performance 16-Port Gigabit PoE+ Managed Switch Elevate your small to medium-sized business (SMB) network with the IP-COM G1120P-16-150W, a powerful and intelligent Gigabit PoE switch designed for reliability, performance, and simplified management.

This switch is the ideal foundation for deploying a modern network infrastructure, providing both high-speed data connectivity and power over a single Ethernet cable to devices such as IP cameras, VoIP phones, and wireless access points.

Eliminate the complexity and cost of separate power supplies and build a clean, efficient, and scalable network for your office, hotel, or surveillance project.

The G1120P-16-150W is engineered to meet the demands of today?s connected environments.

With its robust 150W internal power supply, it delivers a substantial 130W total PoE budget, supporting both IEEE 802.3af and the high-power IEEE 802.3at (PoE+) standards.

This ensures you can confidently power a full range of devices, from standard IP phones to power-hungry PTZ cameras and 802.11ac/ax wireless access points, all from a centralized and manageable platform.

Management is made effortless through a user-friendly web interface and the innovative IP-COM IMS Cloud platform, allowing for remote configuration, monitoring, and maintenance from anywhere.

This switch also features four distinct operating modes, easily selectable via a front-panel DIP switch, to optimize performance for specific applications without complex configuration:

Standard, CCTV, VLAN, and Isolation.

Key Features:

- Versatile Port Configuration:

Features 16x10/100/1000 Mbps Base-T RJ45 ports for high-speed connectivity to all your network devices.

- Powerful PoE+ Output:

All 16 ports support IEEE 802.3af/at PoE, with a total power budget of 130W and a maximum of 30W per port, enabling the deployment of a wide array of powered devices.

- Flexible Fiber Uplinks:

Equipped with 2 independent 1000 Mbps SFP slots, allowing for high-bandwidth, long-distance fiber optic connections to your core network or other buildings, ensuring a bottleneck-free backbone.

- Standard Mode:

Functions as a normal unmanaged switch.

- CCTV Mode:

Extends data and power transmission up to 250 meters, perfect for sprawling video surveillance installations.

- VLAN Mode:

Ports 1-16 are isolated from each other but can communicate with the SFP uplink ports, enhancing network security.

- Isolation Mode:

Ports 1-8 and 9-16 are isolated into two separate virtual LANs, preventing broadcast storms and improving performance.

- Robust Performance and Reliability:

Built with a 36 Gbps switching capacity and a 26.78 Mpps forwarding rate to handle heavy traffic loads without interruption.

- Superior Protection:

Integrated 6kV lightning protection for all ports and the power supply provides exceptional durability and safeguards your investment against power surges and electrostatic discharge.

- Smart Cloud Management:

Supports management via the IP-COM IMS Cloud platform, providing a centralized dashboard for device status monitoring, remote configuration, and simplified network-wide maintenance.
