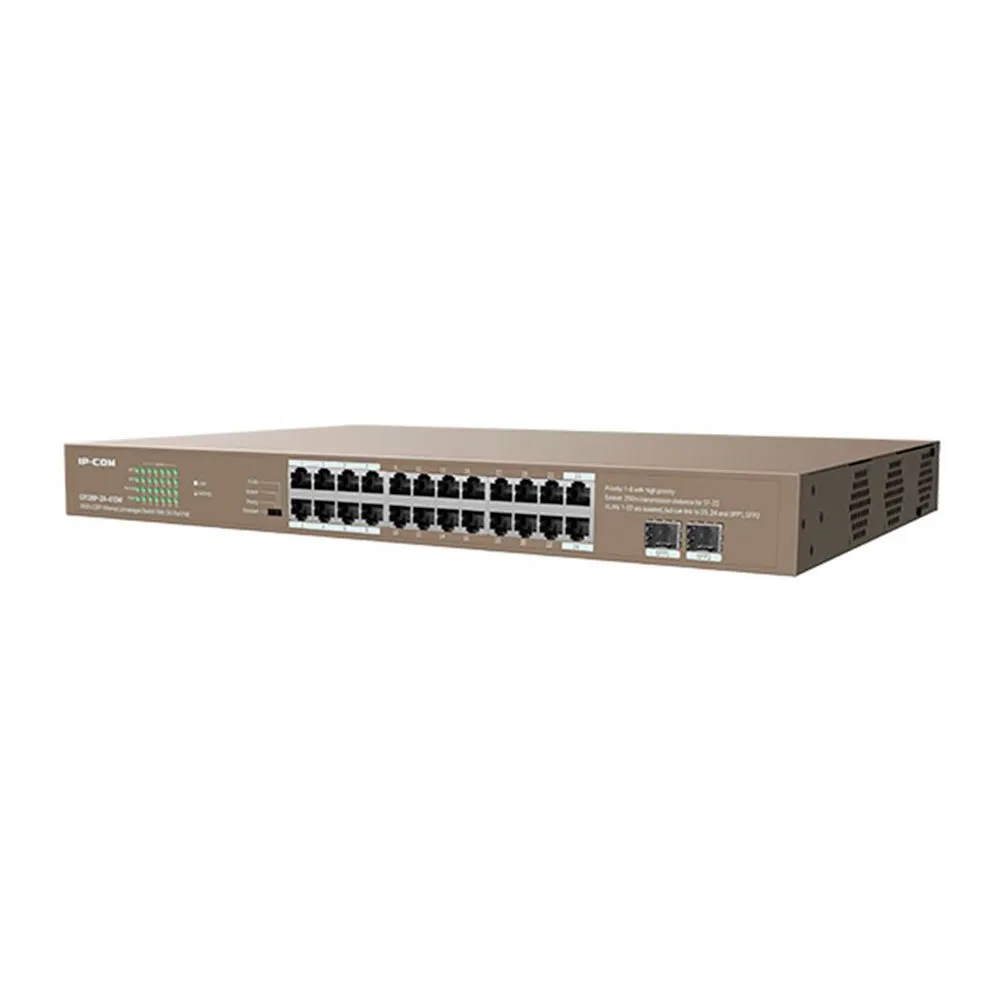

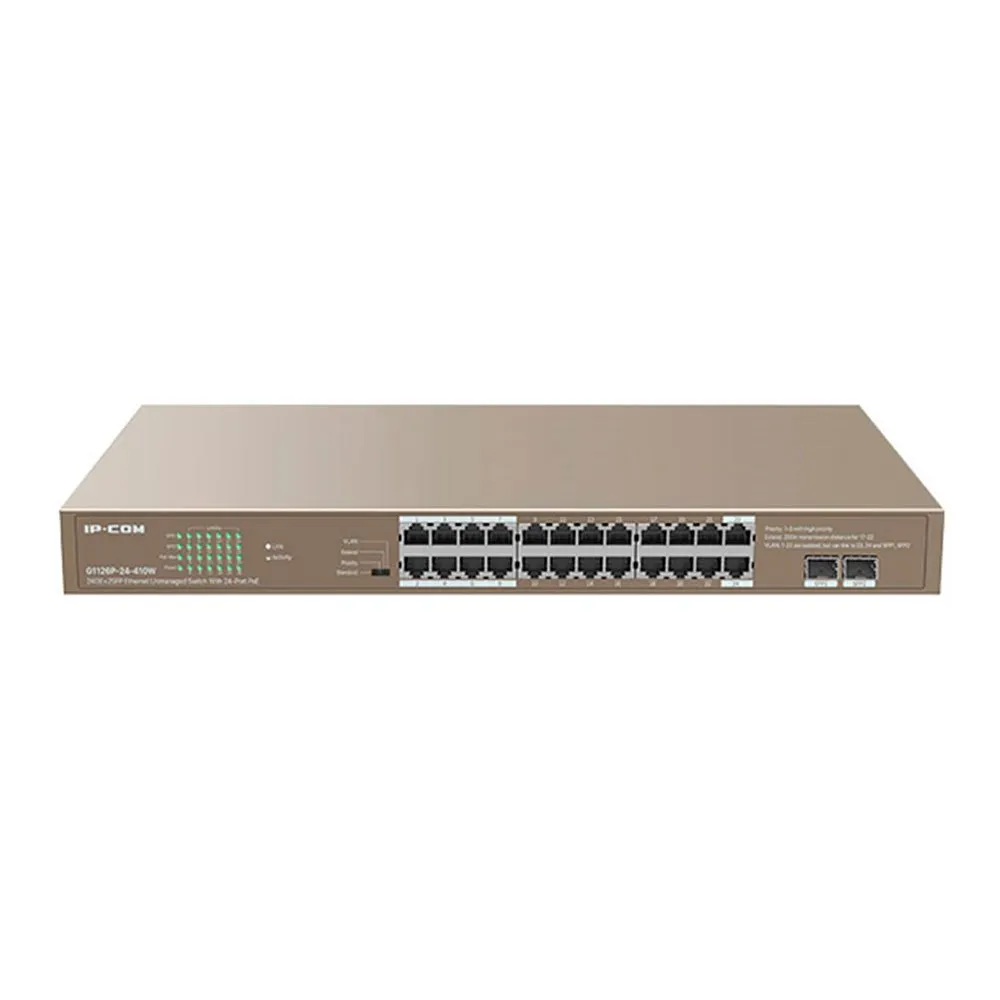

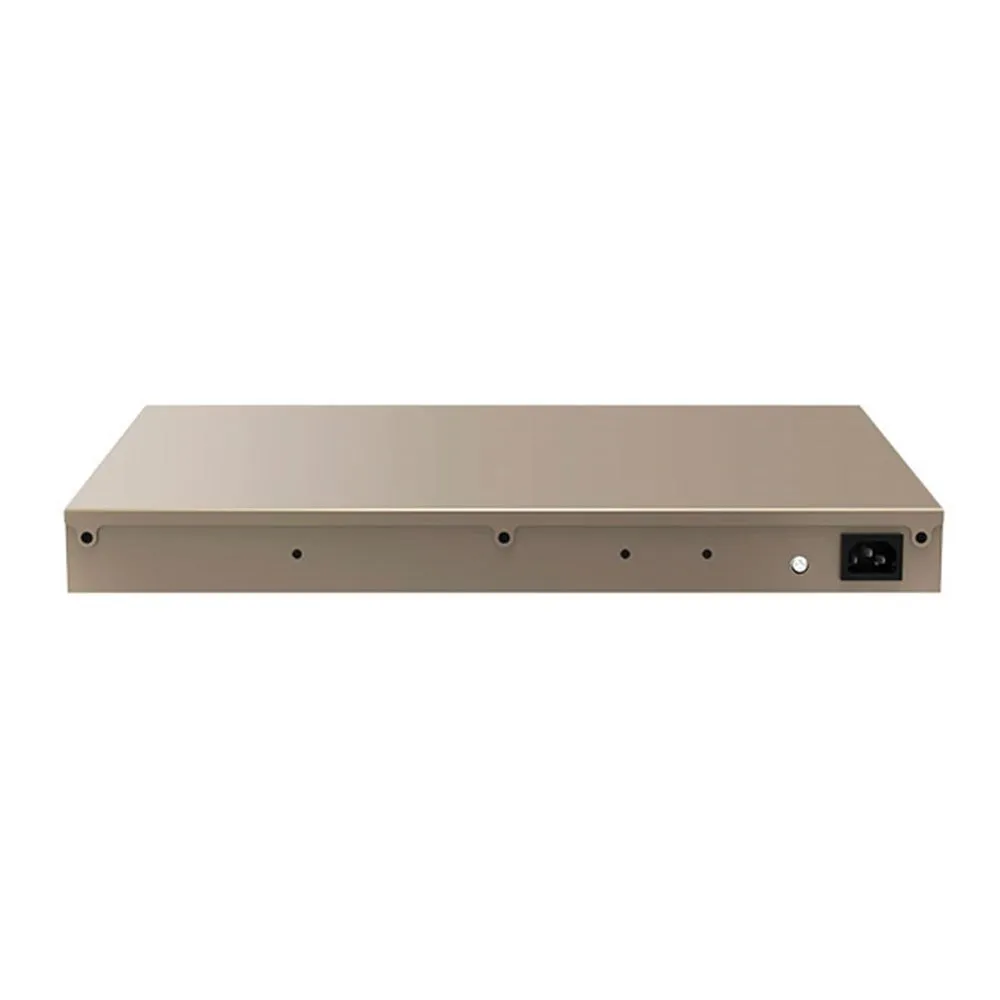

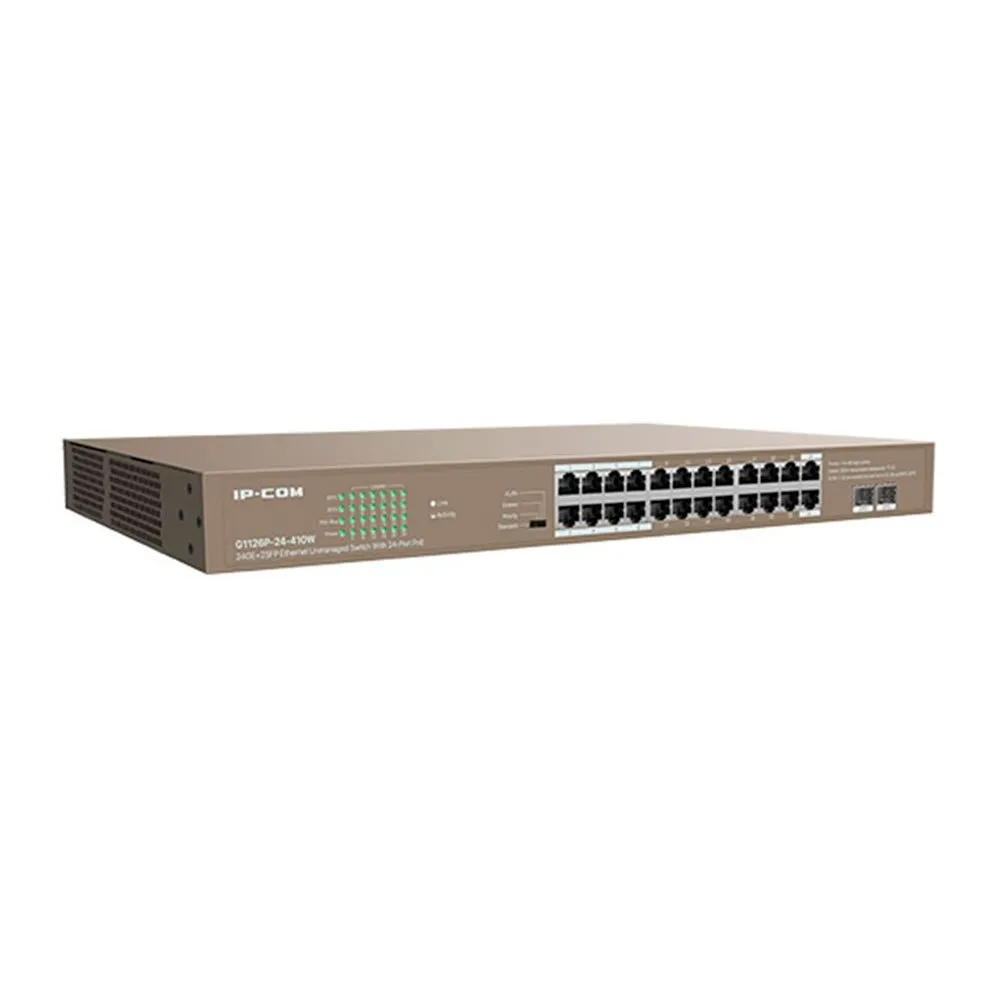

Ip-com G1126P-24-410W switch

EU Plug.

G1126P-24-410W is a unmanaged PoE switch independently designed by IP-COM.

Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelli-gently.

With a maximum PoE power output of 370 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones.

The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking require-ments.

Features:

kV lightning protection:- The switch offers various safety and protection types, including 6kV lightning protection, PSE short-circuit protection, PoE overload protec-tion, surge current protection etc.

Gigabit uplink port:- With two 1000 Mbps SFP slots, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance.

370 W PoE power supply:- The switch features 16 IEEE 802.3at/af-compliant RJ45 ports.

The entire switch offers a maximum PoE power output of 230W, and 30W for a single port, to supply power to and data transmission with 24 PoE-pow-ered devices such as APs and IP cameras.

One-key to switch 4 modes:- It supports 4 working modes, including standard, priority, extend and VLAN modes.

The hardware DIP mode switch makes networking straight-forward and effortless.

- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x and IEEE802.3af/at standards.

- 24.

- 100/1000 Mbps Base-T RJ45 ports for data transmission and power supply.

- 2.

- 1000 Mbps Base-X SFP slots.

- 8K MAC address table and MAC address auto-learning.

- IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control.

- 48Gbps backplane bandwidth.

- Maximum power consumption of a single port:30W.

- Maximum power consumption of the switch:410W.

- 4 modes:standard, priority, extend and VLAN.

- Rack mounting.

Specifications:

- Interfaces:24.

- 100/1000 Mbps Base-T RJ45 ports (Data/Power).

- 2.

- 1000 Mbps Base-X SFP port.

- Lightning protection:≥6KV.

- Forwarding mode:Store-and-forward.

- Switching capability:48 Gbps.

- Packet forwarding rate:35.7 Mpps.

- Buffer:2M.

- MAC address table:8K PoE supply:- Ports 1-24 support standard IEEE802.3af/at 30W output per PoE port.

- 370W output of the total PoE Power.

- Power consumption:410W output the whole device.

- Input voltage:AC:100-240V~50/60Hz.

- Dimensions:440.

- 284.

- 44mm Four Modes:- Standard:Default mode of the switch.

In this mode, it works as an unmanaged switch.all ports can communicate with each other separately.

- Priority:In this mode, port 23,24,SFP1 and SFP2 serve as uplink ports, ports 1 ‒ 8 serve as high priority port.

All ports can communicate with each other separately.

- Extend:In this mode, data rate of ports 17.

- 22 reduces to 10 Mbps, the maximum transmission distance can be 250 meters, and all ports can communicate with each other.

- VLAN:In this mode, ports 1.

- 22 of the switch can communicate with port 23,24, SFP1, SFP2 separately, but cannot communicate with each other.

You can enable this mode to reduce broadcast storm and isolate DHCP broadcast.

Operating environment:- Operating Temperature:0℃~45℃ (32℉~113℉).

- Storage Temperature:-40℃~70℃ (-40℉~158℉).

- Operating Humidity:10%~90% non-condensing.

- Storage Humidity:5%~90% non-condensing.

- Certificates:FCC、CE、RoHS.
