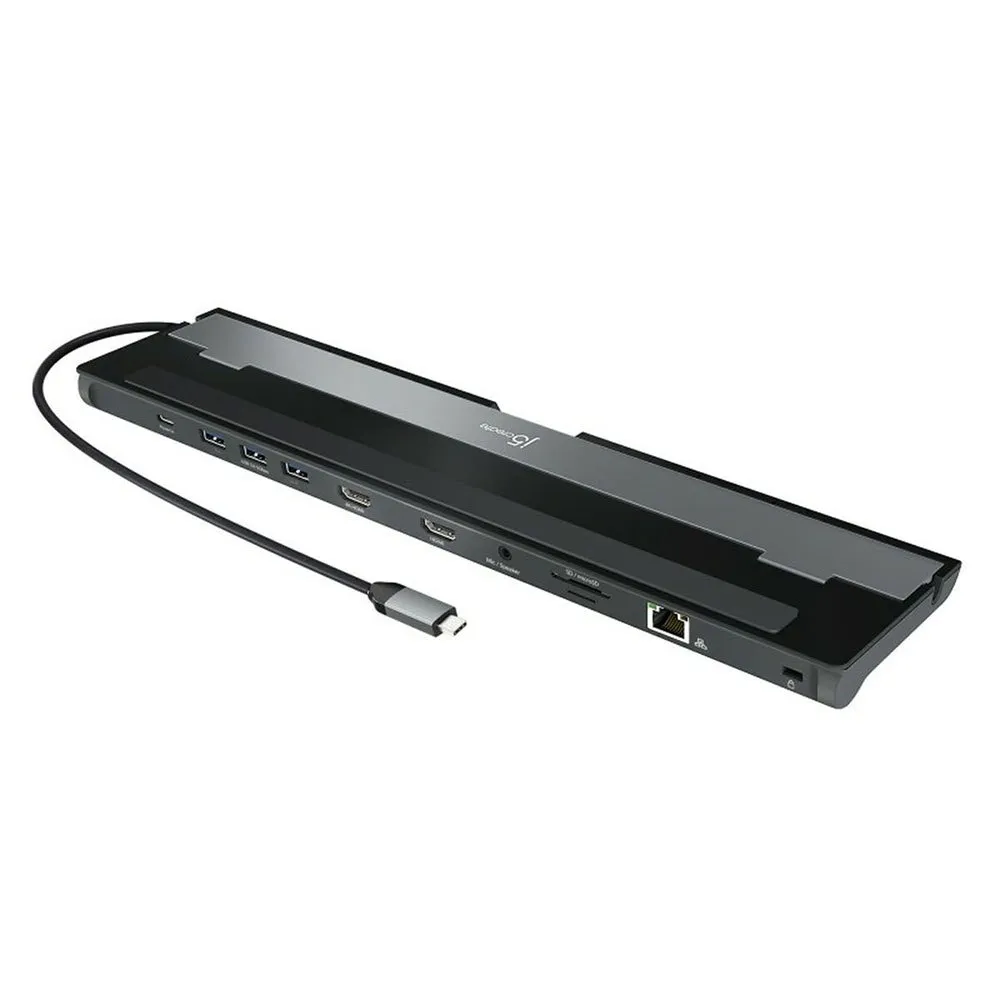

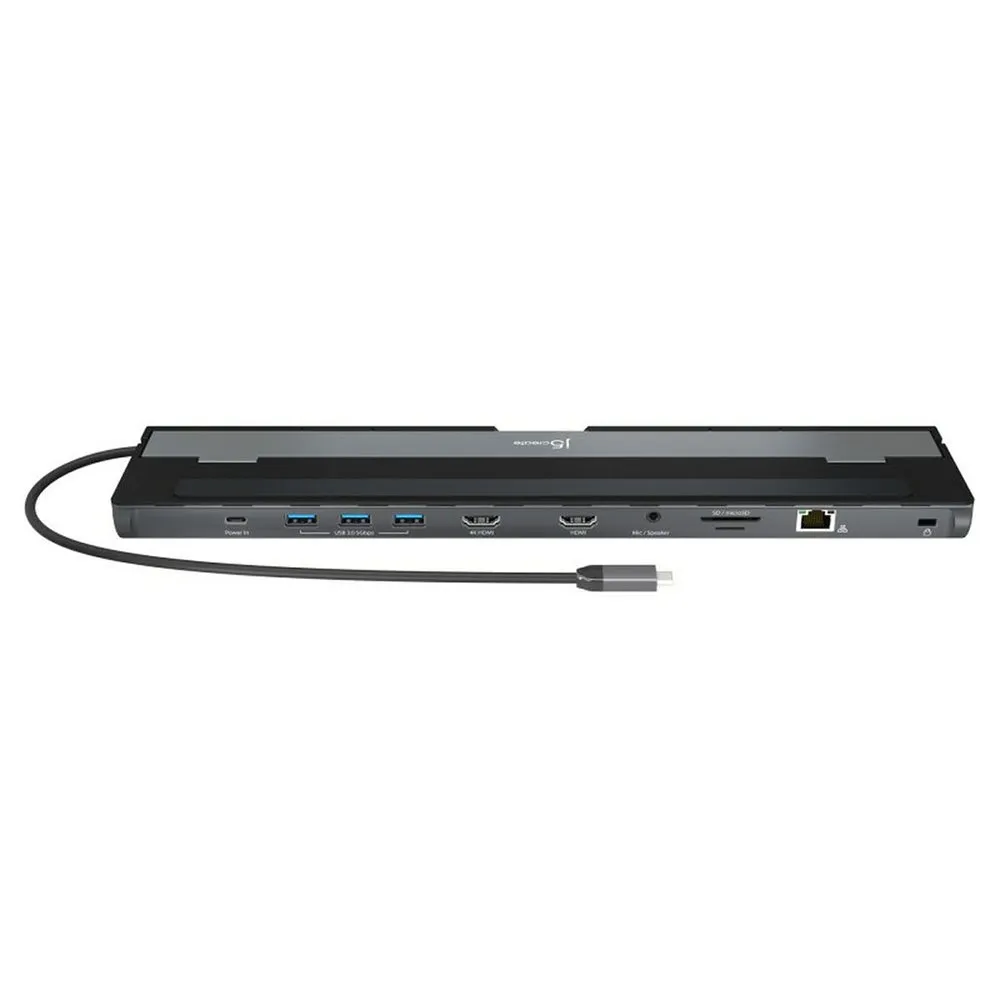

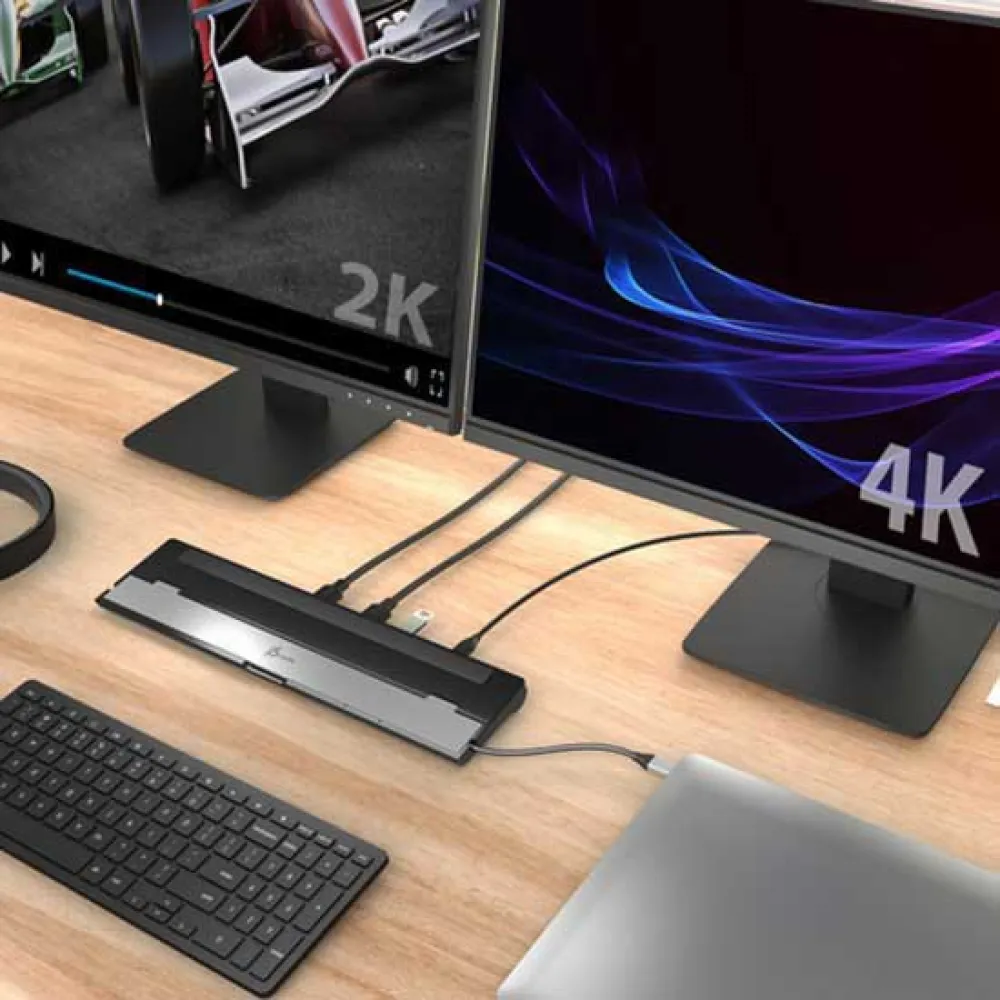

J5create USB-C Dual HDMI docking station

Features:

- Dual displays via HDMI™ outputs.

- Up to 100W power pass-through to charge your laptop and power the connected peripherals when used with a USB-C® power adapter.

- Connect and charge your USB™ devices with 3 USB™ ports.

- Reliable network connectivity through the Gigabit Ethernet port.

- Direct access to SD™ and microSD™ memory cards for data storage and transfer.

Specifications:

Ports And Interfaces:

- Host Interface:

Usb 3.2 Gen 1 (3.1 Gen 1) Type-C.

- Hub Interfaces:

3.5mm, Hdmi, Rj-45, Usb 3.2 Gen 1 (3.1 Gen 1) Type-A, Usb 3.2 Gen 1 (3.1 Gen 1) Type-C.

- Number Of Usb 3.2 Gen 1 (3.1 Gen 1) Type-A Ports:

3.

- Number Of Usb 3.2 Gen 1 (3.1 Gen 1) Type-C Ports:

1.

- Number Of Hdmi Ports:

2.

- Combo Headphone/Microphone Port:

Yes.

- Number Of Ports:

9.

- Ethernet Lan (Rj-45) Number Of Ports:

1.

- Usb Type-C Displayport Alternate Mode:

Yes.

- Integrated Reading Card:

Yes.

- Card Reader Slot:

1.

- Compatible Memory Cards:

Microsd (Transflash), Sd.

- Data Transfer Rate:

5000mbps.

- Maximum Update Rate:

30hz.

- Maximum Resolution (Hdmi):

3840 X 2160 Pixels.

- Shell Material:

Aluminum.

- Usb Power Supply:

Yes.

- Usb Power Delivery Review:

3.0.

- Usb Power Delivery (Usb Power Delivery) Up To:

100w.

- Hd Type:

4k Ultrahd.

- Number Of Displays Supported:

2.

- Cable Length:

0.45m.

- Compatible Products:

Macbook™ Pro 2016 & Newer Surface Pro™ 7 Surface Go™ Surfacefacebook™ 2 Connection:

- Ethernet Interface Type:

Gigabit Ethernet.

- Ethernet Lan, Data Transfer Rate:

10,100,1000 Mbit/S Energy Control:

- Power Supply Type:

Usb.

- Energy Consumption:

4.5w.

- Output Voltage:

20v.

- Output Current:

0.9a System Requirements:

- Supported Windows Operating System:

Windows 10.

- Mac Operating System Supported:

Mac Os X 10.11 El Capitan Weight And Measurements:

- Broad:

82.5mm.

- Depth:

350.2mm.

- Height:

22mm.

- Weight:

307g Packaging Content:

- Cables Included:

Usb Type-C.

- User Manual:

Yes.

- Quick Setup Guide:

Yes.

- Package Content:

1 X Jcd542 Usb-C® Dual Hdmi™ Docking Station, 1 X Quick Installation Guide (Qig) Environmental Conditions:

- Maximum Temperature:

40°C.

- Operating Temperature Range:

0.

- 40°C.

- Operating Temperature Range:

32.

- 118°F.

- Storage Temperature Range:

-10.

- 65°C.
