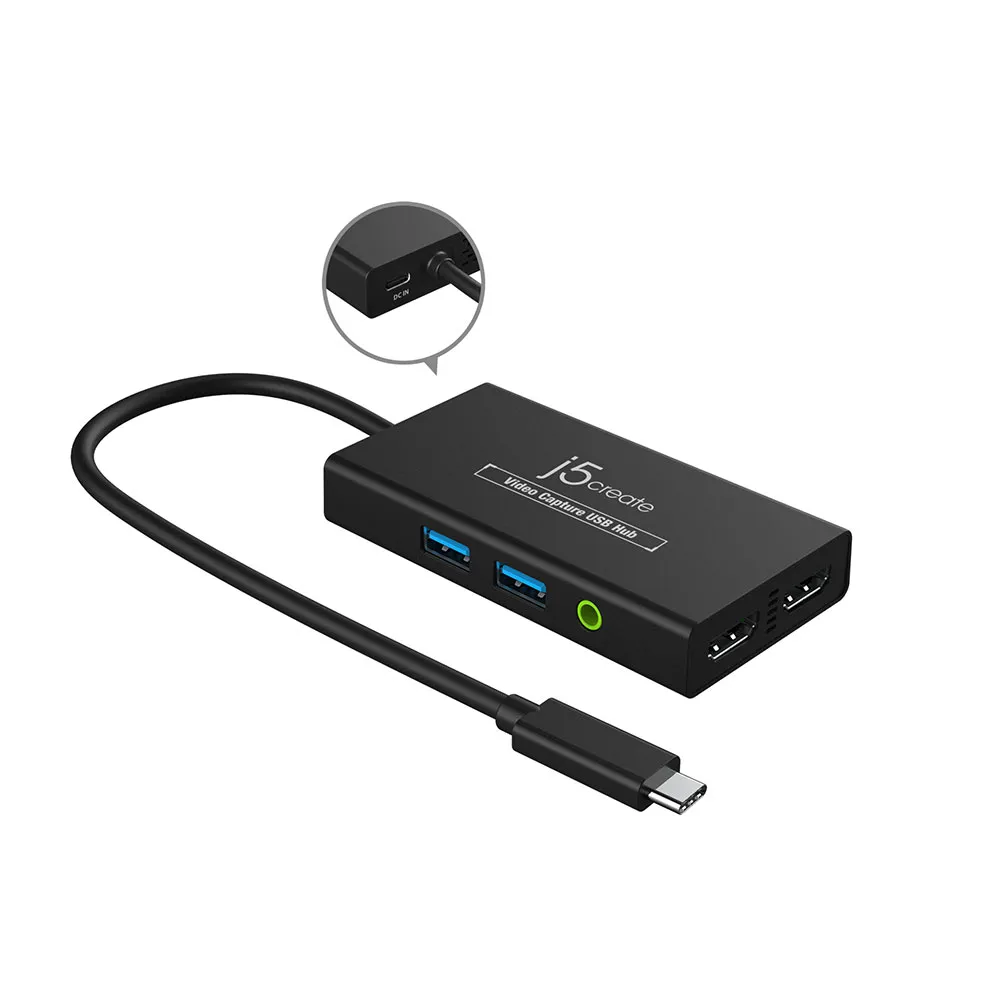

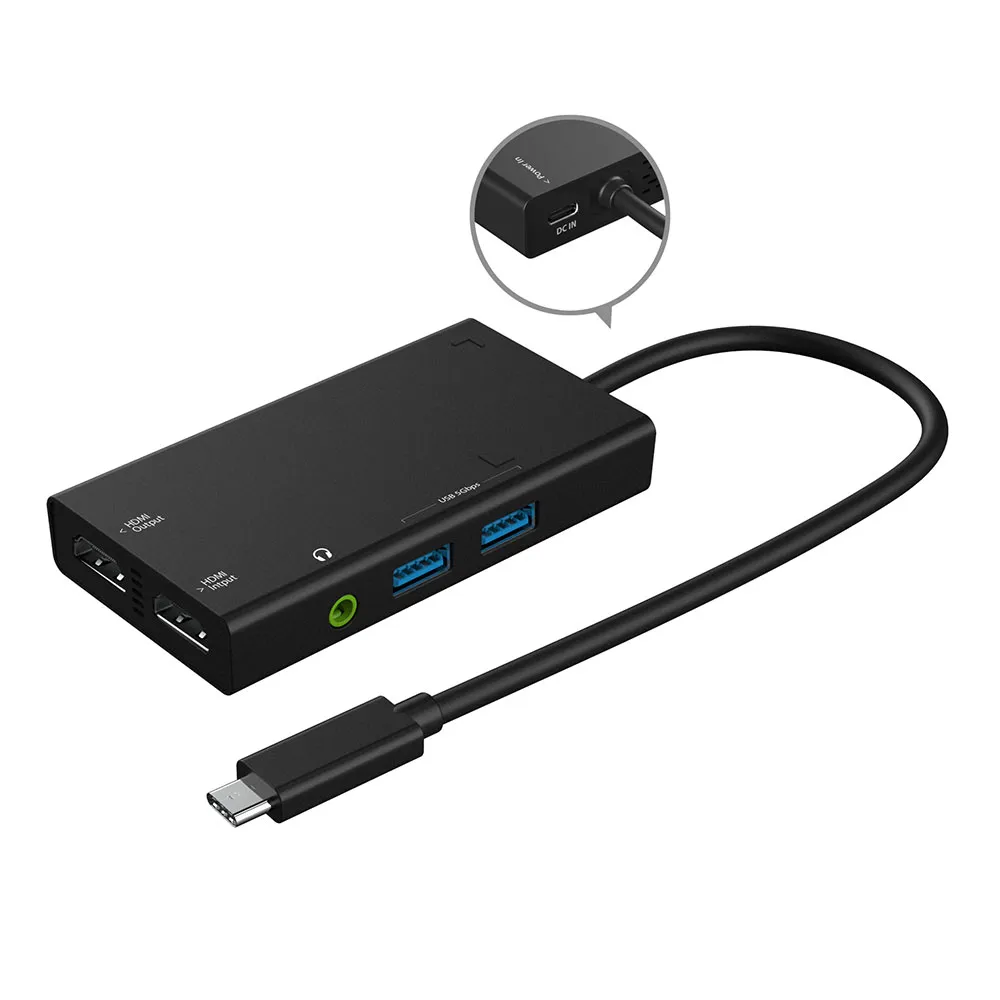

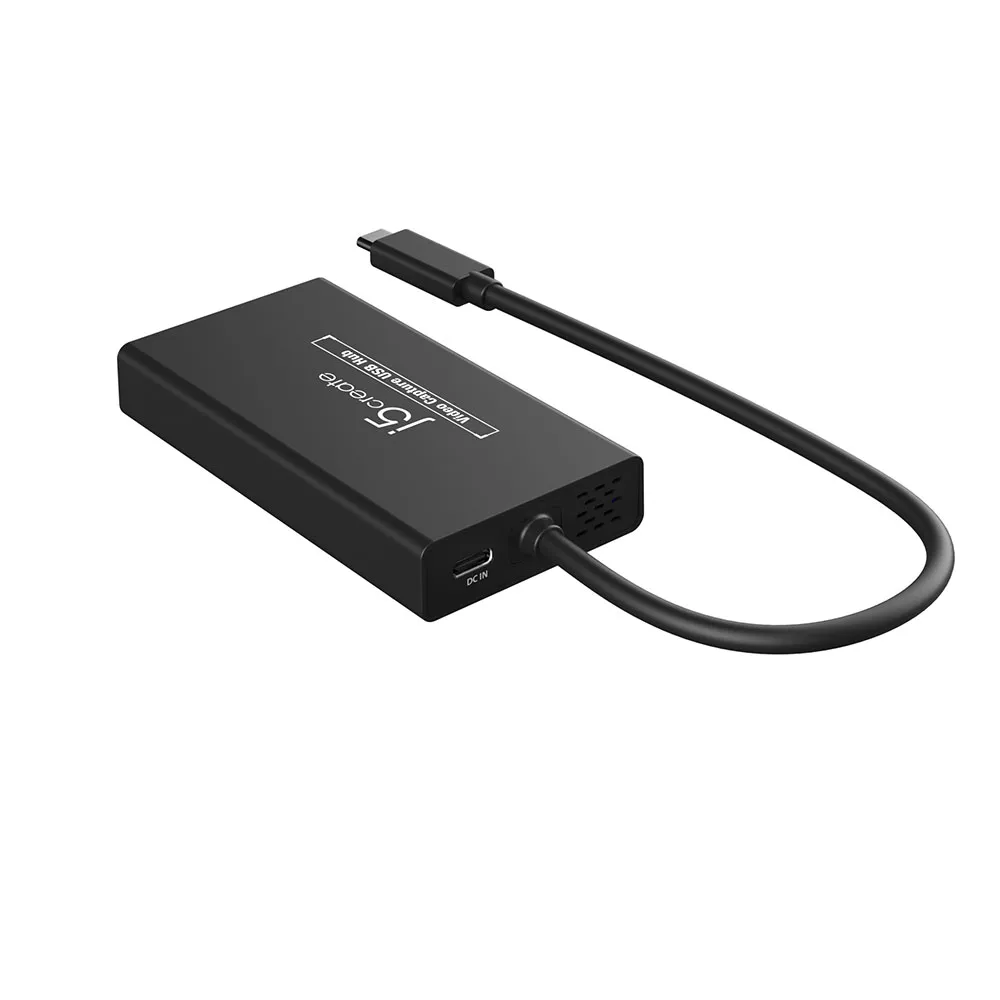

J5create Video Capture

The Video Capture USB™ Hub is a dual-purpose device that combines an HDMI™ capture card with a USB-C® hub.

With the 1080p video capture and 4K USB-C® display, as well as Power Delivery 3.0, you can stream in UHD without interruptions while charging your connected device.

It also includes two SuperSpeed USB™ 5Gbps ports for further peripheral connectivity.

The compact and lightweight design makes this video capture hub perfect for mobile streaming.

When not used for streaming, it acts as a standard USB-C® hub, allowing you to add two additional USB™ peripherals and a 4K HDMI™ display.

It also supports upstream charging to keep your laptop powered while in use.

j5create JVA01-N Video Capture USB™ Hub.

Product colour:Black, Host interface:USB 3.2 Gen 1 (3.1 Gen 1), Video capture resolution (max):1920 x 1080 pixels.

Supported resolutions:HDMI™ In:3840 x 2160 USB-C® display:3840 x 2160 Capture/Record:1920 x 1080, Maximum refresh rate:30 Hz.

USB connector type:USB Type-A, USB version:3.2 Gen 1 (3.1 Gen 1).

Power supply type:USB, Input voltage:20 V, Input current:3 A.

Other operating systems supported:Android.

UVC Capture.

HDMI™ to USB-C® with 60W Power Delivery.

Power Delivery 3.0 lets you stream live without interruption.

Ultra-low latency stream through USB-C® 3.2 connection.

3.5 mm audio jack allows you to connect headphones or speakers.

2 x SuperSpeed USB™ 5Gbps ports to connect additional peripherals.

UVC standard - No driver installation required.

Field production made easy with its compact size.

´´USB-C® Hub with 4K HDMI™.

Easily add an HDMI™ video output with resolutions up to 4K @ 30 Hz.

USB-C® Power Delivery provides up to 60W pass-through charging to the connected devices.

2 x USB™ Type-A ports provide up to 5Gbps transfer speed.

No driver installation required for Windows® or macOS®´´.
