Level One AC750 PoE WIFI Access Point

EU Plug.

LevelOne new access point, the WAP-8221, can be used to create wireless networks that are NAt only technically perfect but also visually perfect.

Since there is almost NAt to see with the wireless access point hardware:The wireless access point.

- just like a power outlet.

- is simply mounted on the wall.

hotels and guesthouses can carefully set up WLANs for guests in each room.

It can achieve a combined speed of up to 750 Mbps.

The WAP-8221 operates in the 2.4 and 5 GHz bands and can also be used as part of a managed network when controlled by the LevelOne WAC-2000 / WAC-2003 WLAN controller.

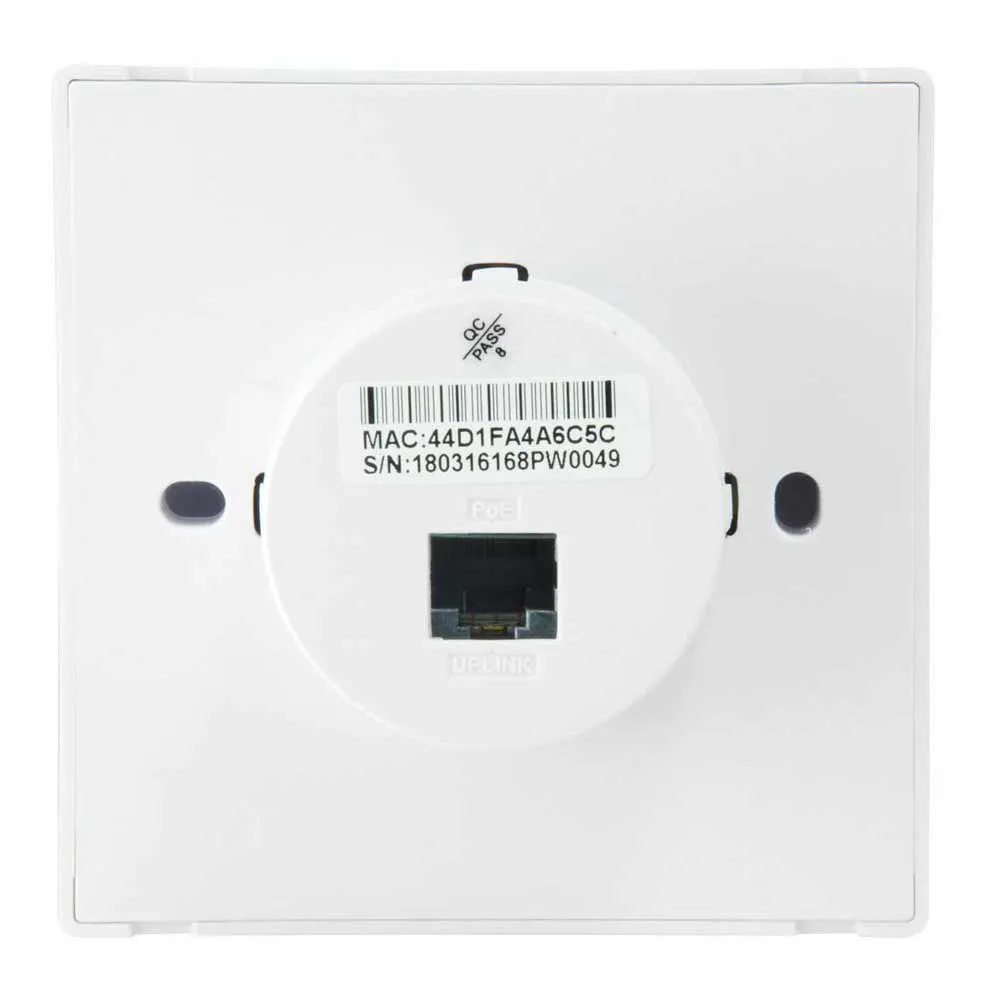

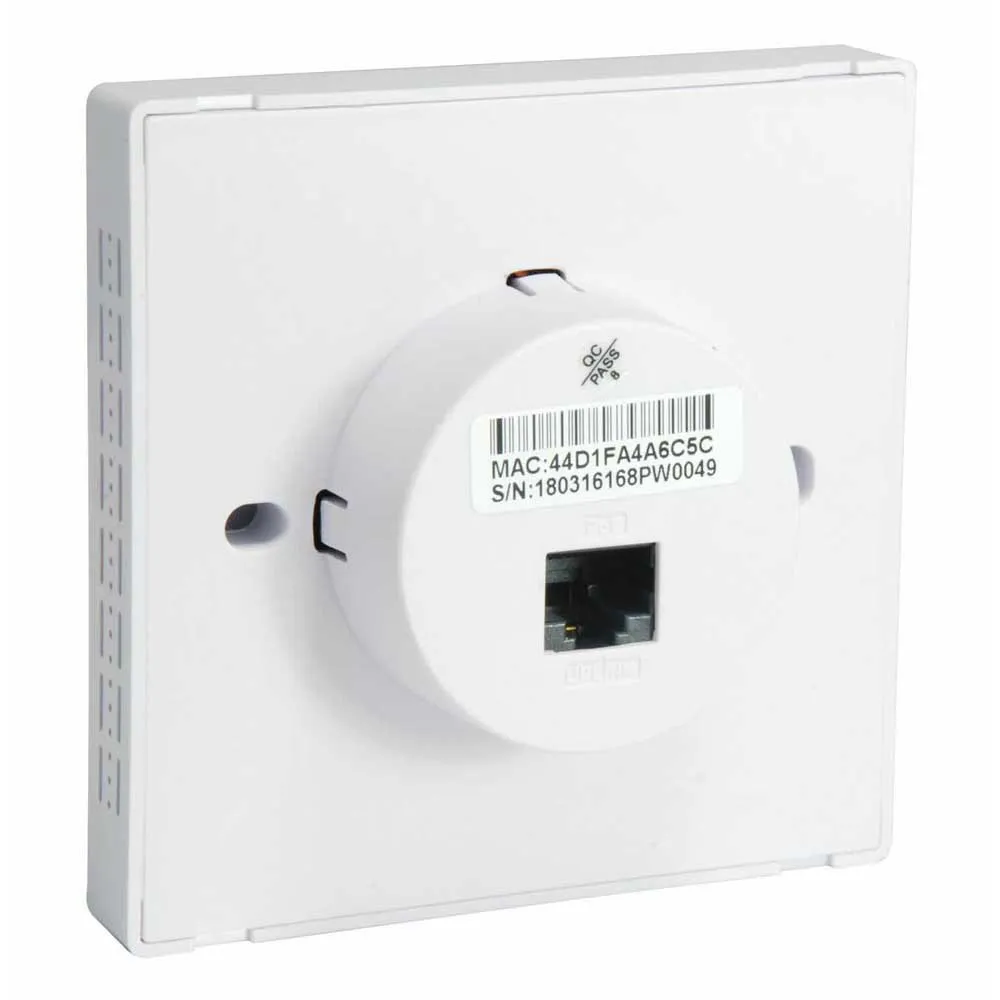

There is an RJ45 socket for the network cable on the back and front.

LevelOne WAP-8221 also offers PoE, removing the need for an external power supply, which makes it easy to install.

A fast, versatile and secure access point for a wide variety of network requirements.

Features:

- Share your wireless network up to 750Mbps.

- Compatible with IEEE 802.11a/b/g/n/ac wireless standards.

- Dual band technology reduces interference, providing reliable connections.

- IEEE 802.3af PoE compliant to simplify deployment and installation.

- Multi-operation modes to suit different wireless applications.

- Provides up to 8 SSIDs to separate network traffic and enhance security.

- Wall-mounted design fits standard 86x86mm socket.

Specifications:

- Data rate:802.11ac:433.3 Mbps 802.11n:300 Mbps 802.11g:54 Mbps 802.11b:11 Mbps.

- Power Consumption:- Approval and compliance:CE.

- Max.

operating humidity (%):90.

- Max.

operating temperature (°C):50.

- Max.

storage humidity (%):90.

- Max.

storage temperature (°C):70.

- Min.

operating humidity (%):10.

- Min.

operating temperature (°C):-20.

- Min.

storage humidity (%):5.

- Min.

storage temperature (°C):-40.

- Antenna:2.4GHz:2dBi inside Omni Antenna x2 5.8GHz:2dBi inside Omni Antenna x1.

- Button:1 x Reset and WIFI SSID Broadcast ON/OFF.

- EIRP(dBm):2.4GHz/5GHz EIRP.

- Encryption:WEP Encryption-64/128 bit.

WPA/WPA2 Personal (WPA-PSK using TKIP or AES).WPA/WPA2 Enterprise (WPA-EAP using TKIP).

- Frequency band:2.4 ~ 2.4835 GHz 5.180 ~ 5.825GHz.

- Indicators:Power.

- System status.

- RAM size:64MB (SDRAM).

- Flash memory size:16MB.

- Mount:Flush mount, Wall mount.

- Operating modes:Gateway Mode, Repeater Mode, AP Mode, WISP Mode.

Processor:Qualcomm QCA9531.

- Standards:IEEE 802.3 10-BASE-T, Ethernet.

- IEEE 802.3u 100-BASE-TX, Fast Ethernet.

- IEEE 802.11e Wi-Fi Multimedia (WMM).

- IEEE 802.3x Ethernet Flow Control.

- IEEE 802.11i Wi-Fi Protected Access (WPA2).

- IEEE 802.11a, 802.11b, IEEE 802.11g, IEEE 802.11n 802.11ac Wireless Networking.

- IEEE 802.3 af Power over Ethernet.

- Wireless channels:2.4GHz:Ch.1 ~ 11 USA Ch.1 ~ 13 EU 5.8GHz:Ch.36~64, 100~128, 132~140, 149~165 USA Ch.36~64, 100~128, 132~140 EU.

- General.

Features:

Multi-SSID:8 SSIDs (4 SSID for 2.4G, 4 SSID for 5.8G).

- Product weight (kg):0,104.

- Product breadth (mm):86.

- Product depth (mm):31.

- Product height (mm):86 Package contents:- WAP-8221.

- Schraubenset.

- Quick Installation Guide.

- Ressource CD (Bedienungsanleitung, QIG).

- Fast Ethernet RJ45:2.

- 802.3af PoE:1.

- Receiver sensitivity:2.4 GHz Receive Sensitivity:- 802.11b / 1Mbps / RX Sensitivity:-94 (dBm).

- 802.11b / 11Mbps / RX Sensitivity:-85 (dBm).

- 802.11g / 6Mbps / RX Sensitivity:-88 (dBm).

- 802.11g / 54Mbps / RX Sensitivity:-72 (dBm).

- 802.11n HT20 / MCS0 / RX Sensitivity:-88 (dBm).

- 802.11n HT20 / MCS7 / RX Sensitivity:-70 (dBm) 5.8 GHz Receive Sensitivity:- 802.11a HT20 / 6Mbps/ RX Sensitivity:-90 (dBm).

- 802.11a HT20 / 54Mbps/ RX Sensitivity:-72 (dBm).

- 802.11n HT20 / MCS0 / RX Sensitivity:-90 (dBm).

- 802.11n HT20 / MCS7 / RX Sensitivity:-70 (dBm).

- 802.11ac VHT80 / MCS0 / RX Sensitivity:-86 (dBm).

- 802.11ac VHT80 / MCS9 / RX Sensitivity:-60 (dBm).

- Frequency band:2.4/5GHz(Dual bands).

- Max.

Wi-Fi Data Rate:750Mbps.

- Wireless AP Type:Inwall.

- PoE Supported:Yes.
