Level One Fsw-0513 switch

EU Plug.

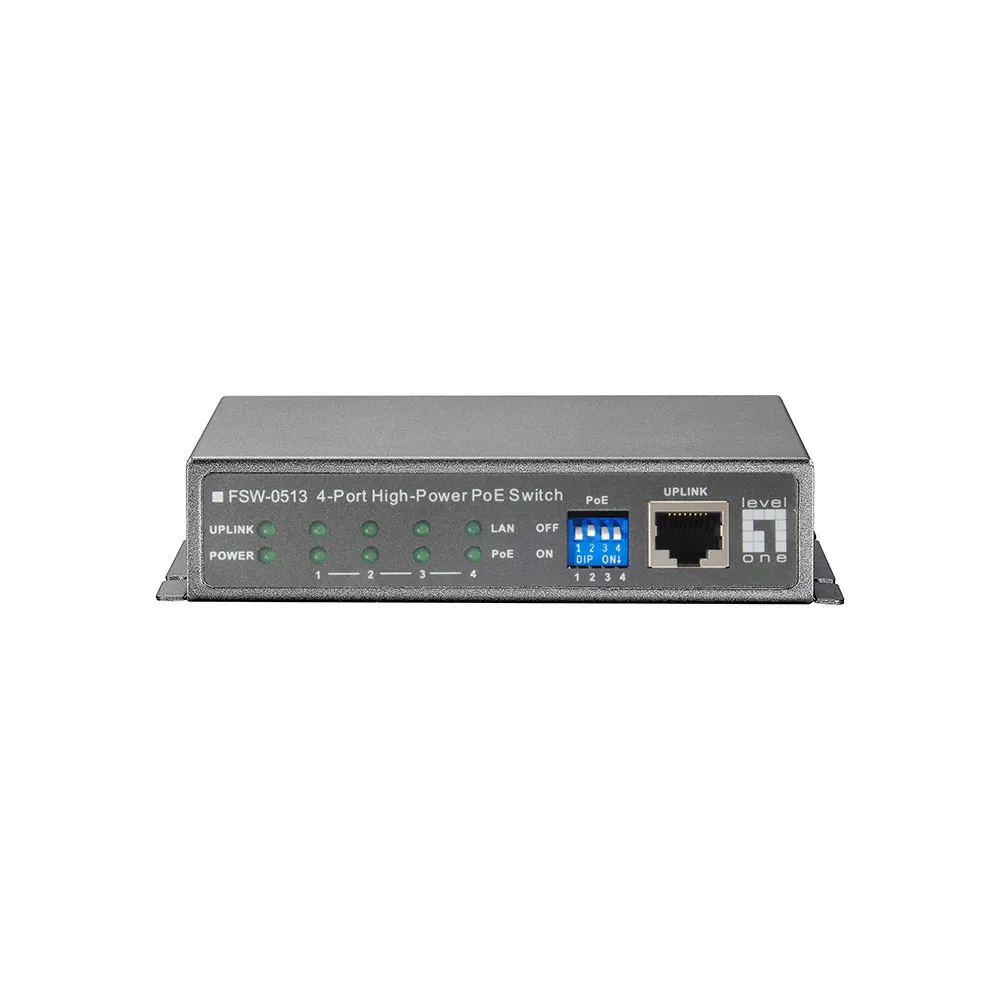

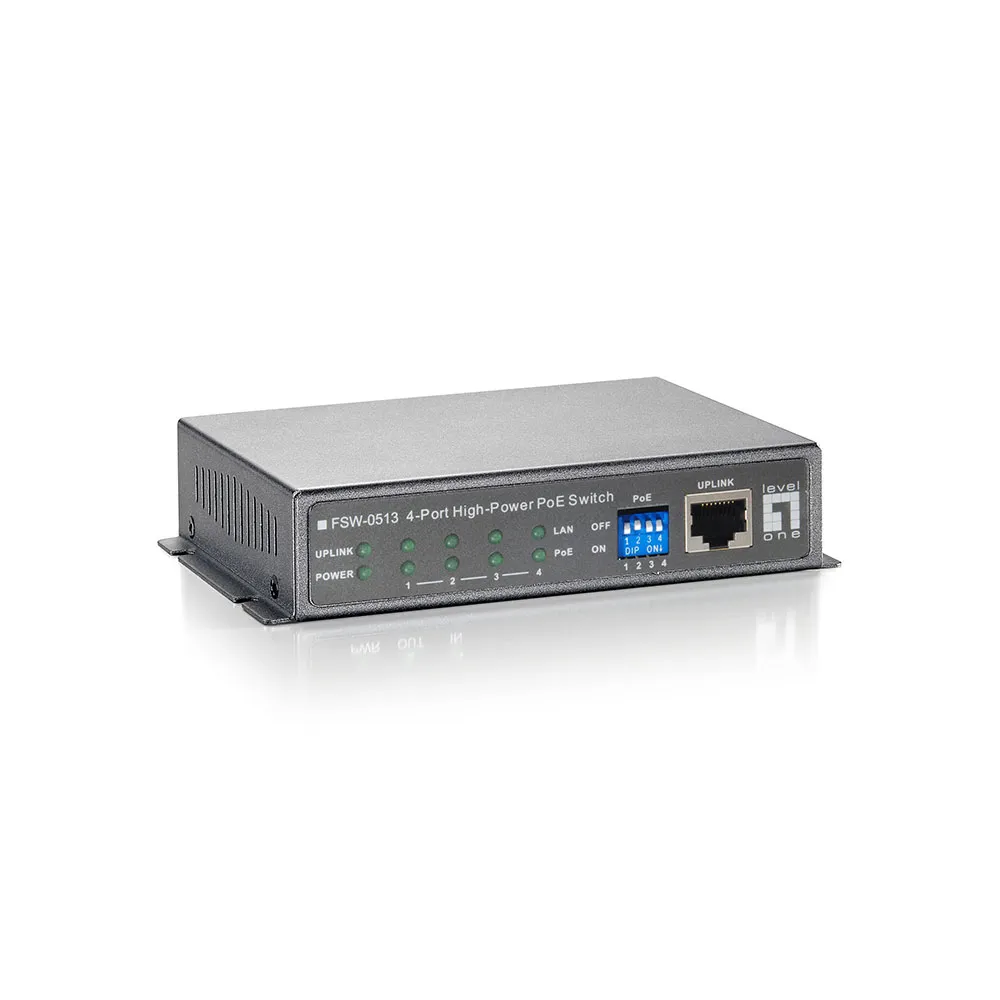

FSW-0513(Z) is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and one uplink port.

With a total power budget of 120W, FSW-0513(Z) is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points.

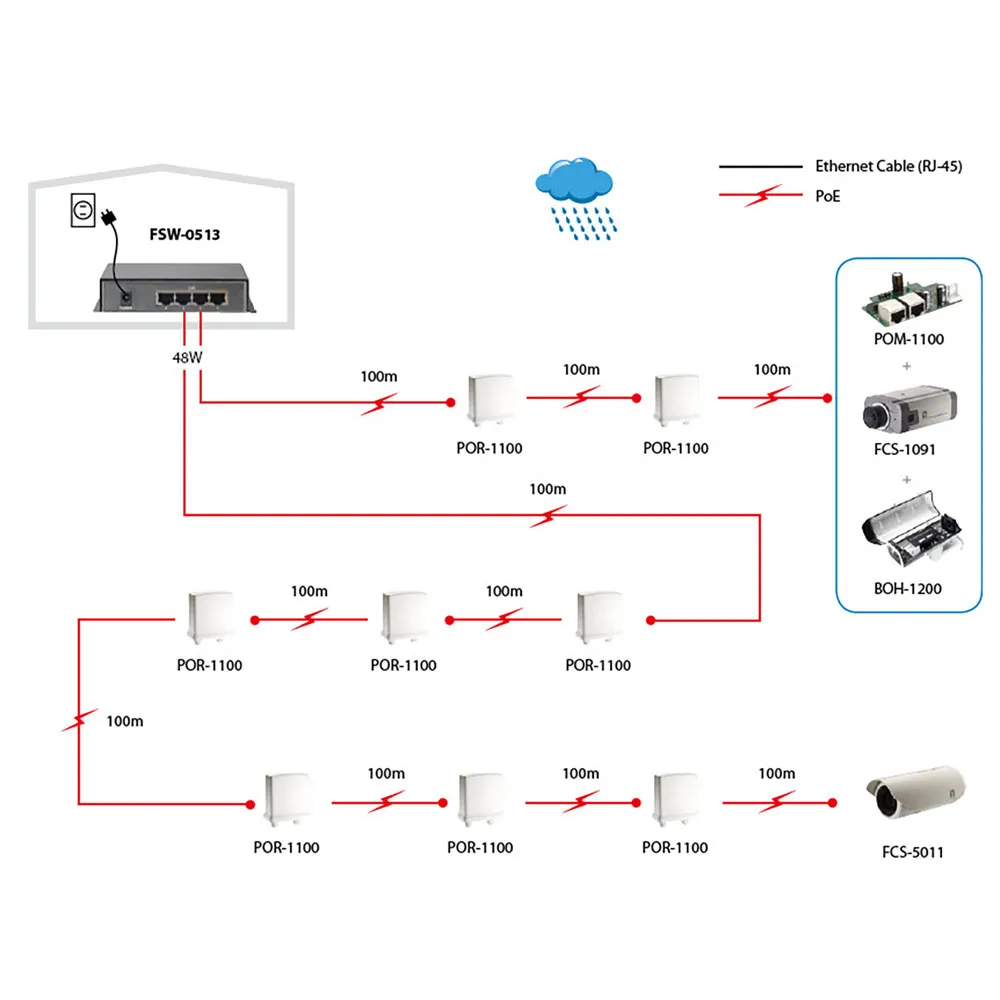

And with high-power PoE, the reach of devices can be extended hundreds of meters.

With 4 dip switches, each PoE port can be manually set for On-Off control.

The internal PoE power supply can send up to 52 Watts to a single port.

FSW-0513(Z) is compact in size, making it ideal for desktop users with limited space.

You also have option of installing several FSW-0513(Z) in a 19” chassis (POC-6000) for a large-scale rack-mount PoE solution.

Power Protection.

FSW-0513(Z) supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), robust short-circuit protection and surge protection.

-Provides flexibility of 4 x 10/100BASE-TX PoE ports.

-IEEE 802.3af PoE compliant to simplify deployment and installation.

-PoE on/off control per port by dip switches.

-Auto-detection and protection of non-standard PoE devices.

-10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX.

-IEEE 802.3x Flow Control protects against lost packets for reliable data transmission.

-Total PoE power budget:120W, up to 52W per port.

LevelOne 5-Port Fast Ethernet PoE Switch, 4 PoE Outputs, 120W, power adapter included.

Basic switching RJ-45 Ethernet ports type:Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity:5.

Full duplex.

MAC address table:1024 entries, Switching capacity:1 Gbit/s.

Networking standards:IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x.

Power connector:DC-in jack.

Power over Ethernet (PoE).
