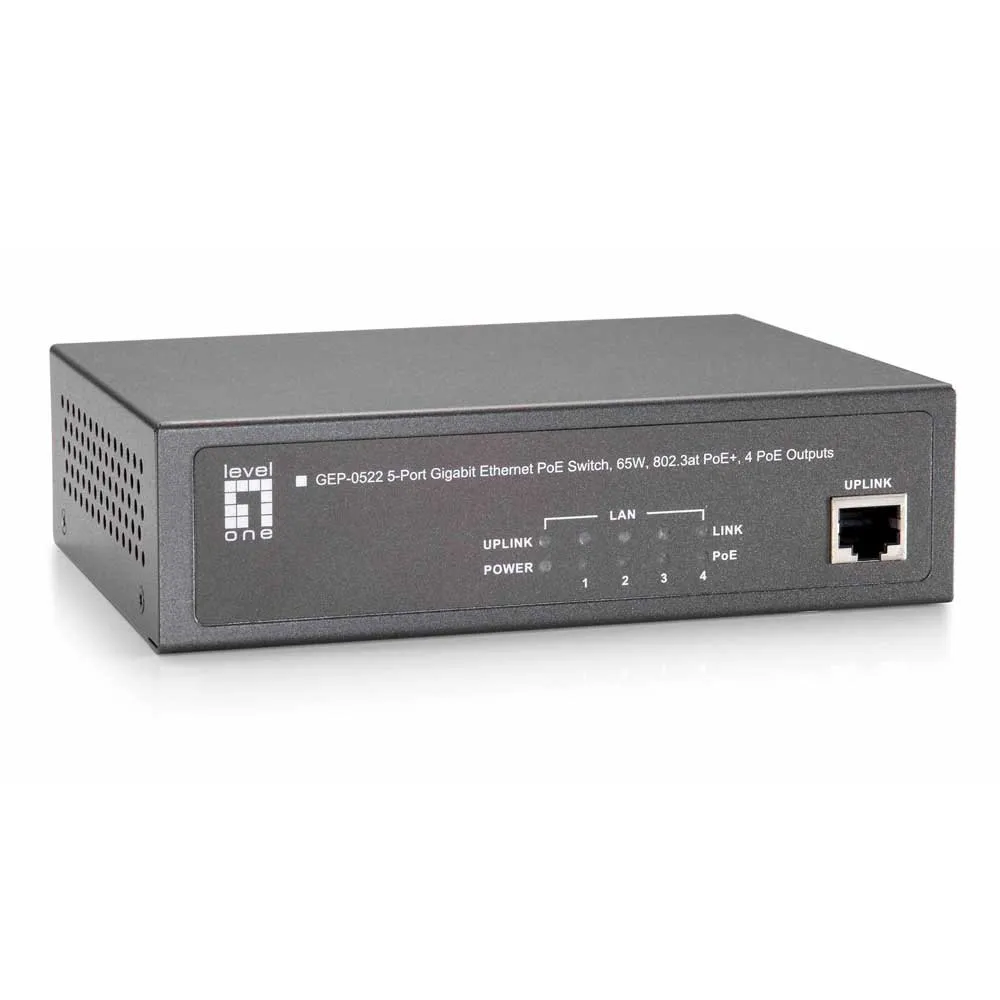

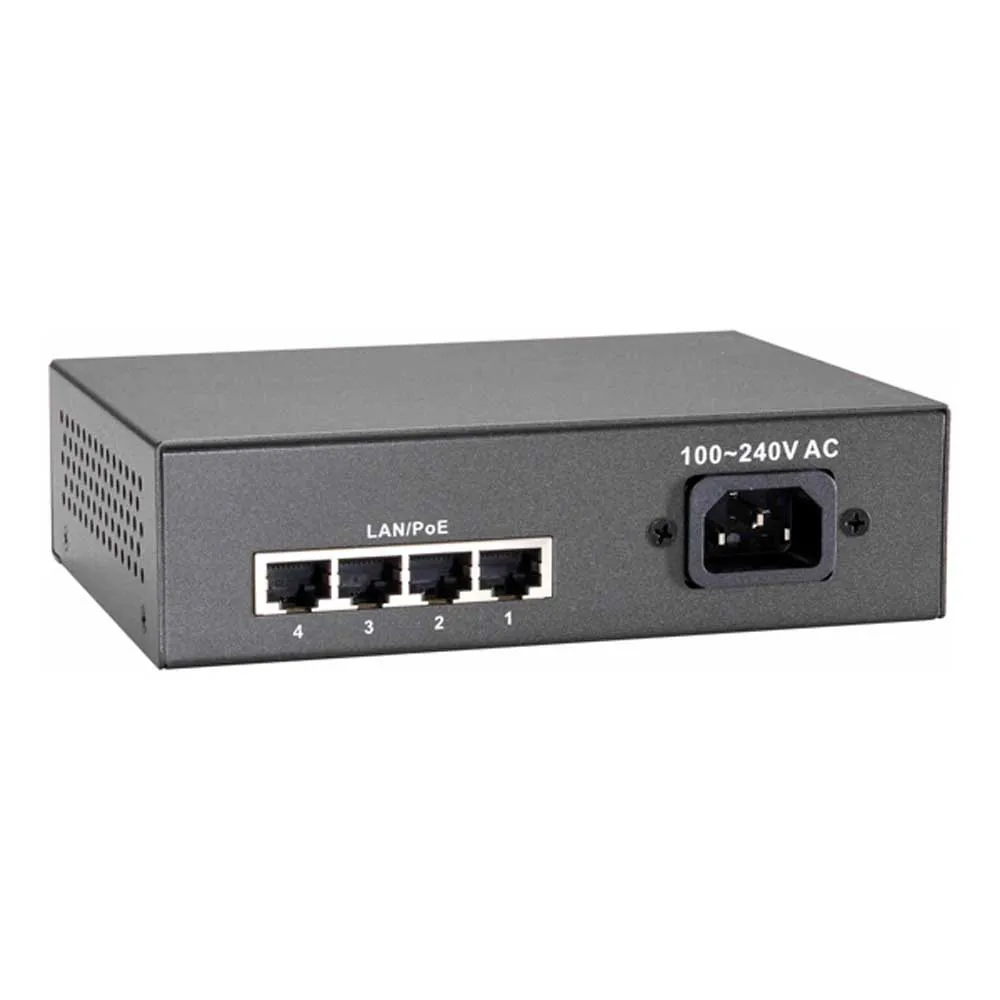

Level One GEP-0522 5P switch

EU PLUG.

- IEEE 802.3af/at PoE compliant to simplify deployment and installation - 10/100/1000Mbps wire speed transmission and reception - 9K jumbo frames to increase data transfer rates - Auto-detection and protection of non-standard PoE devices - IEEE 802.3x Flow Control protects against lost packets for reliable data transmission - Total PoE power budget:65W, up to 30W per port - Internal power supply The GEP-0522 is a 5-port 10/100/1000M Gigabit Ethernet Switch with one uplink port plus 4 ports of Power over Ethernet capability.

Per PoE port is power supply up to 30W.

The total PoE power budget is 65W.

It is an ideal solution where office and home users utilize a combination of PoE and non-PoE enabled devices.

Four ports on the GEP-0522 are PoE enabled making it an ideal solution for most office users that have PoE enabled devices located around the office.

These products can include a mixture of PoE IP Phones, PoE wifi APs and PoE IP Cam.

It is the perfect answer for offices that are upgrading their office equipment and LAN infrastructure to include PoE capability.

The switch automatically detects IEEE 802.3at/af standard device connected and provides power and data over a single cable to these devices.

The GEP-0522 enables users to deploy a stable and reliable high-speed LAN environment, with store-and-forward switching architecture, packet error filtering and non-blocking packet forwarding.

The 802.3x and backpressure flow control mechanisms work respectively for full and half duplex modes.

This device supports N-way auto-negotiation protocol that automatically detects networking speed and duplex modes.

For instant error detection, the GEP-0522 is equipped with a full range of LEDs to help monitor and troubleshoot problems on the network.LevelOne 5-Port Gigabit PoE Switch, 65W, 802.3at/af PoE, 4 PoE Outputs.

Basic switching RJ-45 Ethernet ports type:Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity:5, Console port:RJ-45.

MAC address table:2000 entries.

Networking standards:IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x.

Power over Ethernet (PoE)
