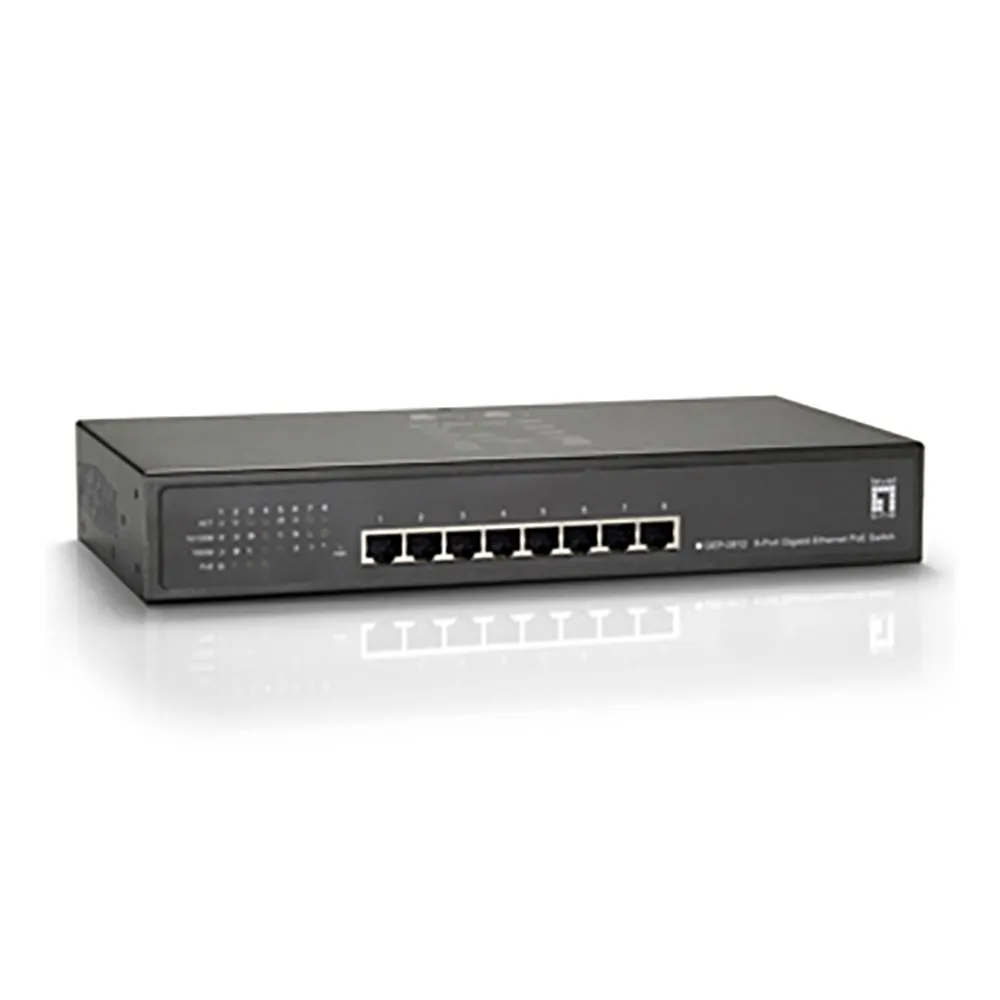

Level One GEP-0812 8P switch

Name: Level one GEP-0812 8P switch
Brand: Level one
SKU: 139400374
Price: 181.99 EUR
Availability: InStock
Rating: 4 (1 reviews)

Price without code 181.99

RRP:

You save:

Price without subscription

VAT & duties included

1 Reviews

0 Questions

No extra charges at delivery.

Size

Long

What is my size?

My virtual fitting room

Stringing

Unstrung

Tension

18 Kg
19 Kg
20 Kg
21 Kg
22 Kg
23 Kg
24 Kg
25 Kg
26 Kg
27 Kg
28 Kg
29 Kg
30 Kg
31 Kg
32 Kg
33 Kg
34 Kg
35 Kg
36 Kg

To adjust your bindings, type in the following informations:

(Customized items cannot be returned or exchanged)

It´s free!

(Customized items cannot be returned or exchanged)

Single purchase

Add to my pack

You save:

Buy now in 1 click

Back to PC configurator

Buy this product and earn

Color:

Free shipping

dto_trans discount on shipping

Free assembly

Free removal of old appliance (only with Ader)

Your interest-free financing from with Klarna Paypal

Pay in 3, 4, 6 or up to 12 installments

My virtual fitting room

Other colors available

Perfect pairings

Reportar error

Trusted by over 25 million satisfied customers worldwide

Official brand warranty

Quick & easy 30-day return

Features of Level one GEP-0812 8P

Product description of Level One GEP-0812 8P switch

Description summary

EU Plug.

The LevelOne GEP-0812 series provides 4 x 10/100/1000Mbps and 4 x 10/100/1000Mbps PoE Plus ports.

This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 61.6W / 90W / 120W, up to 30W per port.

Ideal for desktops and it is also 19-inch rack-mountable, which provides convenient and flexible installation.

The GEP-0812 series is designed for small businesses that prefer an affordable solution for PoE deploying infrastructure.

Features:

- 1000mbps Full-Duplex, 10/100mbps Full/Half-Duplex, Auto-Negotiation, Auto-Mdi/Mdix.

- Ieee 802.3af/At Poe Compliant To Simplify Deployment And Installation.

- Auto-Detection And Protection Of Non-Standard Poe Devices.

- 11-Inch Metal Housing With 19-Inch Rackmount Kit Included.

- Supports 8k Mac Address Auto-Learning And Auto-Aging.

- 9k Jumbo Frames To Increase Data Transfer Rates.

- 4 Gigabit Ports And 4 Gigabit Poe Ports.

- 0mbps Full-Duplex, 10/100mbps Full/Half-Duplex, Auto-Negotiation, Auto-Mdi/.

Specifications:

- Approval And Compliance:Fcc, Ce, Rohs.

- Max.

Operating Humidity (%):90.

- Max.

Operating Temperature (°C):45.

- Max.

Storage Humidity (%):90.

- Max.

Storage Temperature (°C):70.

- Min.

Operating Humidity (%):10.

- Min.

Operating Temperature (°C):0.

- Min.

Storage Humidity (%):10.

- Min.

Storage Temperature (°C):-40.

- Backplane (Gbps):16gbps.

- Indicators:Power, Active, 10/100/1000m, Poe.

- Jumbo Frame (Kb):9.

- Mac Address Table:8k.

- Flash Memory Size:128.

- Mount:Desk Mount Standards:- Ieee 802.3 10-Base-T, Ethernet.

- Ieee 802.3u 100-Base-Tx, Fast Ethernet.

- Ieee 802.3ab 1000base-T, Gigabit Ethernet.

- Ieee 802.3x Full-Duplex Flow Control.

- Ieee 802.3af Power Over Ethernet (Poe).

- Ieee 802.3at Power Over Ethernet Plus (Poe+)Ieee 802.3 10-Base-T, Ethernet.

- Ieee 802.3u 100-Base-Tx, Fast Ethernet.

- Ieee 802.3ab 1000base-T, Gigabit Ethernet.

- Ieee 802.3x Full-Duplex Flow Control.

- Ieee 802.3af Power Over Ethernet (Poe).

- Ieee 802.3at Power Over Ethernet Plus (Poe+)Ieee 802.3 10-Base-T, Ethernet.

- Ieee 802.3u 100-Base-Tx, Fast Ethernet.

- Ieee 802.3ab 1000base-T, Gigabit Ethernet.

- Ieee 802.3x Full-Duplex Flow Control.

- Ieee 802.3af Power Over Ethernet (Poe).

- Ieee 802.3at Power Over Ethernet Plus (Poe+)Ieee 802.3 10-Base-T, Ethernet.

- Ieee 802.3u 100-Base-Tx, Fast Ethernet.

- Ieee 802.3ab 1000base-T, Gigabit Ethernet.

- Ieee 802.3x Full-Duplex Flow Control.

- Ieee 802.3af Power Over Ethernet (Poe).

- Ieee 802.3at Power Over Ethernet Plus (Poe+)Ieee 802.3 10-Base-T, Ethernet.

- Ieee 802.3u 100-Base-Tx, Fast Ethernet.

- Ieee 802.3ab 1000base-T, Gigabit Ethernet.

- Ieee 802.3x Full-Duplex Flow Control.

- Ieee 802.3af Power Over Ethernet (Poe).

- Ieee 802.3at Power Over Ethernet Plus (Poe+).

- Product Weight (Kg):1,5.

- Product Breadth (Mm):280.

- Product Depth (Mm):125,5.

- Product Height (Mm):44.

- Fast Ethernet Multi-Mode St:4.

- 802.3af/At Poe:4.

- Grade:Commercial.

- Data Rate:Gigabit Ethernet.

- Poe Supported:Yes.

- Fanless:Yes.

- Concurrent Ports:8.00 Ports.

- Poe Power Budget:61.60 Watts.
