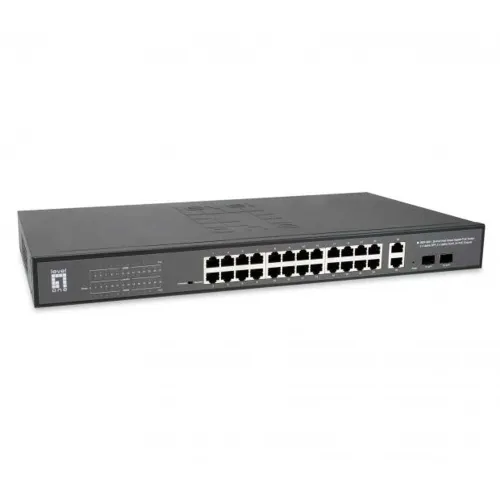

Level One GEP-2841 24P switch

EU Plug.

The LevelOne GEP-2841 Web Smart Gigabit PoE Switch, provides 24 PoE ports 10/100/1000Base-T plus 2 port Gigabit Uplink SFP and 2 port Gigabit Uplink RJ45 to enable high speed network.

With the plus the clearly visible status LEDs provide simple monitoring of port link activity.

Moreover, the SFP slots support pluggable modules that enabling you to choose from a variety of transceivers.

It offers powerful enhanced PoE functionality and a total PoE budget of 375W and it is fully complied with IEEE802.3af/at/bt PoE standard at maximum 90W(1-2 port) power budget.

supports up to 30W output power per PoE port, giving you power distribution flexibility for a wide range of PoE PD devices.

It helps to save infrastructure wiring costs dramatically by eliminating electric wiring and less UPS needed.

Features:

- 24 Gigabit Poe Ports, 2 Gigabit Uplink Ports And 2 Gigabit Uplink Sfp Slots.

- Total 375w Poe Power Budget And Usability, Up To 2 Ports At 90w(1-2 Port), Or 12 Ports At 30w Or 24 Ports At 15.4w.

- Ieee 802.3af/At/Bt Poe Compliant To Simplify Deployment And Installation.

- Supports Port-Based Vlan.

- Supports Ieee 802.1p Layer 2 Priority Queuing For Improving Traffic Flow.

Specifications:

Approval And Compliance:- Ce.

- Rohs.

- Max.

Operating Humidity (%):90.

- Max.

Operating Temperature (°C):65.

- Max.

Storage Humidity (%):95.

- Max.

Storage Temperature (°C):75.

- Min.

Operating Humidity (%):5.

- Min.

Operating Temperature (°C):-10.

- Min.

Storage Humidity (%):5.

- Min.

Storage Temperature (°C):-40.

- Backplane (Gbps):48 Gbps.

- Packet Buffer:40.32 Mpps.

- Dip Switch:Web Management (Enable/Disable).

- Jumbo Frame (Kb):9 Kb.

- Mac Address Table:8 K.

- Ram Size:4.1 Mb.

- Mount:19´´ Rack Mount, Desk Mount.

- Power Supply:100-240vac, 50-60hz, 4a Standards:- Ieee 802.3 10-Base-T, Ethernet.

- Ieee 802.3u 100-Base-Tx, Fast Ethernet.

- Ieee 802.3ab 1000base-T Gigabit Ethernet.

- Ieee 802.3z 1000base-X Gigabit Ethernet.

- Ieee802.3x Flow Control And Back Pressure.

- Ieee802.3af.

- Ieee802.3at.

- Ieee802.3bt Vlan:- Static Vlan.

- Port-Based Vlan Qos:- Priority Selection.

- Dscp Remapping.

- Priority To Queue.

- Port-Based Priority.

- Packet Scheduling Monitoring:- Port Statistics Information.

- Igmp Setting(Enable/Disable),.

- Trunk Group Setting,.

- Port-Based Mirroring,.

- Port Isolation,.

- Bandwidth Control,.

- Jumbo Frame,.

- Loop Detection And Prevention Management:- Web (Http).

- Software Upgrade.

- Configuration Export/Import.

- Poe Port Management.

Security:Mac Address:- Static Mac.

- Mac Constraint.

- Storm Control,.

- Dhcp Control.

- Product Weight (Kg):2.712 Kg.

- Product Breadth (Mm):440.

- Product Depth (Mm):220.

- Product Height (Mm):45.

- Declaration Of Conformity.

- Grade:Commercial.

- Data Rate:Gigabit Ethernet.

- Poe Supported:Yes.

- Manageable:Yes.

- Concurrent Ports:28.00 Ports.

- Poe Power Budget:375.00 Watts Power Consumption:- 25w (Without Poe).

- 400w (Full Loading Poe On).
