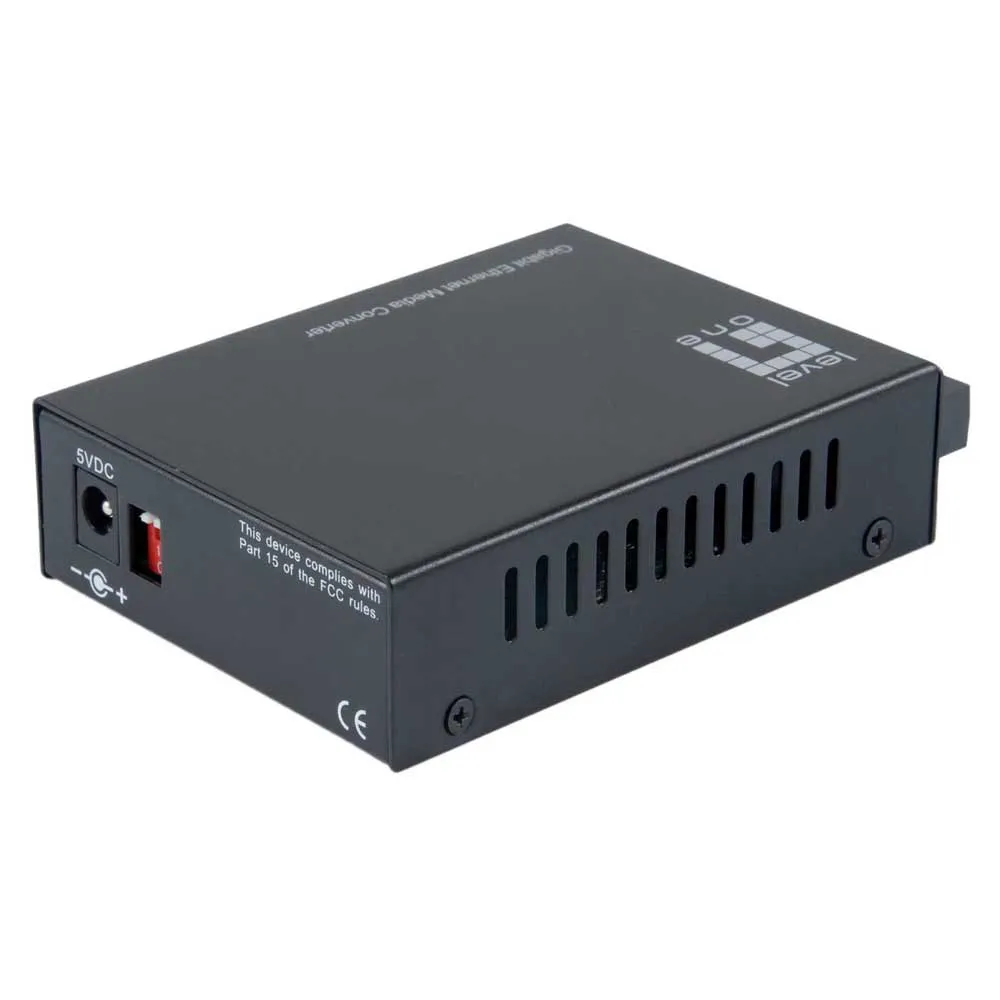

Level One GVT-2001 Converter

The GVT-2001 MMF SC media converter is able to convert network signals between copper and fiber-optic based networks.

The converter provides a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing.

Used in multi-mode with fibre-optic cabling, this can extend a network range up to 550m.The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.

The GVT-2001 is able to operate in temperatures from -10° up to 55° Celsius.

The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19´´ converter rack, which can accommodate up to 14 units for use in a central wiring closet.

Specifications:

- Transfers data from 10/100/1000Base-T copper to fiber interfaces.

- 1000Base-SX Multi-mode fiber for the link up to 550m.

- 9K jumbo frames to increase data transfer rates.

- Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology.

- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission.

- Dip switches for customized configuration.

- Supports low-time lag transmission.

- Supports the transmission of extra-long packets up to 1.6KB.

- 10°C to 55°C operating temperature range.

- Operating Range:

550 m.

- Transmission Method:

Store and forward (Default).

- Max.

operating humidity (%):

90.

- Max.

operating temperature (°C):

55.

- Min.

operating humidity (%):

5.

- Min.

operating temperature (°C):

-10.

- Indicators:

PWR,TX (FDX, 100, 1000, Link/Act), FX Link/Act Standards:

- IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Flow Control (full-duplex flow control) IEEE802.3z 1000Base-SX/LX.

- Wavelength (nm):

850nm General.

Features:

- Buffer:

768K.

- DIP Switch 1:

LFP function.

- DIP Switch 2 and 3 performance 4 types work mode.

- DIP Switch 2 and 3 is OFF = Store and forward.

- DIP Switch 2 is OFF, 3 is ON = Cut through mode.

- DIP Switch 2 is ON, 3 is OFF = Smart pass through.

- DIP Switch 2 and 3 is ON = Pass through mode.

- Product weight (kg):

0,42.

- Product breadth (mm):

94.

- Product depth (mm):

70.

- Product height (mm):

25 Package contents:

- GVT-2001.

- Netzadapter.

- Quick Installation Guide.

- Grade:

Business.

- Media Interface:

RJ45 to SMF SC.
