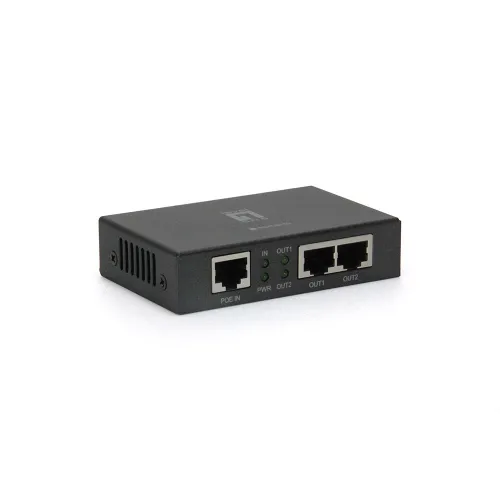

Level One Por-0103 Injector

For system integrators looking for a professional solution to help extend their PoE network, POR-0103 is the perfect accessory to increase your Power over Ethernet network performance.

LevelOne POR-0103, a 2-Port PoE Repeater requiring neither configuration nor electrical power, is an innovative transmitter to pass on both data and power extend to another 100 meters.

It delivers both data and power to two PoE network devices such as WLAN Access Points, Network Cameras and other appliances with fast speed to the network for greater deployment flexibility.

-High Power Midspan PoE compliant to simplify deployment and installation.

-Built-in 2 PoE output ports for PoE devices.

-10/100Mbps wire speed transmission and reception.

-Forwards Power over Ethernet to remote device.

-Extends PoE connection for another 100 meters.

-Simple Plug and Play installation, no additional power supply required.

LevelOne PoE Repeater, 2 PoE Outputs, 802.3at/af PoE.

Type:Network repeater, Maximum transfer distance:100 m.

Cabling technology:10/100Base-T(X), Networking standards:IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x.

Product colour:Black, Mounting type:Wall, LED indicators:PoE, Power.

Power consumption (max):2.5 W, Power over Ethernet (PoE) voltage range:46 -57 V.

Width:57 mm, Depth:21 mm, Height:91 mm.
