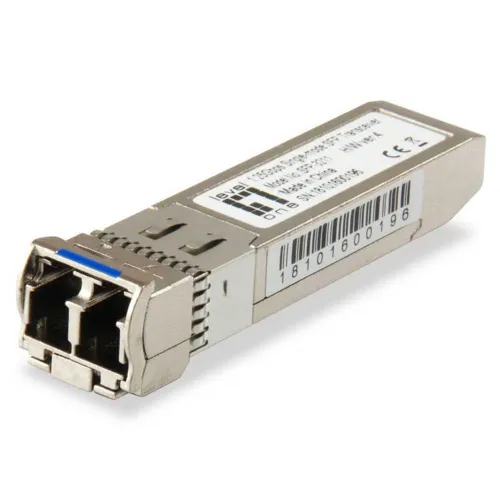

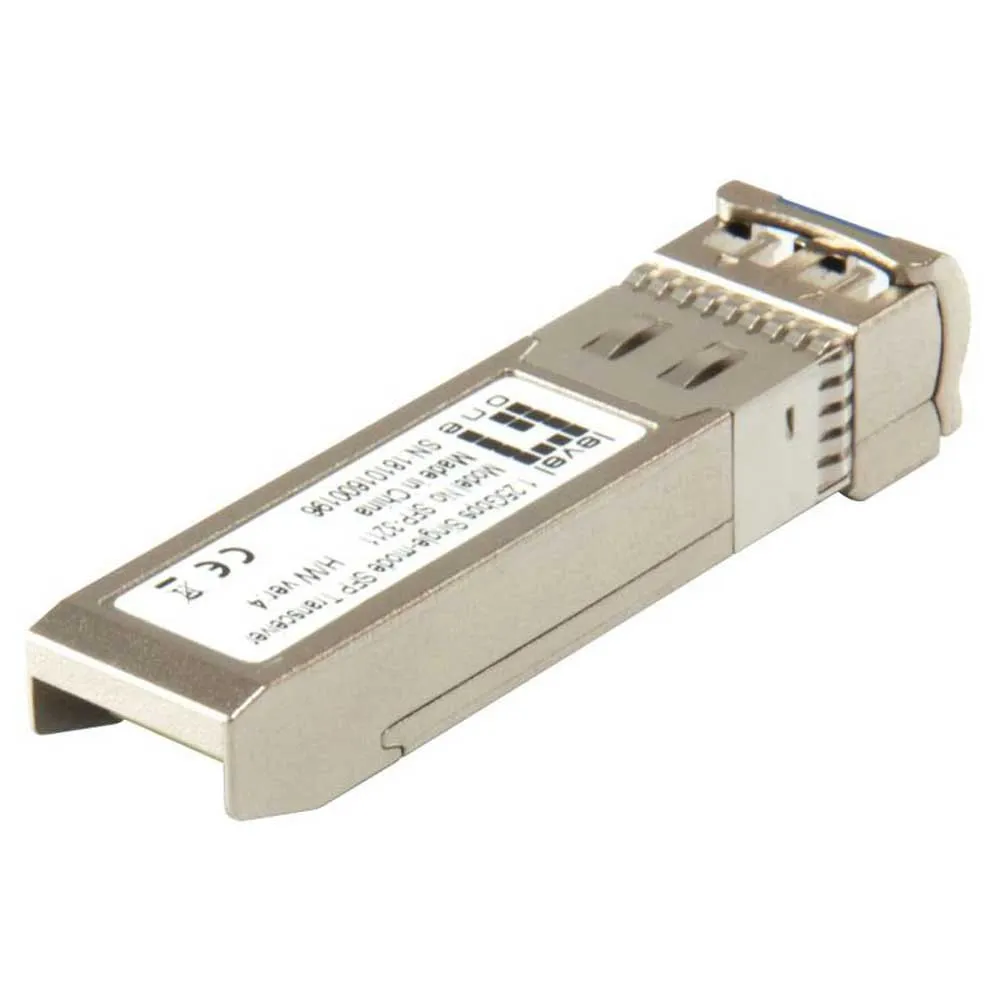

Level One SFP-3211 transceiver

LevelOne SFP-3211 is a high performance and cost-effective single-mode SFP transceiver. Intended for use with Gigabit Ethernet, it provides up to 1.25 Gbps bidirectional data transfer rate on a single duplex fiber core. For use with 9 micron fiber cables, it can reach a distance of up to 10km. The SFP-3211 transceiver operates using a wavelength of 1310nm with a FP Laser Diode light source and has a LC connector.


Features:

- 1310nm FPLD
- Data Rate: 1.25Gbps, NRZ
- Single +3.3V Power Supply
- RoHS Compliant and Lead-free
- AC/DC Differential Electrical Interface
- Compliant with Multi-Source Agreement (MSA)
- Duplex LC Connector
- Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25Gbps
- Compliance with ANSI specifications for Fiber Channel applications at 1.06bps
- No configuration or installation software required
- Eye Safety Designed to meet LASER Class 1 comply with EN60825-1


Specifications:

- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Safety: EN 60825-1
- Certification: CE, FCC
- Input voltage: 3.3 V
- Maximum voltage: 6 V
- Maximum current: 0.3 A.
- Width: 57 mm
- Depth: 12 mm
- Height: 13.7 mm.
- Package width: 106 mm
- Package depth: 20 mm
- Package height: 65 mm
