Lindy 3xUSB 3.0 docking station 10 m

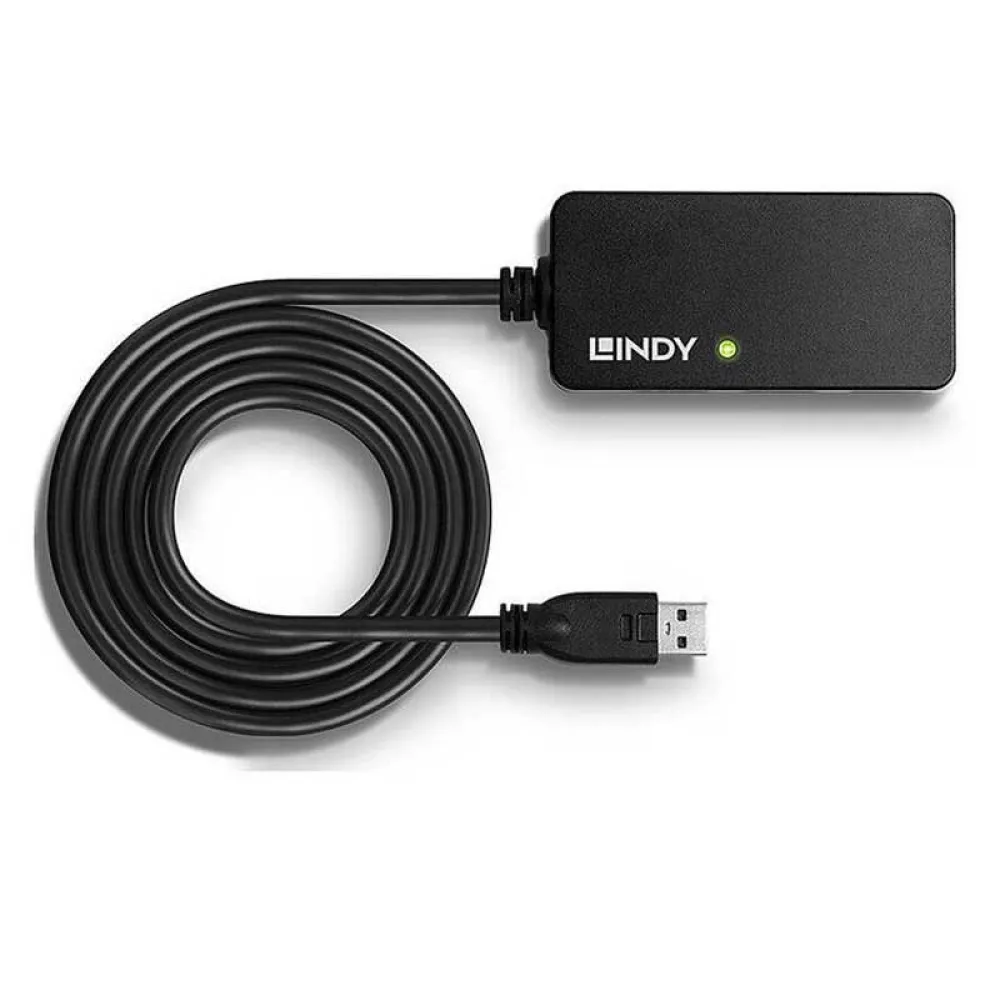

The Lindy USB Active Extension Hub Pro is a high performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances.

With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.

This 10m extension hub can be used standalone or as part of the Lindy USB 3.0 Active Extension System Pro.

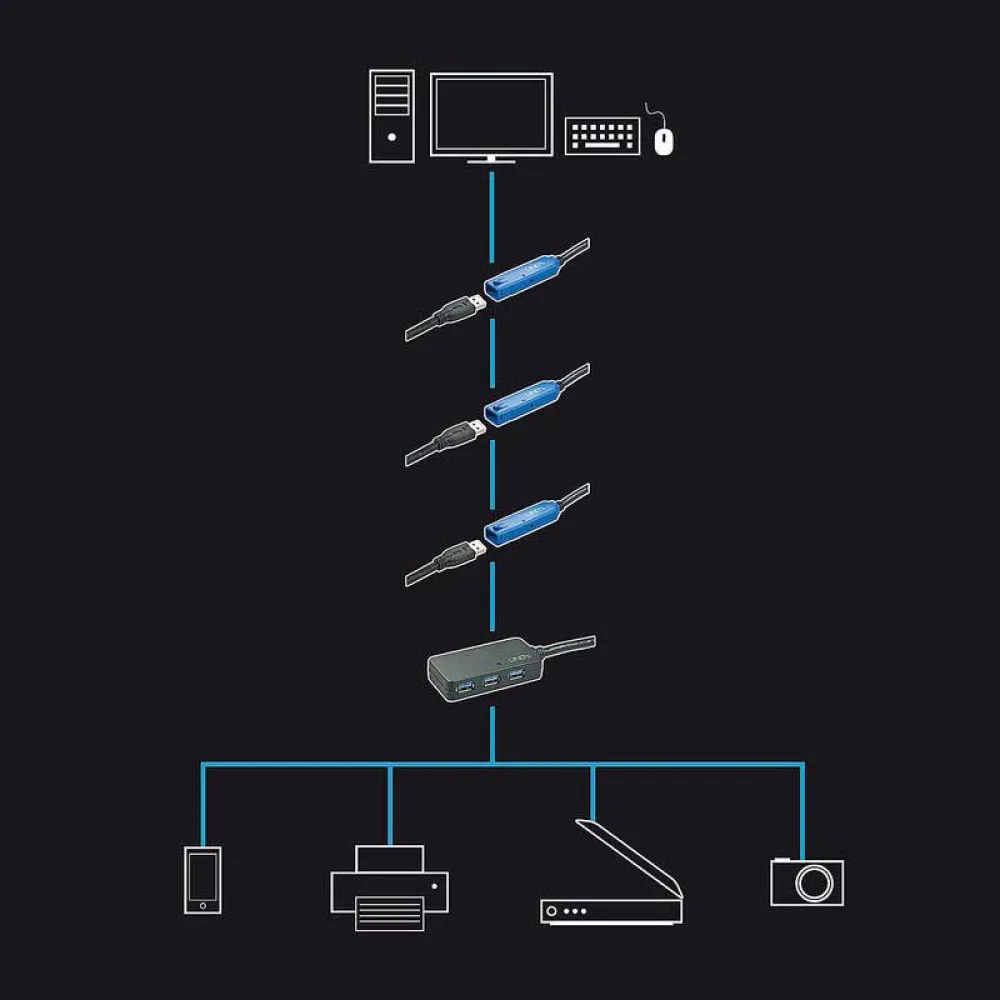

This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 3.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to about 40m (depending on the cable configurations used).

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Please note that only the USB 3.0 Active Extension Pro 8m (Nr.

43158) or 15m (Nr.

43229) can be connected directly to your computer.

If you are creating an extension using multiple units from the Extension Pro System then the first unit must always be the USB 3.0 Active Extension Pro 8m (Nr.

43158) or 15m (Nr.

43229).

Once the first cable has been connected, you can then cascade further cables to achieve a maximum distance of 40m.

The final part of the extension can be any segment of the Extension Pro System.

If you need to extend multiple devices or if you connect a USB device with high power requirement, then you should use the 10m Hub Pro unit (Nr.

43159) with it´s power supply as the final part of the extension.

Features:

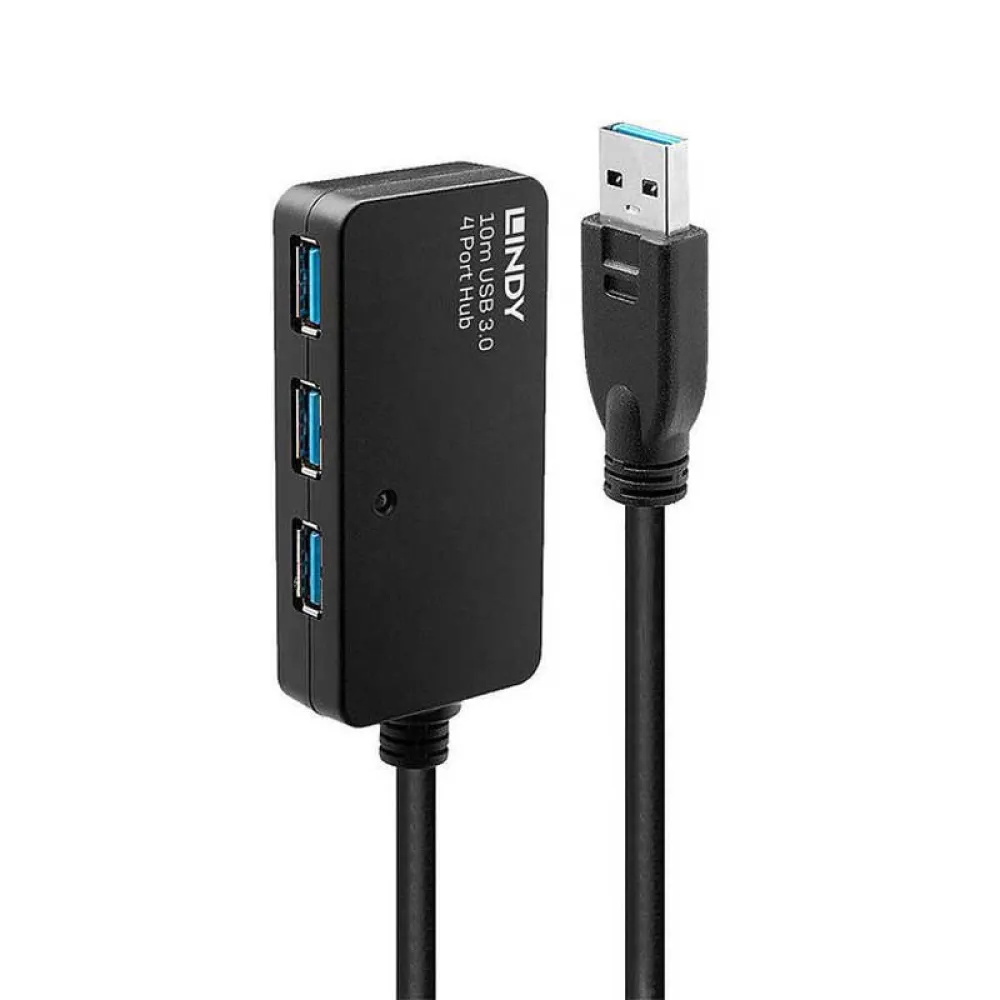

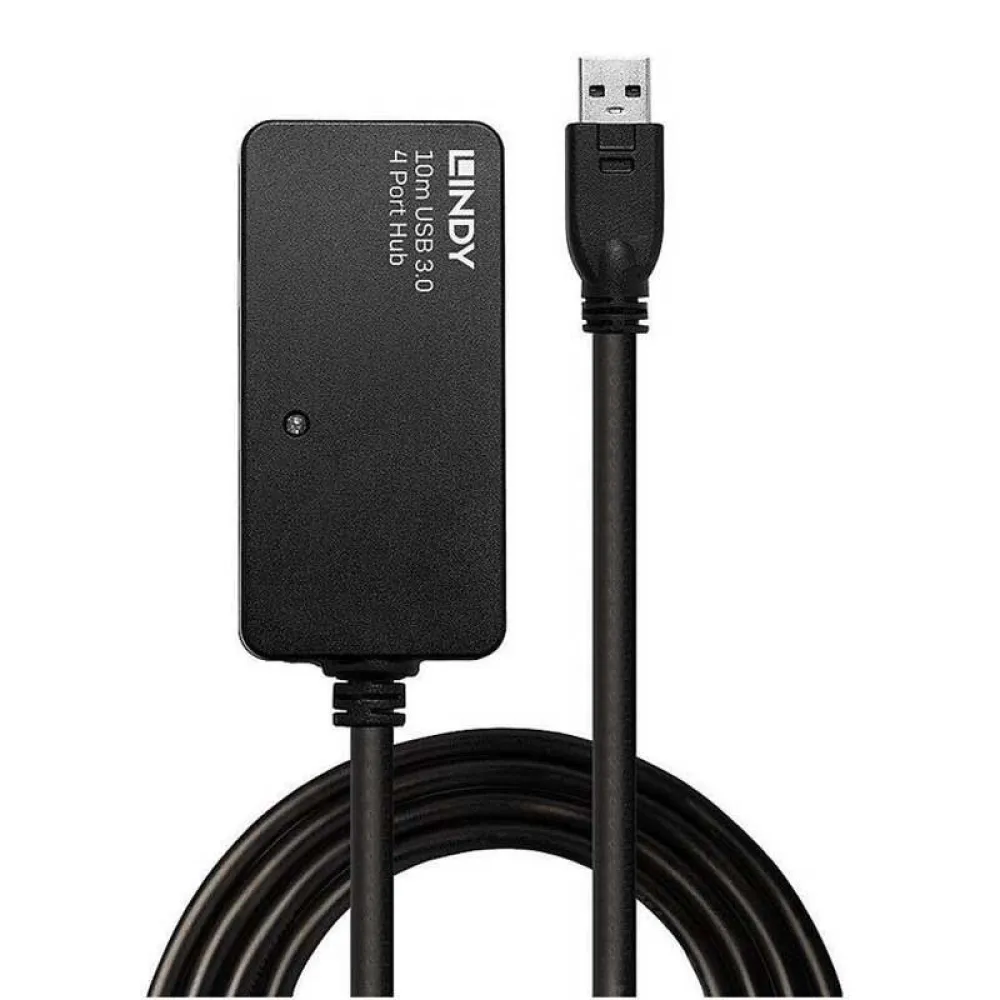

- High performance hub with active cable that provides an extended 10m connection between a computer and up to 4 USB 3.0 devices.

- Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of over 40m (depending on the cable configurations used).

- Supports the full USB 3.0 SuperSpeed bandwidth for speeds of 5Gbps.

- Easy to use - connects to the device´s existing USB cable (2m maximum) Technical details Connectors:

- Connector A:

USB Type A Male.

- Connector B:

4 x USB Type A Female.

- Power:

3.5/1.35mm DC Connector.

- Housing Material:

Plastic.

- Connector Plating:

Nickel.

- Pin Construction:

Brass.

- Pin Plating:

Gold Flash.

- Dimensions (approx.) WxDxH:

- USB A Male:

15x42x8mm (0.59x1.65x0.31in).

- Hub:

80x38x15mm (3.15x1.5x0.59in) Cable Construction:

- Length:

10m (32.81ft).

- Standard:

USB 3.1 Gen 1 / 3.0.

- Type:

Round.

- Jacket Diameter:

7mm +/- 0.15mm (0.28in +/- 0.01in).

- Jacket Material:

Half matt PVC low toxic.

- Conductor Material:

Tinned Copper.

- Conductor Gauge:

24/24/20AWG.

- Shielding:

AL Mylar and braid.

Specifications:

- Supported Bandwidth:

5 Gbps.

- Nominal Attenuation:

- 0.064MHz:

<0.08dB.

- 0.256MHz:

<0.11dB.

- 0.512MHz:

<0.13dB.

- 0.772MHz:

<0.15dB.

- 1.0MHz:

<0.20dB.

- 4MHz:

<0.39dB.

- 8MHz:

<0.57dB.

- 12MHz:

<0.67dB.

- 24MHz:

<0.95dB.

- 48MHz:

<1.35dB.

- 96MHz:

<1.90dB.

- 200MHz:

<3.20dB.

- 400MHz:

<5.80dB.

- Minimum Bend Radius:

36mm (1.42in).

- Maximum Tensile Load:

- - Operating Temperature:

0°C:

50°C (32°F:

122°F).

- Storage Temperature:

-20°C:

60°C (-4°F:

140°F).

- Transmission Medium:

Twisted Pair.

- Transmission.

Technology:

USB 3.1 Gen 1 / 3.0 Miscellaneous:

- Packaging Type:

Carton Box.

- Packaging Dimensions:

240x200x70mm (9.45x7.87x2.76in).

- Net Weight:

0.79kg (1.74lb).

- Gross Weight:

0.9kg (1.98lb) Packaging Content:

- USB 3.0 Active Extension Pro Hub.

- 5VDC 3.5A Multi-Country Power Supply (EU, UK, US & AUS).

- Lindy Manual.
