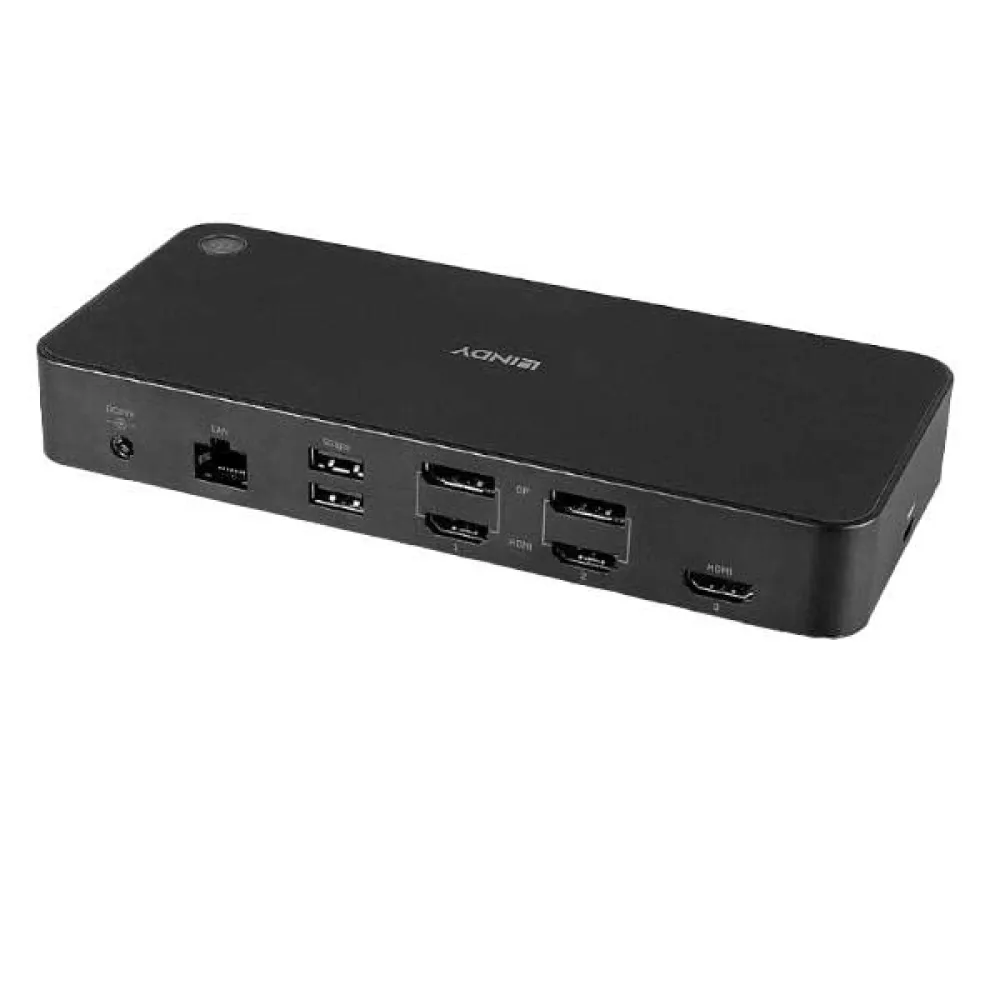

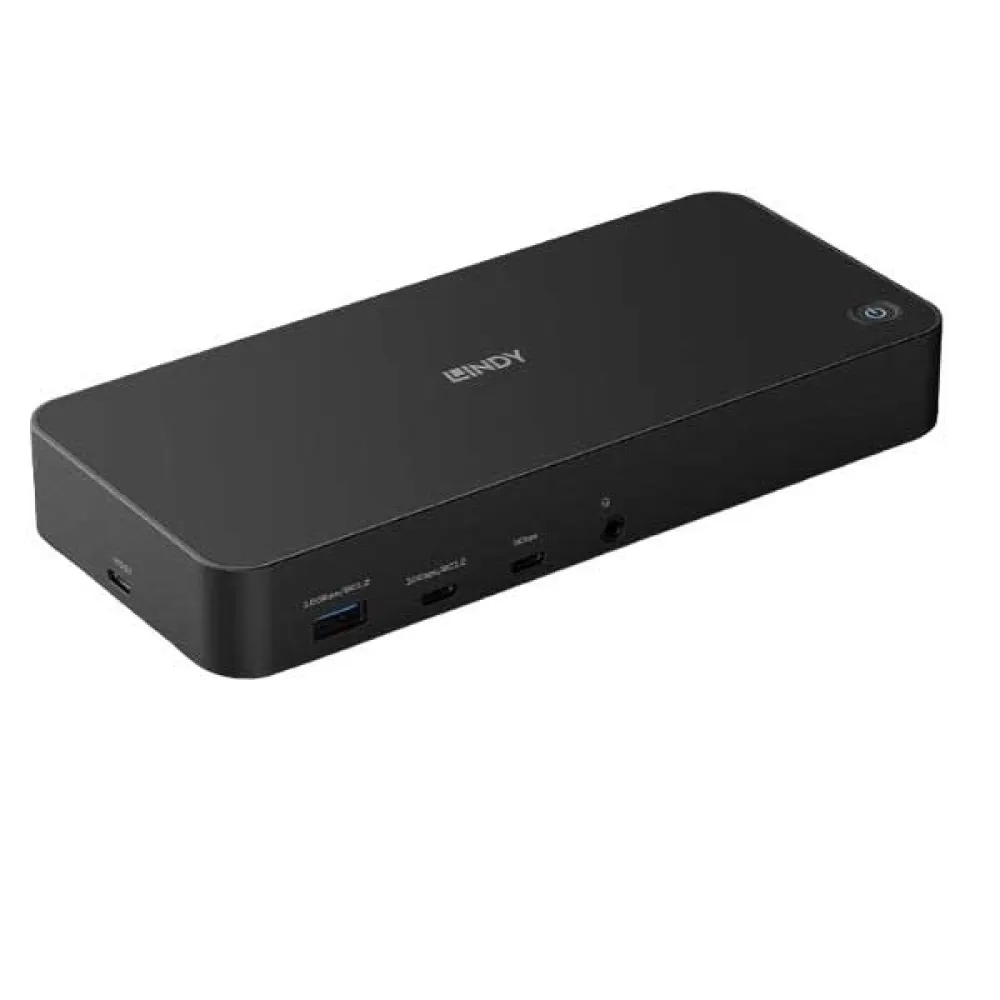

Lindy 43366 docking station

The Lindy DST-Pro Universal is a professional, multifunctional solution for connecting literally any host computer (laptop, Macbook, tablet, smartphone) with USB Type C and USB Type A port to a range of interfaces including three displays, using a single cable.

It simultaneously provides triple monitor capabilities, power, Gigabit Ethernet, Audio and a USB 3.2 SuperSpeed hub with data transfer rates up to 10Gbps.

This Docking Station combines DisplayLink and DisplayPort Alternate Mode technology and enables the connection of two or three monitors via HDMI® and/or DisplayPort, no matter whether you connect a Windows or Mac computer.

When using a single monitor, resolutions up to Ultra HD 4K 60Hz can be displayed.

Alternatively, when using a triple monitor set up the maximum resolutions are 2x 4K 60Hz and 1x 4K 30Hz.

Thanks to DisplayLink technology, it also supports dual extended displays on MacBooks with both the Intel processor or the Apple M series.

The included high capacity 130W PSU powers the Docking Station and at the same time allows the Dock to use USB Power Delivery via USB-C to power the connected laptop and charge it extremely fast with up to 100W.

The Docking Station features a high-speed LAN port for fast connection to the corporate network, an integrated USB 3.2 hub that provides three Type A ports and two Type C ports for a variety of USB devices and an Audio combo port for headsets or a microphone.

The power button enables power saving and the Kensington lock provides protection in shared offices.

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Specifications:

- Interface:

USB Type C to 3x USB Type A, 2x USB Type C, 1x RJ45, 3x HDMI®, 2x DP, 1x 3.5mm Audio.

- Supported Bandwidth:

HDMI® 1.4 with 10.2Gbps, DP 1.2 (21.6Gbps), USB 3.2 / 3.1 up to 10Gbps, Gigabit LAN (10/100/1000Mbps).

- Maximum Input Resolution:

3840x2160 60Hz Maximum Output Resolution:

- Single Display:

3840x216060Hz.

- Dual Display:

3840x216060Hz.

HDMI® 3:

4K30Hz (DP Alt Mode).

- Triple display:

2x 4K 60Hz, 1x 4K 30Hz (on HDMI® 3).

- Chipset:

DL6950, PS8822, PS176, VL103R, VL162, VL162, VL817, VL822, RTL8211F.

- Compatibility:

USB Type C/A or Thunderbolt 3/4 equipped computers.

Windows, macOS, Linux, Android, Chrome OS.

- Power Delivery:

PD 3.0 up to 100W (20V 5A).

- HDCP Support:

Supports HDCP2.2 (only on HDMI port Nr.

3_.

- Supported Audio:

Supports 16bit/48K Audio Sampling Rate.

- Separate Audio Ports:

1x Audio combo port 3.5mm.

- Special.

Features:

Supports DisplayLink (MST on USB A devices, Apple incl.

´´M´´ series), DisplayPort Alternate mode, Kensington lock, Power button, Battery Charging 1.2 Connectors:

- Inputs:

1 x USB Type C (Female).

- Outputs:

3x USB Type A (Female), 2x USB Type C (Female), 1x RJ45 (Female), 3x HDMI® (Female), 2x DisplayPort (Female), 1x 3.5mm Audio (Female).

- Power:

5.5/2.5mm DC socket Physical Properties:

- Dimensions WxDxH:

190x85x30mm (7.48x3.3x1.18in).

- Housing Material:

Plastic.

- Net Weight:

0.396kg (0.837lb).

- Operating Temperature:

-20°C.

- 40°C (-4°F.

- 104°F).

- Storage Temperature:

-40 °C.

- 80°C (-40°F.

- 176°F).

- Humidity:

5.

- 90% RH ( non-condensing).

- Power Requirements:

30W.
