Lindy VGA/USB KVM cable

A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

The Lindy Combo KVM Switch is a hardware solution that allows direct control of multiple computers using a single keyboard, mouse and VGA monitor.

It´s ideal for system administrators who want to control multiple computers or servers from a single, centralised location.

- The switch occupies only a single 1U space in a 19´´ rack and supports screen resolutions of up to 12048x153660Hz, great for ensuring optimum clarity if used in digital media or graphic design scenarios.

It provides 3 simple switching modes, via keyboard hotkeys, front panel buttons and On-Screen Display.

setup and management options can be access only via the OSD.

- A local console can be connected to the 2 USB and VGA ports on the rear panel while Daisy Chain VGA ports can be used to connect up to 8 Lindy Combo series switches in order to manage to up to 128 multi platform computers with security features and password access, perfect for large-scale control systems in transport hubs or surveillance centres.

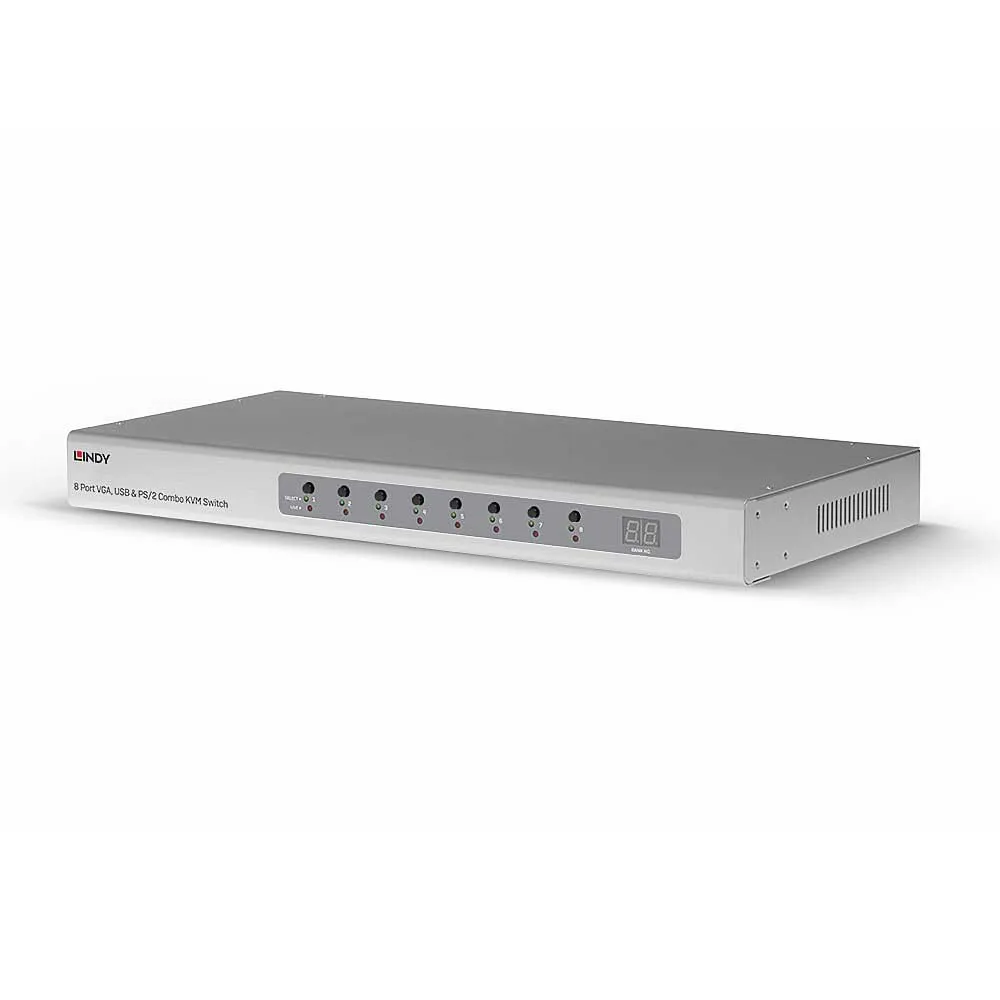

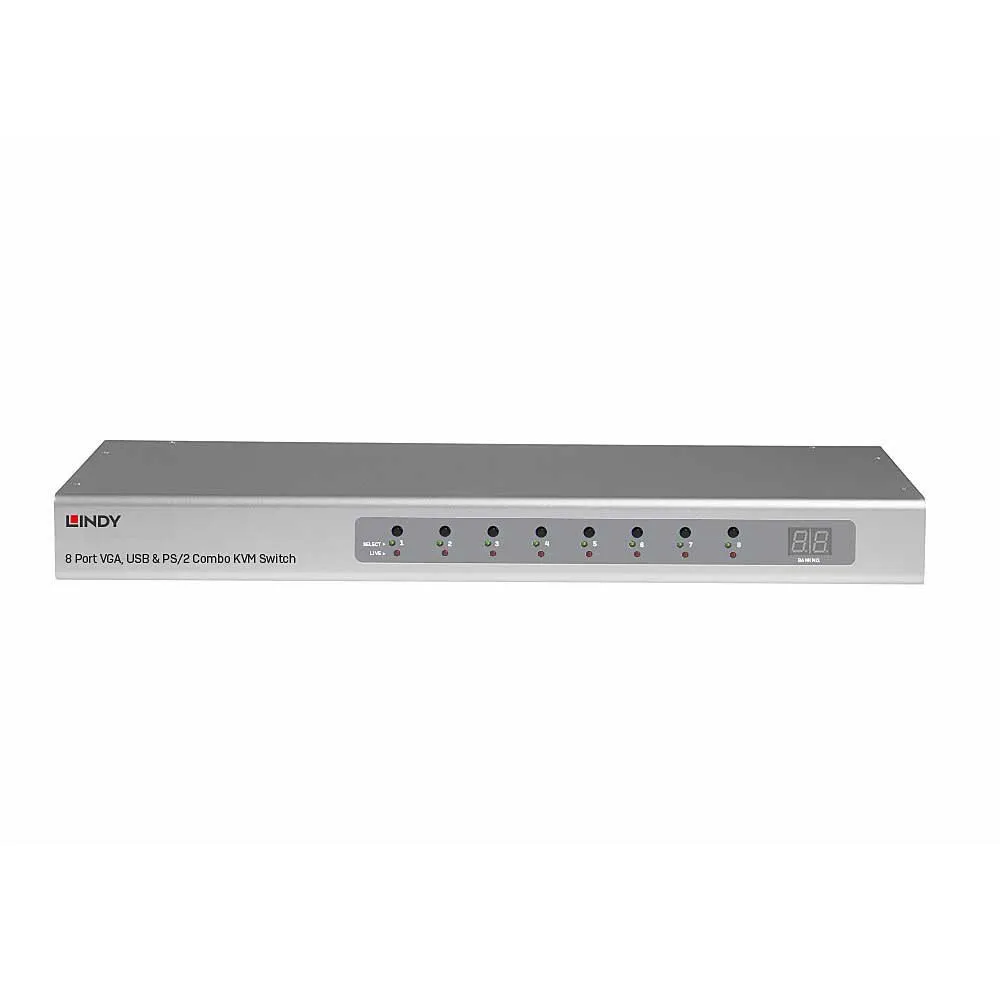

All the functions are accessible from the administrator through a simple to use On-Screen Display while LEDs on the front panel show the online and selected PC to ensure continuous control & monitoring.

- PCs & connected KVM switches can be remove easily with hot plug support, allowing for maintenance to take place without the need for powering down all connected devices, essential within ´´always on´´ environments such as data centres or traffic management setups.

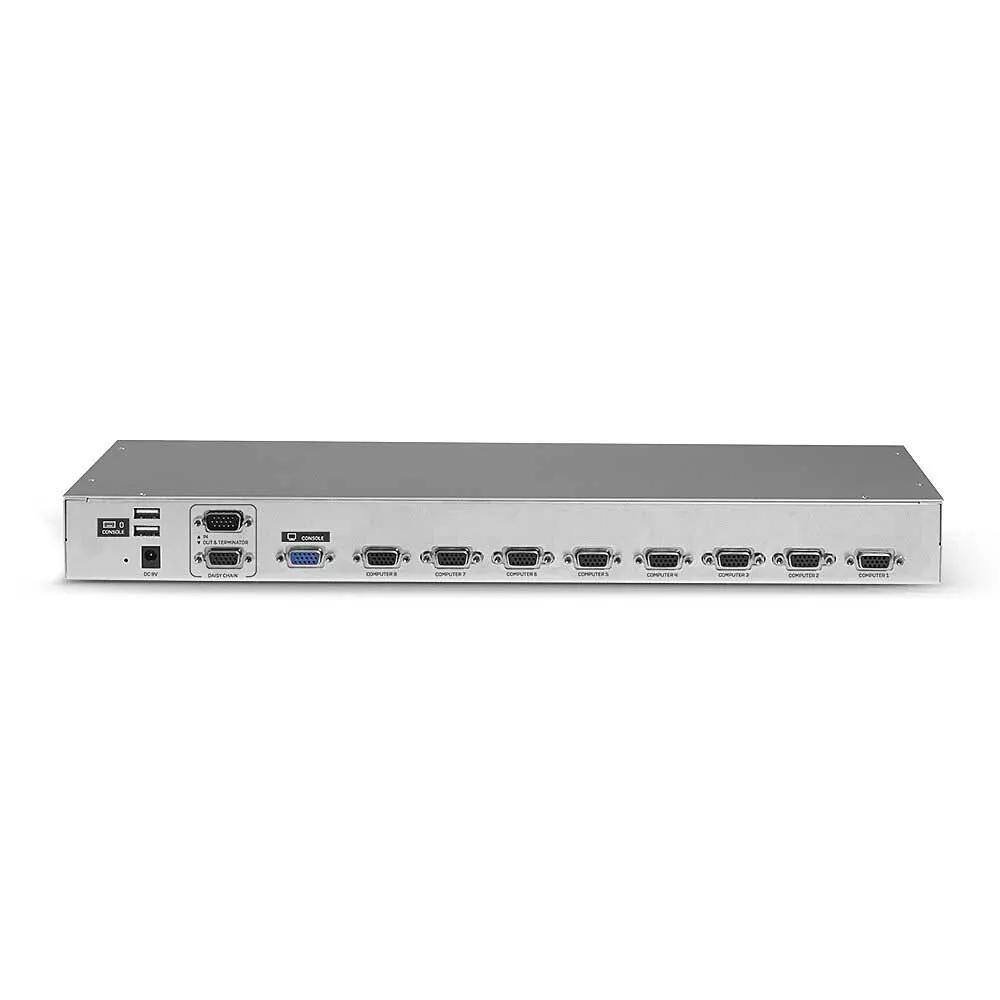

- Computers or servers can be connected to the 8 host ports on the rear panel via dedicated KVM cables (not included).

Features:

- Supports up to 8 USB & VGA and PS/2 & VGA equipped computers.

- Supports VGA resolutions up to 2048x153660Hz.

- Port switching via hotkey, On-Screen Display or front panel buttons.

- PCs are connected via dedicated KVM cables (not included) at distances of up to 5m.

Specifications:

- AV Interface:

VGA.

- Console Interfaces:

USB.

- Interface Standard:

VGA, USB 2.0.

- Maximum Resolution:

VGA:

2048x153660Hz.

- Console Number:

1.

- Max Number PC/Server:

8.

- Cascadable:

Yes.

- Switching Method:

OSD, port buttons, Hotkey (configurable).

- 19´´ Rack Mountable:

Yes (1U.

- Rack Mount Brackets included) Connectors:

- Console Interfaces:

VGA (Female), 2 x USB Type A HID (Female).

- PC/Server Interfaces:

8 x VGA (Female).

- Other Interfaces:

2 x DaisyChain ports (1 x VGA Female + 1 x VGA Male).

- Power:

5.5/2.1mm DC Physical properties:

- Dimensions (approx.) WxDxH:

440x220x44mm (17.32x8.66x1.73in).

- Housing Material:

Metal.

- Net Weight:

1.5kg (3.31lb).

- Operating Temperature:

0°C.

- 50°C (32°F.

- 122°F).

- Storage Temperature:

-20°C.

- 60°C (-4°F.

- 140°F).

- Humidity:

0~90% RH (non-condensing).

- Power Requirements:

9VDC 2A Miscellaneous:

- Packaging Type:

Carton box.

- Packaging Dimensions:

570x250x110mm (21.54x10.35x4.17in).

- Gross Weight:

3.3kg (7.28lb).

- Certificated:

CE, UKCA, FCC, RoHS, REACH & California Proposition 65 Package content:

- KVM Switch.

- 2 x 19´´ Rack Mount Bracket with Screws.

- Multi-Country PSU (UK, Euro, US, AUS).

- Daisy Chain Cable (HD15 M/F ~0,22m).

- Daisy Chain Terminator plug HD15.

- Quick Start Guide.
