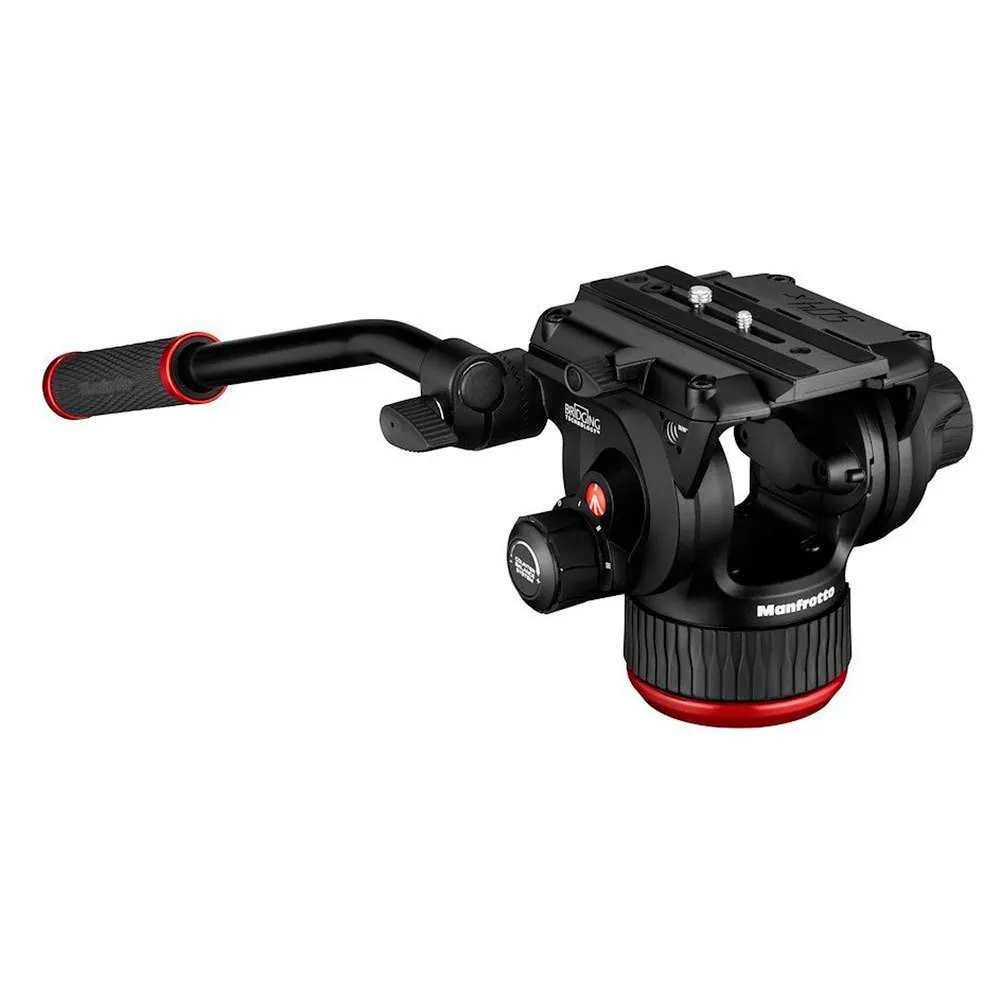

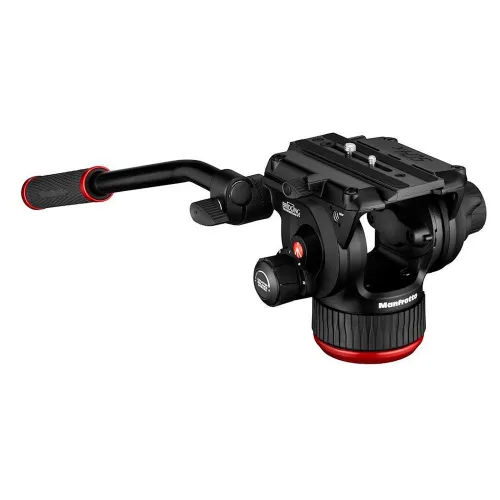

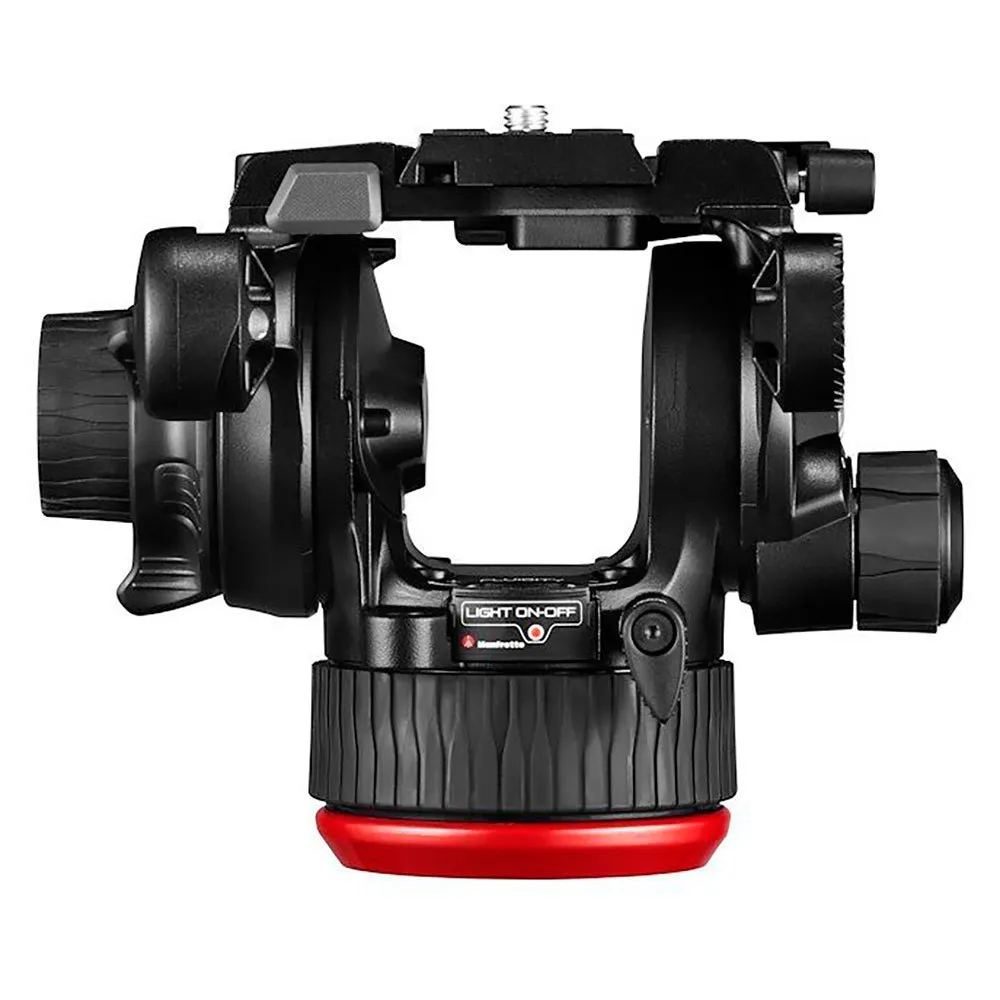

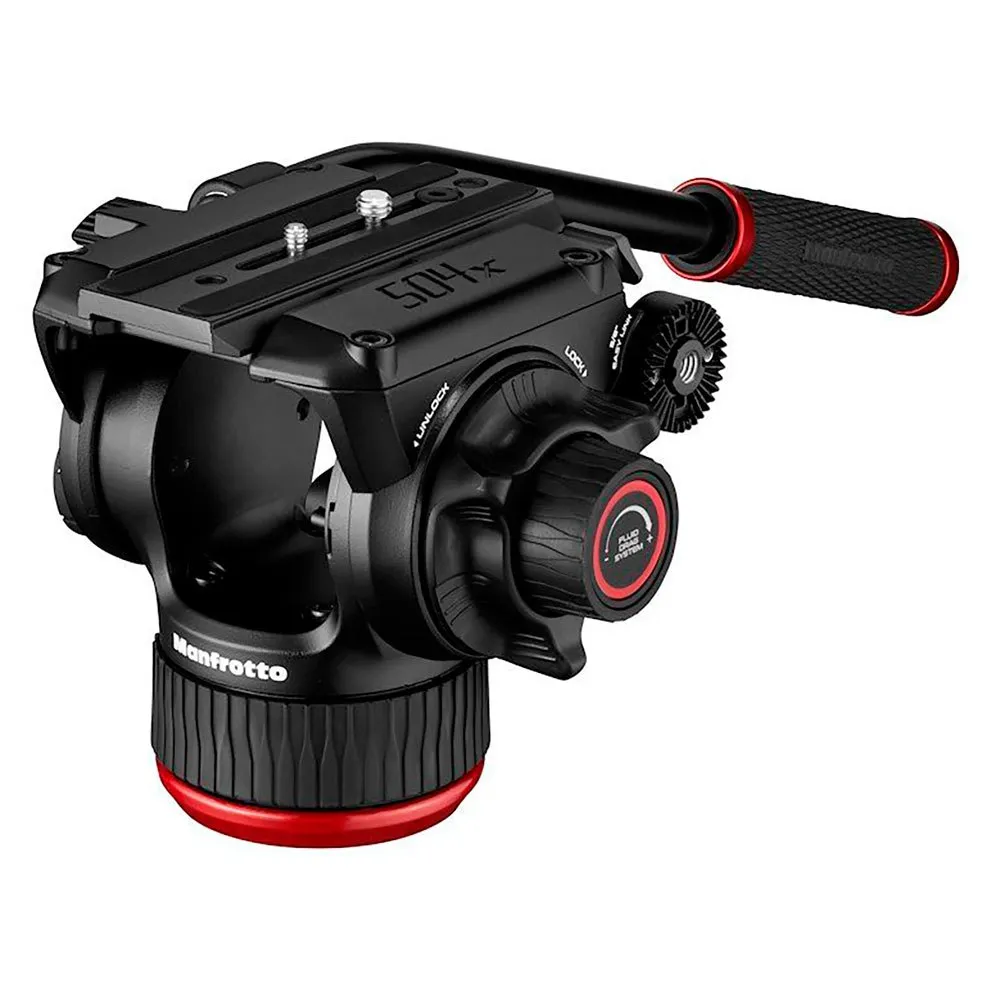

Manfrotto 504X Flat Base Fluid Video Head

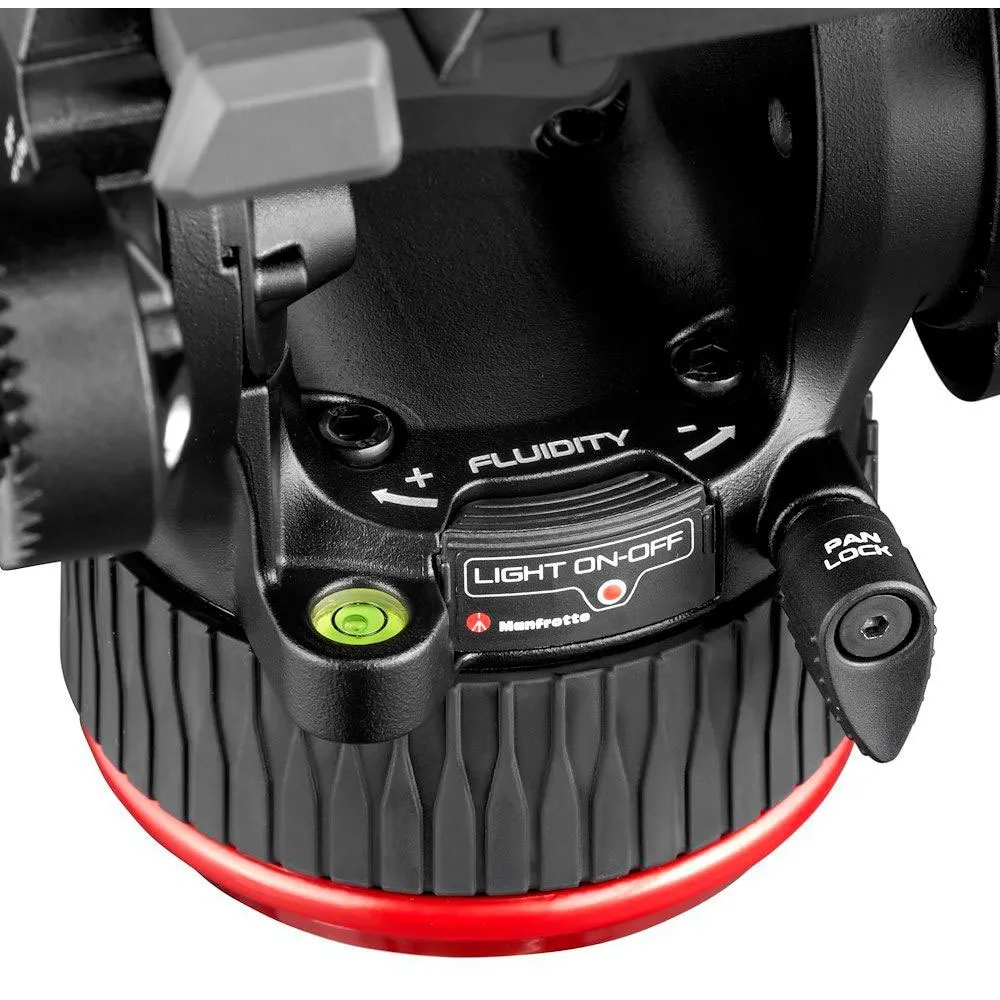

504X fluid video head is the evolution of the hugely successful 504HD. It´s a more compact and lighter version that finally comes with flat base (base diameter 75 mm), developed to meet the needs of the most demanding videographers.The head is made from a brand-new catching aluminium design, and has a maximum payload of 12kg.Utilising Manfrotto’s new fluid technology, the camera head allows you to capture judder-free smooth motion pans and tilts. It´s never been easier for the operator to create premium-quality video capture, thanks to a 4-step counterbalance system which can carry payloads of up to 6.5 kg at 55mm C.0.G. That makes using a wide range of different cameras easier and more practical.Two easy link 3/8´´ thread connections allow an external monitor or other accessory equipment to be fitted on the head side. On the left side there is a cap cover on the 3/8” easy link connector to avoid cutting during usage.The sliding-plate side-lock attachment enables quicker set up of the camera, keeping video equipment stable and balanced. Head leveling is simple thanks to the clever backlit levelling bubble.


Features:

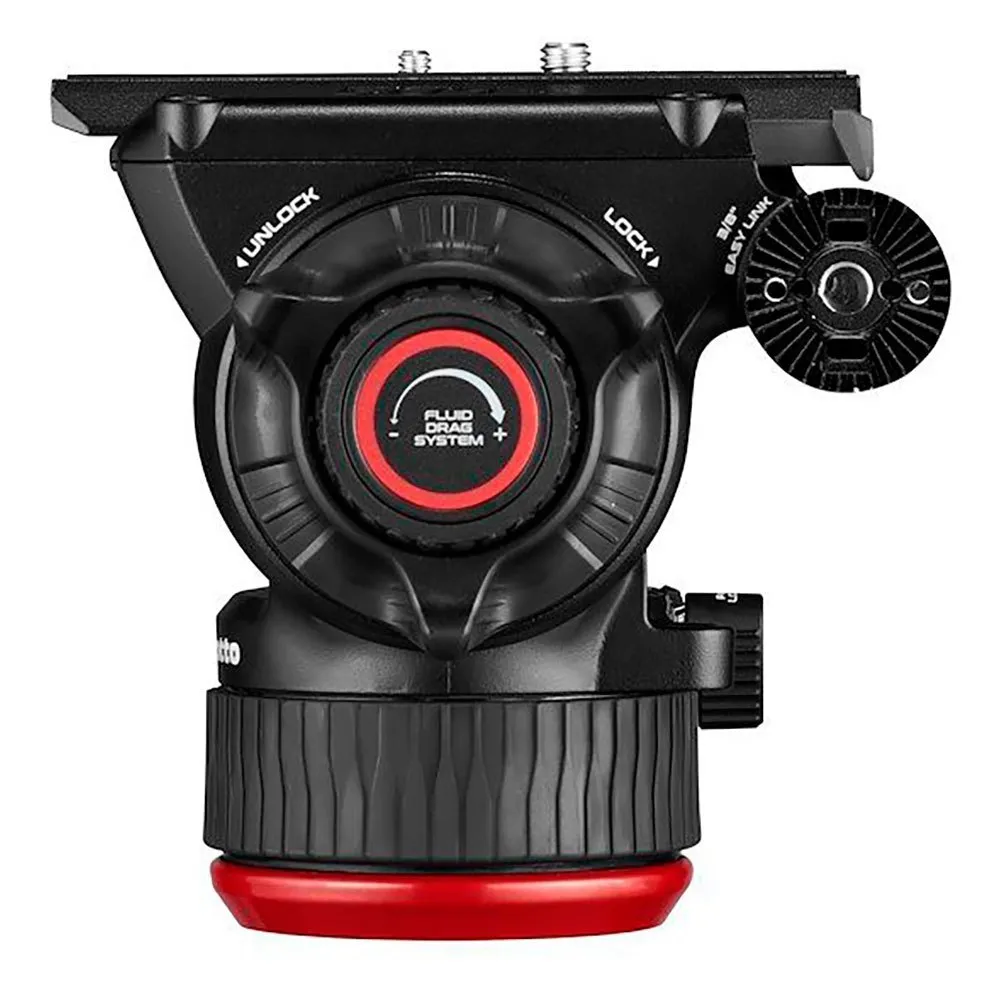

- Variable fluid Drag System on PAN & TILT, performed by new fluid

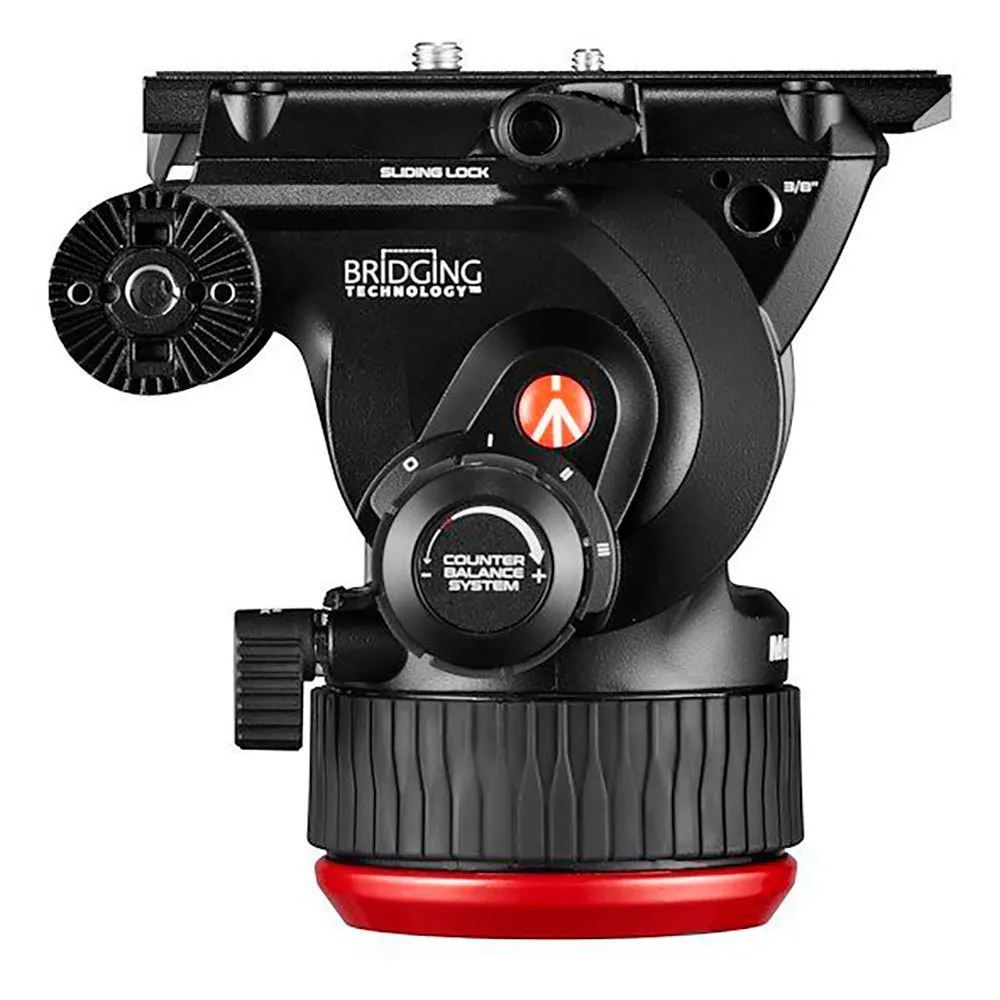

- 4 steps counterbalance system up to 6,5 kg
- Flat base for shooting on sliders, jibs or other accessories

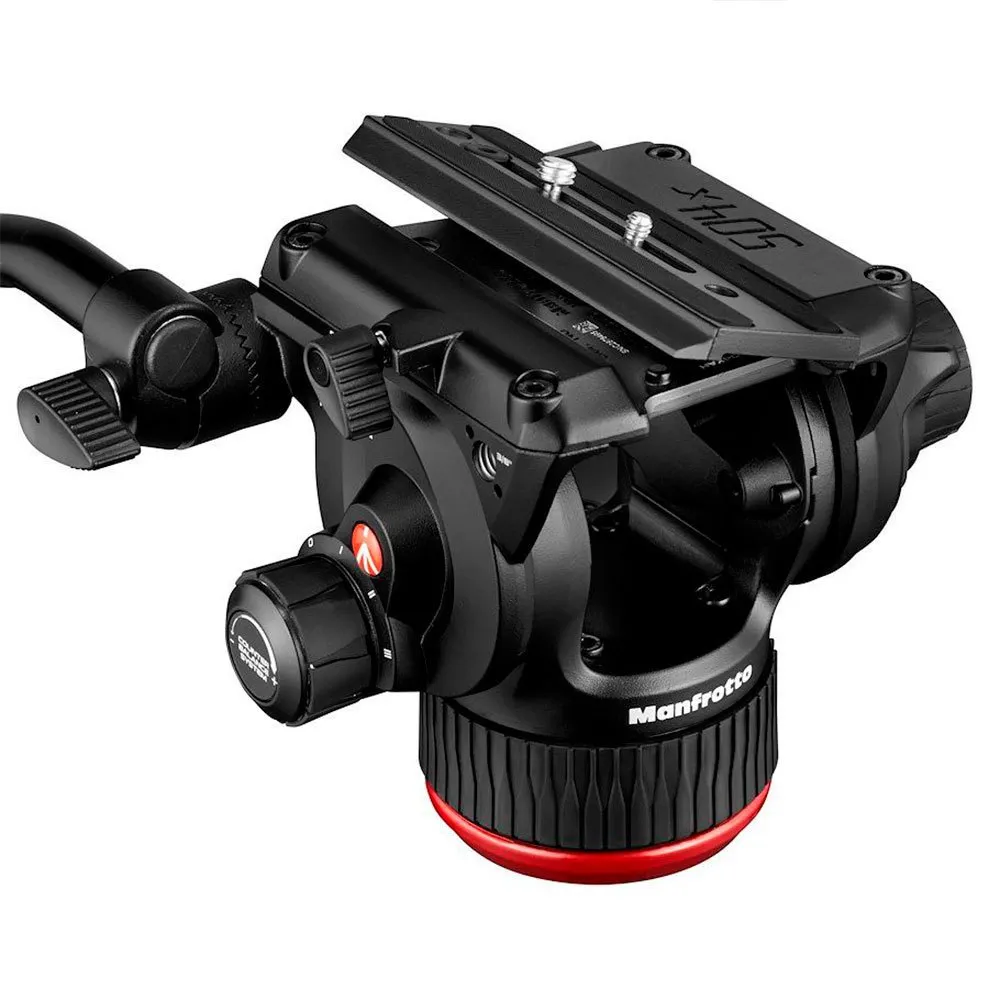

- Sliding plate side lock attachment
- Easy link connectors with Manfrotto anti rotation technology


Specifications:

- Weight: 2 kg
- Counterbalance System: Variable Steps
- Counterbalance Weight: 2.2, 4.4, 6.5 kg
- Base Diameter: 75 mm
- Material: Aluminium
- Bubble Spirit Level (No.): 1
- Center Of Gravity: 55 mm
- Safety Payload Weight: 12 kg
- Powered By (Batteries): Lithium
- Certifications: WEEE; RoHS
- Top Attachment: 1/4″ screw, 3/8″ screw
- Easy Link: Yes
- Front Tilt: -70° / +90°
- Ball Flat: Flat
- Head Type: Video/Fluid Head
- Maximum Working Temperature: 60 °C
- Minimum Working Temperature: -30 °C
- Pan Bar Included: Yes
- Pan Drag: continuously adjustable from 0 to max level
- Panoramic Rotation: 360 °
- Plate Type: 504PLONGR-1
- Quick Release: Yes
- Tilt Drag: continuously adjustable from 0 to max level
- Working Height: 14.9 cm
- Accessory Compatibility: MVAPANBARM; MVAPANBARL
