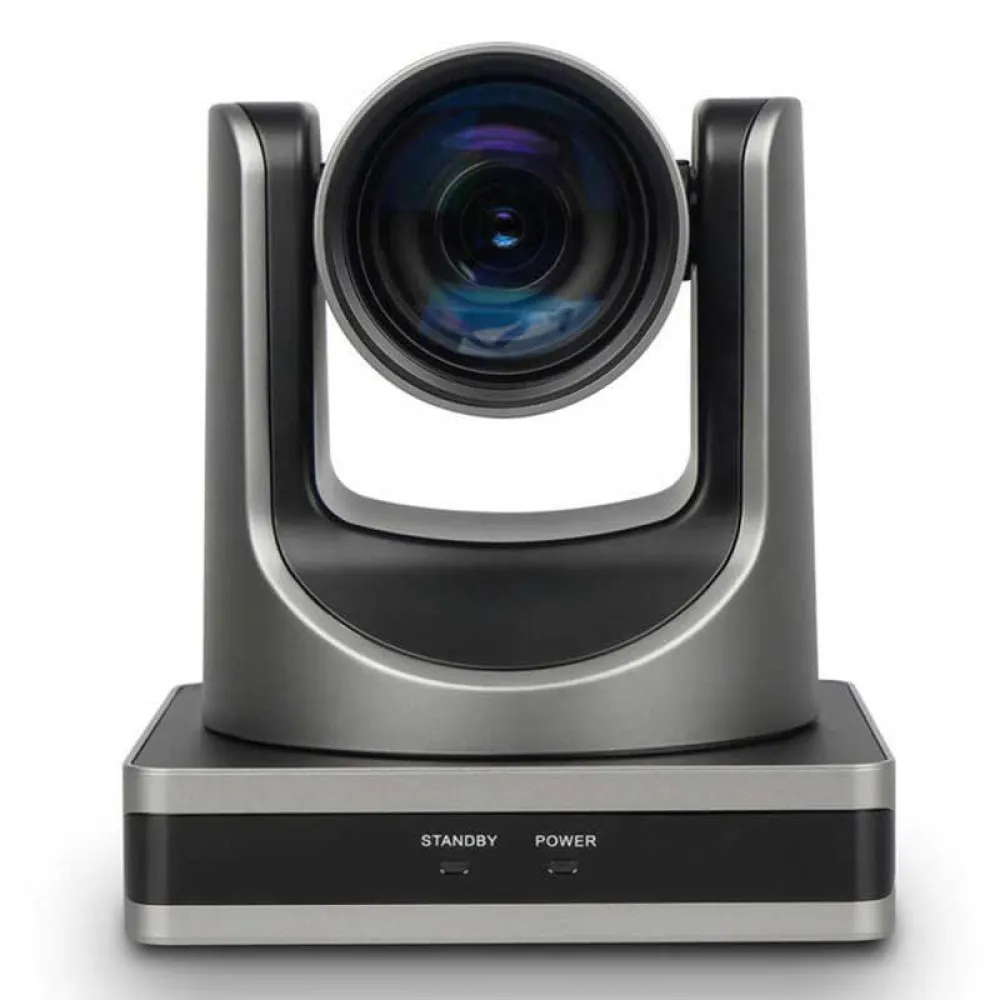

Maxhub UC P15 security camera

PTZ Full HD Camera with Crystal-Clear Video Images for Medium and Large Meeting Rooms

Crystal-Clear Focus:

From wide shots to close-ups.
Professional-grade optical technology delivers superior wide-angle videos and ultra-sharp close-ups.
Even in large conference rooms, the 12x optical zoom and 16x digital zoom can reach the farthest corners, while the autofocus response keeps zoomed images sharp and clear.

Adaptable PTZ Movement for Precision Images:

The P15 UC automatically adjusts pan and tilt speeds based on the zoom level, with a preset accuracy of 0.1° for more precise images.
The camer´s 90° tilt angle further enhances coverage and overhead viewing.

USB Type-C Interface with Lock for Secure Connection:

The latest USB 3.0 interface includes a locking screw that securely connects the USB-C cable to the camera, preventing accidental disconnection.
Backward compatible with standard USB 2.0, the ultra-fast USB 3.0 interface is compatible with all major UC applications.

Effortless Streaming Video:

With the built-in video over IP streaming encoder, streamed content can be live-streamed on popular platforms like YouTube, Vimeo, Facebook, and Twitch.

One Cable for Everything:

The Power over Ethernet (PoE) one-cable solution reduces installation costs and allows for flexible deployment in a variety of scenarios.
Supports multiple power inputs for redundancy.

Multiple Control Options:

Customize camera operation according to the environment with multiple control options, including web interface, software and USB, IP network, serial control, and infrared remote control.

Easy-Access Device Management:

Use MAXHUB ALIGN to update and optimize the status of your video conferencing devices and to fine-tune the camer´s performance to look your best on video calls.
To meet your hybrid meeting needs, the device can be remotely managed through MAXHUB PivotCompatible with popular video conferencing platforms.

Works with the platform you have.

The P15 UC is compatible with Zoom, Microsoft Teams, RingCentral, Cisco Webex, Google Meet and other popular platforms.

Specifications:

Camera:

- Full HD 1/2.8´´, CMOS, Pixel: 2.07M.
- Video system: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50.
- Progressive scan.
- 12x optical zoom.
- 192x total zoom (16x digital).
- Lens: f3.5mm ~ 42.3mm, F1.8 ~ F2.8.
- Minimum illumination: 0.5Lux @ (F1.8, AGC ON).
- Shutter: 1/30s ~ 1/10000s.
- White balance: Auto, Indoor, Outdoor, One Push, Manual, VAR.
- Backlight compensation.
- 2D and 3D digital noise reduction.
- Video S/N: ≥55dB.
- Horizontal viewing angle: 72.5°~ 6.9°.
- Vertical viewing angle: 44.8°~ 3.9°.
- Diagonal viewing angle: 85.2°.
- Pan: ±170°.
- Tilt: -30°(down) +90°(up).
- Pan speed range: 2.7° ~ 35.7°/s.
- Tilt speed range: 2.7° ~ 31.5°/s.
- Horizontal and vertical rotation.
- Support image freeze.
- Number of presets: up to 255.
- Preset accuracy: 0.1°.

USB Features:

- Operating system: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android.
- Video format: YUY2, MJPEG, H.264.
- Resolution: Max. 1080P@60fps.
- USB Type C 3.1 Gen 1, backward compatible with USB 2.0.
- UVC 1.1~1.5.
- UAC 1.0.

Network Features:

- Video compression: H.264/MJEPG.
- Dual stream video.
- Main stream resolution: 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360.
- Sub stream resolution: 1280x720, 1024x576, 720x480, 720x408, 640x360, 320x240, 320x180.
- Video bit rate: 32Kbps ~ 102400Kbps.
- Bit rate type: Variable bit rate, Fixed bit rate.
- Frame rate: 50 Hz: 1 ~ 50fps, 60Hz: 1 ~ 60fps.
- Audio compression: AACAudio Bitrate:

96Kbps, 128Kbps, 256Kbps.

Supported Protocols:

TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, Multicast, etc.

Power:

Simultaneous Input Power:
DC 12V Power Plug / USB DC 5V / PoE (802.3af).
Current Consumption:
12V 1.0A (Max.) / 5V 1.5A (Max.).
Power Consumption:
12W (Max.).

Input/Output Port:

USB 3.1 Type C.
HDMI 1.4b.
RJ45, 10/100Mbps Ethernet.
3.5mm Jack Connector, Input.
RS232, 8-pin mini DIN.
RS485, 2-core Phoenix Port.
Power Plug, EITA Female for DC 12V.

Dimensions and Weight:

Dimensions L×W×D:
144x144 x 167.9 (mm).
Weight: 1.41Kg
