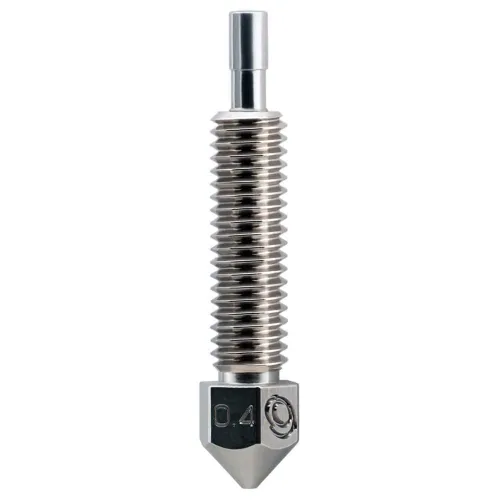

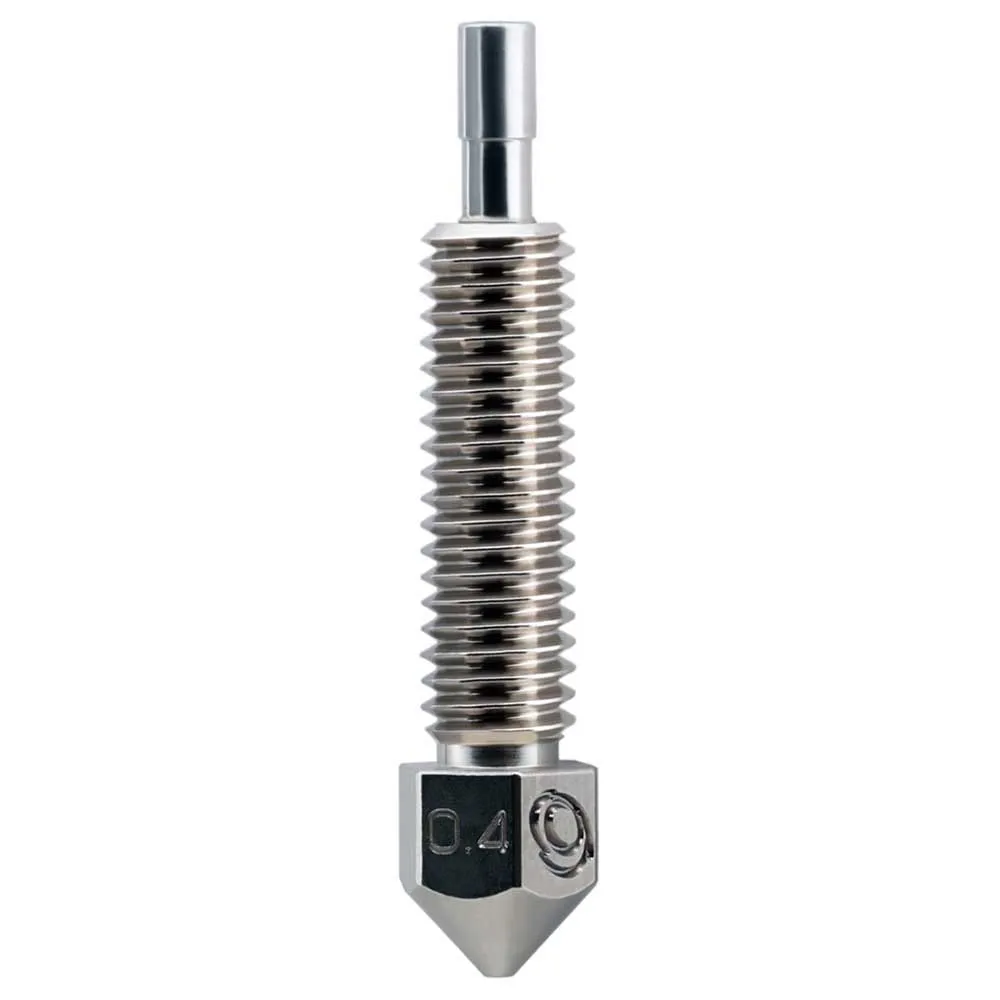

Micro Swiss FlowTech™ High Flow CHT 3D Printer Nozzle 0.4 mm

EU Plug.



Unleash unprecedented speed and superior quality in your 3D printing with the MICRO SWISS FlowTech™ High Flow CHT 3D Printer Nozzle. With a precise 0.4 mm orifice, this component is engineered for enthusiasts and professionals who demand maximum performance from their equipment. Born from a powerful partnership where Micro Swiss and Bondtech have partnered to bring the High Flow nozzle to the FlowTech™ ecosystem, this nozzle sets a new standard for high-speed extrusion.

This new nozzle incorporates proprietary CHT technology, specifically designed to enhance the filament flow rate far beyond traditional designs. By pushing the boundaries of what´s possible, you can dramatically reduce print times while simultaneously improving the structural integrity of your finished parts. Elevate your 3D printing from a hobby to a high-efficiency production tool.

Key Benefits

Exceptional High-Flow Performance
The FlowTech™ nozzle, equipped with Bondtech CHT technology, can achieve a maximum volumetric flow rate of up to 50 mm³/sec. This revolutionary Core Heating Technology works by splitting the filament into three separate channels, increasing the surface area for melting. This allows the filament to melt from the inside out, achieving a much faster and more complete melt. The direct result is the ability to print at significantly higher speeds without under-extrusion, unlocking the full potential of your 3D printer.

Better Layer Adhesion
Achieve stronger, more durable prints. A more uniform layer deposition is achieved by splitting the filament flow into multiple chambers as it passes through the melt zone. This innovative process ensures a thoroughly and evenly heated filament, which then lays down more consistently. This reduces gaps and weak points between layers, drastically improving interlayer bonding and the overall mechanical strength of the final object.

Main Features

Advanced Non-Stick Plating
The nozzle features a robust brass body that is plated with a premium Non-stick Composite Additive, Twin Clad® XT Plating. This ultra-low friction surface prevents molten plastic from sticking to the nozzle, which significantly reduces blobs, stringing, and clogs. The result is cleaner prints, easier maintenance, and more reliable performance across a wide range of filament types.

Seamless System Compatibility
Engineered as an integral part of the Micro Swiss ecosystem, the FlowTech™ CHT nozzle is compatible with all FlowTech™ hotend models. This guarantees a perfect fit, effortless installation, and performance that is optimized for the entire system, allowing for a straightforward yet powerful upgrade.

Mouthpieces

This high-performance component features a precisely machined 0.4 mm orifice, a versatile size that offers an exceptional balance between capturing fine detail in your models and enabling the rapid printing speeds made possible by the high-flow CHT design.

Technical Specifications:
- Nozzle Orifice Size: 0.4 mm
- Technology: Bondtech CHT (Core Heating Technology)
- Body Material: Brass
- Plating: Twin Clad® XT Non-stick Composite
- Maximum Volumetric Flow Rate: Up to 50 mm³/sec
- Compatibility: Designed exclusively for all MICRO SWISS FlowTech™ Hotends
