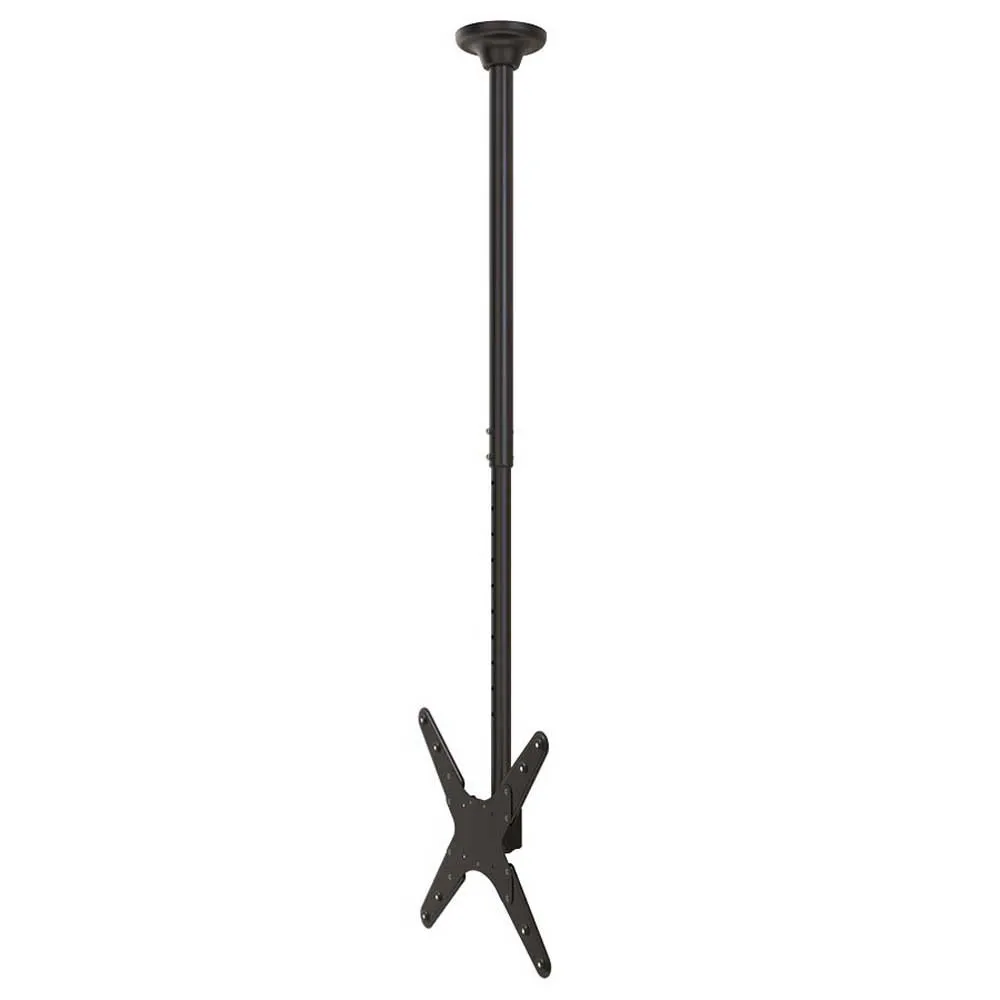

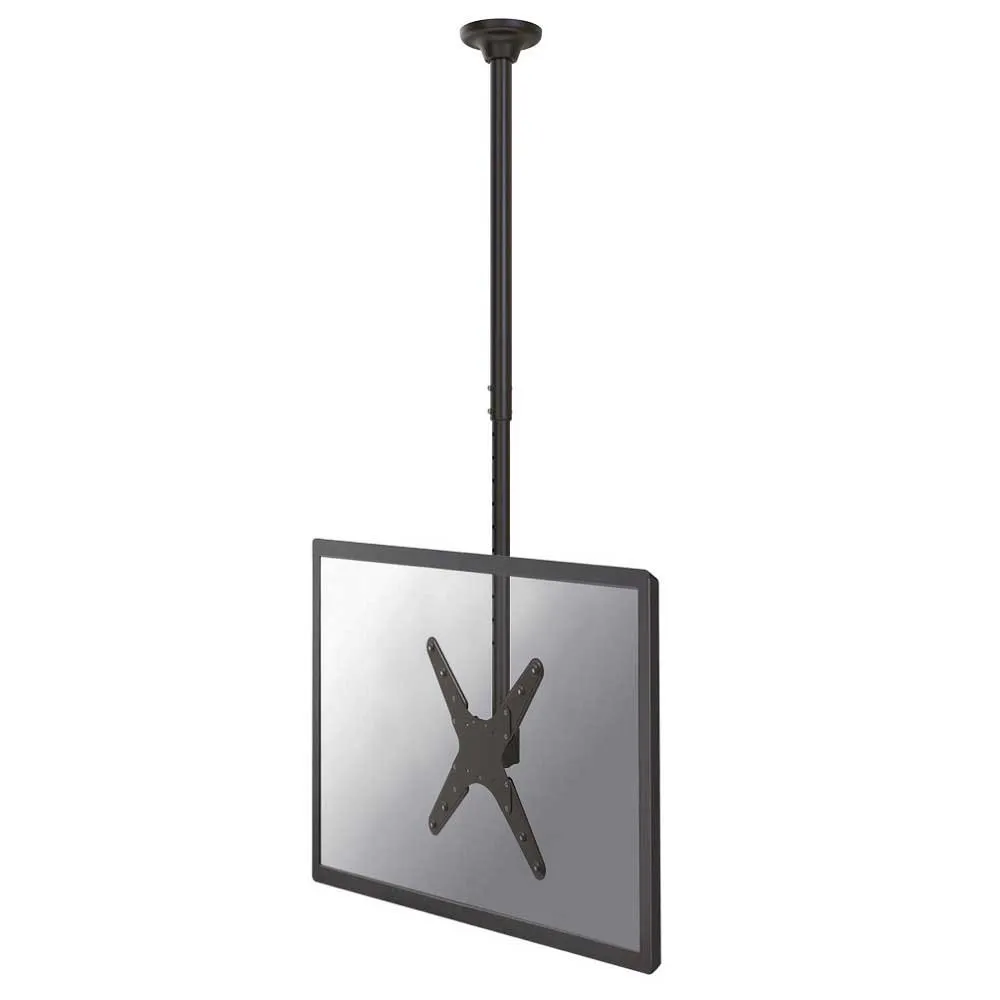

Newstar FPMA-C340 TV Mount

The NewStar FPMA-C340BLACK is a tilt- and swivel ceiling mount for flat screens up to 75”. This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option. NewStars’ unique tilt (25°) and rotation (360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 106 to 156 centimeters. A unique cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy. NewStar FPMA-C340BLACK has 1 pivot point and is suitable for screens up to 75´´. The weight capacity of this product is 50 kg. The ceiling mount is suitable for screens that meet VESA hole pattern 100x100 to 400x400mm.


Specifications:

Mounting:
- Minimum screen size81.3 cm (32´´)
- Maximum weight capacity *50 kg
- Maximum screen size *190.5 cm (75´´)
- Mounting type *Ceiling
- Minimum VESA mount *100 x 100 mm
- Maximum VESA mount *400 x 400 mm
- Panel mounting interface100 x 100,400 x 400 mm
- Number of displays supported1

Ergonomics:
- Height adjustmentYes
- Height adjustment typeManual
- Height adjustment range1060 - 1560 mm
- Tilt angle range0 - 25°
- Swivel angle360°
- Angle of rotation6°
- Number of pivot points1

Design:
Weight & dimensions:
- Height1560 mm

Packaging data:
- Package width250 mm
- Package depth145 mm
- Package height930 mm

Technical details:
- Package net weight12.8 kg

Other features:
Logistics data:
- Master (outer) case gross weight17.6 kg
- Master (outer) case net weight17.6 kg
- Master (outer) case width31 cm
- Master (outer) case length27 cm
- Master (outer) case height95 cm
- Quantity per master (outer) case2 pc(s)
