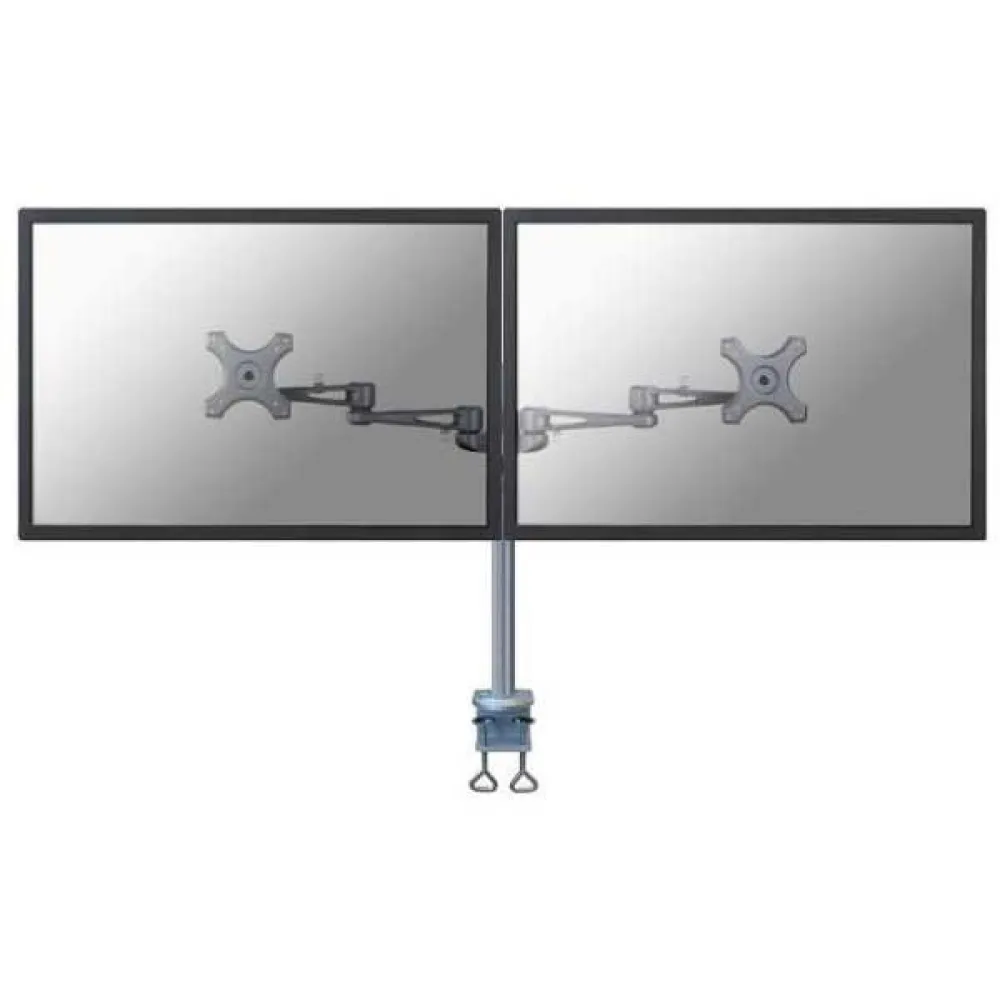

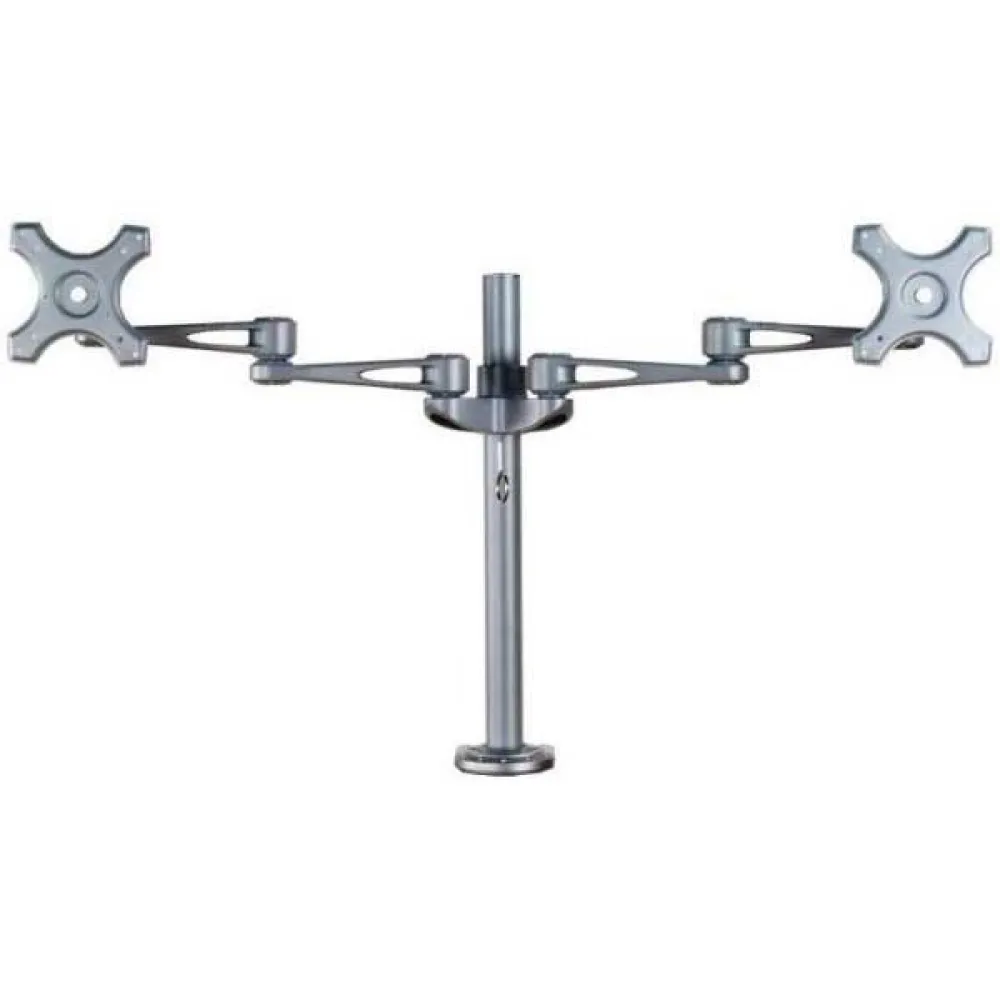

Newstar FPMA-D935D Mount

The NewStar desk mount, model FPMA-D935D is a tilt-, swivel and rotatable desk mount for 2 flat screens up to 27”. This mount is a great choice for space saving placement on desks using a desk clamp.

NewStar´s versatile tilt (180°), rotate (360°) and swivel (300°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 0 to 50 centimetres. Depth adjustable from 12 to 50 centimetres. An innovative cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy.

NewStar FPMA-D935D has three pivot points and is suitable for screens up to 27´´ (69 cm). The weight capacity of this product is 6 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using NewStar VESA adapter plates.

By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.

All installation material is included with the product.


Specifications:

General:
- Min. screen size: 10 inch
- Max. screen size: 27 inch
- Min. weight: 0 kg (per screen)
- Max. weight: 6 kg (per screen)
- Screens: 2
- VESA pattern: 75x75, 100x100 mm
- VESA minimum: 75x75 mm
- VESA maximum: 100x100 mm
- Desk mount: Clamp

Functionality:
- Type: Full motion, Tilt, Rotate, Swivel
- Tilt (degrees): 180°
- Swivel (degrees): 300°
- Rotate (degrees): 360°
- Depth: 12 - 50 cm
- Height: 0 - 50 cm
- Height adjustment: Manual
