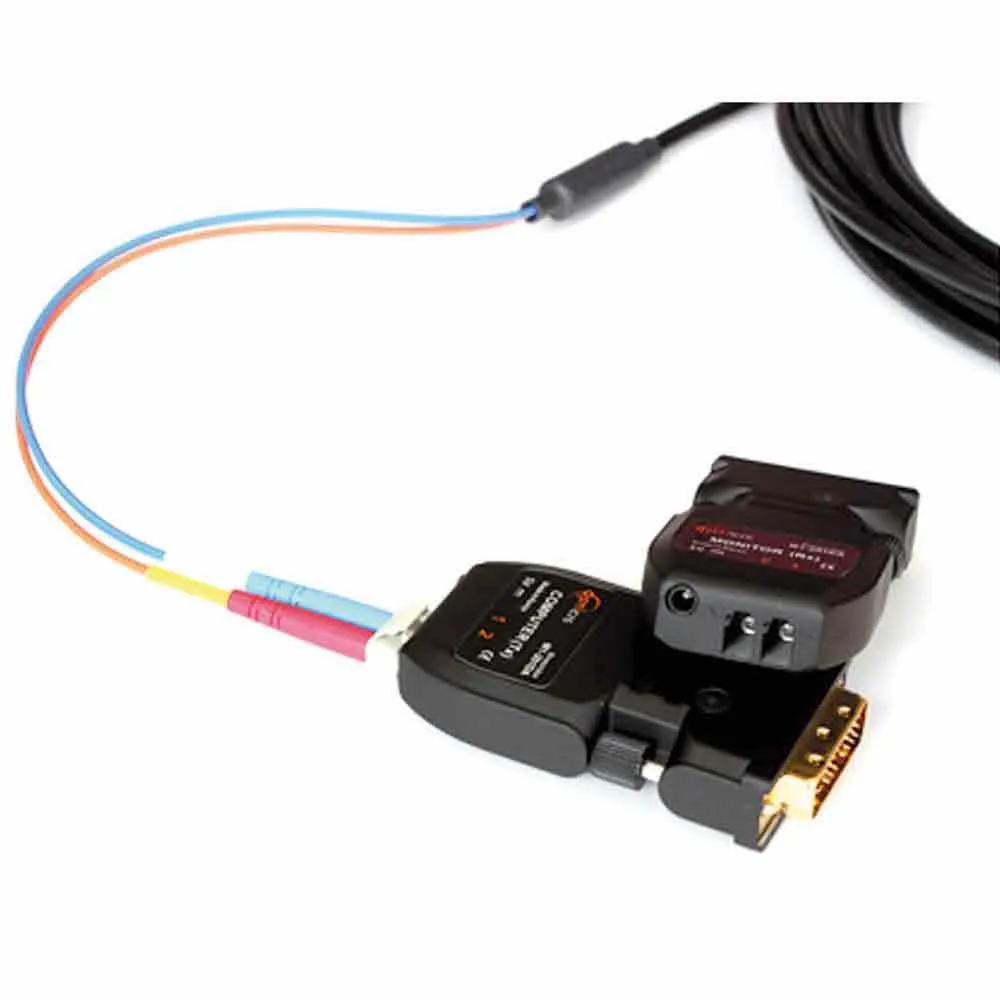

Opticis OP2202 hub

The Digital Visual Interface is a high quality, uncompressed data link between a host processor video card and a display peripheral. Optical technology for this transmission stretches the performance beyond the limitations of copper wire with longer length, data security, negligible RFI/EMI and the elimination of costly analog distribution systems. The EDID in a display can be read and restored by just plugging it in the display. This self EDID programming feature makes the installation of M1-201DA-TR more easy and flexible at any variable resolution display system. An external power adapter is required for the receiver module, while most video cards can provide +5V DC power to the transmitter module.

Specifications:

- Product category: Extenders / DVI
- Connections: DVI
- Connections (in): DVI 18+1-pin male (x1)
- Connections (out): DVI 18+1-pin male (x1)
- Extender category: 1000+ m
- Max. extension distance: 1500 m
- Extension over: Fiber
- Extension cable: Fiber multi mode (x2), Fiber single mode (x2)
- Extension connector: LC
- Extension protocol: Own
- Max. resolution @ 60Hz: 1920 x 1200
- Video signal: DVI
- Supported features: EDID
- DVI specification: DVI-D Single Link
- Power supply: External power supply
- Included: Including two power adapters
